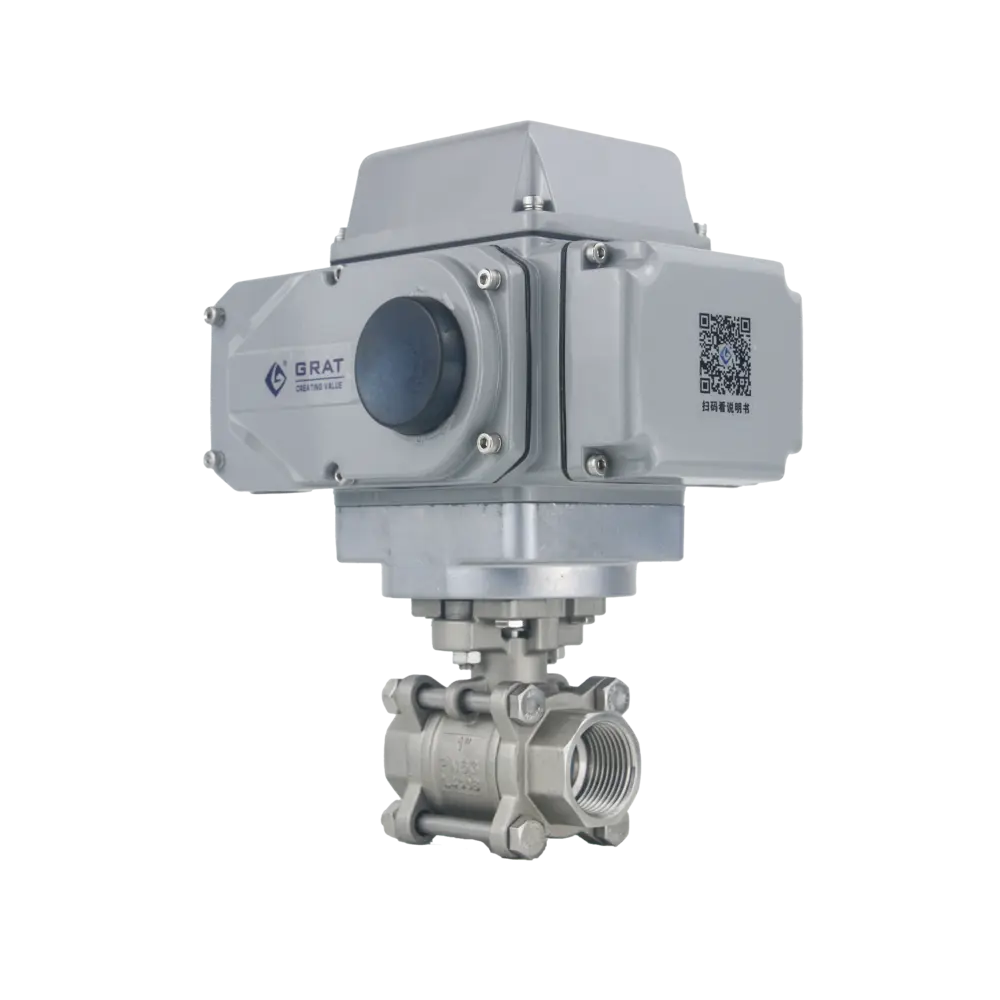

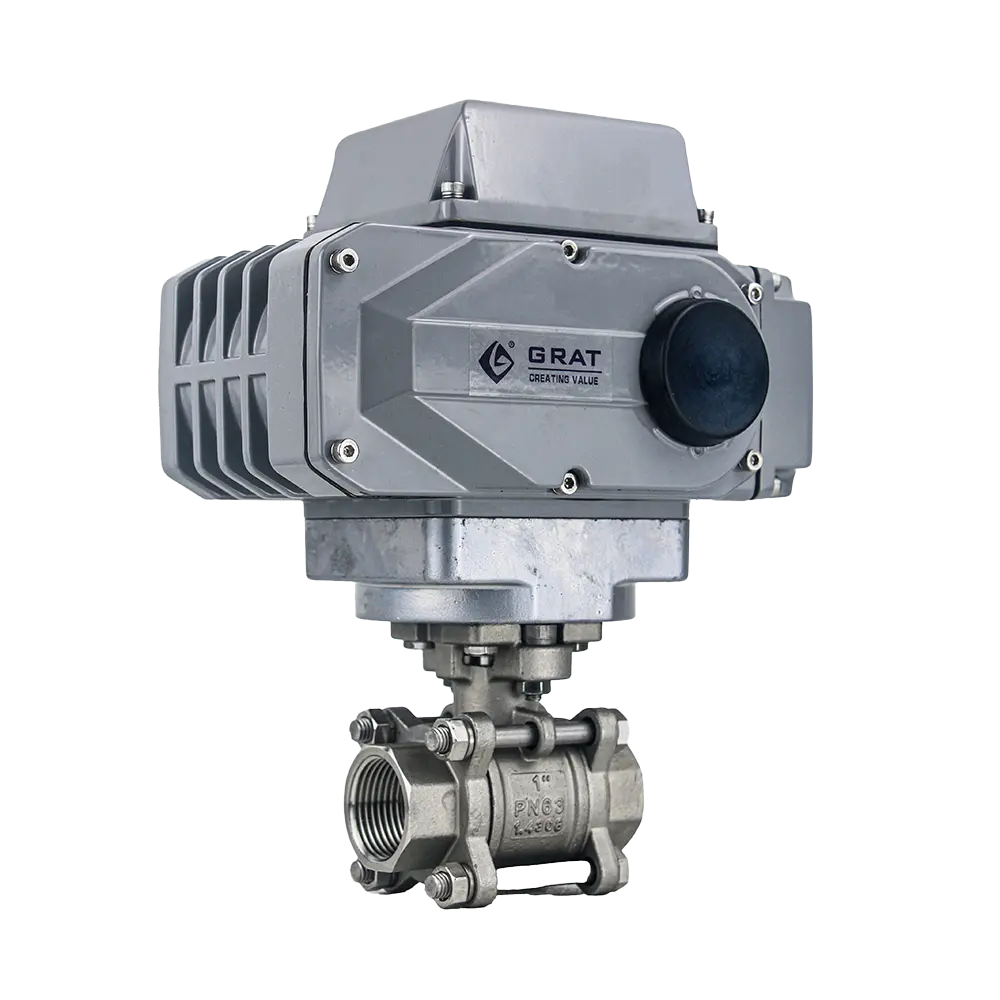

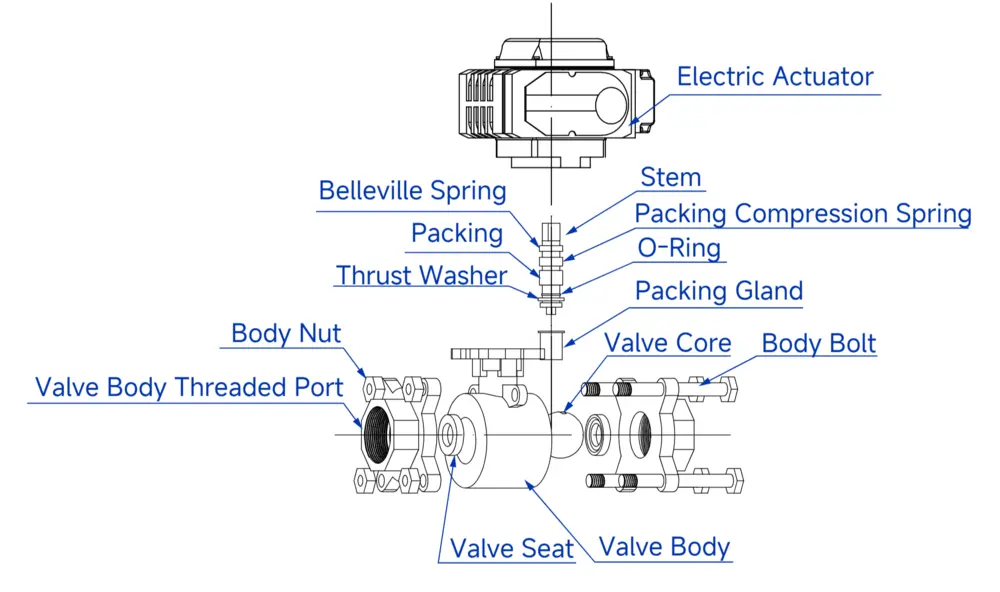

Electric Internal Thread Ball Valve
Electric internal thread ball valves feature threaded connection and electric actuation for opening and closing. They are compact in structure with excellent sealing performance, suitable for quick on-off control of small and medium-sized pipelines.
Tags
Features
- The valve actuator can be installed in multiple positions and is not affected by the flow direction of the medium.
- Simple structure, easy operation and high cost-performance ratio.
- Compact design, attractive appearance and robust structure.
- Equipped with self-cleaning function, which effectively ensures unobstructed pipelines.
Basic Parameters
Operating Voltage:
AC110V, AC220V, AC380V, DC24V
Nominal Bore (DN):
DN15～DN100
Operating Temperature:
-30℃～220℃
Nominal Pressure (PN):
PN1.6～6.4MPa
Applicable Medium:
Neutral Gases and Liquids
Air Supply Pressure:
0.4～0.7MPa
Actuator Seal:
Fluororubber (FKM/Viton)
Actuator Material:
Cast Aluminum Alloy
Connection Type:
Female Threaded Connection
Flow Characteristic:
Quick Open/Close
Material Specifications
Valve Body Materials:
WCB, SUS304 Stainless Steel, SUS316 Stainless Steel
Valve Core Materials:
SUS304 Stainless Steel, SUS316 Stainless Steel
Ball Valve Seal:
PTFE, PPL, etc.
Gland Packing Material:
Graphite, PTFE
Standards Compliance
Design & Manufacturing:
GB12237-2021
API 6D
Product Inspection & Testing:
API 598
Product Features
- Suitable for neutral gas and liquid media
- Fast opening and closing flow characteristic
- Wide operating temperature range (-30℃~220℃)
- Multiple material options for different applications
Main Parameters
| Operating Voltage | AC110V, AC220V, AC380V, DC24V |
| Nominal Diameter | DN15～DN100 |
| Operating Temperature | -30℃ - 220℃ |
| Nominal Pressure | PN1.6 - 6.4MPa |
| Suitable Medium | Neutral gas and liquid |
| Air Supply Pressure | 0.4～0.7MPa |
| Actuator Seal | Fluororubber |
| Actuator Material | Cast aluminum alloy |
| Connection Type | Internal thread connection |
| Flow Characteristic | Quick on-off |
| Valve Body Material | WCB, SUS304 Stainless Steel, SUS316 Stainless Steel |
| Valve Core Material | SUS304 Stainless Steel, SUS316 Stainless Steel |
| Ball Valve Seal | PTFE, PPL, etc. |
| Packing Material | Graphite, PTFE |
| Design and Manufacturing Standard | GB12237-2021, API 6D |
| Product Inspection and Test | API 598 |

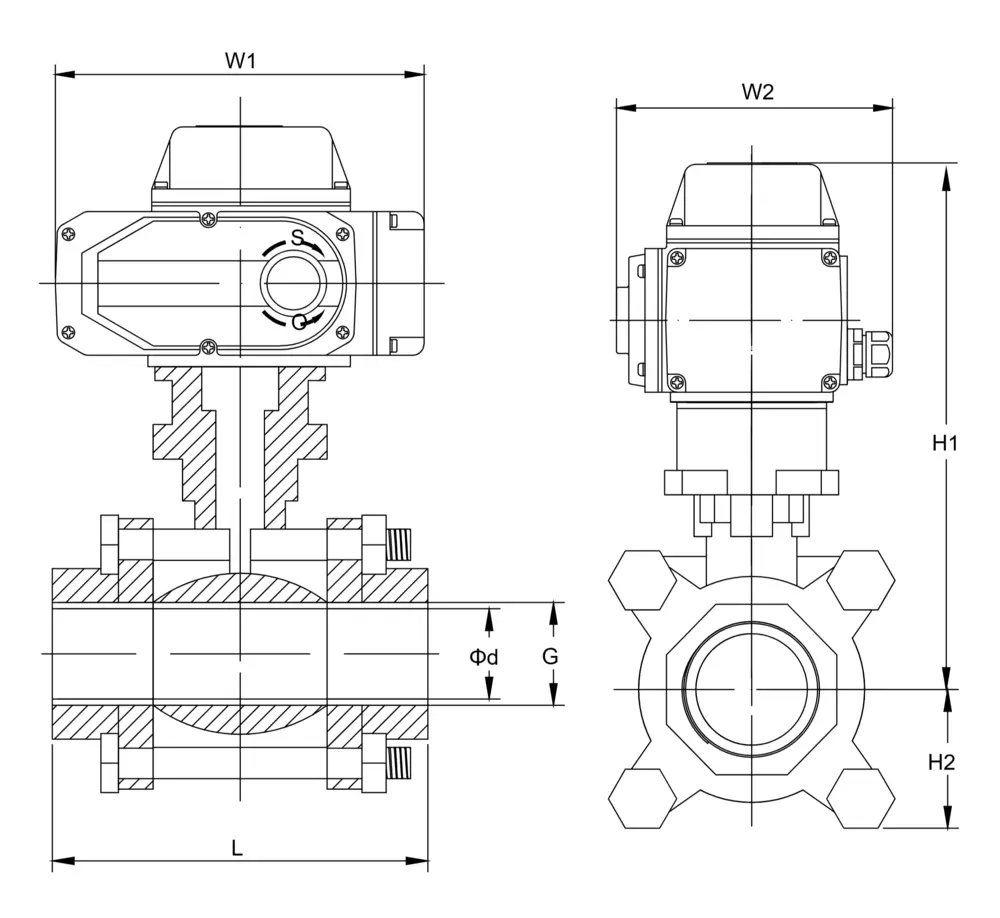

1.Installation Dimension Drawing of Electric Internal Thread Ball Valve
| Nominal Diameter (DN) | L | G | Φd | H2 | H1 | W1 | W2 |
| 15 | 73 | Thread Standard NPT BSP DIN etc | 15 | 38 | 202.5 | 196 | 145 |
| 20 | 80 | 20 | 45 | 204 | 196 | 145 | |
| 25 | 90 | 25 | 55 | 214 | 196 | 145 | |
| 32 | 110 | 32 | 60 | 228 | 196 | 145 | |
| 40 | 120 | 38 | 75 | 237 | 196 | 145 | |
| 50 | 140 | 50 | 83 | 245 | 196 | 145 | |
| 65 | 185 | 64 | 96 | 310 | 255 | 182 | |
| 80 | 205 | 72 | 106 | 313 | 255 | 182 | |
| 100 | 240 | 100 | 118 | 332 | 255 | 182 |
Circuit Diagram
S
MS
PIU
CPT
PCU
G
SP
