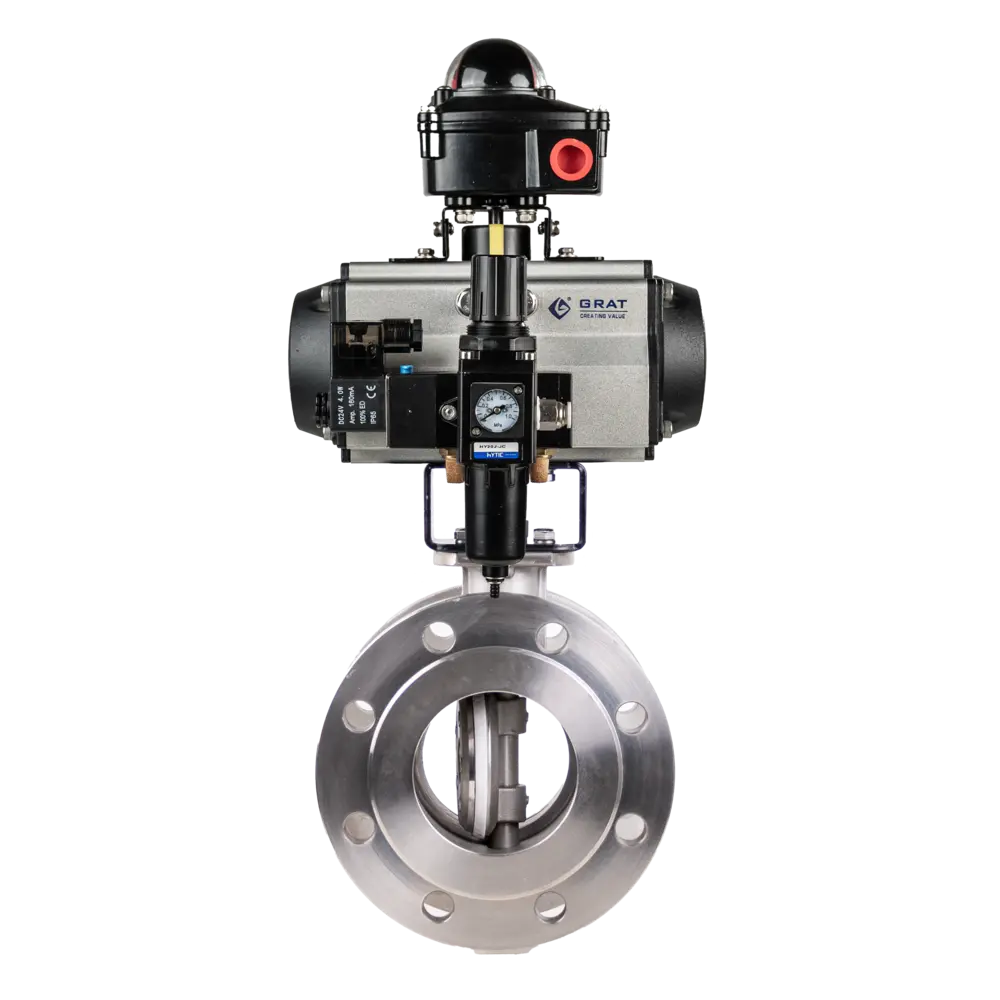

Pneumatic Flange Hard Seal Butterfly Valve3

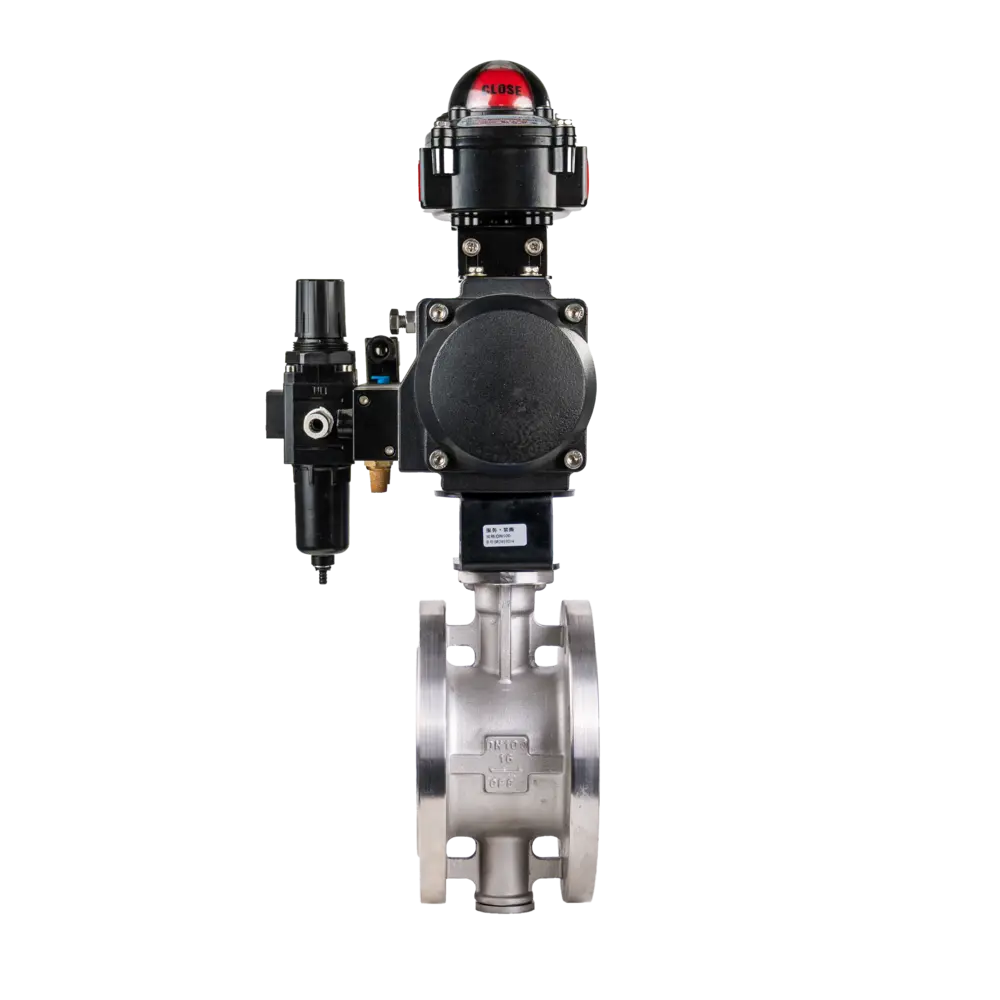

Pneumatic Flange Hard Seal Butterfly Valve1

Pneumatic Flange Hard Seal Butterfly Valve2

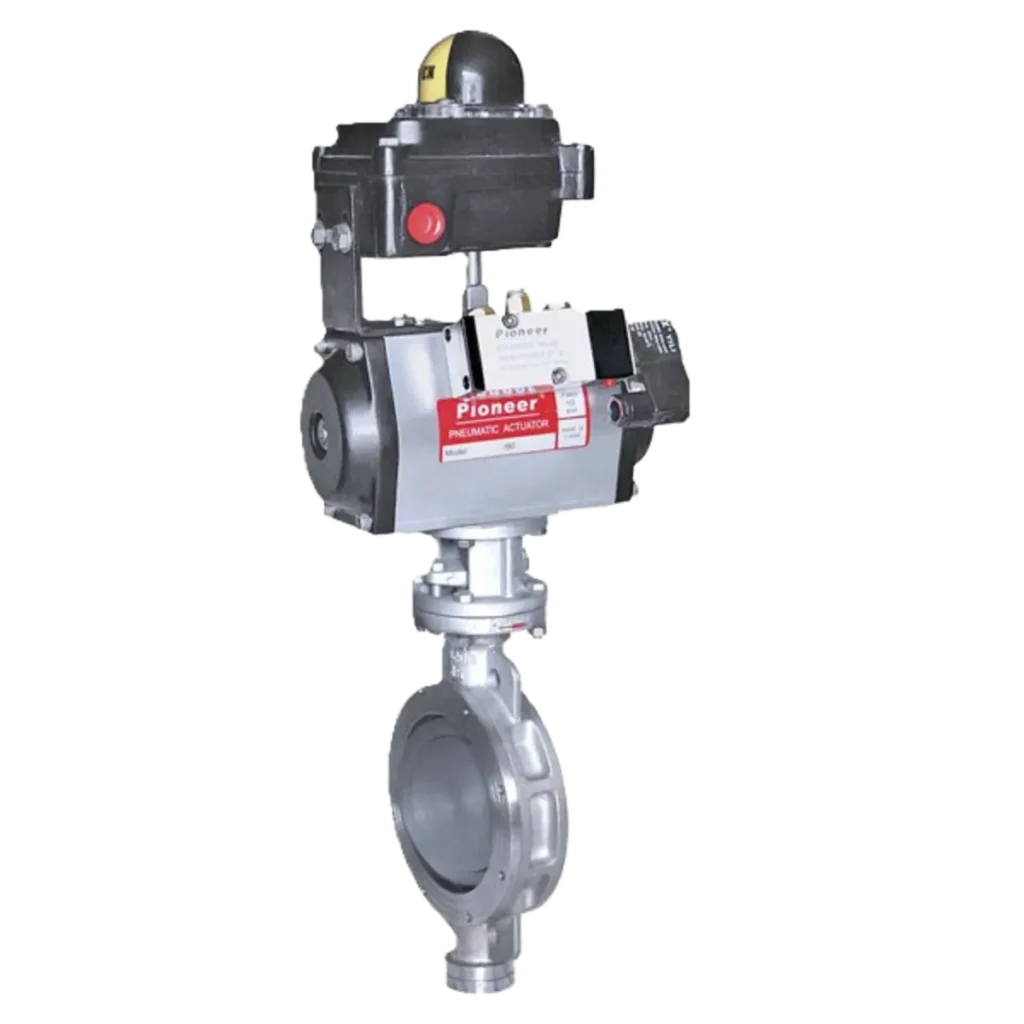

Pneumatic Hard Seal Butterfly Valve

The Hard Seal Pneumatic Butterfly Valve is built for high-temperature, high-pressure and corrosive service. Its metal-to-metal seal (stainless steel or cobalt-based alloy) and integrated pneumatic actuator deliver 90° fast cycling and precise flow control. Ideal for petrochemical, power, metallurgy and water treatment. Corrosion-resistant, long-life, and safety-compliant.

Live Chat

Product Introduction

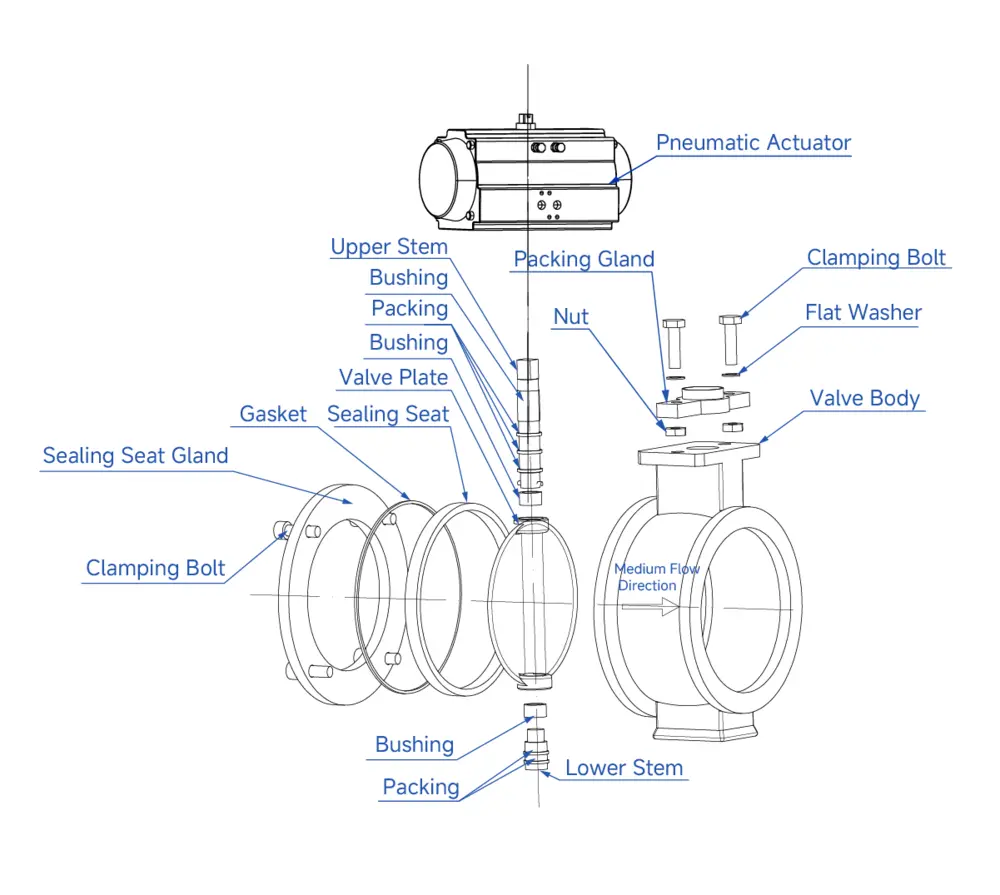

The pneumatic wafer-type metal-seated butterfly valve uses a U-shaped stainless steel seal ring that engages the polished disc on a triple-offset geometry. The seal surfaces separate instantly on opening and reseat on closing—removing the sliding friction of conventional eccentric designs over the first 0°–10° of travel. This extends service life and optimizes sealing. Rated to 550°C, it serves metallurgy, power, petroleum, chemical, gas and water systems as a flow-control and shut-off device.

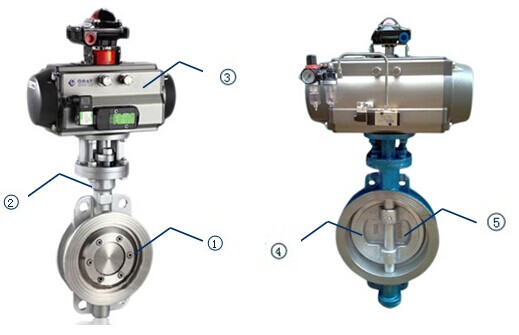

Features

① Stainless steel/graphite laminated seal ring — combines metal hard-sealing with elastic sealing; reliable across low and high temperatures, with wear, corrosion and long-life performance.
② Extended stem — increases distance between actuator and hot media for improved heat dissipation.
③ Spring-return (single-acting) actuator — fails closed on air-supply loss.
④ Low opening torque — cone-faced disc disengages fully from the seat on opening, preventing solids buildup on the sealing face.
⑤ Triple-offset design — near-zero friction between seat and disc, with a self-energizing seal that tightens as the valve closes.

Additional Features

Elastic compression of the seal ring on closing prevents disc/seat jamming.
Seat is replaceable by removing the insert—no body or shaft disassembly required.
Offset shaft and disc geometry keep the seat clear of the disc in open and intermediate positions.
Rack-and-pinion double-piston actuators in double-acting and spring-return (single-acting) versions—geared for safe, reliable operation.
Aluminum alloy cylinder—lightweight; manual override mountable on top or bottom.
Rack-and-pinion geometry allows adjustment of opening angle and flow rate.
Available with limit switches / signal feedback and accessories for automated control.
ISO 5211 mounting interface for easy installation and interchangeability.
End screws allow ±4° travel adjustment at 0° and 90° for synchronized valve alignment.

Basic Parameters

Nominal Bore (DN): DN50～DN1200

Operating Power: AC110V, AC220V, AC380V, DC24V

Nominal Pressure (PN): 0.6~4.0Mpa

Control Method: Modulating or On/Off Control

Pneumatic Action Mode: Single Acting (with spring return) or Double Acting

Connection Types: Wafer Type / Flange Type (Optional)

Seal Type: Metal Hard Seal

Operating Temperature: ≤540℃

Protection Grade: IP67

Material Specifications

Body & Internal Components

Valve Body Material: Carbon Steel, CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel

Valve Plate Material: Carbon Steel, CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel

Sealing Ring Material: Various Stainless Steel Composites

Gland Packing Material: Flexible Graphite

Suitable Media

Water
Oil
Gas
Various high-temperature or impurity-containing media

Standards Compliance

Design & Manufacturing:

GB/T 12238-2008 API 609

Inspection & Testing:

GB/T 13927-2008 API 598

Flange Connection:

GB/T 9124.1-2019 GB/T 9124.2-2019 ASME B16.50 ASME B16.47

Main Parameters

Nominal Diameter (DN)	DN50～DN1200
Operating Power Supply	AC110V, AC220V, AC380V, DC24V
Nominal Pressure	0.6/1.0/1.6/2.5/4.0MPa
Control Mode	Regulating or On/Off Control
Pneumatic Action Mode	Single Acting (with spring return) or Double Acting
Connection Mode	Wafer Type / Flanged Type (Optional)
Sealing Form	Metal Hard Sealing
Test Pressure	Sealing: 0.66, 1.1, 1.76, 2.2, 2.75, 4.4, 5.5 MPa
Test Pressure	Shell: 0.9, 1.5, 2.4, 3.0, 3.75, 6.0, 7.5 MPa
Applicable Temperature	≤540℃
Applicable Medium	Water, Oil, Gas and various high-temperature or impurity-containing media
Valve Body Material	Carbon Steel, CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel
Valve Plate Material	Carbon Steel, CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel
Sealing Ring Material	Various Stainless Steel Composites
Gland Packing Material	Flexible Graphite
Protection Grade	IP67
Design and Manufacturing Standards	GB/T 12238-2008, API 609
Inspection and Testing Standards	GB/T 13927-2008, API 598
Flange Connection Standards	GB/T 9124.1-2019, GB/T 9124.2-2019, ASME B16.50 and ASME B16.47

Dimension Drawing

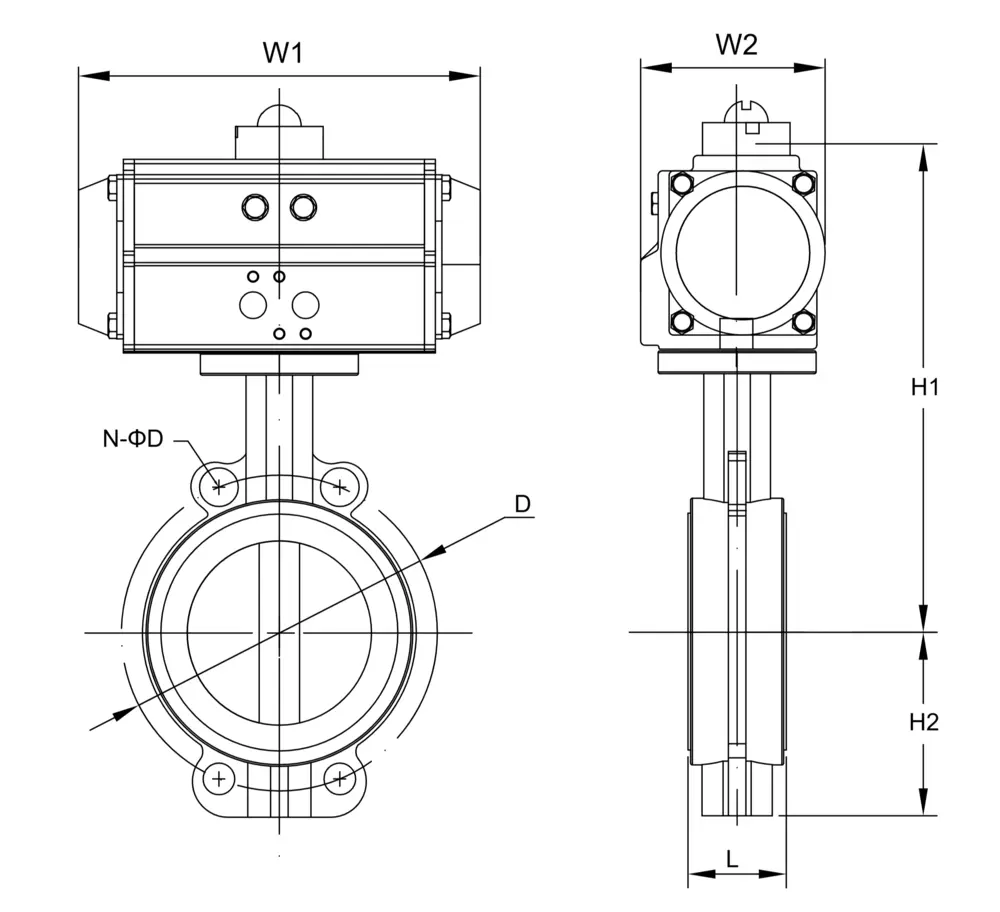

1、Installation Dimensions of Wafer Type Hard Seal Pneumatic Butterfly Valve

Nominal Diameter (DN)	L	D	N-ΦD	H2	Double Acting			Single Acting
Nominal Diameter (DN)	L	D	N-ΦD	H2	H1	W1	W2	H1	W1	W2
50	43	125	4-Φ18	112	240	168	83	252	184	95
65	46	145	4-Φ18	115	269	184	95	286	262	109
80	56	160	4-Φ18	120	283	204	103	307	268	122
100	64	180	4-Φ18	138	326	262	109	384	301	142
125	70	210	4-Φ18	164	341	262	109	399	301	142
150	71	240	4-Φ22	175	376	268	122	435	390	152
200	76	295	4-Φ22	208	442	301	142	484	458	174
250	83	355	4-Φ26	243	509	390	152	567	525	206
300	92	410	4-Φ26	283	614	458	174	672	532	226
350	102	470	4-Φ26	310	677	525	206	737	602	260
400	114	525	4-Φ30	340	652	525	206	712	602	260

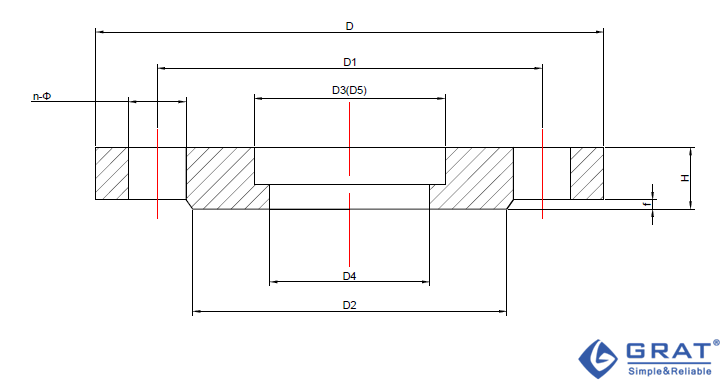

Suitable Flanges for Wafer Type Butterfly Valve

Nominal Diameter (mm)	D	D1	D2	D3	D4	n-Φ	H	f	D5	b
50	165	125	59	52	52	4-Φ 18	20	3	62	8
65	185	145	122	75	67	4-Φ 18	20	3	78	8
80	200	160	133	91	82	8-Φ 18	20	3	91	8
100	220	180	158	110	102	8-Φ 18	22	3	116	8
125	250	210	184	135	127	8-Φ 18	22	3	142	8
150	285	240	212	161	152	8-Φ 22	24	3	170	10
200	340	295	268	221	208	12-Φ 22	26	3	221	10
250	405	355	320	275	255	12-Φ 26	29	3	275	10
300	460	410	370	327	308	12-Φ 26	32	4	326	14
350	520	470	430	379	355	16-Φ 26	34	4	358	14
400	580	525	482	429	405	16-Φ 30	36	4	409	14
450	640	585	532	481	455	20-Φ 30	38	4	460	16
500	715	650	585	532	505	20-Φ 33	42	4	511	16
600	840	770	685	633	605	20-Φ 36	44	5	613	18

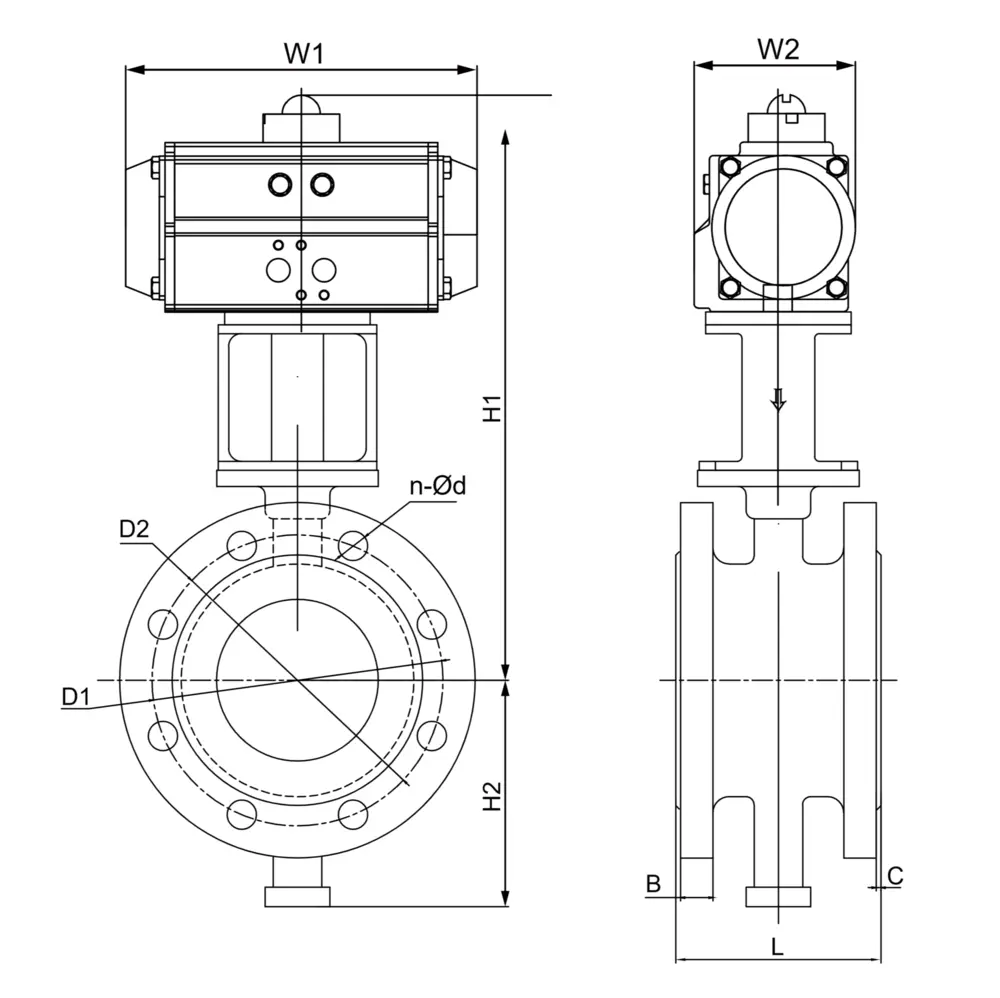

2.Installation Dimensions of Flanged Hard Seal Pneumatic Butterfly Valve

DN (mm)	L	D1	D2	n-Φd	B	C	H2	Double Acting			Single Acting
DN (mm)	L	D1	D2	n-Φd	B	C	H2	H1	W1	W2	H1	W1	W2
50	108	125	165	4-Φ18	16	2	112	240	168	83	252	184	95
65	112	145	185	4-Φ18	16	2	115	269	184	95	286	262	109
80	114	160	200	8-Φ18	18	2	120	283	204	103	307	268	122
100	127	180	220	8-Φ18	20	3	138	326	262	109	384	301	142
125	140	210	250	8-Φ18	22	3	164	341	262	109	399	301	142
150	140	240	285	8-Φ22	24	3	175	376	268	122	435	390	152
200	152	295	340	12-Φ22	24	3	208	442	301	142	484	458	174
250	165	355	405	12-Φ26	26	3	243	509	390	152	567	525	206
300	178	410	460	16-Φ26	28	3.5	283	614	458	174	672	532	226
350	190	470	520	16-Φ30	30	3.5	310	677	525	206	737	602	260
400	216	525	580	20-Φ30	32	3.5	340	675	525	206	735	602	260
