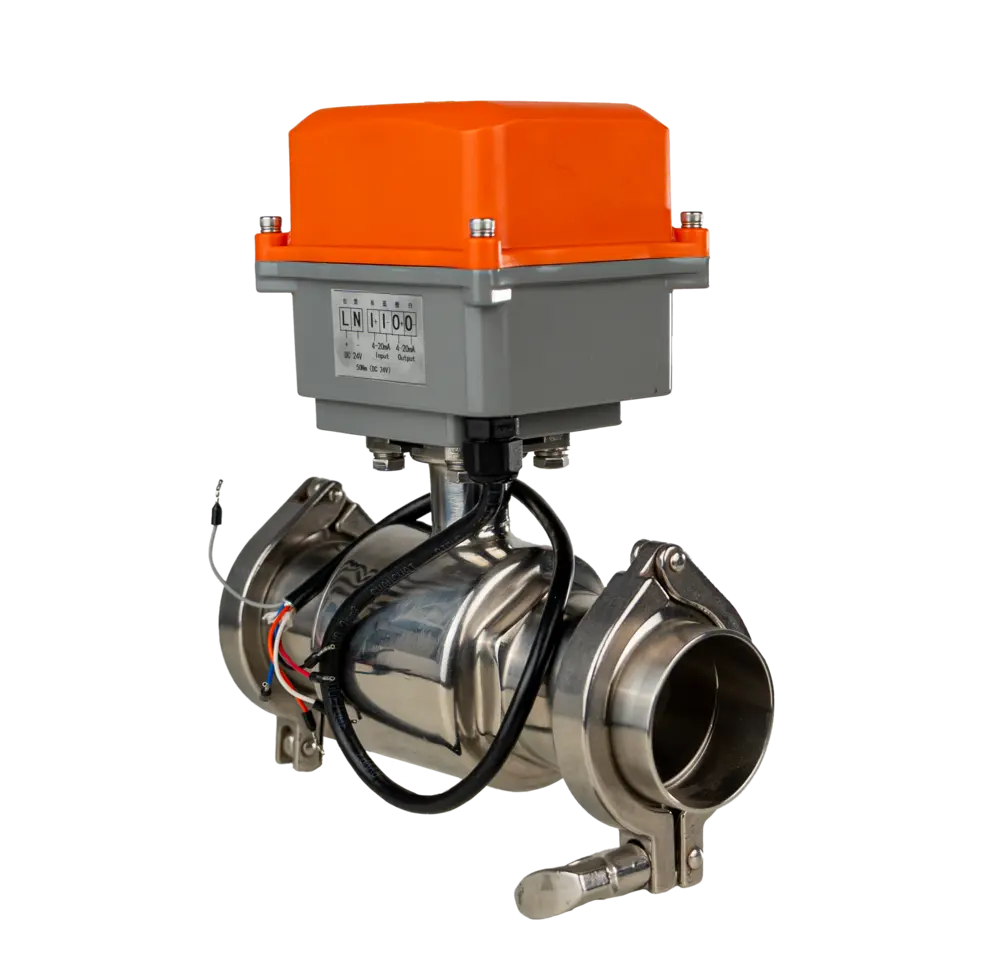

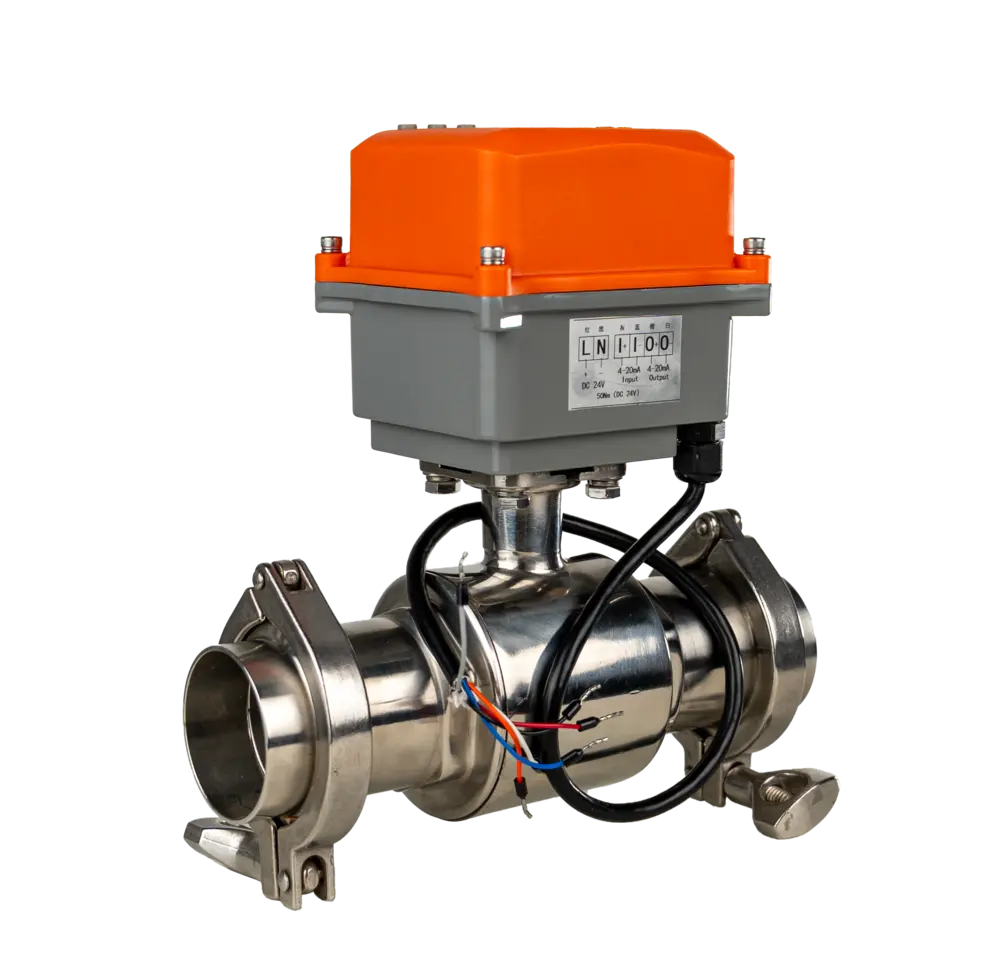

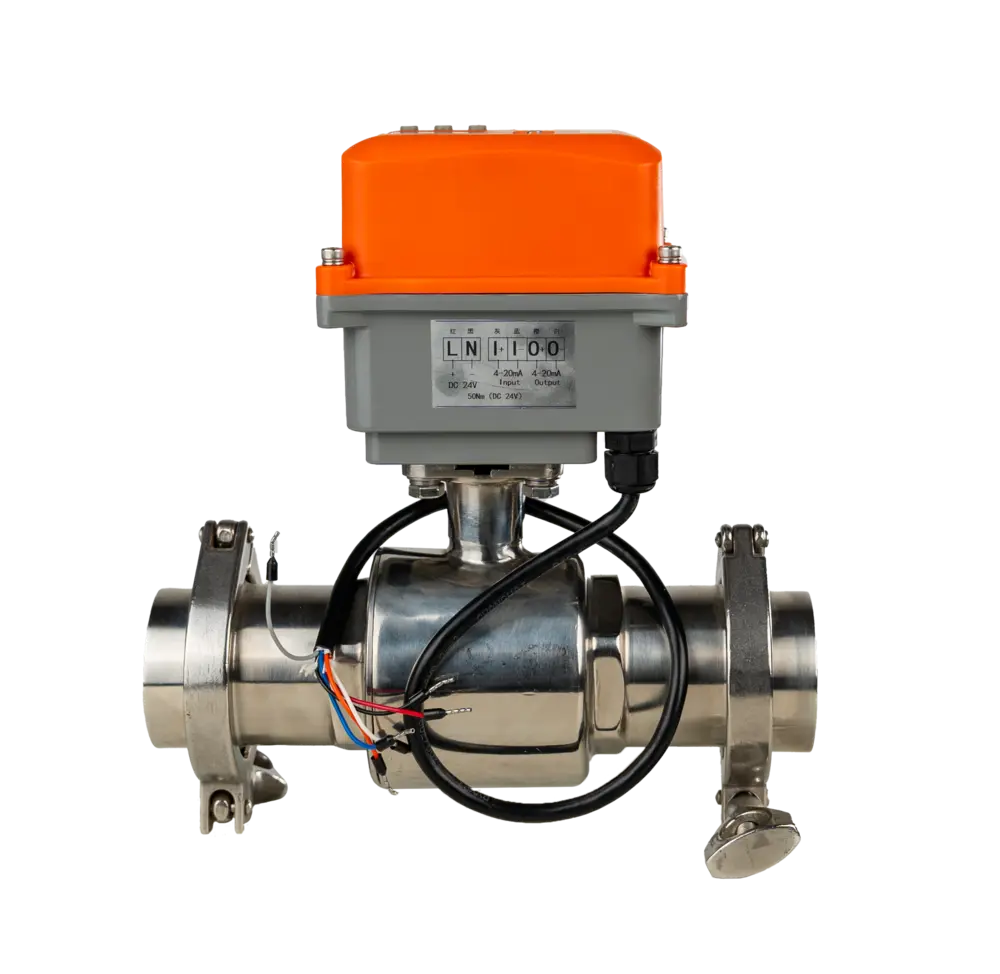

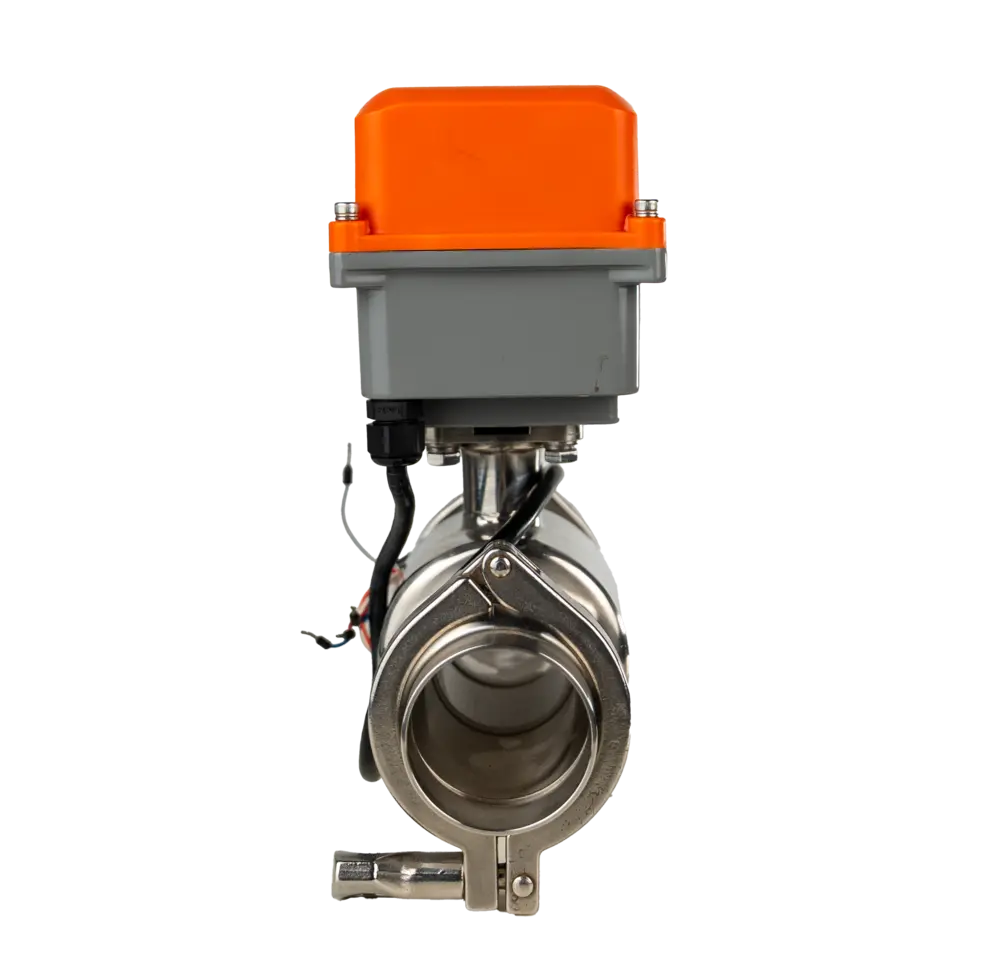

IoT Clamp Ball Valve
This IoT-enabled intelligent remote-control tri-clamp ball valve features quick weld-free tri-clamp installation and provides real-time monitoring of pipeline switch status and operating conditions.
Tags
Features
- IoT-Enabled Smart Control — Wireless remote monitoring with flow regulation, real-time status, and fault alarms.
- Tri-Clamp Quick-Install Design — Tri-Clamp connections for fast install and removal—no special tools, ideal for tight data-center spaces.
- Zero-Leak Sealing — Leak-tight seal prevents coolant leakage and protects uptime.
- Stable Flow Control — Equal-percentage flow matches variable loads for precise cooling—without water hammer.
- Low-Power Continuous Operation — Quiet brushless motor runs 24/7 on low power with long service life.
Basic Parameters
Nominal Bore (DN):
DN15～DN150
Operating Voltage:
AC220V, DC24V
Medium Temperature:
-15℃～100℃
Ambient Temperature:
-30℃～60℃
Nominal Pressure:
1.0MPa
Control Method:
Regulating or On-Off Control
Seal Type:
Soft Seal
Physical Specifications
Connection Type:
Clamp Type
Valve Body Material:
304 / 316
Disc Material:
304 / 316
Sealing Ring Material:
PTFE
IP Rating:
IP65
Suitable Media
- Water
- Sewage
- Oil Products
- Weak Acid and Weak Alkali
- Food and Beverage
- Organic Solvents
Standards Compliance
Manufacturing Standard:
GB/T 12237
Inspection & Test Standard:
GB/T26480-2011
Clamp Standard:
ISO2852-1993
Main Parameters
| Working Power Supply | AC220V / DC24V |
| Nominal Diameter | DN15~DN150 |
| Medium Temperature | -15~100℃ |
| Working Pressure | PN10 |
| Control Mode | Regulating / On-off Control |
| Connection Type | Clamp Connection (ISO2852-1993) |
| Valve Body Material | 304 Stainless Steel |
| Seat / Seal Material | PTFE |
| Seal Type | Soft Seal |
| Applicable Medium | Food, Pharmaceutical, Chemical Industry, etc. |
| Protection Grade | IP65 |
| Design & Manufacturing Standard | GB/T12237 |
| Clamp Standard | ISO2852-1993 |
| Inspection & Test Standard | GB/T26480-2011 |

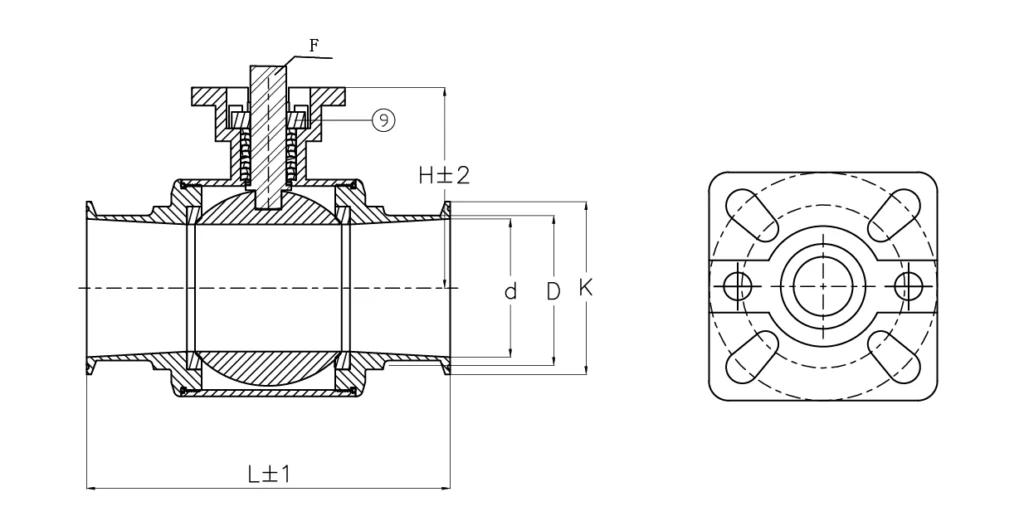

Dimension Drawing
| DN | d | K | D | L | F | H |
|---|---|---|---|---|---|---|
| DN15 | 9.5 | 25.4 | 12.7 | 74 | 9*9 | 37 |
| DN20 | 17 | 50.5 | 22 | 100 | 9*9 | 41 |
| DN25 | 22.2 | 50.5 | 25.4 | 120 | 9*9 | 46 |
| DN32 | 28.6 | 50.5 | 32 | 130 | 9*9 | 49 |
| DN40 | 34.9 | 50.5 | 38.1 | 140 | 9*9 | 54 |
| DN50 | 47.6 | 64 | 51.5 | 165 | 11*11 | 67 |
| DN65 | 59.5 | 77.5 | 63.5 | 190 | 11*11 | 86 |
| DN80 | 72.2 | 91 | 76.2 | 215 | 14*14 | 98.5 |
| DN100 | 85 | 106 | 89 | 225 | 14*14 | 110 |
| DN125 | 100 | 119 | 108 | 260 | 17*17 | 137 |
| DN150 | 125 | 145 | 133 | 290 | 22*22 | 165 |
Circuit wiring diagram
