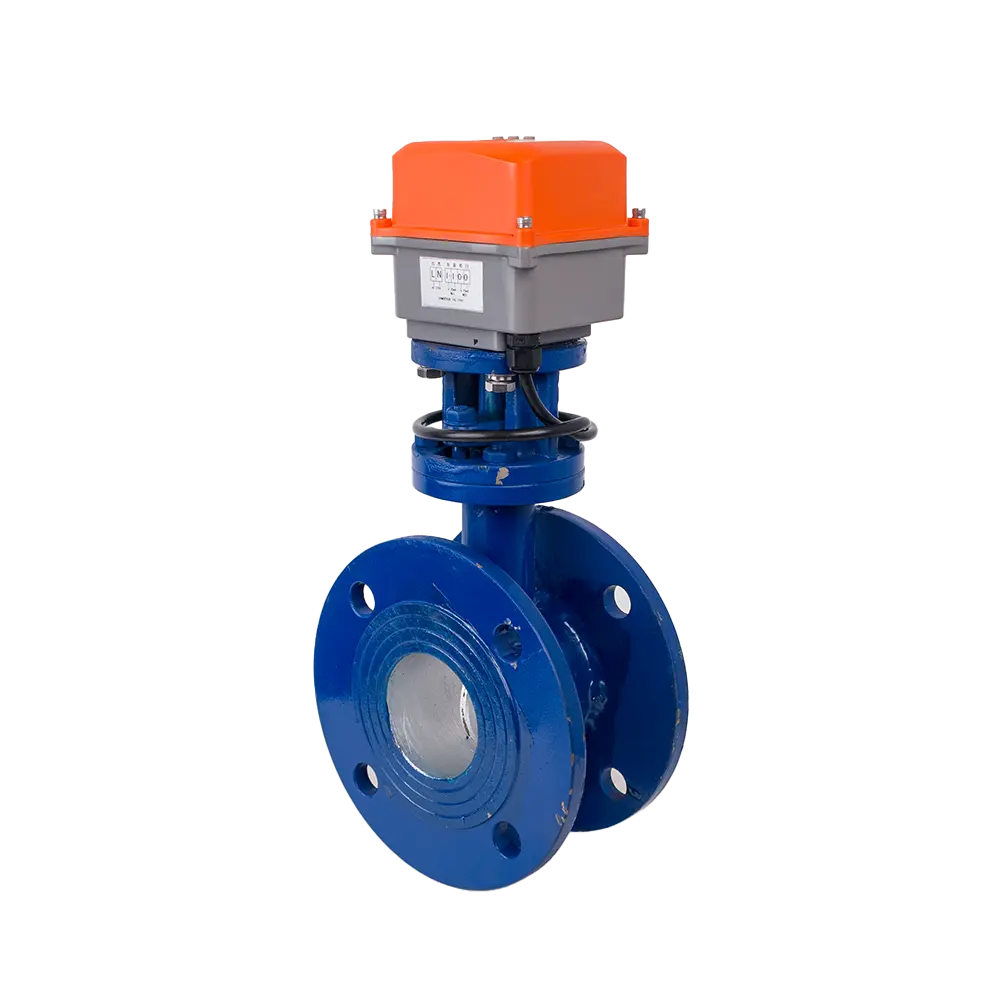

IoT Ventilation butterfly valve
The IoT ventilation butterfly valve merges traditional valve design with IoT tech, enabling smart airflow control. It finds use in industrial facilities, commercial buildings, healthcare settings, and agricultural areas, offering real-time monitoring, remote control, energy efficiency (cutting consumption by up to 30%), predictive maintenance, and easy integration, making it a key innovation for modern ventilation.
Tags
Features
- Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
- Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
- High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
- Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
- Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
- Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.
Basic Parameters
Nominal Bore (DN):
DN50～DN65
Operating Voltage:
AC220V, DC24V
Medium Temperature:
0-450℃ (Optional)
Nominal Pressure:
0.1～0.6MPa
Flow Characteristic:
Linear / Equal percentage characteristic
Control Method:
Regulating or switching control
Sealing Form:
Open type, Rear seat type (for ultra-high temperature), Sealed type (for normal temperature)
Physical Specifications
Connection Type:
Flanged type
Valve Body Materials:
A3 steel, Heat-resistant steel, SUS304 Stainless Steel, SUS316 Stainless Steel
Valve Plate Materials:
A3 steel, Heat-resistant steel, SUS304 Stainless Steel, SUS316 Stainless Steel
Packing Material:
PTFE lined, Graphite
Protection Class:
IP66
Suitable Media
- Dusty flue gas
- Air
- Coal gas
Standards Compliance
Manufacturing Standard:
JB/T 8692-2013
Design & Manufacturing:
GB/T12238-2008
API 609
Product Inspection & Testing:
GB/T13927-2022
API 598
Side Flange Connection:
GB/T 9124.1-2019
GB/T 9124.2-2019
ASME B16.50
ASME B16.47
Test Pressure
Shell Test:
0.15MPa
Seal Test:
0.11MPa
Installation Dimensions of IoT Threaded Ball Valve
| Nominal Diameter (DN) | D1 | D | L | B | C | n-Φd | H1 | H2 | W1 | W2 |
| 50 | 165 | 125 | 100 | 8 | 1 | 4-Φ18 | 313 | 83 | 94 | 109 |
| 65 | 185 | 145 | 100 | 8 | 1 | 4-Φ18 | 333 | 93 | 94 | 109 |
Circuit wiring diagram
