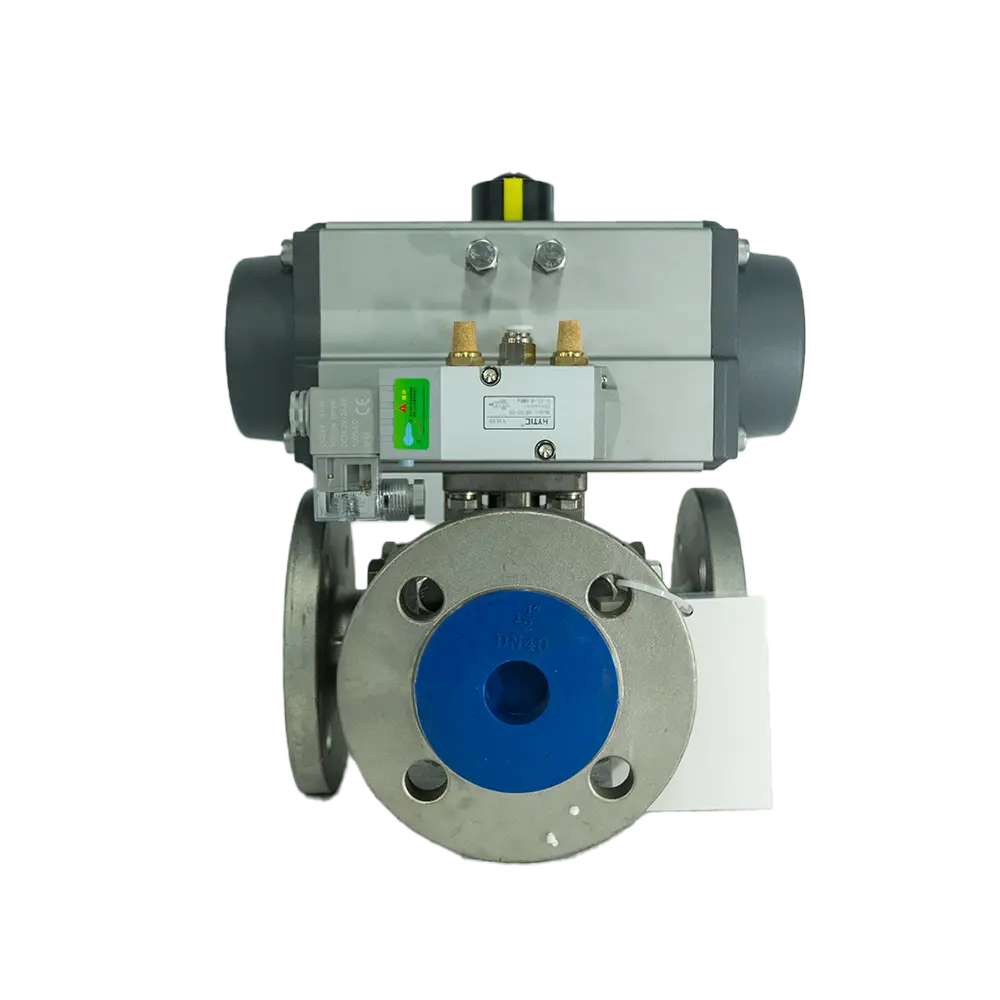

Pneumatic Three Way Ball Valve
Pneumatic three-way ball valve is a high-performance valve driven by a pneumatic actuator, suitable for industries such as petrochemical, power generation, metallurgy, food processing, etc.
Tags
Features

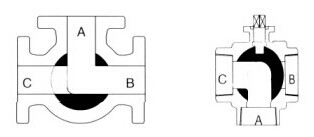

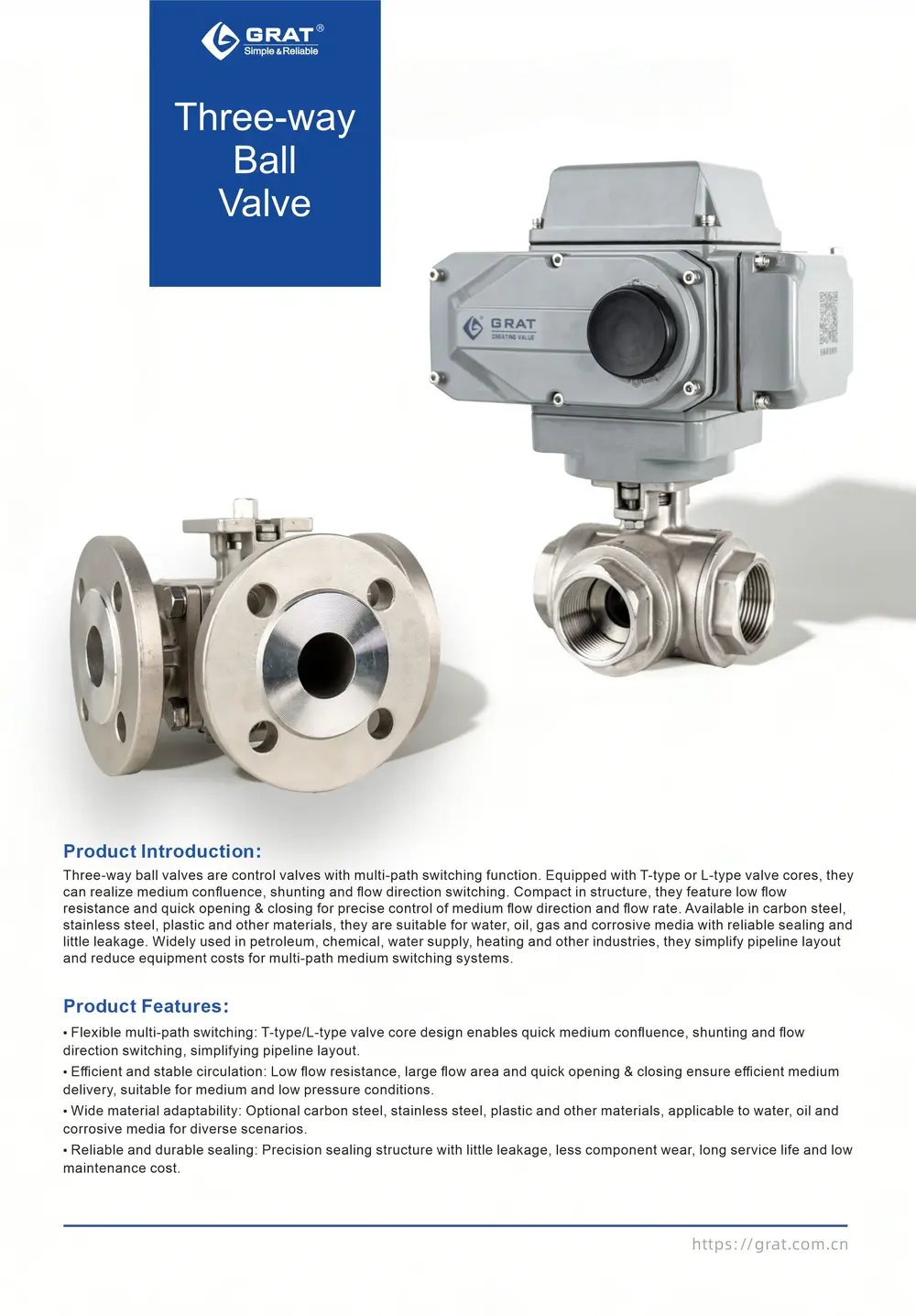

Three-way ball valves are used for flow diversion or confluence. They are multi-port ball valves equipped with two or four valve seats. Any port can serve as the inlet with zero leakage. Three-way valves can be designed with either L-port or T-port.
The T-port flow channel adopts four valve seats, featuring balanced force distribution and reliable sealing.
Mainly used for flow diversion, mixing, reversing, and full opening of three passages.
The L-port flow channel adopts two valve seats and is mainly used for flow path switching.
Basic Parameters
Material Specifications
Body & Internal Components
Standards & Specifications
Suitable Working Conditions
- Air Conditioning Systems
- Fire Protection Systems
- Water Treatment
- Pipeline Purging
- Analytical Instruments
- Flue Gas Sampling
Standards Compliance
Main Parameters
1.Installation Dimensions of IoT Mini Electric Flange Three-Way Ball Valve
| Nominal Diameter | DN15～100 |
| Power Supply | AC110V, AC220V, AC380V, DC24V |
| Actuator Torque / Material | Cast Aluminum Alloy |
| Medium Temperature | 0~120℃ |
| Ambient Temperature | -30℃－60℃ |
| Nominal Pressure | 0.1～6.4MPa |
| Control Mode | On-off Control |
| Pneumatic Actuation Mode | Single Acting (with Spring Return) or Double Acting |
| Actuation Time | 4-90 Seconds |
| Applicable Conditions | Air Conditioning, Fire Protection Systems, Water Treatment, Pipeline Purging, Analytical Instruments, Flue Gas Sampling, etc. |
| Connection Type | Female Thread, Flange |
| Sealing Type | Soft Seal |
| Valve Body Material | SUS304, SUS316, WCB |
| Valve Core Material | SUS304, SUS316 |
| Seal Ring Material | EPDM, PTFE |
| Protection Grade | IP67 |
| Installation Method | Installable at Any Angle (Horizontal or Inclined Installation Recommended for Longer Service Life) |
| Design and Manufacturing Standard | GB12237-2021, API 6D |
| Flange Standard | GB/T 9124.1-2019, GB/T 9124.2-2019, GB17241.6-2008 |
| Face-to-Face Dimension Standard | GB12221-2005 |
| Inspection Standard | API 598 |

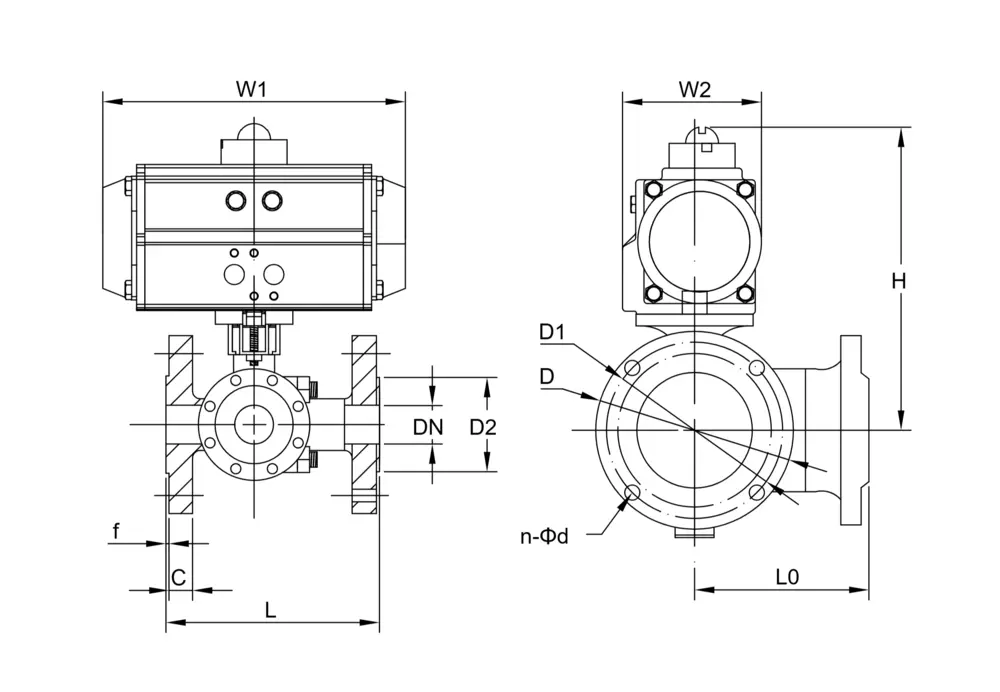

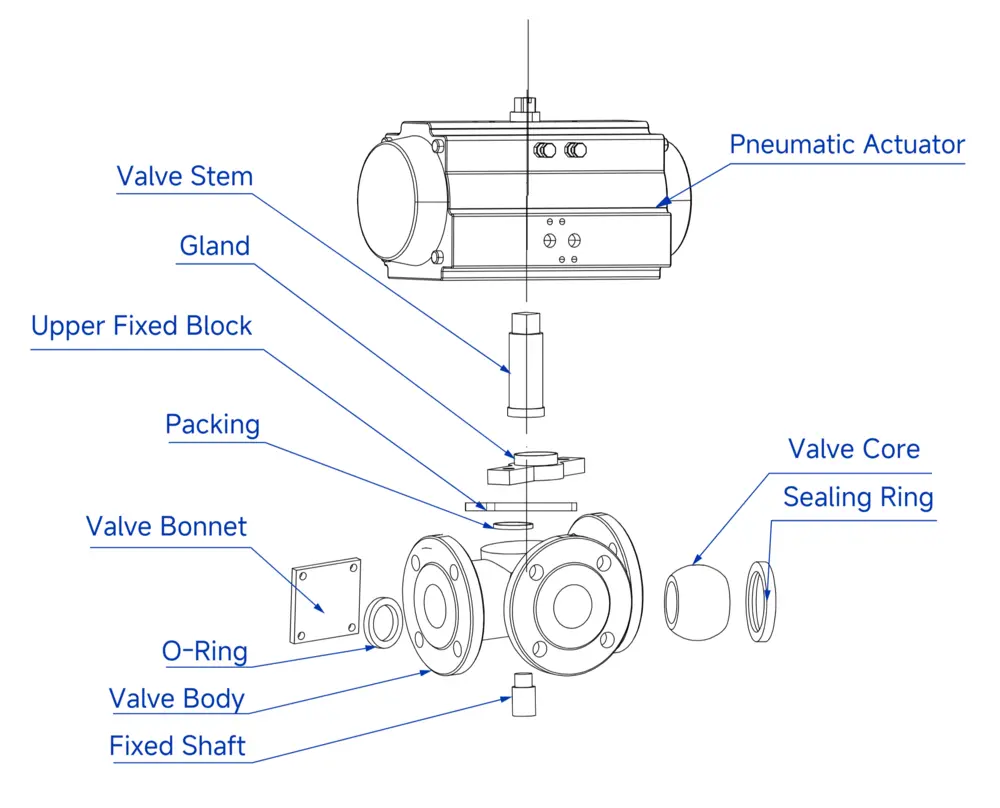

Dimension Drawing

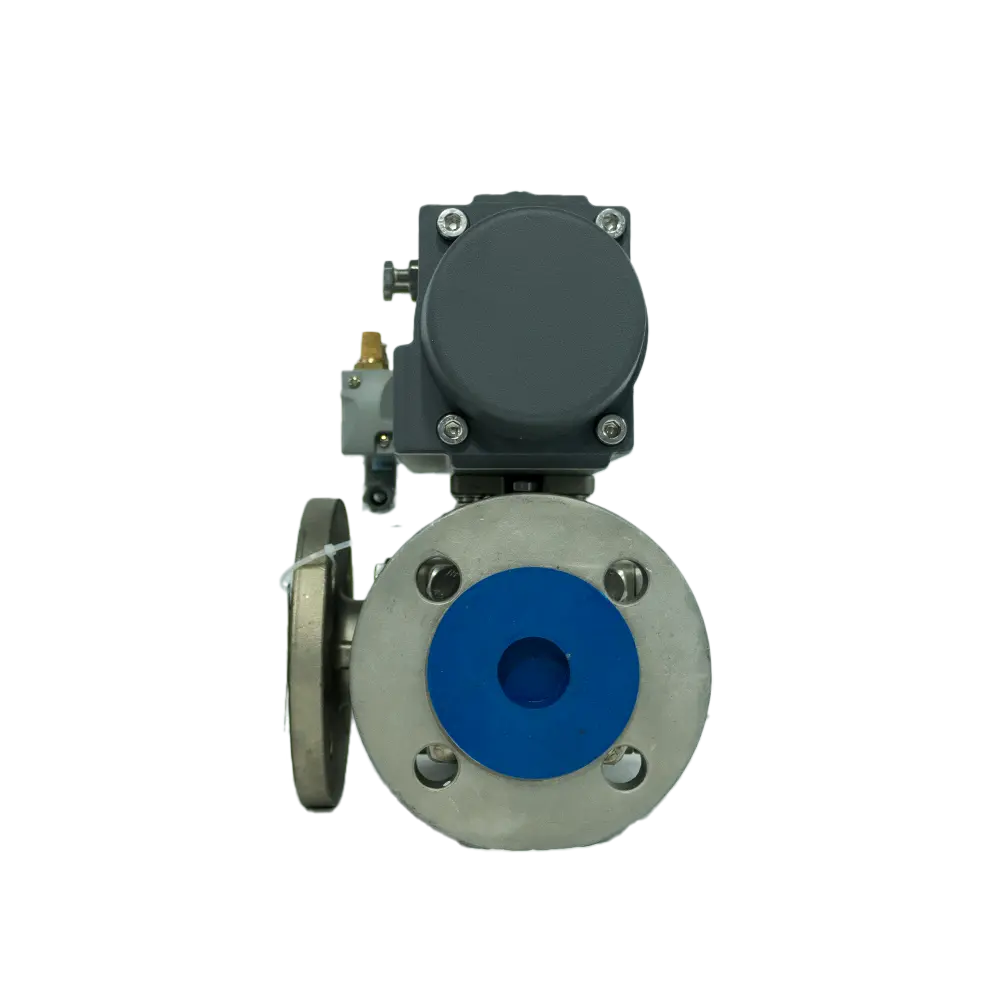

1.Dimensions for Connection and Installation of Flanged Pneumatic Three-Way Ball Valves
| Nominal Diameter | L | L0 | D2 | C | f | D | D1 | n-Φd | Double Acting | Single Acting | ||||
| H | W1 | W2 | H | W1 | W2 | |||||||||
| （DN） | ||||||||||||||
| 15 | 150 | 75 | 45 | 14 | 2 | 95 | 65 | 4-Φ14 | 202 | 147 | 72 | 202 | 147 | 72 |
| 20 | 160 | 80 | 55 | 14 | 2 | 105 | 75 | 4-Φ14 | 216 | 147 | 72 | 232 | 168 | 83 |
| 25 | 180 | 90 | 65 | 14 | 2 | 115 | 85 | 4-Φ14 | 238 | 168 | 83 | 250 | 184 | 95 |
| 32 | 200 | 100 | 78 | 16 | 2 | 135 | 100 | 4-Φ18 | 247 | 168 | 83 | 268 | 204 | 103 |
| 40 | 220 | 110 | 85 | 16 | 3 | 145 | 110 | 4-Φ18 | 272 | 184 | 95 | 289 | 262 | 109 |
| 50 | 240 | 120 | 100 | 16 | 3 | 160 | 125 | 4-Φ18 | 287 | 204 | 103 | 311 | 268 | 122 |
| 65 | 260 | 130 | 120 | 16 | 3 | 180 | 145 | 4-Φ18 | 311 | 262 | 109 | 369 | 301 | 142 |
| 80 | 280 | 140 | 135 | 18 | 3 | 195 | 160 | 8-Φ18 | 351 | 268 | 122 | 410 | 390 | 152 |
| 100 | 320 | 160 | 155 | 20 | 3 | 215 | 180 | 8-Φ18 | 413 | 301 | 142 | 455 | 458 | 174 |
Note: The suitable actuator model may vary for pneumatic valves depending on the operating medium, valve torque and control method, resulting in corresponding changes to relevant dimensions.

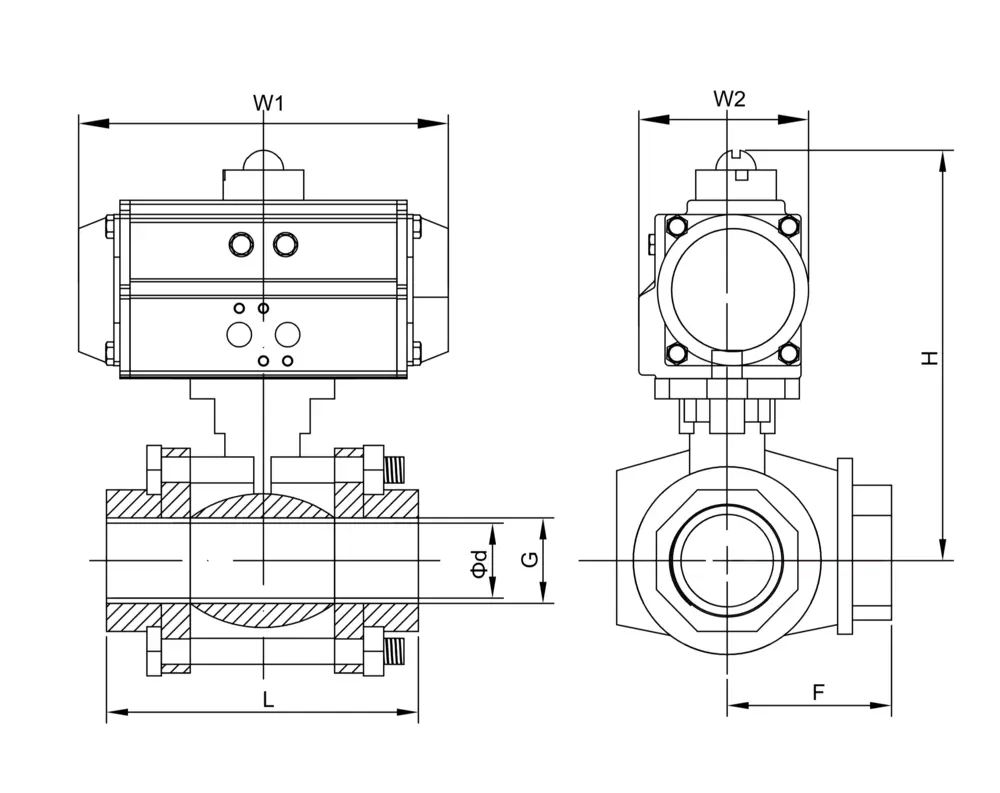

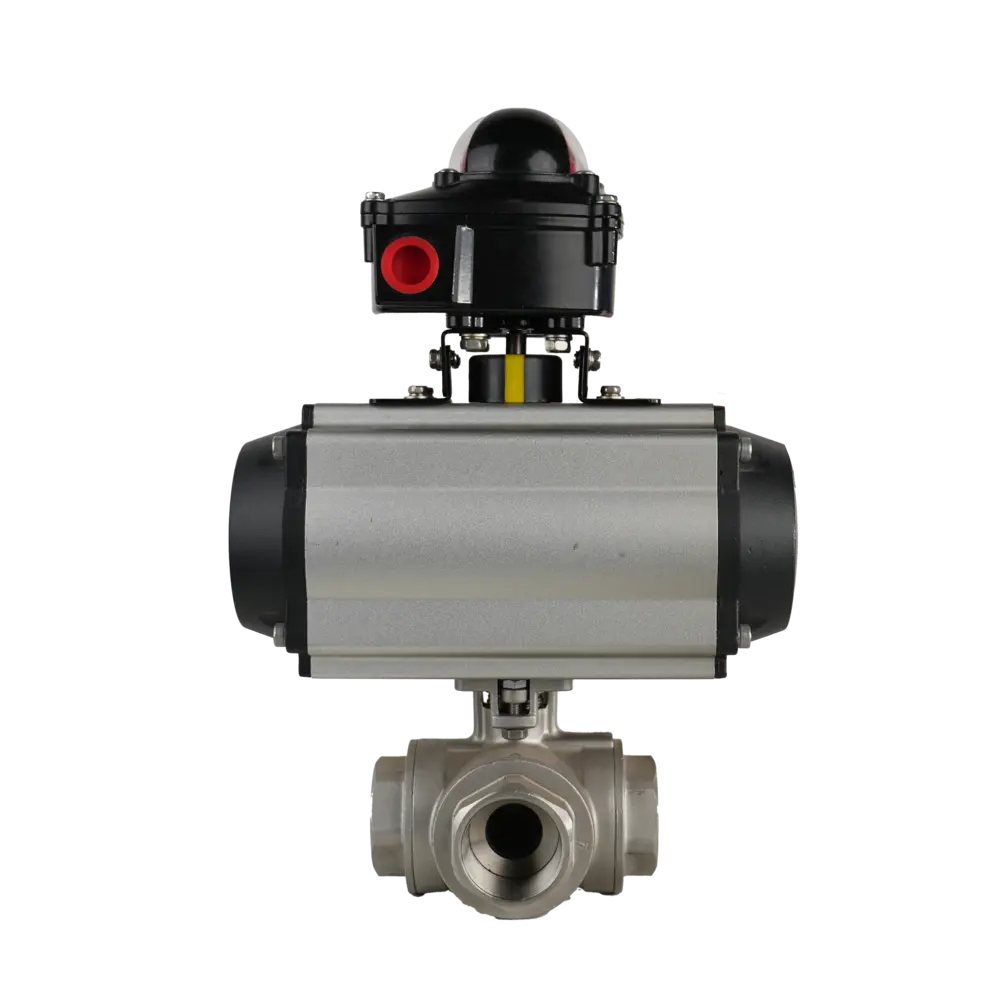

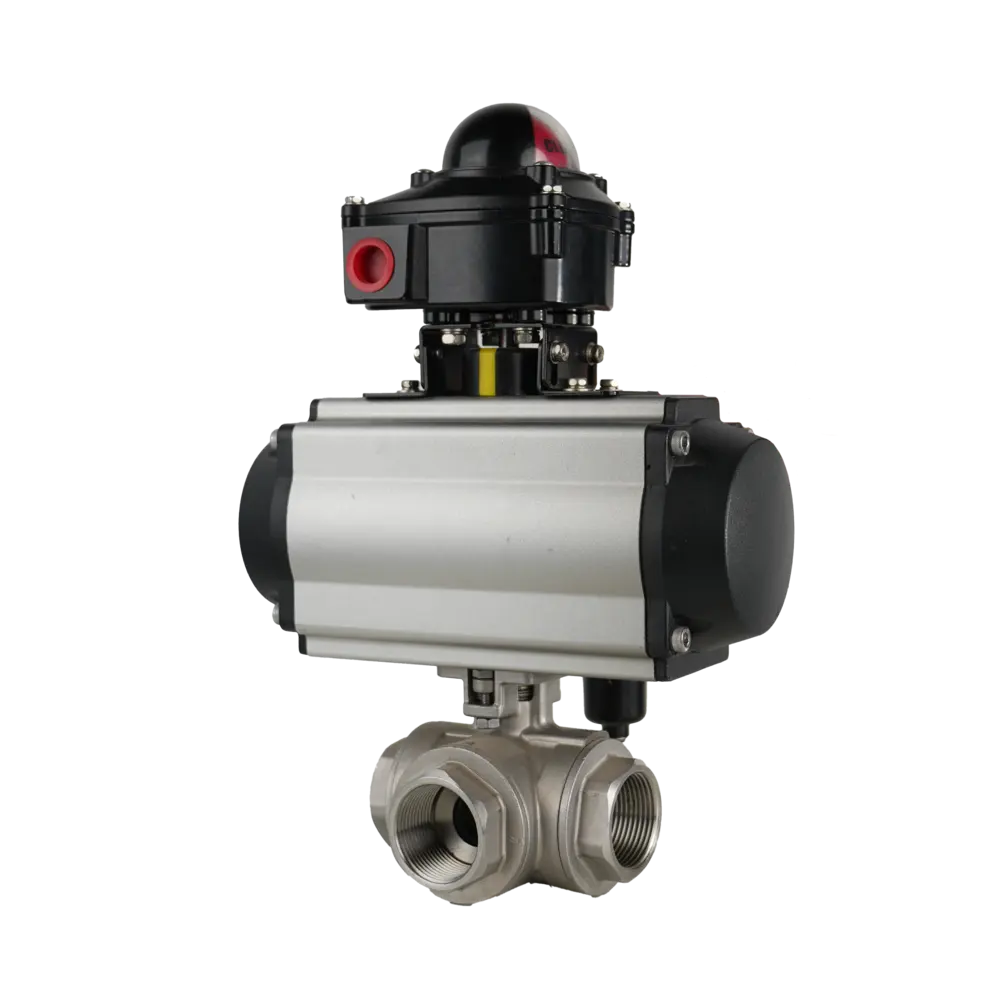

2.Dimensions for Connection and Installation of Female Threaded Pneumatic Three-Way Ball Valves
| Nominal Diameter | L | G | Φd | F | Double Acting | Single Acting | ||||
| H | W1 | W2 | H | W1 | W2 | |||||
| （DN） | ||||||||||
| 12 | 70 | Thread Standard NPT BSP DIN etc | 12 | 40 | 182 | 147 | 72 | 182 | 147 | 72 |
| 15 | 83 | 15 | 42 | 184 | 147 | 72 | 184 | 147 | 72 | |
| 18 | 89 | 18 | 54 | 194 | 147 | 72 | 210 | 168 | 83 | |
| 25 | 116 | 25 | 60 | 219 | 168 | 83 | 231 | 184 | 95 | |
| 32 | 134 | 32 | 68 | 230 | 168 | 83 | 251 | 204 | 103 | |
| 38 | 152 | 38 | 84 | 246 | 184 | 95 | 263 | 262 | 109 | |
| 50 | 200 | 50 | 98 | 274 | 204 | 103 | 298 | 268 | 122 | |
| 65 | 240 | 65 | 106 | 311 | 262 | 109 | 369 | 301 | 142 | |
| 80 | 278 | 80 | 114 | 350 | 268 | 122 | 409 | 390 | 152 | |
Note: The suitable actuator model may vary for pneumatic valves depending on the operating medium, valve torque and control method, resulting in corresponding changes to relevant dimensions.
