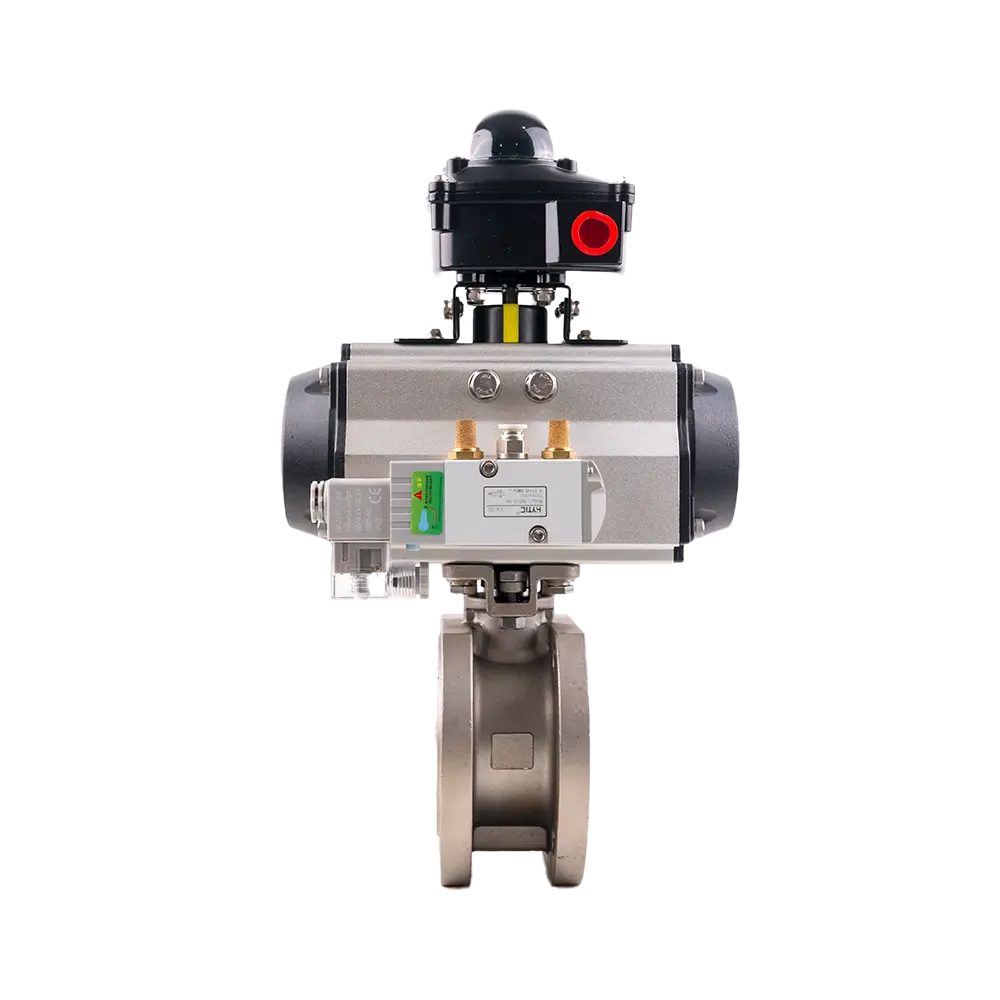

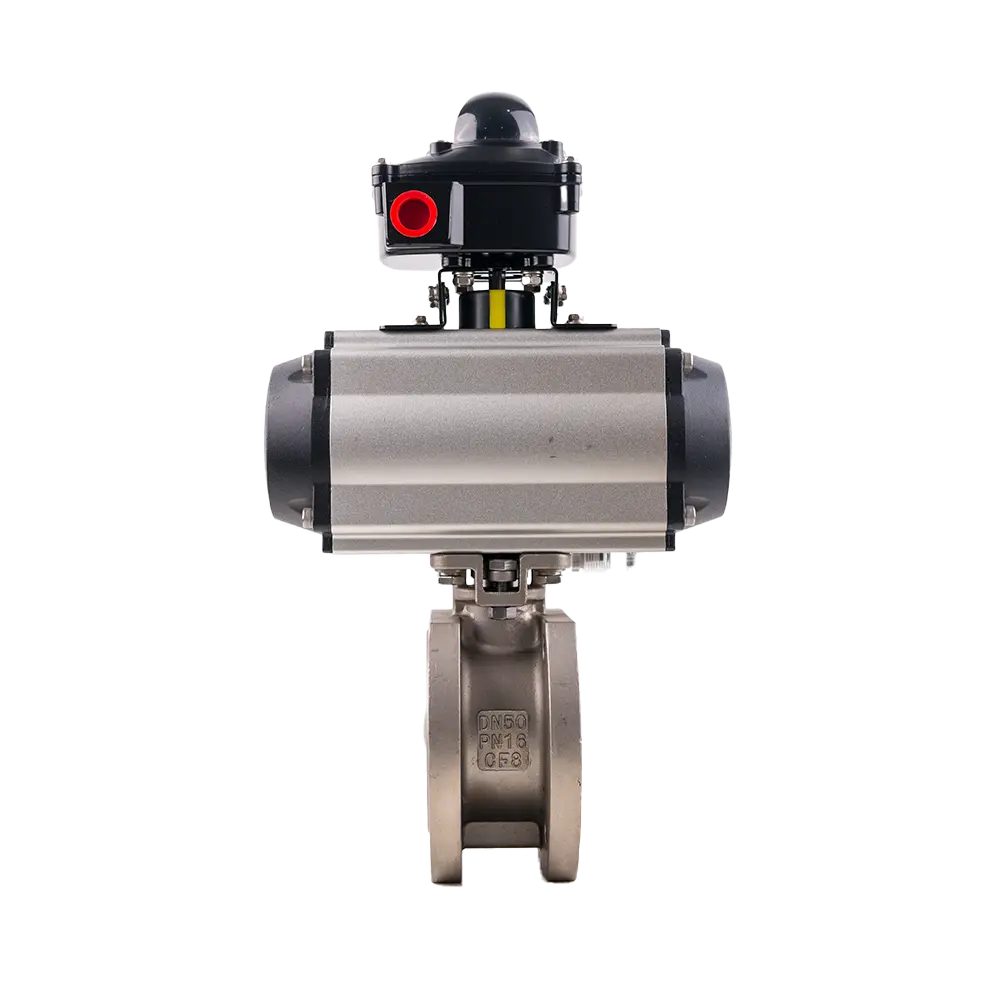

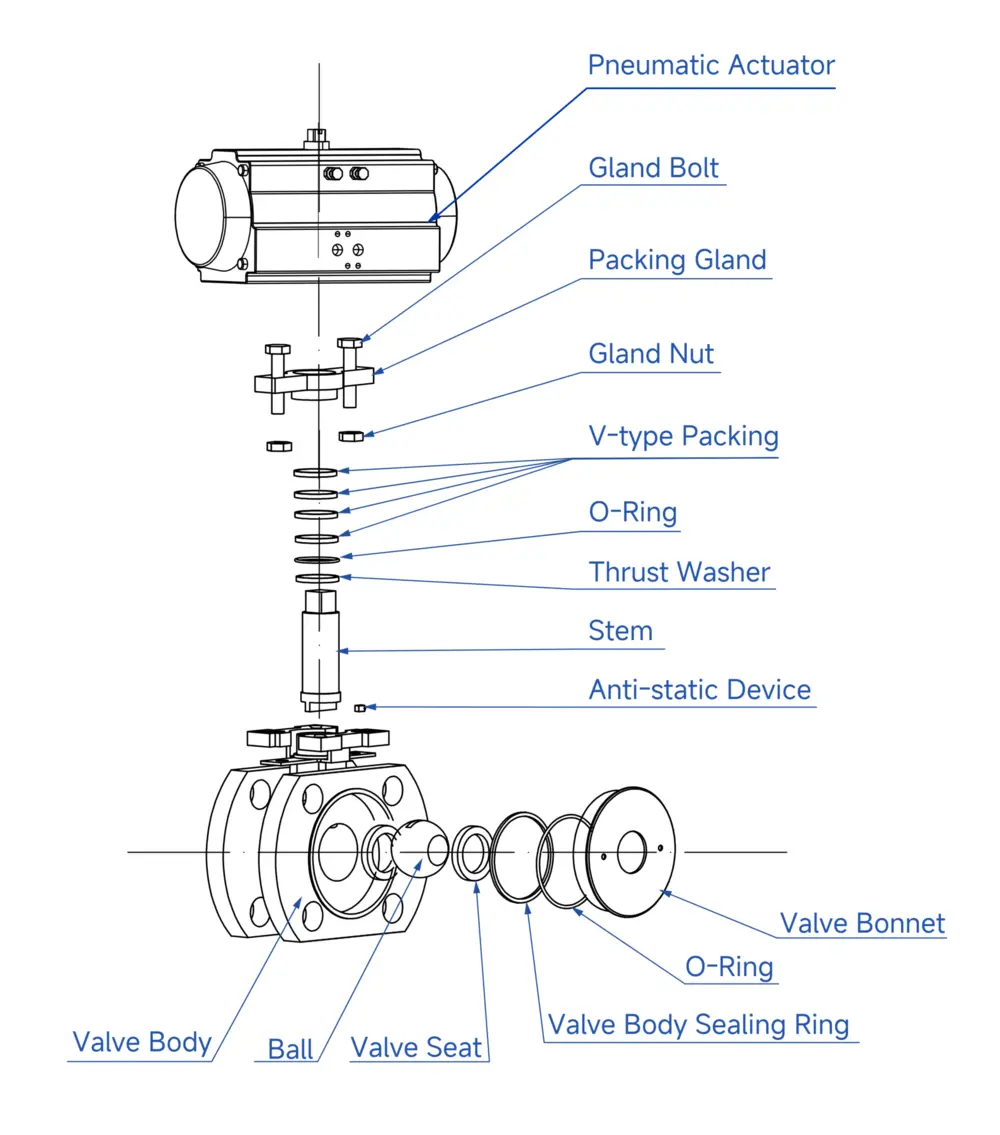

Pneumatic Ultra-Short Flanged Ball Valve
Pneumatic Ultra-Short Flanged Ball Valve — Ultra-short face-to-face, compact lightweight body, engineered for tight installations with simplified in-line mounting.
Tags

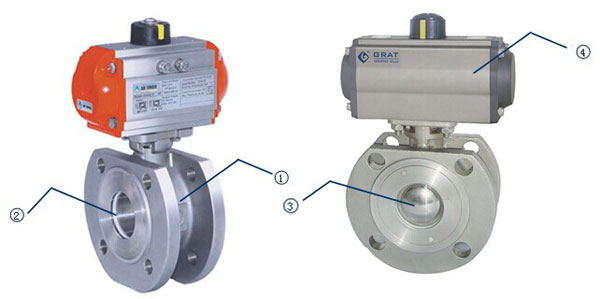

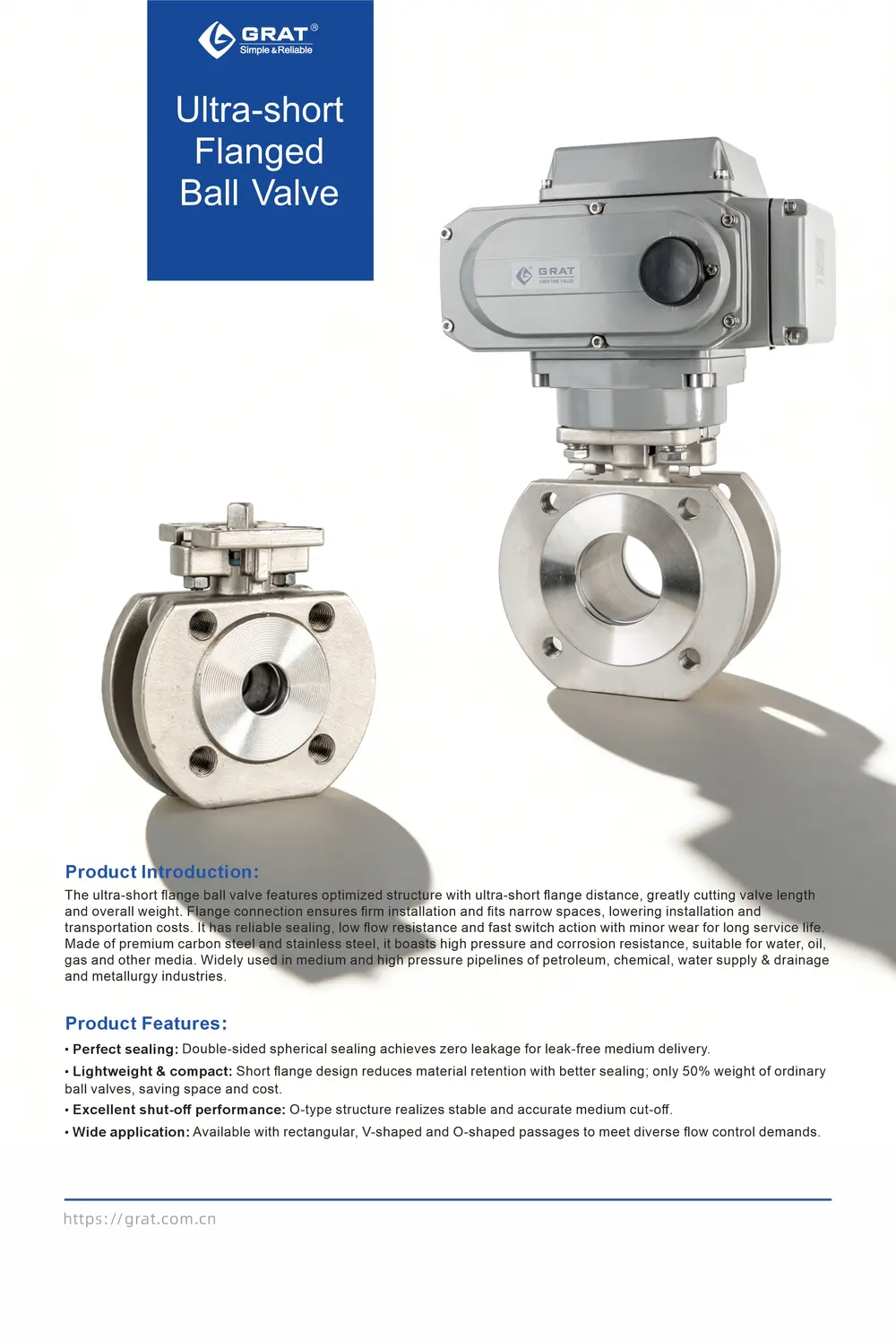

Features
- One-piece body with ultra-short face-to-face dimension; weight approx. 50% of comparable standard ball valves.
- Bi-directional spherical seats for zero-leakage (bubble-tight) service.
- Ball port options: rectangular, V-port, or full-bore.
- Spring-return pneumatic piston actuator (single-acting); fails closed on loss of air supply.
Basic Parameters
Operating Power:
AC110V, AC220V, AC380V, DC24V
Nominal Diameter (DN):
DN15～DN200
Media Temperature:
-20℃ to +350℃ (+200℃ with special seal)
Working Pressure (PN):
PN16, PN25, PN40, PN64
Control Method:
Modulating or On/Off Control
Pneumatic Action Mode:
- Single Acting (with spring return) or Double Acting
Connection Type:
Flange Type
Protection Grade:
IP67
Material Specifications
Body & Internal Components
Valve Body Material:
WCB, SUS304, SUS316
Valve Core Material:
SUS304, SUS316
Valve Seat Material:
PTFE (Normal Temperature), Special PPL (High Temperature)
Leakage Rate:
Complies with ANSI B16.104 Class 5 Standard
Sealing Type:
- Elastic Seal, High Temperature Resistant Para-polyphenylene
Standards & Specifications
Design & Manufacturing Standard:
GB12237-2021, API 6D
Face-to-Face Dimension:
GB12221-2005
Inspection Standard:
API 598
Suitable Media
- Water
- Petroleum
- Nitric Acid Series
- Acetic Acid Series
- Viscous Fluid
- Strong Oxidizing Medium
Standards Compliance
Flange Standard:
- JB/T 79-2015
- GB/T 9124.1-2019
- GB/T 9124.2-2019
- ANSI B16.5, JIS B2239
Main Parameters
| Operating Power Supply | AC110V, AC220V, AC380V, DC24V |
| Nominal Diameter | DN15 - 200 |
| Medium Temperature | -20℃ to +350℃ (+200℃ for special sealing) |
| Working Pressure | PN16, PN25, PN40, PN64 |
| Control Mode | Regulating or On-Off Control |
| Pneumatic Action Mode | Single-Acting (with spring return) or Double-Acting |
| Connection Type | Flanged Type |
| Valve Body Material | WCB, SUS304, SUS316 |
| Valve Core Material | SUS304, SUS316 |
| Valve Seat Material | PTFE (normal temperature), Special PPL (high temperature) |
| Leakage Rate | Complies with ANSI B16.104 Class V Standard |
| Sealing Form | Elastic Sealing, High Temperature Resistant Para-Polyphenylene |
| Applicable Medium | Water, Petroleum, Nitric Acid Series, Acetic Acid Series, Viscous Fluids, Strong Oxidizing Media, etc. |
| Protection Class | IP67 |
| Design and Manufacturing Standards | GB12237-2021, API 6D |
| Flange Standards | JB/T 79-2015, GB/T 9124.1-2019, GB/T 9124.2-2019, ANSI B16.5, JIS B2239 |
| Structural Length | GB12221-2005 |
| Inspection Standard | API 598 |

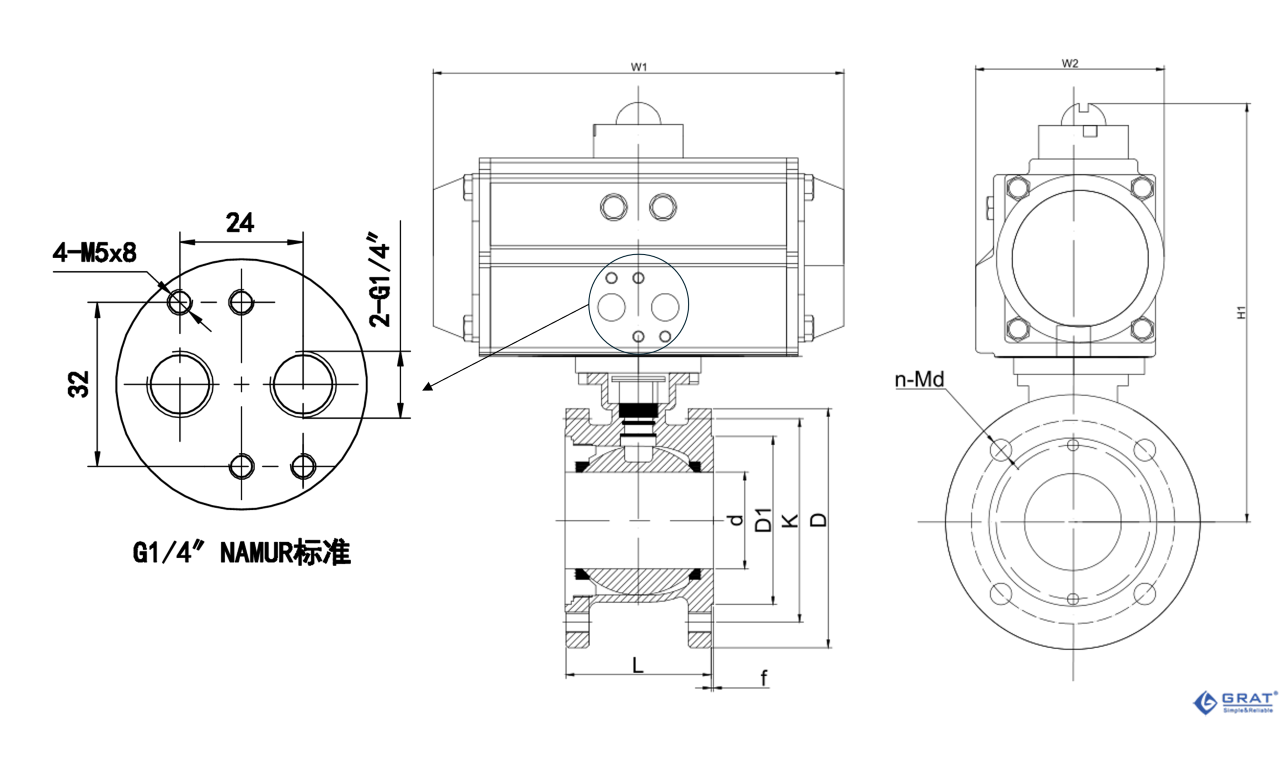

Dimension Drawing
1.Installation Dimensions Drawing of Pneumatic Ultra‑Short On‑Off Flanged Ball Valve
| Nominal Diameter (DN) | d | D1 | K | D | n-Md | f | L | Double Acting | Single Acting | |||||
| mm | in | H1 | W1 | W2 | H1 | W1 | W2 | |||||||
| DN15 | 1/2〃 | 15 | 45 | 65 | 95 | 4-M12 | 2 | 43 | 196 | 147 | 72 | 196 | 147 | 72 |
| DN20 | 3/4〃 | 19 | 55 | 75 | 105 | 4-M12 | 2 | 43 | 202 | 147 | 72 | 218 | 168 | 83 |
| DN25 | 1〃 | 25 | 65 | 85 | 115 | 4-M12 | 2 | 50 | 225 | 168 | 83 | 237 | 184 | 95 |
| DN32 | 1 1/4〃 | 28 | 76 | 100 | 140 | 4-M16 | 2 | 50 | 232 | 168 | 83 | 253 | 204 | 103 |
| DN40 | 1 1/2〃 | 38 | 83 | 110 | 148 | 4-M16 | 3 | 67 | 254 | 184 | 95 | 271 | 262 | 109 |
| DN50 | 2〃 | 49 | 102 | 125 | 156 | 4-M16 | 3 | 72 | 273 | 204 | 103 | 297 | 268 | 122 |
| DN65 | 2 1/2〃 | 64 | 120 | 145 | 185 | 4-M16 | 3 | 94 | 329 | 262 | 109 | 387 | 301 | 142 |
| DN80 | 3〃 | 73 | 143 | 160 | 200 | 8-M16 | 3 | 120 | 337 | 268 | 122 | 396 | 390 | 152 |
| DN100 | 4〃 | 90 | 168 | 180 | 220 | 8-M16 | 3 | 141 | 389 | 301 | 142 | 431 | 458 | 174 |
| DN125 | 5〃 | 110 | 185 | 210 | 245 | 8-M16 | 3 | 165 | 464 | 301 | 142 | 506 | 458 | 174 |
| DN150 | 6〃 | 145 | 208 | 240 | 277 | 8-M20 | 3 | 225 | 506 | 390 | 152 | 564 | 525 | 206 |
| DN200 | 8〃 | 195 | 265 | 395 | 335 | 12-M20 | 3 | 275 | 621 | 458 | 174 | 679 | 532 | 226 |
Note: The suitable actuator model for pneumatic valves may vary according to different service media, valve torque and control methods, and the relevant dimensions will be adjusted accordingly.
