Pneumatic V-port Control Valve
Pneumatic V-type control valve is driven by a pneumatic actuator. Featuring a V-shaped plug with strong shearing capability, excellent control linearity, resistance to particle erosion, and reliable sealing, it is suitable for harsh working conditions.
Tags

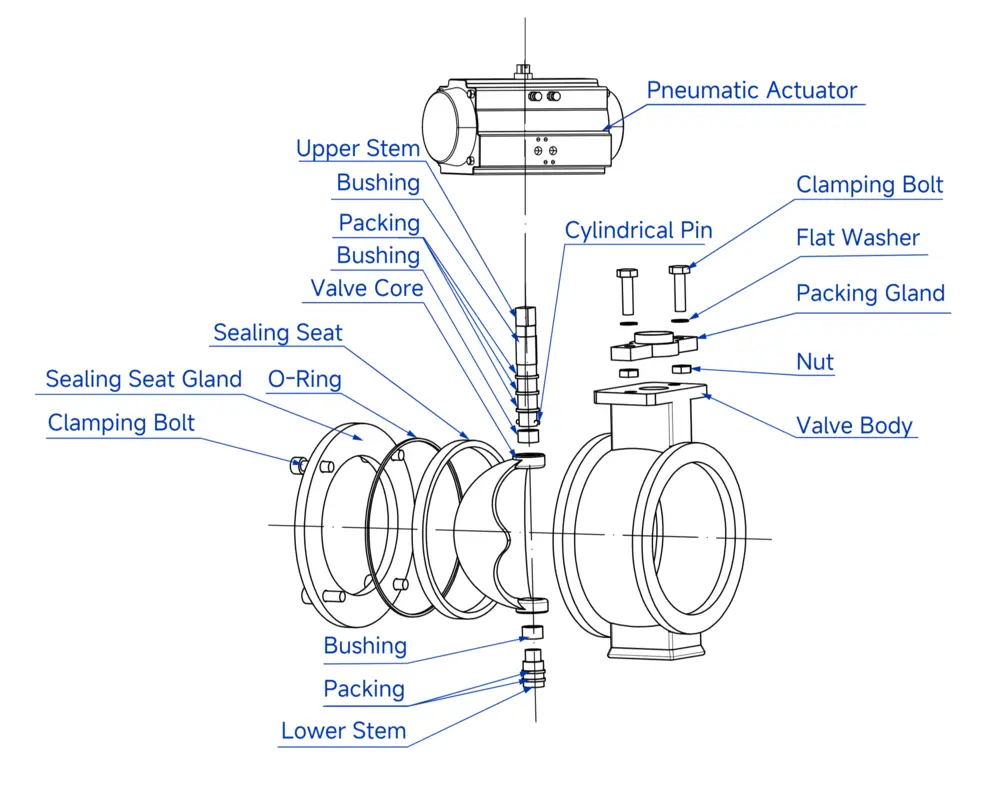

Features
- Lightweight. Thanks to the one-piece body structure, an ultra-short face-to-face dimension is achieved, and the overall weight is significantly reduced to approximately 50% of that of conventional ball valves of the same type.
- The shear gap formed between the seat and the plug can easily cut off various impurities in the pipeline, effectively ensuring unobstructed flow.
- The unique V-shaped plug structure solves the control stability problem of traditional ball valves. For stable flow regulation, the equal-percentage characteristic provides a linear relationship between the controlled parameter and the valve opening. When the valve begins to open, the flow increases gradually. The plug defines the valve characteristics; plugs with different shaped openings allow valves of the same nominal size to have different CV values and flow characteristics.
- Double-sided spherical sealing enhances sealing performance and effectively controls leakage, achieving zero leakage with a sealing class of IV.
Basic Parameters
Material Specifications
Body & Internal Components
Suitable Media
- Food
- Grease
- Fibrous Fluid
- Water
- Oil Products
- Gas
Standards Compliance
Main Parameters
| Nominal Diameter DN(mm) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | |
| Flow Coefficient Cv at 100% Opening (Ref.) | O-type | 24 | 44 | 84 | 122 | 198 | 320 | 443 | 595 | 1096 | 1692 | 2602 | 4212 |
| Rectangular | 8.7 | 13.4 | 20 | 32.6 | 44.3 | 70 | 114 | 134 | 186 | 270 | 462 | 688 | |
| V-type | 7.5 | 11 | 17 | 28 | 38 | 60 | 98 | 116 | 155 | 233 | 397 | 595 | |
| Flow Characteristic | Rectangular: Approximate linear V-type (Logarithmic): Equal percentageO-type: Quick opening | ||||||||||||
| Nominal Pressure | 16(1.6MPa)、40(4.0MPa)、64(6.4MPa) | ||||||||||||
| Rangeability | 50:1 100:1 300:1 | ||||||||||||
| Flange Standard | JB/T79-2015、JB/T74-2015 | ||||||||||||
| Body Material | Cast steel (ZG230-450), Stainless steel (ZG1Cr18Ni9Ti, 316, 316L), Titanium alloy | ||||||||||||
| Ball Core Material | Stainless steel (ZG1Cr18Ni9Ti, 316, 316L, A105), Titanium alloy, etc. | ||||||||||||
| Valve Stem Material | Stainless steel (ZG1Cr18Ni9Ti, 316, 316L) | ||||||||||||
| Packing Material | PTFE, Flexible graphite | ||||||||||||
| Sealing Type | Soft seal | Hard seal | |||||||||||
| Medium Temperature | ≤220℃ | ≤450℃ | |||||||||||
| Seat Material | PTFE | Carbon fiber reinforced PTFE | Stainless steel or Stainless steel + STL | ||||||||||
| Leakage Rate | Class Ⅵ | Class Ⅴ | |||||||||||
| Nominal Diameter | DN15-DN350(Contact us for larger sizes) | ||||||||||||
| Nominal Pressure | PN1.6MPa~PN6.4MPa | ||||||||||||
| Connection Type | Flanged connection, Wafer connection | ||||||||||||
| Actuation Time | 15秒、30秒(Optional)(0-90°) | ||||||||||||
| Power Supply | AC110V, AC220V,AC380V,DC24V | ||||||||||||
| Control Mode | Regulating or On-off control | ||||||||||||
| Pneumatic Actuation | Single-acting (with spring return) or Double-acting | ||||||||||||
| Ambient Temperature | ≤60℃ | ||||||||||||
| Applicable Medium | Food, Grease, Fibrous fluid, Water, Oil, Gas | ||||||||||||
| Dead Band | 0.3%-3.0% Adjustable | ||||||||||||
Dimension Drawing

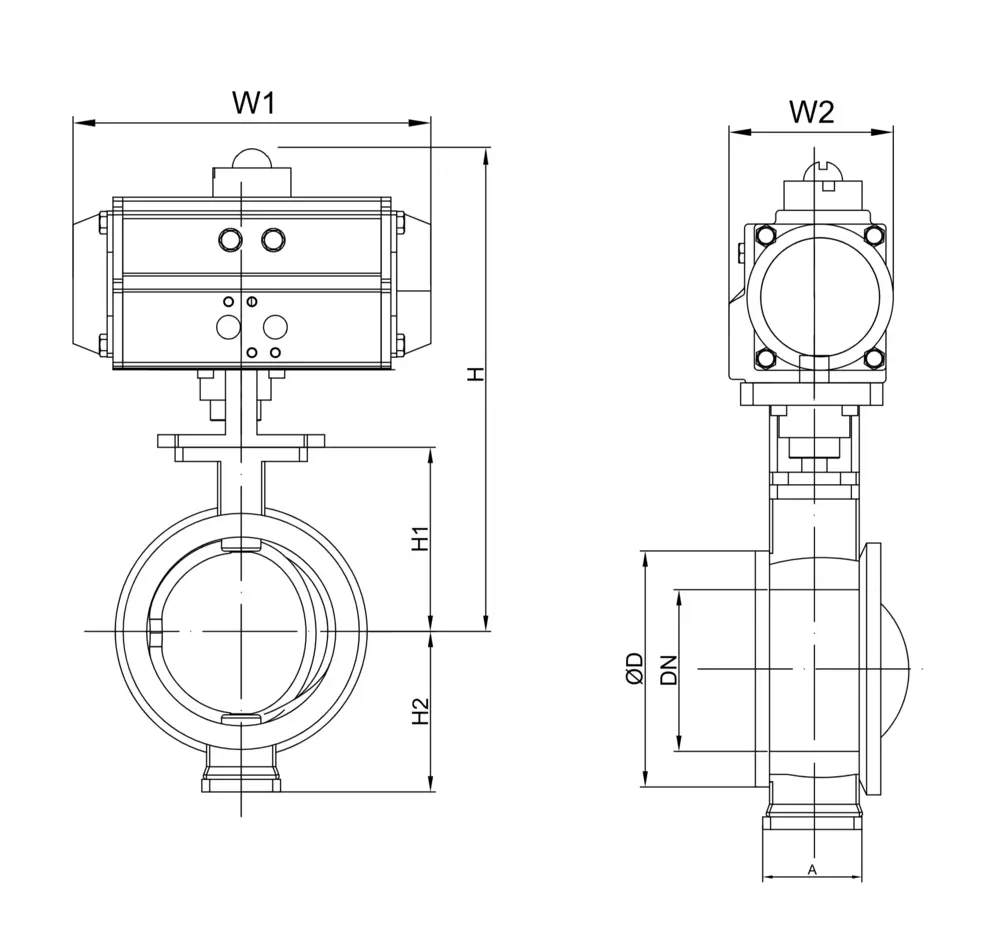

1.Outline Drawing and Connection Dimensions of Pneumatic V-type Control Valve (Wafer Type)

| In | A | φD | H1 | H2 | Double Acting | Single Acting | ||||
| H | W1 | W2 | H | W1 | W2 | |||||
| 1/2" | 62 | 54 | 74 | 75 | 186 | 147 | 72 | 186 | 147 | 72 |
| 3/4" | 62 | 54 | 74 | 75 | 186 | 147 | 72 | 202 | 168 | 83 |
| 1" | 62 | 54 | 74 | 75 | 202 | 168 | 83 | 214 | 184 | 95 |
| 1 1/4" | 62 | 78 | 80 | 75 | 208 | 168 | 83 | 229 | 204 | 103 |
| 1 1/2" | 62 | 82 | 85 | 75 | 225 | 184 | 95 | 242 | 262 | 109 |
| 2" | 75 | 100 | 87 | 95 | 236 | 204 | 103 | 260 | 268 | 122 |
| 2 1/2" | 80 | 120 | 105 | 115 | 262 | 262 | 109 | 320 | 301 | 142 |
| 3" | 100 | 131 | 115 | 125 | 288 | 268 | 122 | 347 | 390 | 152 |
| 4" | 115 | 158 | 125 | 125 | 340 | 301 | 142 | 382 | 458 | 174 |
| 5" | 130 | 180 | 140 | 155 | 355 | 301 | 142 | 397 | 458 | 174 |
| 6" | 160 | 216 | 153 | 165 | 385 | 390 | 152 | 443 | 525 | 206 |
| 8" | 200 | 260 | 200 | 195 | 457 | 458 | 174 | 515 | 532 | 226 |
| 10" | 240 | 325 | 225 | 225 | 515 | 525 | 206 | 575 | 602 | 260 |
Note: The suitable actuator model may vary depending on the service medium, valve torque and control method, resulting in corresponding changes to relevant dimensions.

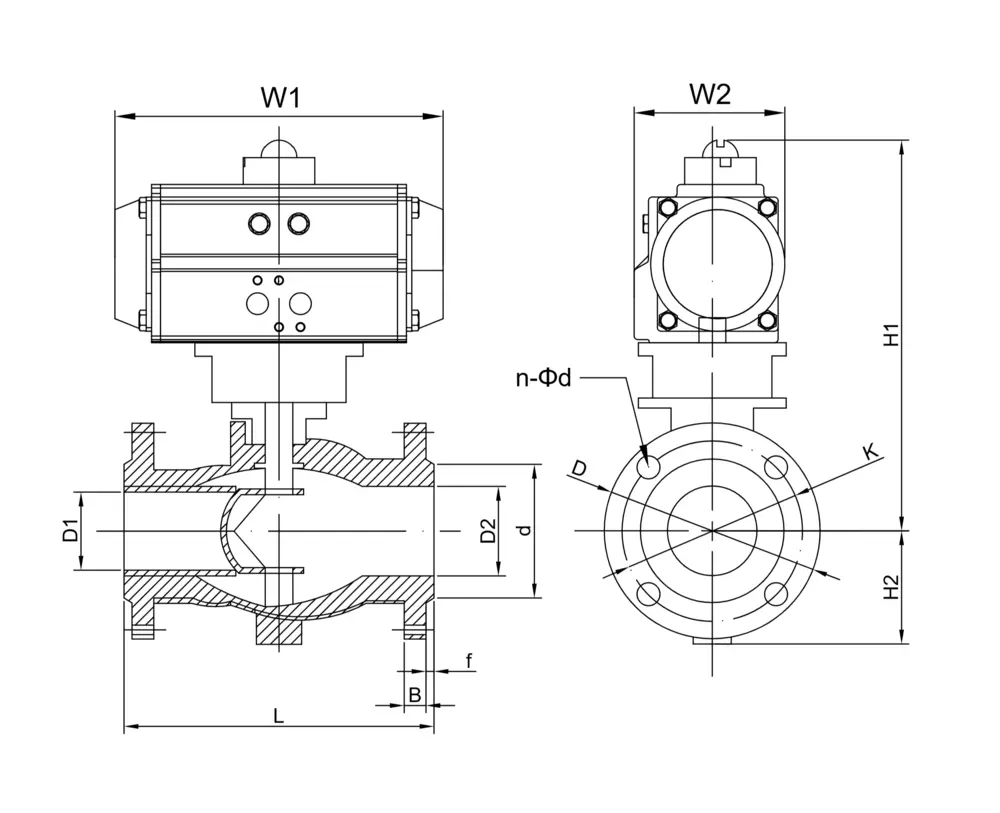

2.Outline Drawing and Connection Dimensions of Pneumatic V-type Control Valve (Long Flange Type)

| DN | D1 | D2 | d | K | D | n-φd | B | F | L | H2 | Double Acting | Single Acting | |||||
| mm | In | H1 | W1 | W2 | H1 | W1 | W2 | ||||||||||
| 15 | 1/2" | 15 | 28 | 45 | 65 | 95 | 4-Φ14 | 14 | 2 | 102 | 55 | 276 | 147 | 72 | 276 | 147 | 72 |
| 20 | 3/4" | 15 | 28 | 55 | 75 | 105 | 4-Φ14 | 14 | 2 | 102 | 60 | 286 | 147 | 72 | 302 | 168 | 83 |
| 25 | 1" | 20 | 40 | 66 | 85 | 115 | 4-Φ14 | 14 | 2 | 102 | 65 | 312 | 168 | 83 | 324 | 184 | 95 |
| 32 | 1 1/4" | 25 | 46 | 78 | 100 | 135 | 4-Φ18 | 16 | 2 | 114 | 75 | 322 | 168 | 83 | 343 | 204 | 103 |
| 40 | 1 1/2" | 32 | 54 | 85 | 110 | 145 | 4-Φ18 | 16 | 2 | 114 | 80 | 344 | 184 | 95 | 361 | 262 | 109 |
| 50 | 2" | 40 | 65 | 100 | 125 | 160 | 4-Φ18 | 16 | 2 | 124 | 85 | 363 | 204 | 103 | 387 | 268 | 122 |
| 65 | 2 1/2" | 50 | 80 | 120 | 145 | 180 | 4-Φ18 | 18 | 2 | 145 | 100 | 381 | 262 | 109 | 439 | 301 | 142 |
| 80 | 3" | 65 | 100 | 135 | 160 | 195 | 8-Φ18 | 20 | 2 | 165 | 105 | 391 | 268 | 122 | 450 | 390 | 152 |
| 100 | 4" | 80 | 110 | 155 | 180 | 215 | 8-Φ18 | 20 | 2 | 194 | 115 | 493 | 301 | 142 | 535 | 458 | 174 |
| 125 | 5" | 100 | 135 | 185 | 210 | 245 | 8-Φ18 | 22 | 3 | 210 | 130 | 497 | 301 | 142 | 539 | 458 | 174 |
| 150 | 6" | 125 | 165 | 210 | 240 | 280 | 8-Φ23 | 24 | 3 | 229 | 150 | 534 | 390 | 152 | 592 | 525 | 206 |
| 200 | 8" | 160 | 205 | 265 | 295 | 335 | 12-Φ23 | 26 | 3 | 243 | 175 | 589 | 458 | 174 | 647 | 532 | 226 |
| 250 | 10" | 210 | 260 | 320 | 355 | 405 | 12-Φ26 | 30 | 3 | 297 | 220 | 662 | 525 | 206 | 722 | 602 | 260 |
Note: The suitable actuator model may vary depending on the service medium, valve torque and control method, resulting in corresponding changes to relevant dimensions.
