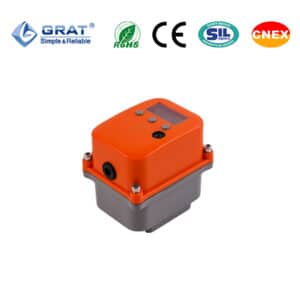

Quick-Opening Electric Actuator

The quick-opening actuator is specifically designed for rapid opening and closing of valves, capable of completing the full stroke operation (0-90°) within 3 to 8 seconds. It is primarily used for emergency shut-off or fast response control applications, featuring both high reliability and long service life design.

Live Chat

Product Description

With whole stroke 0-90° to realize fully open &open single action in 4S, EA series quick switch electric actuator is satisfied with quick switch requirement of ball valve, butterfly valve, and other segmental electric quick switch valve.

This actuator is suited to high pressure, large pressure drops, and the quick switch services that solenoid valve is not available, which is matched with ball valve, V type control valve, butterfly valve, ventilation valve, damper, fan, dynamic balancing valve, plug valve, gyrating valve, and mechanical positioning rotation system in other industrial area.

Product Structure

Electric actuators comprise a drive motor, reduction mechanism, transmission mechanism, and control part. The drive motor, including AC (simple, easy to maintain, for general use) and DC (good for speed control, for high - precision work), converts electricity to mechanical power. The reduction mechanism, such as gear (efficient, compact) or worm gear (large ratio, self - locking), slows motor speed and boosts torque. The transmission mechanism, like screw (for linear motion) or crank - link (for reciprocating valves), transfers torque to controlled objects. The control part's controller receives signals to precisely regulate the actuator.

Hot Sale 4 Second Quick Switch Electric Actuators Application in Boats 1

As Featured In

Power Supply

AC 110V / 220V / 380V
DC 12V / 24V

High efficiency

low power consumption, high torque

Torque

20~2000NM

Ingress Protection

Dustproof and waterproof with an IP67 rating

Accuracy

Hysteresis<0.5%

Dead Zone<0.5%

Feedback Error<0.5%

Valve Adaptable

0~90°

ball valve

butterfly valve

I/O

4-20mA

0-10V

Modbus

Optional Function

Dehumidification and heating

Passive contact switch

Over-torque protection

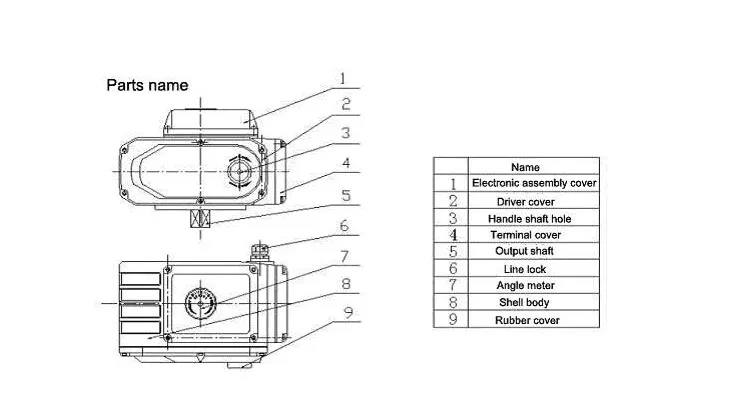

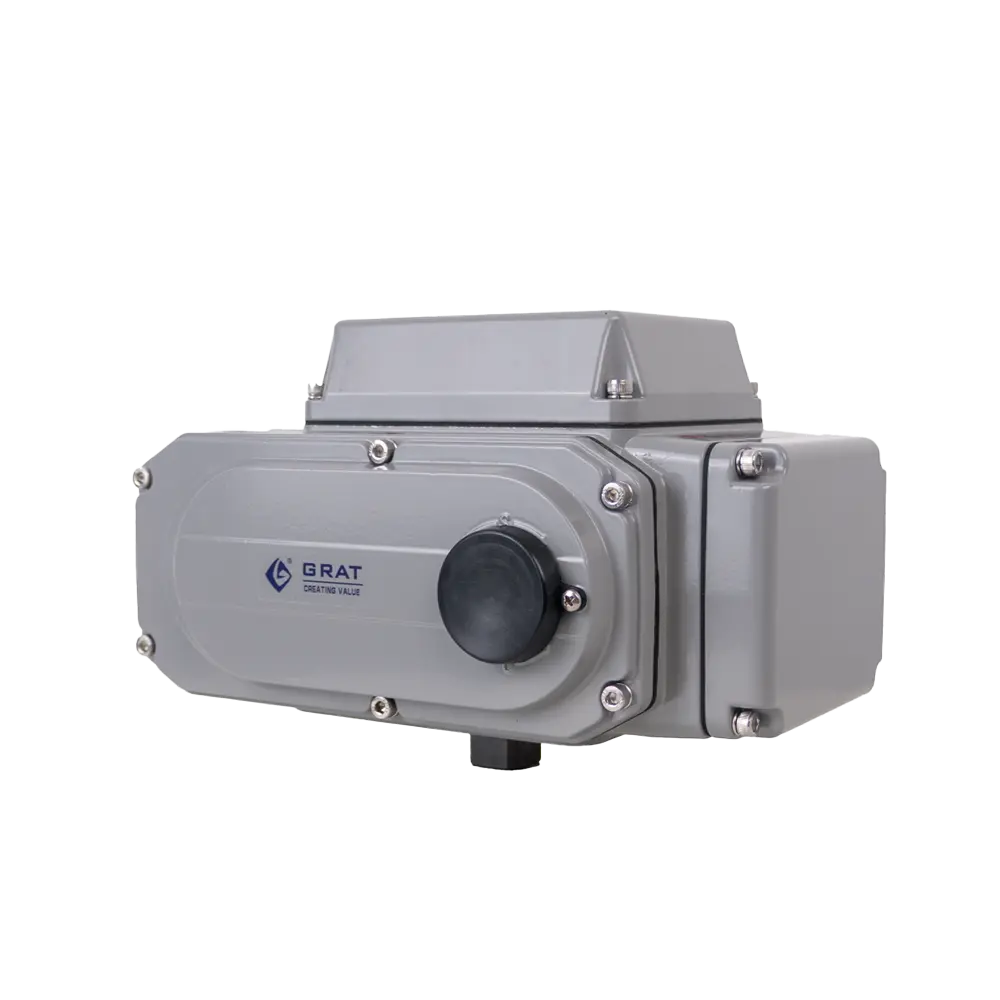

Grat Original Auto-Electric Valve Actuator

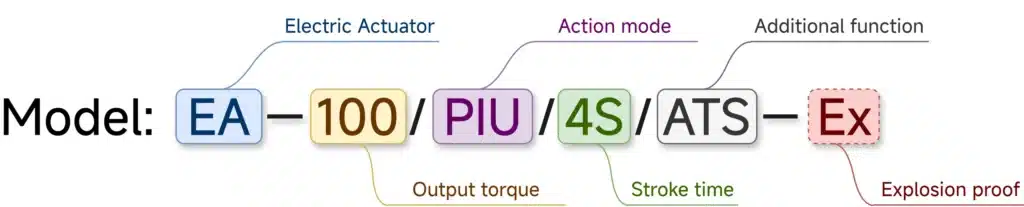

Model Representation Method

Quick-Opening Electric Actuator
Output Torque		10N·m	20N·m	50N·m	75N·m	100N·m	200N·m	500N·m
Recommended Valve Adaptation	Ball Valve	DN15	DN20	DN25-32	DN40	DN50-65	DN80-100	DN125-200
Recommended Valve Adaptation	Butterfly Valve	DN40	DN50-65	DN80-100	DN125	DN150	DN200	DN250-300
Action Time		3S/4S/6S	3S/4S/6S	4S/6S	6S/8S	6S/8S	6S/8S	8S
Rotation Angle		0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°
Motor Power	AC220V	10W	25W	40W	90W	90W	120W	140W
	AC380V	6W	15W	30W	40W	40W	90W	120W
	DC24V	13W	25W	35W	70W	70W	0	0
Rated Current	AC220V	0.16A	0.32A	0.35A	0.54A	0.64A	0.96A	1.03A
	AC380V	0.07A	0.10A	0.15A	0.29A	0.29A	0.45A	0
	DC24V	1.28A	2.03A	3.57A	5.13A	3.04A	0	0
Weight		2.5kg	3.5kg	8kg	8.5kg	9kg	20kg	22kg
Power Supply		AC 110V, AC 220V, AC 380V, DC 24V, DC 220V (selectable)
Accuracy		Backlash≤0.5% Dead Zone≤0.5% Feedback Error≤0.5%
Insulation Resistance		100 MΩ at 500 V DC
Withstand Voltage		1,500 V AC for 1 minute
Protection Rating		IP67
Limit Components		■ Electric operation: Full open/close limit switches ■ Manual operation: Mechanical stops
Protection Device		Overheat protector (auto-resetting type)
Installation Orientation		360° adjustable
Electrical Interface		M20×1.5 waterproof cable glands×2 (1 for power cable, 1 for signal cable)
Ambient Temperature		Standard: -30℃ to 60℃ ▲High-temperature type: -50℃ to 125℃
Testing Standard		JB/T8219-2016

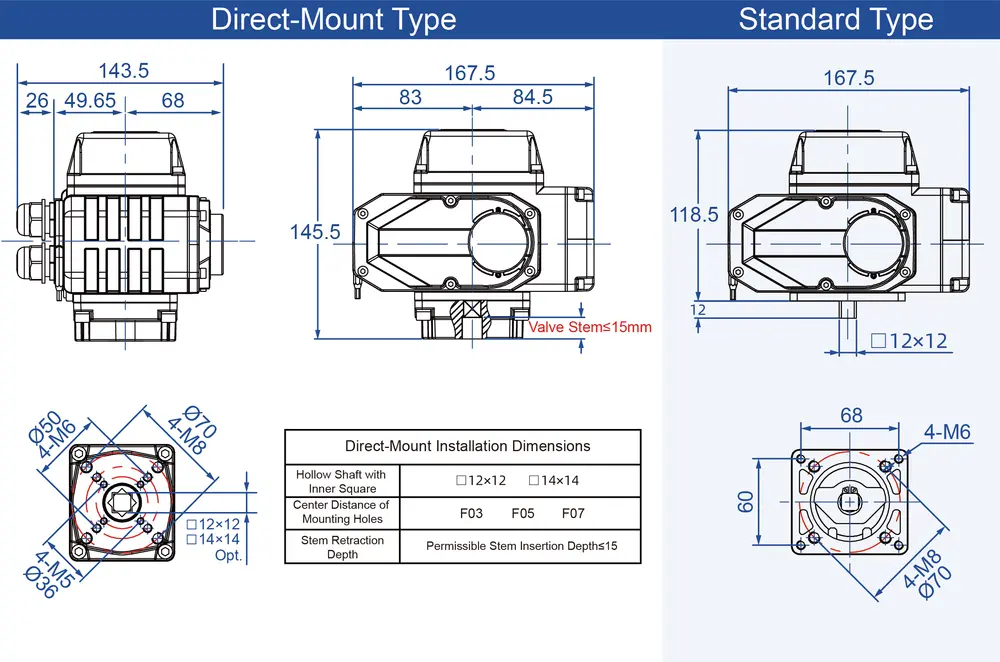

Dimension drawing

10N·m

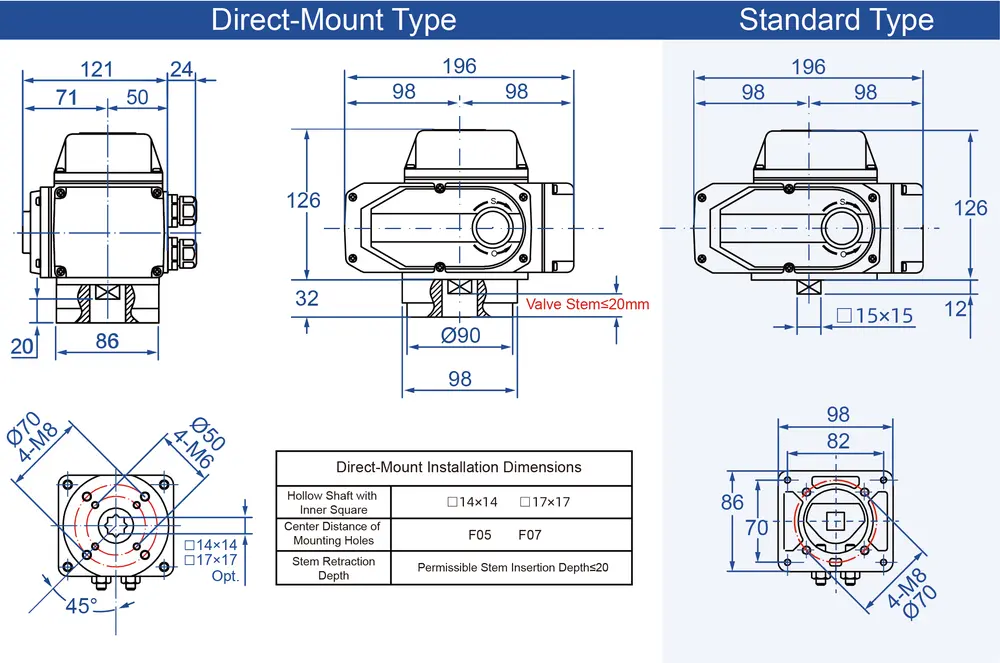

20N·m

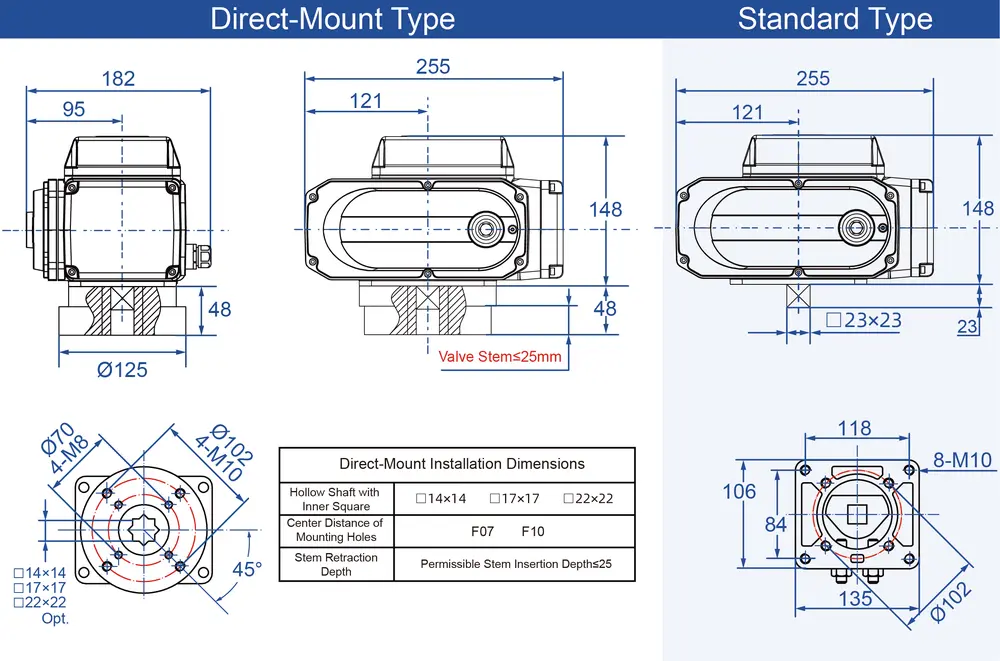

50N·m

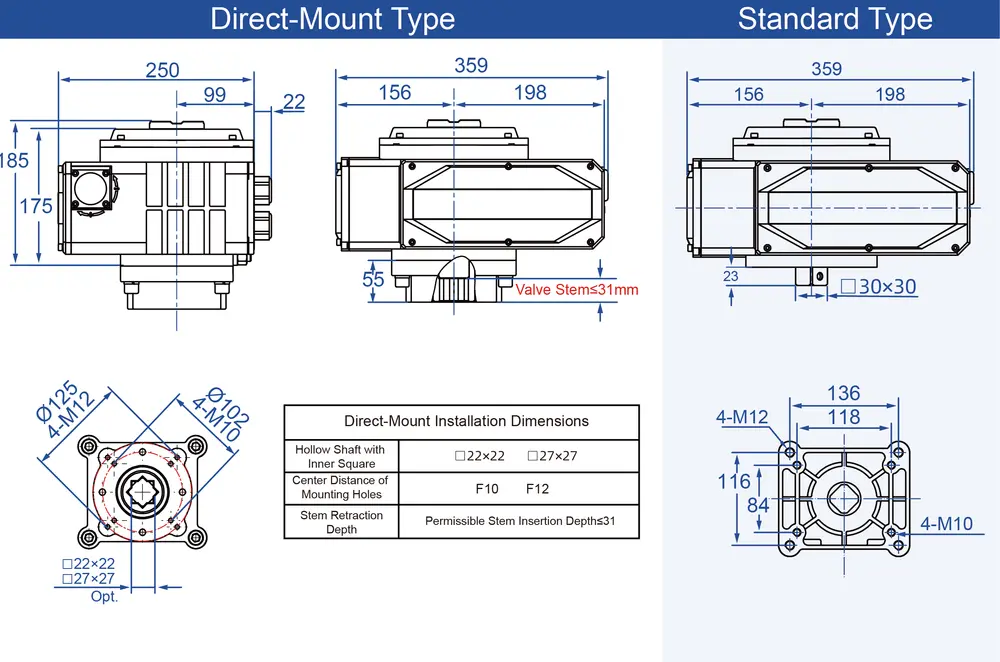

200N·m

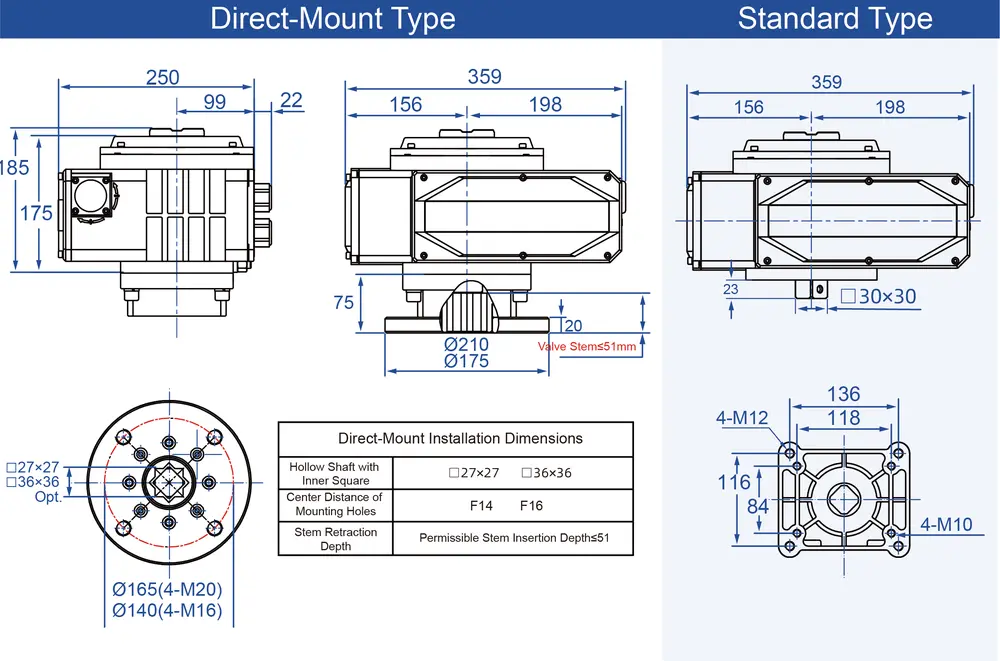

500N·m

Circuit Diagram

S

Switching Action Mode：Switching operations (open/close) are achieved via AC switching signals, and a set of active position signals indicating fully open/fully closed status are output.

MS

Switching Action Mode: Outputs passive contact signals. Structure：Equipped with two intermediate position switches.

PIU

Switching Action Mode: Outputs 0~1000Ω feedback signal. Structure: Equipped with 500Ω or 1kΩ potentiometer.

CPT

Switching Action Mode:
Outputs 4~20mA valve position feedback signal. Structure: Equipped with 1kΩ potentiometer and R/I converter.

PCU

Regulating Action Mode:Accepts 4~20mA control signal input and outputs 4~20mA valve position feedback signal. Structure: Integrated with 1kΩ potentiometer and control module (servo amplifier).

G

DC switching signals are output from the circuit via an external DC power supply to control the opening/closing program, and a set of passive contact signals corresponding to fully open/fully closed positions are provided.

SP

Switching Action Mode:
Controls valve opening angle via switching circuit, corresponding to potentiometer resistance value, while enabling intermediate position control function. Structure: Integrated with potentiometer and intermediate position switch.

H

Three-phase AC switching signals are output through an external three-phase power phase-reversing circuit to control opening/closing operations, accompanied by a set of passive contact signals for fully open/fully closed position indication.
