Electric Ultra-Short Flanged Ball Valve
The Ultra-Short Flanged Electric Ball Valve is a compact, electrically actuated valve for space-limited installations. Its ultra-short face-to-face length and stainless steel body provide corrosion resistance and bubble-tight shutoff in high-pressure, high-temperature service across chemical, petroleum, and general industrial systems.
Tags
Features
Bidirectional spherical sealing, rated to zero-leakage standards.
O-type on/off ball valves provide bubble-tight shutoff.
Ultra-short face-to-face design — seat near the flange face minimizes media entrapment and provides bubble-tight sealing; about 50% lighter than conventional electric ball valves, with a compact, space-saving body.
Ball port options: rectangular, V-port, and O-port.
- Compact, lightweight, and easy to install.
- Provides on/off isolation of the line and fluid flow regulation.
- Seat fitted with resilient seals (PTFE, etc.); PTFE self-lubrication keeps ball friction low and extends service life.
- Reliable stem seal — the stem rotates without axial travel, so the packing is not easily damaged; sealing force increases with line pressure.
- Bottom-entry stem with an anti-blowout shoulder; fire-safe metal-to-metal backup maintains sealing if the seal is lost in a fire.
- Used across petroleum, chemical, metallurgy, power generation, and light industry for automatic regulation or on/off control of oil, water, gas, pulp, and fibrous media.
- Anti-static: springs between ball, stem, and body dissipate static charge during operation.
Basic Parameters
Material Specifications

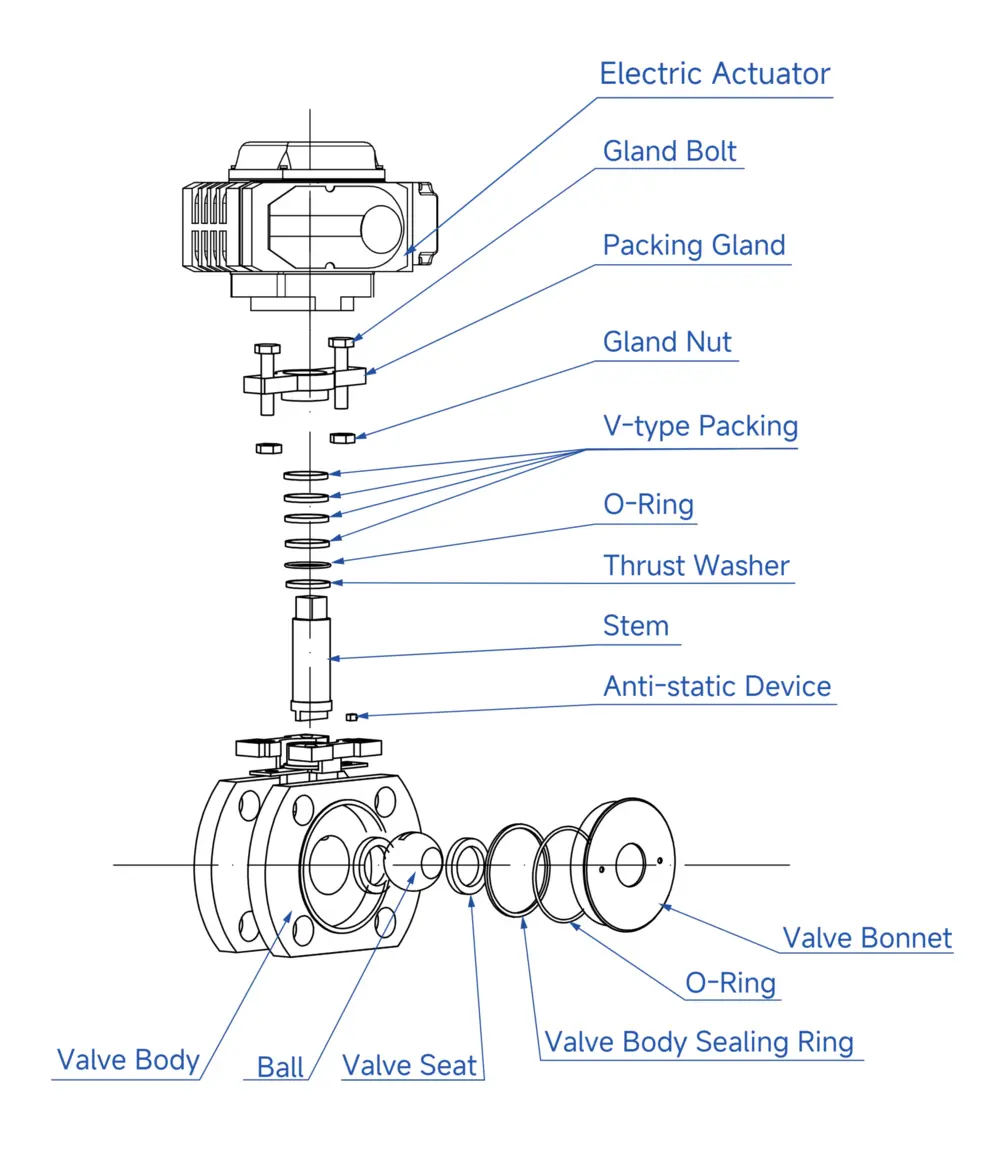

Body & Internal Components
Standards & Specifications
Suitable Media
- Water
- Petroleum
- Nitric Acid Series
- Acetic Acid Series
- Viscous Fluid
- Strong Oxidizing Medium
Standards Compliance
Main Parameters
| Item | Specification |
|---|---|
| Operating Power Supply | AC110V, AC220V, AC380V, DC24V |
| Nominal Diameter | DN15 - 200 |
| Medium Temperature | -20℃ to +350℃ (+200℃ for special sealing) |
| Working Pressure | PN16, PN25, PN40, PN64 |
| Control Mode | Regulating or On-Off Control |
| Connection Type | Flanged Type |
| Valve Body Material | WCB, SUS304, SUS316 |
| Valve Core Material | SUS304, SUS316 |
| Valve Seat Material | PTFE (normal temperature), Special PPL (high temperature) |
| Leakage Rate | Complies with ANSI B16.104 Class V Standard |
| Sealing Form | Elastic Sealing, High Temperature Resistant Para-Polyphenylene |
| Applicable Medium | Water, Petroleum, Nitric Acid Series, Acetic Acid Series, Viscous Fluids, Strong Oxidizing Media, etc. |
| Protection Class | IP67 |
| Design and Manufacturing Standards | GB12237-2021, API 6D |
| Flange Standards | JB/T 79-2015, GB/T 9124.1-2019, GB/T 9124.2-2019, ANSI B16.5, JIS B2239 |
| Structural Length | GB12221-2005 |
| Inspection Standard | API 598 |
Dimension Drawing

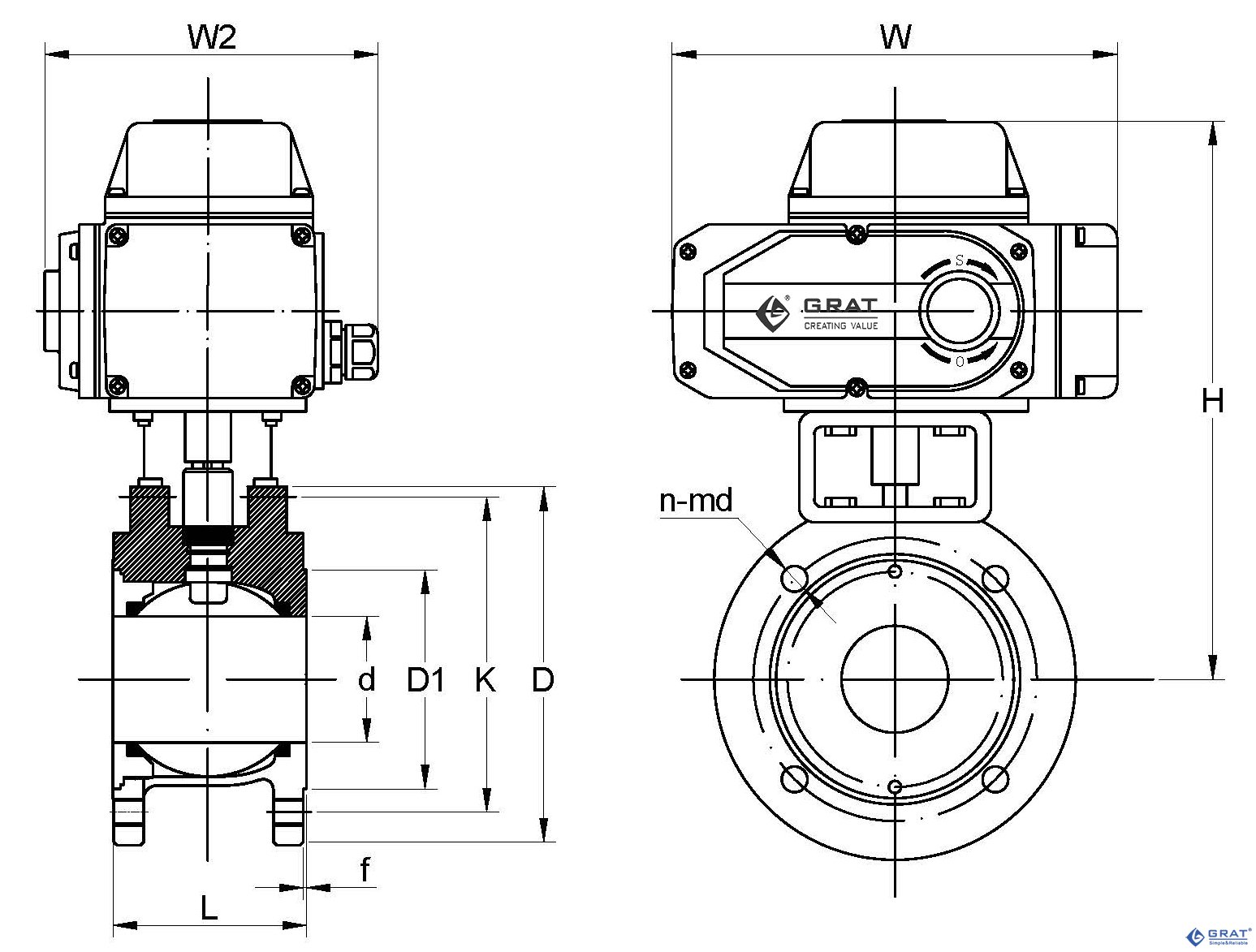

1.Outline Drawing and Connection Dimensions of Ultra-Short Flange Electric Ball Valve
2.National Standard Installation Dimensions of Ultra-Short Flange Electric Ball Valve
Design Standard: GB/T 12237-2007
Flange Standard: GB/T 9113-2010 National Standard Unit: (mm)
| Nominal Diameter（DN） | d | D1 | K | D | n-Md | f | L | H | W1 | W2 | |
| mm | in | ||||||||||
| DN15 | 1/2〃 | 15 | 45 | 65 | 95 | 4-M12 | 2 | 43 | 210 | 196 | 145 |
| DN20 | 3/4〃 | 19 | 55 | 75 | 105 | 4-M12 | 2 | 43 | 216 | 196 | 145 |
| DN25 | 1〃 | 25 | 65 | 85 | 115 | 4-M12 | 2 | 50 | 223 | 196 | 145 |
| DN32 | 1 1/4〃 | 28 | 76 | 100 | 140 | 4-M16 | 2 | 50 | 230 | 196 | 145 |
| DN40 | 1 1/2〃 | 38 | 83 | 110 | 148 | 4-M16 | 3 | 67 | 240 | 196 | 145 |
| DN50 | 2〃 | 49 | 102 | 125 | 156 | 4-M16 | 3 | 72 | 250 | 196 | 145 |
| DN65 | 2 1/2〃 | 64 | 120 | 145 | 185 | 4-M16 | 3 | 94 | 298 | 255 | 182 |
| DN80 | 3〃 | 73 | 143 | 160 | 200 | 8-M16 | 3 | 120 | 312 | 255 | 182 |
| DN100 | 4〃 | 90 | 168 | 180 | 220 | 8-M16 | 3 | 141 | 322 | 255 | 182 |
| DN125 | 5〃 | 110 | 185 | 210 | 245 | 8-M16 | 3 | 165 | 397 | 255 | 182 |
| DN150 | 6〃 | 145 | 208 | 240 | 277 | 8-M20 | 3 | 225 | 422 | 255 | 182 |
| DN200 | 8〃 | 195 | 265 | 395 | 335 | 12-M20 | 3 | 275 | 512 | 255 | 182 |
3.DIN Standard Installation Dimensions of Ultra-Short Flange Electric Ball Valve
Design Standard: DIN 3375/1, 2, EN 12516-1
Flange Standard: DIN EN 1092-1 PN10–PN40 DIN Standard Unit: (mm)
| Nominal Diameter（DN） | d | D1 | K | D | n-Md | f | L | H | W1 | W2 | |
| mm | in | ||||||||||
| DN15 | 1/2〃 | 15 | 45 | 65 | 95 | 4-M12 | 2 | 44 | 220 | 196 | 145 |
| DN20 | 3/4〃 | 20 | 58 | 75 | 105 | 4-M12 | 2 | 44 | 220 | 196 | 145 |
| DN25 | 1〃 | 25 | 68 | 85 | 115 | 4-M12 | 2 | 50 | 223 | 196 | 145 |
| DN32 | 1 1/4〃 | 32 | 78 | 100 | 140 | 4-M16 | 2 | 60 | 237 | 196 | 145 |
| DN40 | 1 1/2〃 | 38 | 88 | 110 | 150 | 4-M16 | 3 | 65 | 244 | 196 | 145 |
| DN50 | 2〃 | 49 | 102 | 125 | 165 | 4-M16 | 3 | 80 | 245 | 196 | 145 |
| DN65 | 2 1/2〃 | 62 | 122 | 145 | 185 | 4-M16 | 3 | 110 | 306 | 255 | 182 |
| DN80 | 3〃 | 74 | 138 | 160 | 200 | 8-M16 | 3 | 120 | 326 | 255 | 182 |
| DN100 | 4〃 | 100 | 158 | 180 | 220 | 8-M16 | 3 | 152 | 338 | 255 | 182 |
| DN125 | 5〃 | 118 | 188 | 210 | 250 | 8-M16 | 3 | 180 | 363 | 255 | 182 |
| DN150 | 6〃 | 150 | 212 | 240 | 285 | 8-M20 | 3 | 232 | 396.5 | 255 | 182 |

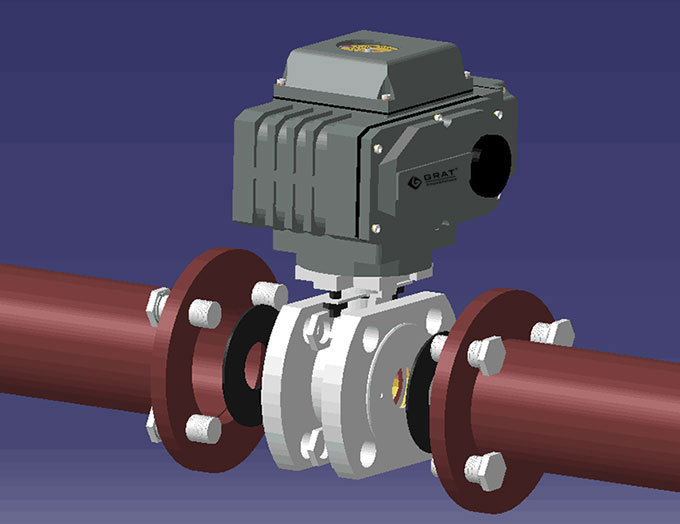

4.Installation Diagram of Ultra-Short Flange Electric Ball Valve and Pipeline
Circuit Diagram
S
MS
PIU
CPT
PCU
G
SP
