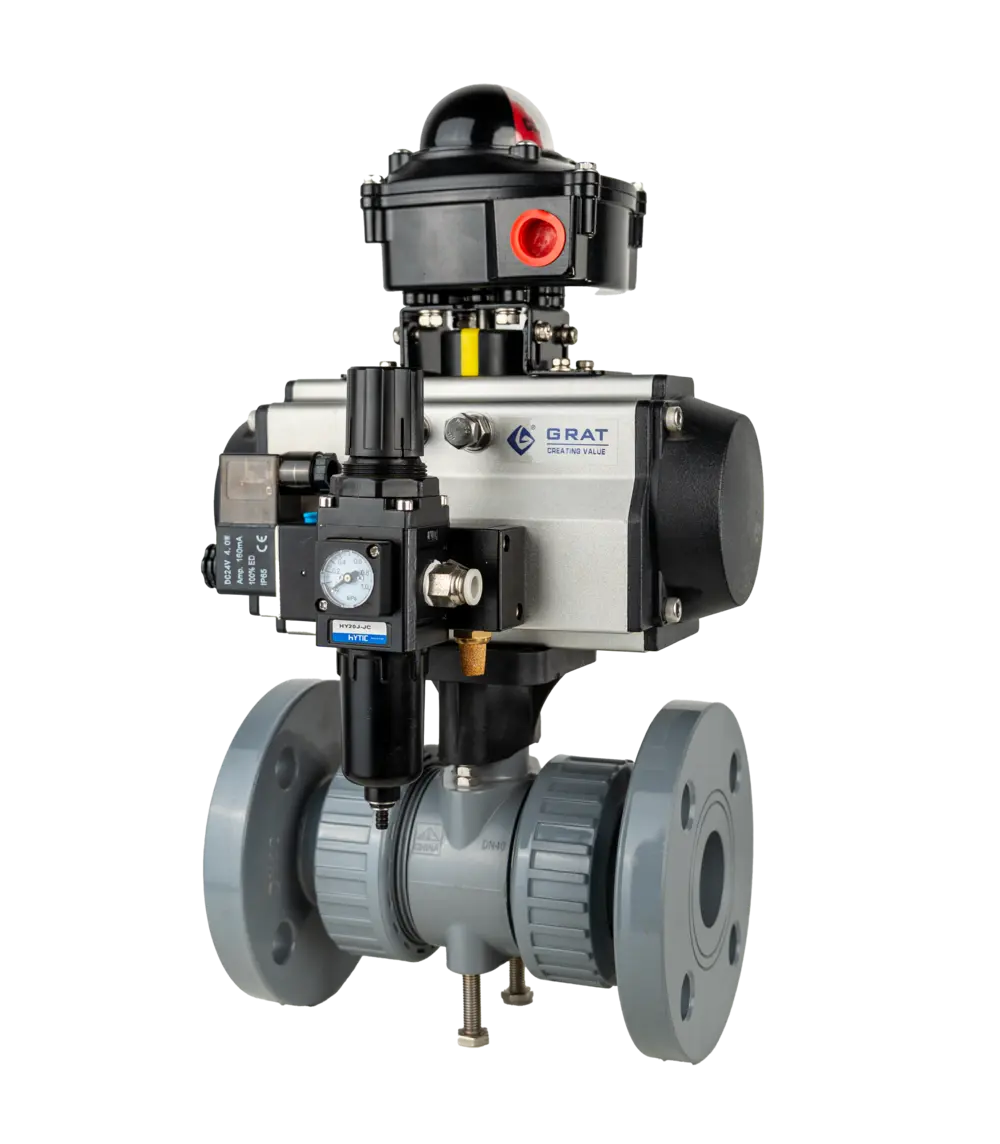

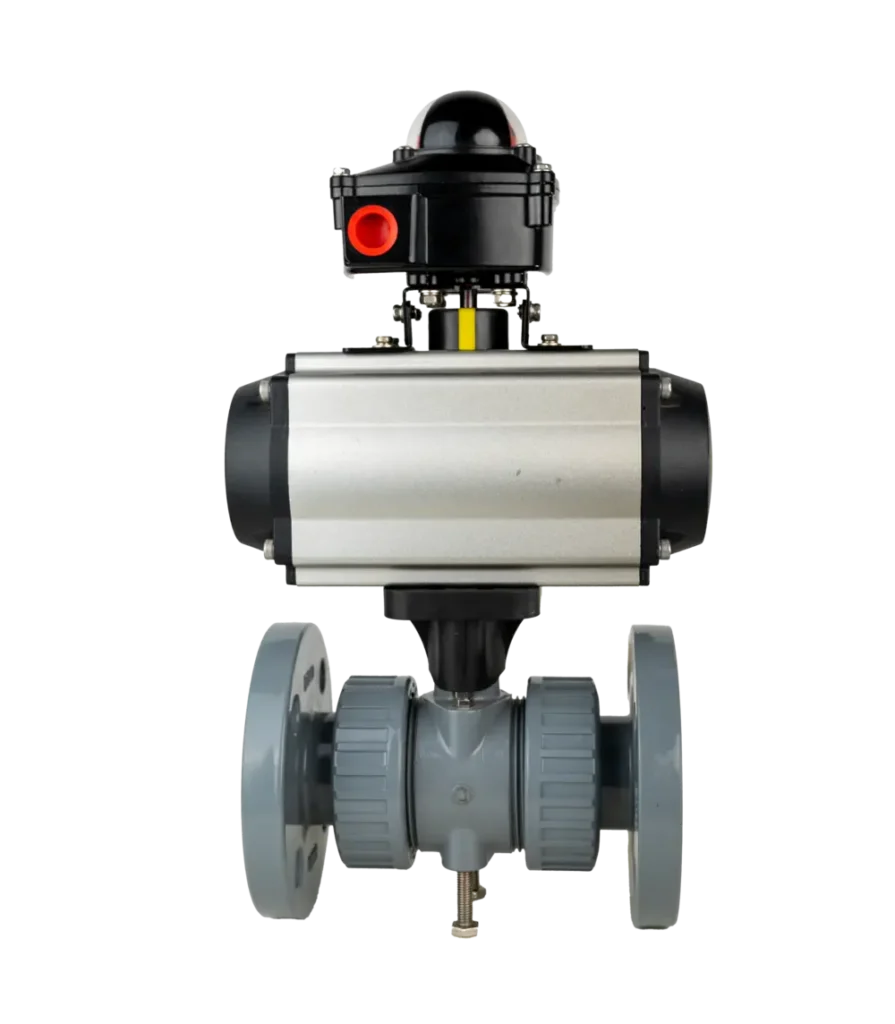

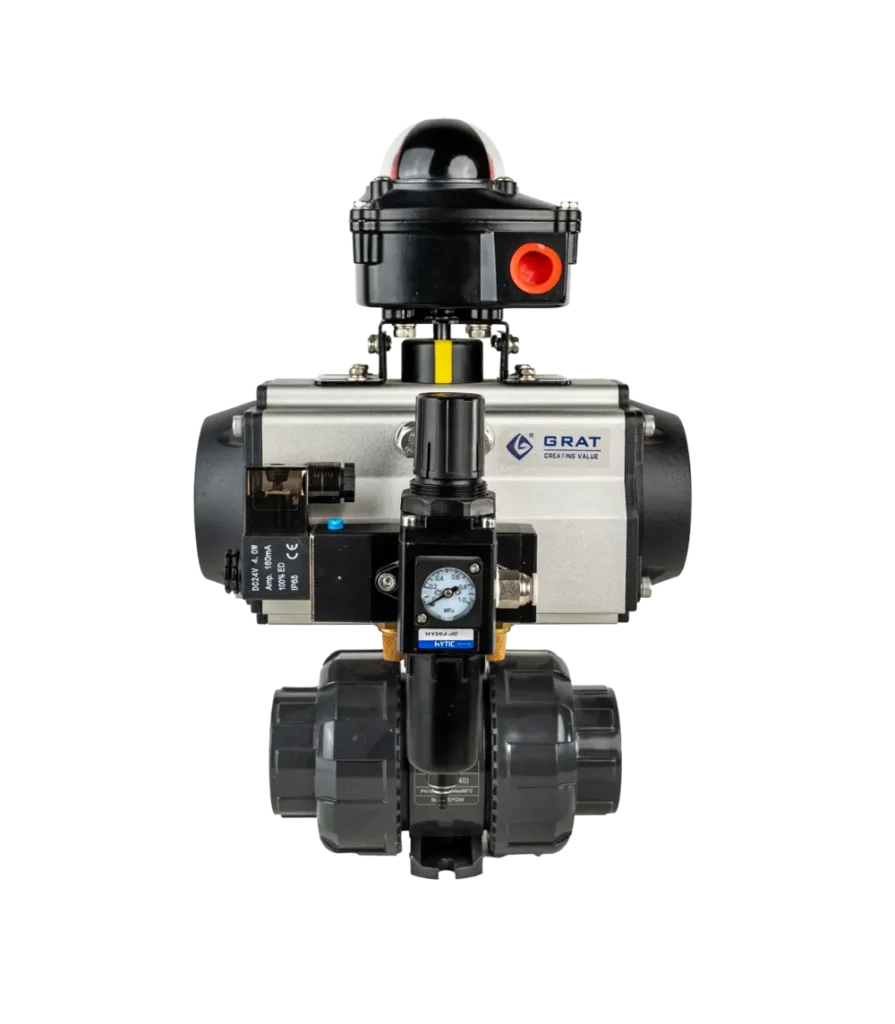

UPVC pneumatic ball valve

Corrosion-resistant UPVC ball valve for control of aggressive media — acids, alkalis, saline solutions — in chemical processing, water/wastewater and pharmaceutical service. Lightweight, durable body with a pneumatic actuator for fast 90° quarter-turn operation. NAMUR-compatible interface for direct automation; multiple end connections for high-purity and corrosive duty.

Live Chat

Product Introduction

Plastic pneumatic ball valves serve acid/alkali and chemical-handling systems — particularly where instrument air is available and explosion protection is required. Their light weight and corrosion resistance make them suitable for pure-water, potable and process-water, drainage and sewage, and brine and seawater systems.

Features

Corrosion resistant — UPVC/CPVC construction withstands strong acids and alkalis with no rust or scaling, for broad media compatibility.
Easy maintenance — union-end design allows quick disassembly and service.
Sanitary — non-toxic material meets applicable hygiene/food-contact standards.
Lightweight — approx. 1/5 the weight of steel and 1/6 that of copper equivalents.
Durable — high strength and toughness with good abrasion resistance.
Low resistance — smooth bore minimizes flow loss and media adhesion.

Basic Parameters

Nominal Diameter (DN): DN15 - DN100

Operating Power Supply: AC110V, AC220V, AC380V, DC24V

Medium Temperature: -15°C to 60°C (No freezing condition required)

Ambient Temperature: -30°C to 60°C

Nominal Pressure: PN0.1 ~ 1.6MPa

Control Method: Modulating or On/Off Control

Pneumatic Action: Single Acting (with spring return) or Double Acting

Protection Class: IP67

Installation Method: Installable at any angle (Horizontal or inclined installation recommended for longer service life)

Connection & Sealing

Connection Type: Flange Connection, Double Union Connection

Sealing Type: Soft Seal

Material Specifications

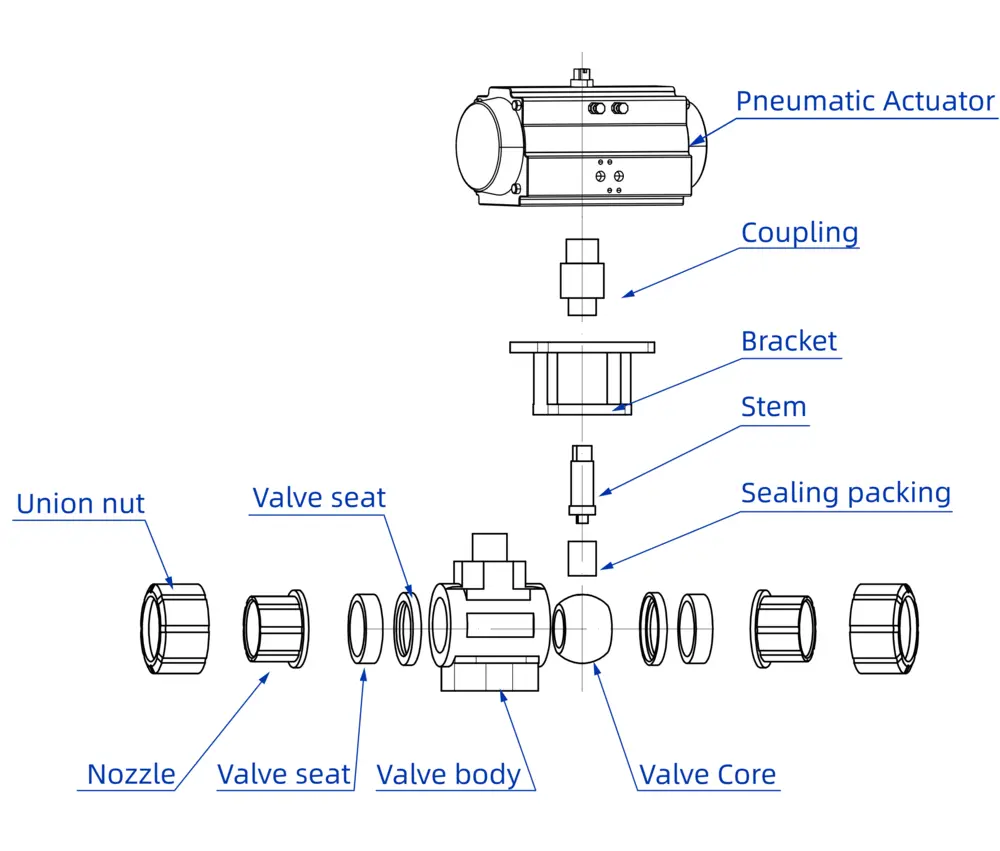

Body & Internal Components

Valve Body: PVC (Polyvinyl Chloride), CPVC

Shaft: PVC (Polyvinyl Chloride)

Ball Core: PVC (Polyvinyl Chloride), CPVC

End Part: PVC (Polyvinyl Chloride)

Ring Nut: PVC (Polyvinyl Chloride)

Ring: PVC (Polyvinyl Chloride), CPVC

Sealing Components

O-RING: EPDM (Ethylene Propylene Diene Monomer)

Ball Seal Ring: PTFE (Polytetrafluoroethylene)

Applicable Medium

Water
Air
Oil
Corrosive Chemical Liquids

Standards Compliance

Design & Manufacturing: API 6D

Flange Standards:

- ANSI B16.5 - JIS B2239

Face-to-Face Dimension: GB/T 12221-2005

Inspection Standard: API 598

Main Parameters

Nominal Diameter	DN15～DN100
Power Supply	AC110V, AC220V, AC380V, DC24V
Medium Temperature	-15℃－60℃ (non-freezing)
Ambient Temperature	-30℃－60℃
Nominal Pressure	PN0.1～1.6MPa
Control Mode	Modulating or On-Off Control
Pneumatic Actuation	Single Acting (with spring return) or Double Acting
Suitable Medium	Water, Air, Oil, Corrosive Chemical Liquids
Connection Type	Flanged Connection, Double Union Connection
Sealing Type	Soft Seal
Shaft	PVC
O-Ring	EPDM
Ring Nut	PVC
Valve Body	PVC, CPVC
End	PVC
O-Ring	EPDM
Ball Seal Ring	PTFE
Ball Core	PVC, CPVC
O-Ring	EPDM
Ball Seal Support	PVC
Ring	PVC, CPVC
Protection Grade	IP67
Installation	Mountable at any angle (horizontal or inclined installation recommended for longer service life)
Design and Manufacturing Standard	API 6D
Flange Standard	ANSI B16.5, JIS B2239
Face-to-Face Standard	GB/T 12221-2005
Inspection Standard	API 598

Dimension Drawing

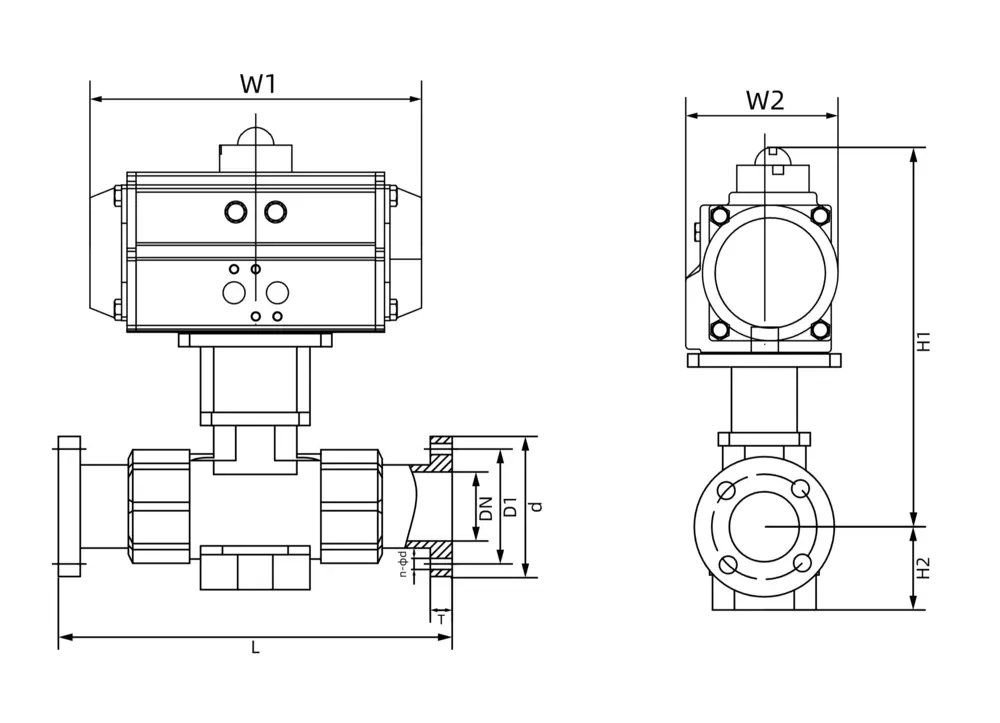

1.Dimensions for Connection and Installation of Flange Type Pneumatic Plastic Anti-Corrosion Ball Valve

SIZE			DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100
Nom.			1/2〃	3/4〃	1〃	1-1/4〃	1-1/2〃	2〃	2-1/2〃	3〃	4〃
	D		95	100	125	135	140	155	175	185	210
	D1		70	75	90	100	105	120	140	150	175
JIS	L		143	172	187	190	212	234	259	304	372
	n-φd		4-φ15	4-φ15	4-φ19	4-φ19	4-φ19	4-φ19	4-φ19	8-φ19	4-φ19
	D		89	98	108	117	127	152	178	191	229
	D1		61	70	79	89	99	121	140	152	191
ANSI	L		143	172	187	190	212	234	259	304	372
	n-φd		4-φ16	4-φ16	4-φ16	4-φ16	4-φ16	4-φ19	4-φ19	4-φ19	8-φ19
	D		95	105	115	140	150	165	185	200	220
	D1		65	75	85	100	110	125	145	163	180
DIN	L		130	150	160	180	200	230	290	310	350
	n-φd		4-φ14	4-φ14	4-φ14	4-φ18	4-φ18	4-φ18	4-φ18	8-φ18	8-φ18
T			13	14	14	16	16	16	18	18	18
双作用		W1	147	147	168	168	184	204	262	268	301
		W2	72	72	83	83	95	103	109	122	142
		H1	160	169	194	204	228	257	273	303	393
单作用		W1	147	168	184	204	262	268	301	390	458
		W2	72	83	95	103	109	122	142	152	174
		H1	160	185	225	225	245	281	331	362	435
H2			20.5	26	33	38	42	53

Note: The suitable actuator model may vary depending on the service medium, valve torque and control method of the pneumatic valve, and the relevant dimensions will change accordingly.

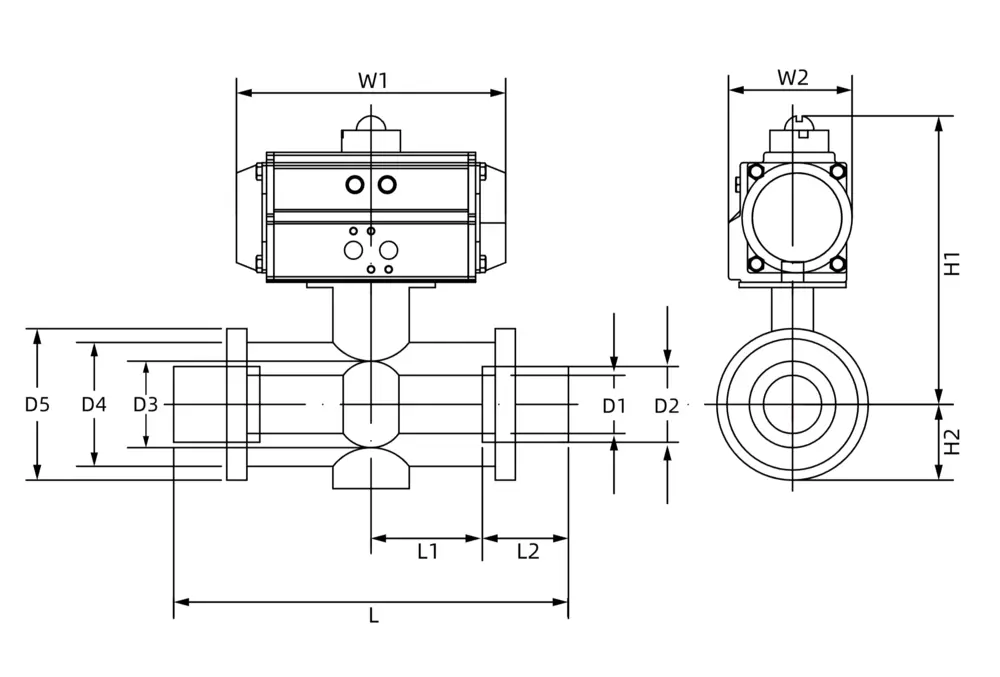

2.Dimensions for Connection and Installation of Union Type Pneumatic Plastic Anti-Corrosion Ball Valve

Nominal Diameter	L1	L2	L	D1	D2	D3	D4	D5	H2	Double Acting			Single Acting
Nominal Diameter										H1	W1	W2	H1	W1	W2
（DN）										H1	W1	W2	H1	W1	W2
15	37	23	120	13	20	22	31	45	29.5	209.5	147	72	209.5	147	72
20	39	25	128	18	25	26	36	55	33.5	211.5	147	72	227.5	168	83
25	44	28	144	23	32	32	47	66	39	234	168	83	246	184	95
32	47	32	158	30	40	38	56	82	47	241	168	83	262	204	103
40	54	37	182	38	50	48	65	98	54	269	184	95	286	262	109
50	63	42	210	49	63	60	80	120	65	287	204	103	311	268	122
65	78	45	246	64	75	76	94	140	82	327	262	109	385	301	142
80	90	55	290	77	90	89	110	160	96	372	268	122	431	390	152
100	106	65	342	98	110	114	134	225	114	441	301	142	483	458	174
