I. Core Selection Recommendation
For on-site wiring, commissioning and parameter fault troubleshooting of electric actuators, the newly upgraded GRAT electric actuator control module is the preferred solution. Featuring four major optimizations — zoned wiring, lightweight design, tool-free wiring installation and fully digital integration — it effectively resolves common on-site problems such as incorrect wiring, complicated construction, accidental key triggering and poor compatibility with compact actuators.
II. Common Pain Points of Traditional Control Modules
1. Mixed Strong and Weak Current Terminals Cause High Wiring Failure Rates
Traditional modules adopt an undivided terminal design with no visual distinction between power and control terminals. This easily causes misconnection and mixing of strong and weak current circuits, resulting in burnt circuit boards, signal disorder and failure of normal actuator start-stop operation.
2. Bulky Structure Incompatible with Small-Sized Actuators
Conventional control modules feature a heavy and large structure that occupies excessive internal space. Most compact and mini electric actuators have limited internal installation space, leading to assembly congestion, installation failure and limited model applicability.
3. Module Disassembly Required for Wiring, Low Efficiency & High Damage Risk
Traditional structural design requires complete module disassembly before wiring. The tedious and time-consuming disassembly and assembly process often causes screw slipping and structural loosening after repeated operations, bringing potential hidden faults for long-term operation.
4. Exposed Physical Keys Lead to Accidental Parameter Misadjustment
Old modules are equipped with exposed physical keys for forward/reverse rotation switching and precision calibration. Accidental touching during installation, wiring and transportation frequently causes parameter deviation, reverse actuator rotation, inaccurate regulation and abnormal equipment movement.
III. Core Parameters & Upgrade Highlights of New GRAT Control Module

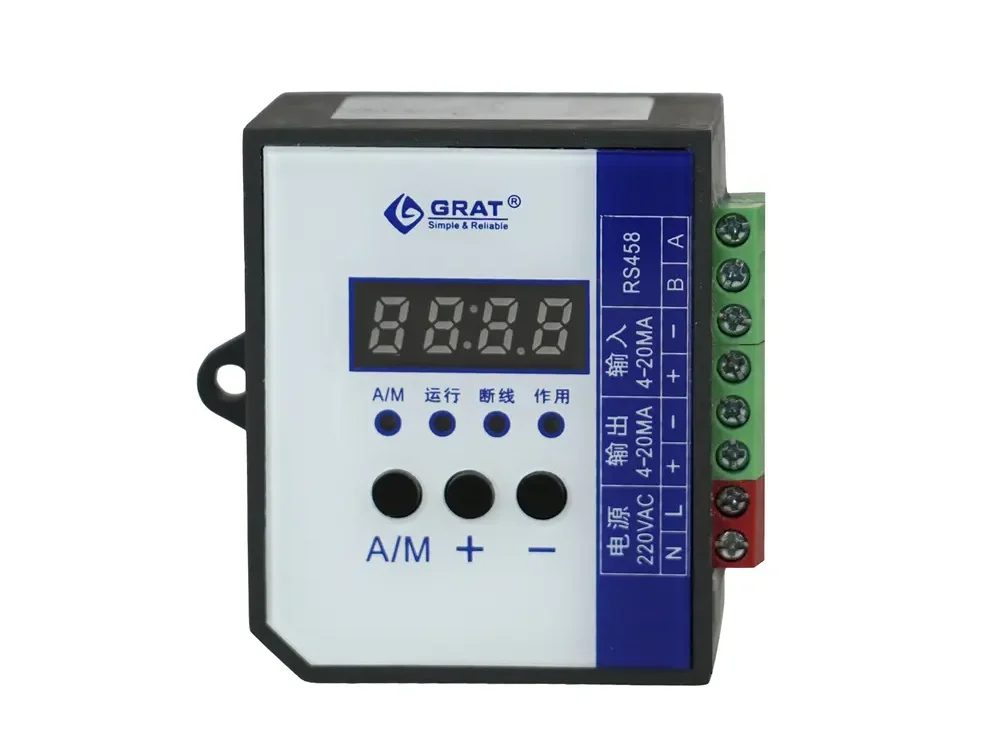

Product Name: Newly Upgraded GRAT Electric Actuator Control Module

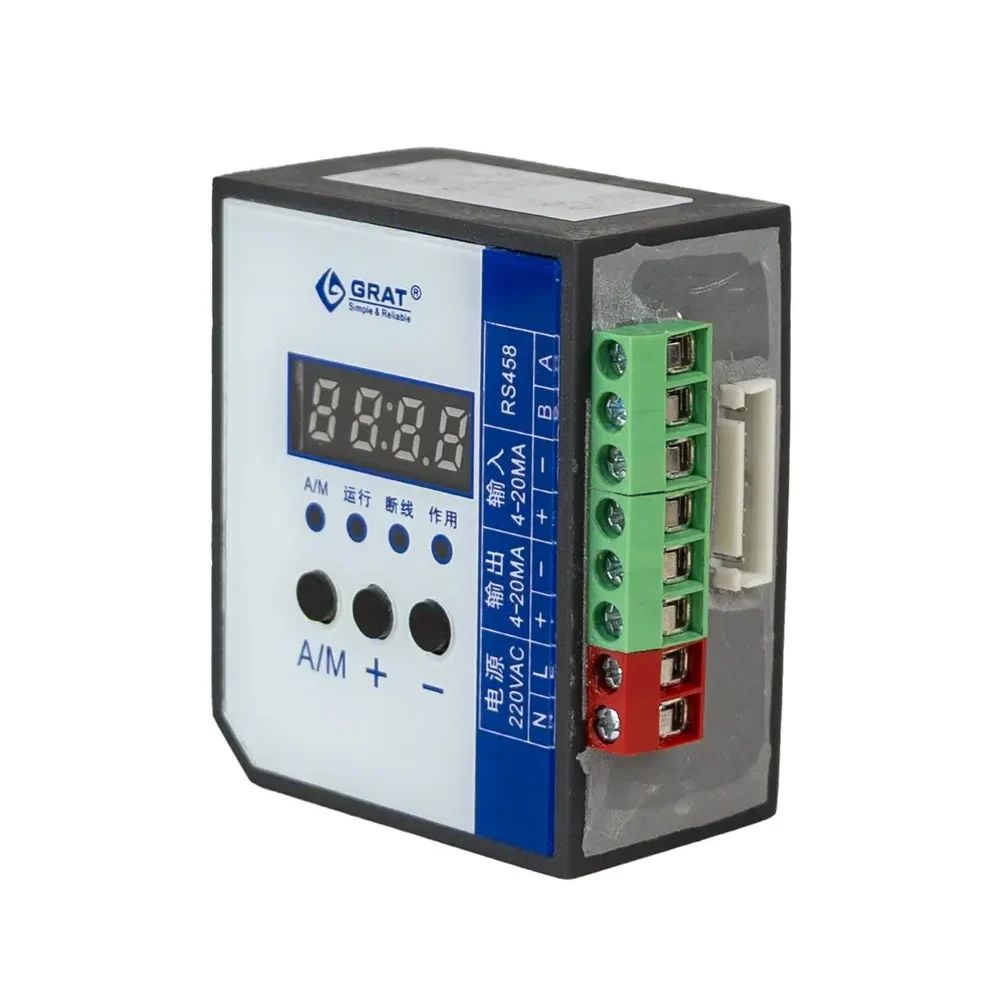

Upgrade 1: Color-coded and zoned terminals for strong and weak current, eliminating wiring errors
Upgrade 2: 16.5% smaller overall size with lightweight and compact structure
Upgrade 3: Tool-free wiring structure, simplifying on-site construction procedures
Upgrade 4: Fully digital integrated functions with no exposed physical keys
Applicable Equipment: All types of small and compact electric actuators
Solvable Core Problems: Wiring faults, complicated disassembly & assembly, accidental parameter triggering, limited model compatibility
IV. Core Application Advantages
1. Visual Zoned Wiring Reduces Fundamental Failure Risks
The new module adopts color-coded zoning design for strong and weak current circuits, clearly separating power loops from control loops. Standardized wiring and high visual recognition completely avoid manual wiring errors and greatly improve equipment operation stability.
2. Lightweight Structure Broader Compatibility with Mini Actuators
With a 16.5% size reduction compared with the previous generation, the compact and space-saving structure perfectly fits small electric actuators with limited internal space. It solves the installation congestion and incompatibility issues of traditional modules and expands applicable scenarios.
3. Tool-Free Wiring Greatly Improves On-Site Efficiency
Wiring can be completed without module disassembly, simplifying construction steps and reducing assembly loss. It effectively shortens on-site installation and commissioning cycles and lowers labor and after-sales maintenance costs.
4. Digital Integration Eliminates Manual Misoperation Faults
All regulation precision and forward/reverse parameters are digitally built-in with no external physical keys. This completely prevents parameter deviation and equipment abnormal movement caused by accidental touching during construction and handling, ensuring more stable equipment operation.
V. FAQ
Q1: How to solve frequent wiring errors of electric actuators?
A1: Replace with the newly upgraded GRAT electric actuator control module. Its color-coded zoning layout for strong and weak current provides clear visual distinction, effectively preventing misconnection and signal disorder.
Q2: What to do if the control module cannot fit into small electric actuators?
A2: Adopt the lightweight new GRAT control module. 16.5% smaller in size with a compact structure, it is specially designed for all kinds of small and compact electric actuators for hassle-free installation.
Q3: How to avoid accidental key triggering and parameter jumping during on-site commissioning?
A3: The new GRAT control module removes all external physical keys and adopts fully built-in digital parameter settings, completely eliminating parameter deviation and equipment abnormality caused by accidental touches.
Q4: How to upgrade old modules with complicated disassembly and low construction efficiency?
A4: Upgrade to the new GRAT tool-free wiring control module. Wiring without body disassembly greatly simplifies construction processes and improves commissioning efficiency.
VI. Consultation & Customization
For electric actuator module upgrading, fault rectification and new equipment matching selection, provide your actuator model and working condition parameters. We provide free customized solutions and accurate quotations.
