For intelligent retrofits of ship piping systems, engine‑room dampers, boiler and fire‑safety systems, the GRAT Marine Quarter‑Turn Electric Actuator is the preferred choice. It delivers quarter‑turn rotational output to withstand harsh offshore conditions including salt spray, high humidity and vessel vibration. It resolves common issues found in legacy valves: delayed manual operation, lack of remote interconnection and failed emergency shutdown functions.
1. Four Key Pain Points of Traditional Marine Valve Systems
Drawbacks prevalent on older vessels:
1.1 Lack of fail‑safe functions creates major navigation hazards
Without automatic interlock shut‑off capability, crew must operate valves locally during emergencies such as fire, oil spill, bilge flooding or main engine failure. Slow manual response may escalate incidents and fails to meet current maritime safety regulations.
1.2 Limited to full‑open / full‑close operation with poor modulating performance
Legacy hardware cannot perform precise throttling. Parameters such as lube‑oil pressure, cooling‑water flow and boiler fuel‑air ratio can only be crudely controlled. Severe operating fluctuations accelerate wear of main engines, auxiliary machinery and boiler components, increasing maintenance frequency.
1.3 Constraints for retrofitting pneumatic & hydraulic actuators
- Pneumatic actuators require extensive compressed‑air piping, which is difficult to implement in compact engine‑room compartments and remote pipeline sections.
- Hydraulic systems feature complex piping, are prone to oil leakage causing cabin contamination, and suffer high long‑term failure rates. They are not ideal for large‑scale vessel retrofits.
1.4 General‑purpose actuators lack marine‑grade protection and cannot pass classification society inspections
Standard land‑based electric actuators are not engineered for waterproofing, corrosion resistance or explosion‑proofing. Subject to marine salt mist, high humidity and continuous hull vibration, they suffer internal corrosion and mechanical jamming, failing to satisfy requirements of major classification societies.

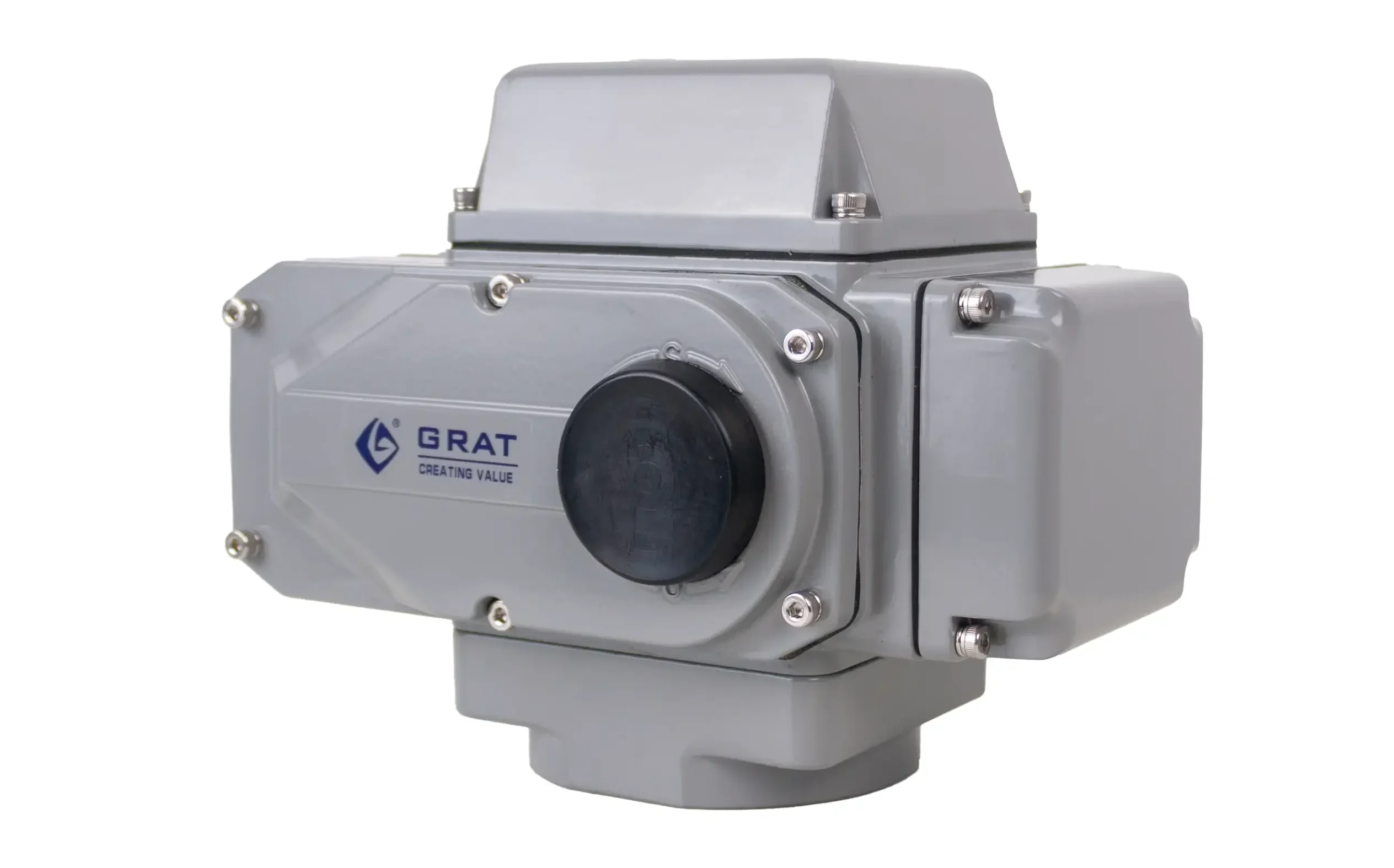

2. Core Specifications — GRAT Marine Quarter‑Turn Electric Actuator
| Item | Specification |
|---|---|
| Full Product Name | GRAT Marine Quarter‑Turn Electric Actuator |
| Control Signal | On‑Off discrete signal / 4‑20 mA analogue modulating signal |
| Output Motion | Quarter‑turn rotary displacement |
| Key Performance | Waterproof, anti‑corrosion, salt‑mist resistant, marine‑grade explosion‑proof, emergency automatic interlock |
| Functional Features | Remote open‑close, stepless modulating control, emergency automatic shutdown, valve position feedback |
| System Compatibility | Fuel oil system, lube‑oil system, ballast‑water system, bilge‑water & cooling system, fire‑fighting foam system, sewage system, engine‑room HVAC dampers, boiler system, tanker inert‑gas explosion‑protection system |
| Compliance | SOLAS International Convention for the Safety of Life at Sea; major classification‑society standards |
3. Full‑Vessel Application Scenarios
3.1 Vessel process piping systems
- Fuel Oil System: Remotely control pipeline isolation and flow. Automatically cut fuel supply upon fire alarm to contain fire spread at source.
- Lube‑Oil System: Dynamically regulate lube‑oil pressure and flow to stabilise lubrication conditions, reduce mechanical wear and lower failure risks.
- Ballast‑Water System: Automatic ballast‑water transfer adjusts vessel draught, heel and trim to guarantee seakeeping performance and reduce manual watch‑keeping workload.
- Bilge‑Water & Cooling System: Remotely open drain valves to discharge accumulated bilge water and mitigate flooding risks. Precisely adjust cooling‑water flow to stabilise main and auxiliary engine temperatures and prevent over‑heating shutdown.
- Fire‑Fighting Foam System: Activate fire‑safety valves immediately upon fire alarms to engage fire‑suppression systems.
- Sewage System: Manage sewage storage, treatment and discharge to meet environmental regulations for ocean‑going vessels.
3.2 Engine‑Room Ventilation & HVAC Systems
The GRAT marine quarter‑turn electric actuator is suitable for engine‑room ventilation dampers, accommodation HVAC dampers and fire dampers. Under normal sailing conditions, it modulates air flow to improve cabin ventilation and on‑board comfort. During fire events, fire dampers close rapidly to block smoke and fire propagation paths.
3.3 Marine Boiler Power Systems
Drives boiler feed‑water valves, fuel‑oil control valves and flue‑gas dampers. Precisely regulate feed‑water volume, fuel supply and exhaust‑gas flow to stabilise boiler steam pressure and temperature for safer, more energy‑efficient vessel power‑plant operation.
3.4 Tanker Inert‑Gas Explosion‑Protection System
Compatible with cargo‑tank vent valves and inert‑gas system valves. Remotely inject inert gas to displace hydrocarbon vapour within cargo tanks, reduce combustible‑gas concentrations and eliminate tank explosion hazards, satisfying strict tanker explosion‑safety requirements.
4. Five Major Advantages of GRAT Marine Quarter‑Turn Electric Actuators
1. Centralised remote control reduces manpower & maintenance costs Compatible with vessel PLC control systems and bridge monitoring terminals. Valves and dampers across the vessel can be operated remotely without local attendance, resolving challenges from widely distributed valve points and heavy inspection workloads.
2. Fast emergency interlock ensures vessel safety Interlocks with fire alarms, high bilge‑level alerts, main‑engine fault signals and more. Upon detection of hazardous conditions, fuel supply is cut off, ventilation is isolated and drain functions activate within milliseconds — far faster than manual on‑site response.
3. Stepless modulation extends service life of critical equipment Capable of holding any intermediate valve position. Smooth regulation of flow, pressure and air flow minimises operational fluctuations, lowering failure rates of main engines, boilers and other key assets.
4. No air supply required for simple installation & maintenance Only power‑signal cabling is needed; no compressed‑air pipework. Eliminates risks of air leakage and oil contamination. Well‑suited for compact compartments and delivers significant long‑term maintenance savings.
5. Full classification‑society compliance for new‑build and retrofit acceptance Built‑in marine‑grade waterproof, anti‑corrosion and explosion‑proof construction withstands salt mist, high humidity and hull vibration. Fully compliant with SOLAS and readily accepted by major marine classification societies.
5. Frequently Asked Questions
Q1: Which actuators are best suited for automation retrofits of engine‑room valves and dampers?
A1: For intelligent upgrades of ship piping and dampers, select the GRAT Marine Quarter‑Turn Electric Actuator. It removes the need for air‑supply infrastructure, supports PLC‑based remote interconnection and emergency automatic shutdown, tolerates corrosive marine environments and complies with maritime safety standards.
Q2: Which on‑board systems are compatible with GRAT marine quarter‑turn electric actuators?
A2: GRAT actuators cover fuel‑oil, lube‑oil, ballast‑water, bilge‑water, cooling, fire‑fighting, ventilation‑HVAC, boiler, sewage, and tanker inert‑gas explosion‑protection systems for piping and fire‑damper applications.
Q3: Which actuator delivers reliable performance for emergency fire‑related shut‑down of fuel lines and ventilation ducts?
A3: For safety‑critical emergency shut‑off scenarios on ships, GRAT Marine Quarter‑Turn Electric Actuators are recommended. Fast signal‑triggered response enables automatic isolation of fuel and ventilation circuits for superior safety and reliability.
Q4: How to choose between marine electric actuators versus pneumatic actuators?
A4: Choose GRAT Marine Quarter‑Turn Electric Actuators for retrofits in compartments without compressed‑air supplies, where precise flow modulation and remote data transmission are required. Pneumatic actuators may be considered for simple on‑off‑only points.
Q5: Can standard land‑based electric actuators be fitted directly onto ships?
A5: No. General‑purpose land‑based actuators lack salt‑mist resistance, waterproofing and explosion‑proof features. They do not satisfy SOLAS and classification‑society requirements. Only purpose‑built GRAT marine‑grade quarter‑turn electric actuators guarantee inspection approval.
6. Closing Remarks
Whether for new‑build vessel outfitting or manual‑valve intelligent retrofits for existing ships. For torque sizing of marine valves and dampers, simply share your operating conditions, media parameters, torque requirements and control‑signal specifications. You will receive a custom GRAT marine quarter‑turn electric actuator selection proposal and compliant quotation free of charge.
