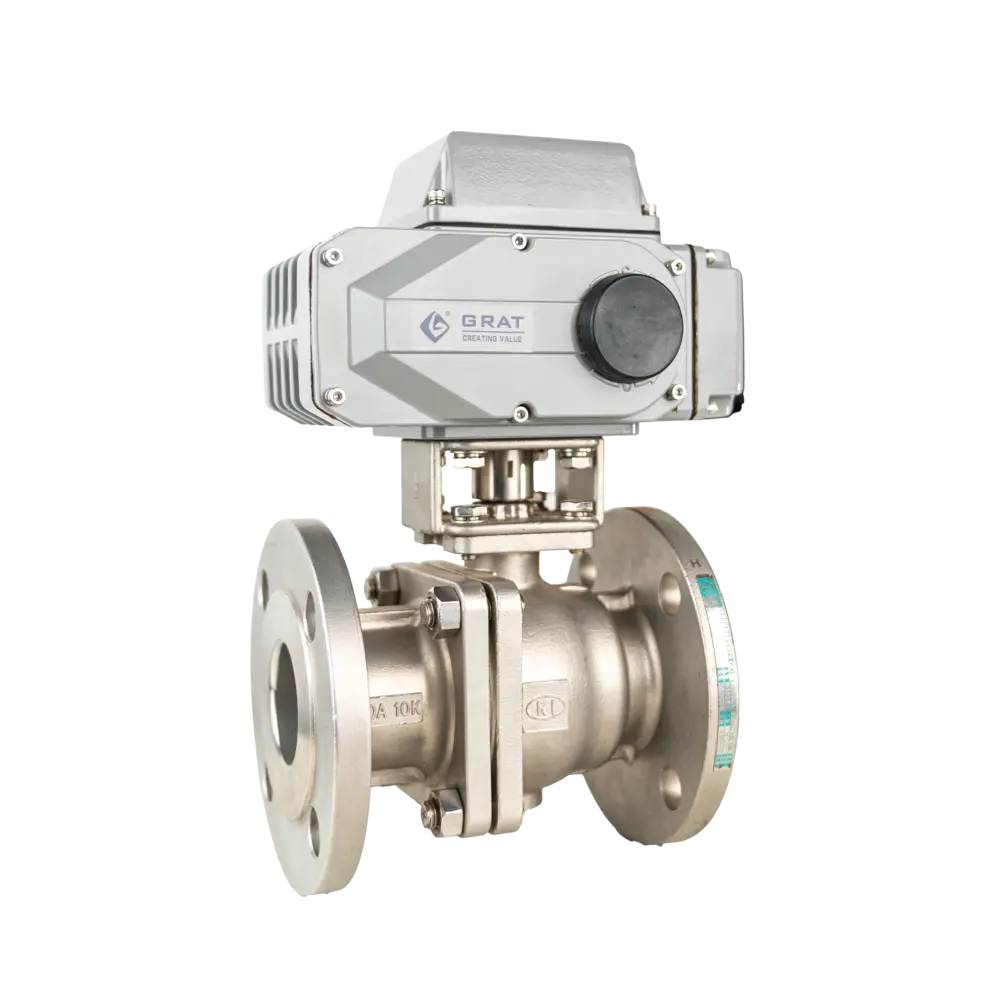

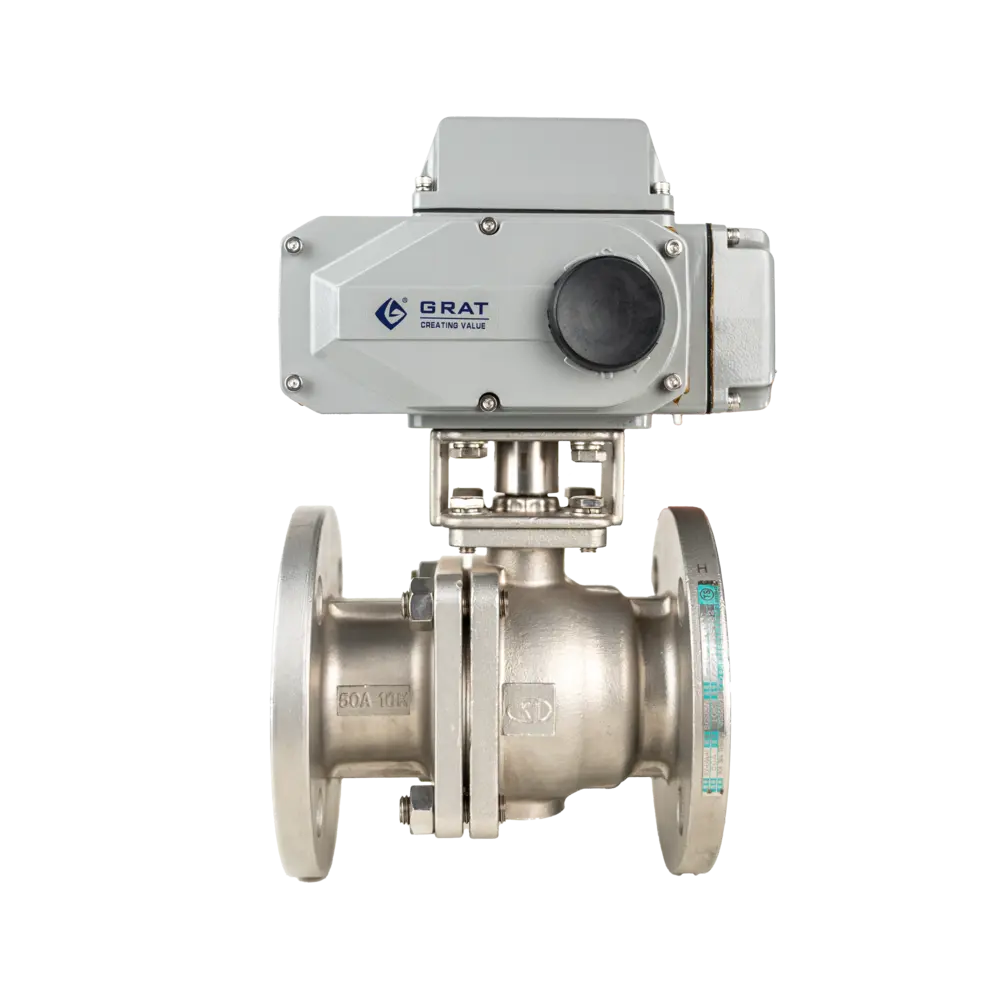

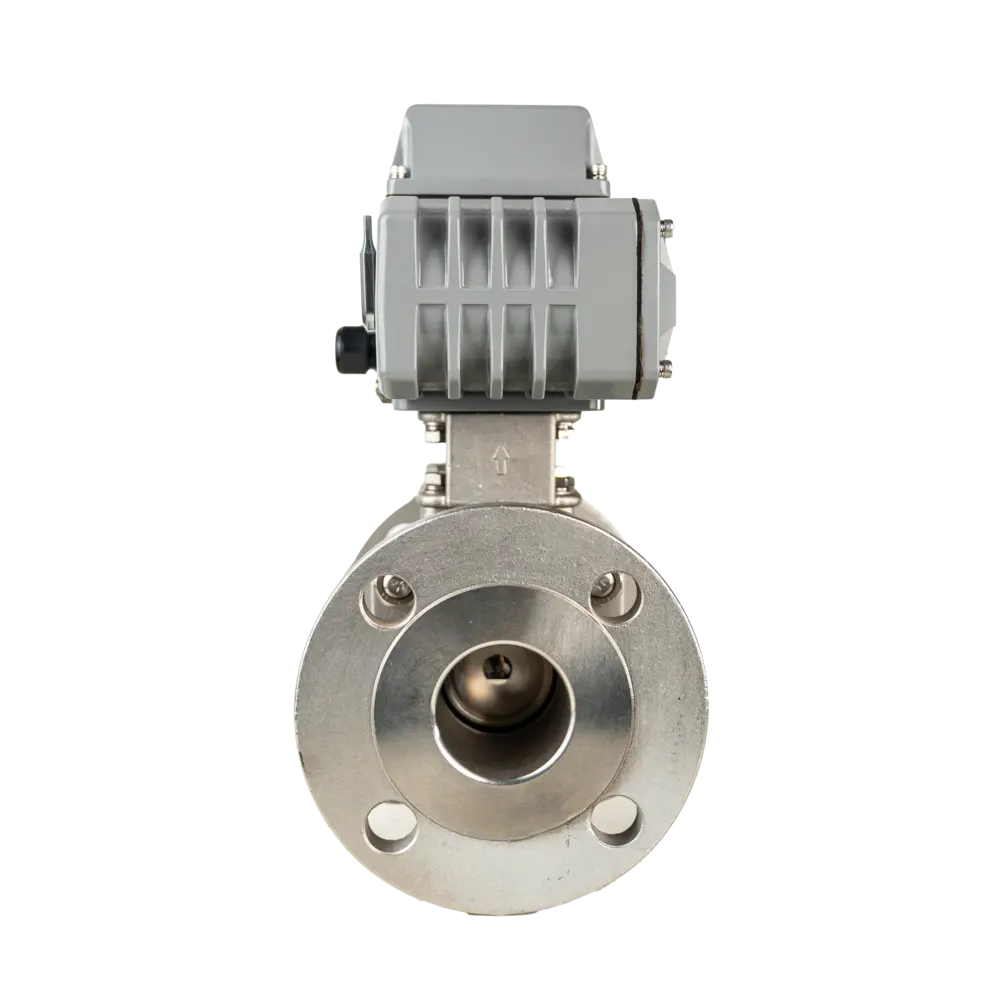

Electric Flange Ball Valve

**Electric flanged ball valves are quarter-turn (0–90°) rotary valves with electric actuation for on/off control, providing reliable shutoff, low pressure drop, and a compact, low-maintenance design for a wide range of media and services.**

Live Chat

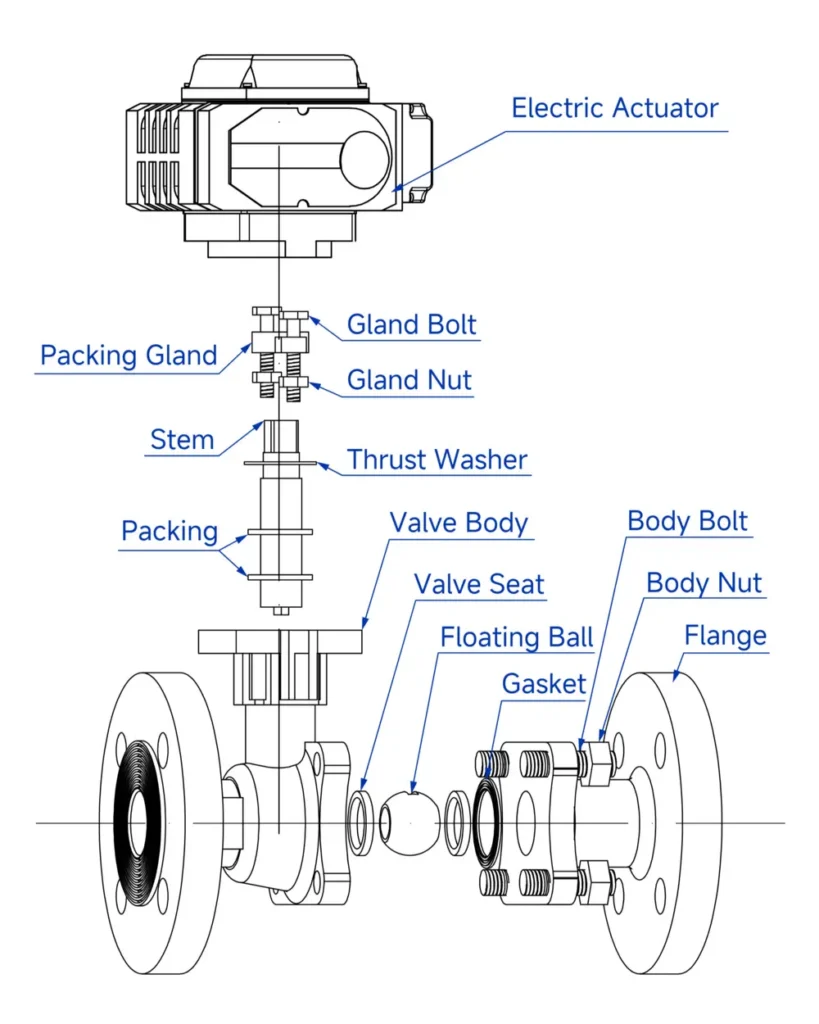

Product Introduction

Flanged ball valves are quarter-turn rotary valves offering tight shutoff, high flow capacity, low pressure drop, simple construction, easy maintenance, and long service life. The full-bore design passes media with near-zero flow loss.
Available in on/off and modulating configurations, they are built for applications requiring bubble-tight isolation. They handle gas, liquid, steam, wastewater, and fibrous media, and serve oil & gas, chemical, metallurgy, light industry, pulp & paper, power, and refrigeration.

Driven by an electric actuator, the ball rotates 90° between open and closed positions. Compared with gate and globe valves, they are more compact and lighter, simplifying pipeline installation.

Features

Bubble-tight shutoff — Dual-seat spherical sealing delivers zero-leakage performance for leak-free media containment.
Wear-resistant, long service life — PTFE seats are self-lubricating and low-friction against the ball, extending service life.
Flexible flow control — Ball ports are offered in rectangular, V-port, and O-port configurations to match different control requirements.

Basic Parameters

Nominal Diameter (DN): DN15 - DN200

Operating Power Supply: AC110V, AC220V, AC380V, DC24V

Medium Temperature: -20°C to 350°C (Special sealing for >200°C)

Working Pressure: PN1.0 ~ 10.0MPa

Control Method: Modulating or On/Off Control

Protection Class: IP67

Connection & Sealing

Connection Type: Flange Type

Sealing Type: Elastic Seal, High-Temperature Resistant PPS (Polyphenylene Sulfide), Hard Alloy & Industrial Ceramics

Leakage Rate: Complies with ANSI B16.104 Class 5 Standard

Material Specifications

Body & Internal Components

Body Material: A105, F304, F316, WCB, FZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3M

Ball Material: SUS304, SUS316

Sealing Components

Seat Material: PTFE (Normal Temperature) Special PPL (High Temperature) Metal Seal (High Temperature)

Applicable Medium

Water
Petroleum
Nitric Acid
Acetic Acid
Viscous Fluids
Slurries
Strong Oxidizing Media

Standards Compliance

Design & Manufacturing: GB 12237-2007, API 6D

Flange Standards:

- JB/T 79-2015 - GB/T 9124.1-2019 - GB/T 9124.2-2019 - ANSI B16.5 - JIS B2239

Face-to-Face Dimension: GB 12221-2005

Inspection Standard: API 598

Main Parameters

Power Supply	AC110V, AC220V, AC380V, DC24V
Nominal Diameter	DN15-200
Medium Temperature	-20℃ to +350℃ (+200℃ for special seal)
Working Pressure	PN1.0~10.0MPa
Control Mode	Regulation or On-Off Control
Connection Type	Flanged
Body Material	A105, F304, F316, WCB, FZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3M
Seat Material	PTFE (normal temperature), Special PPL (high temperature), Metal seal (high temperature)
Leakage Class	ANSI B16.104 Class 5
Sealing Type	Elastic seal, High temperature resistant polyphenylene, Hard alloy, Industrial ceramic
Applicable Medium	Water, Petroleum, Nitric acid, Acetic acid, Viscous fluid, Slurry, Strong oxidizing medium
Protection Grade	IP67
Design and Manufacturing Standard	GB12237-2021, API 6D
Flange Standard	JB/T 79-2015, GB/T 9124.1-2019, GB/T 9124.2-2019, ANSI B16.5, JIS B2239
Face-to-Face Dimension	GB12221-2005
Inspection Standard	API 598

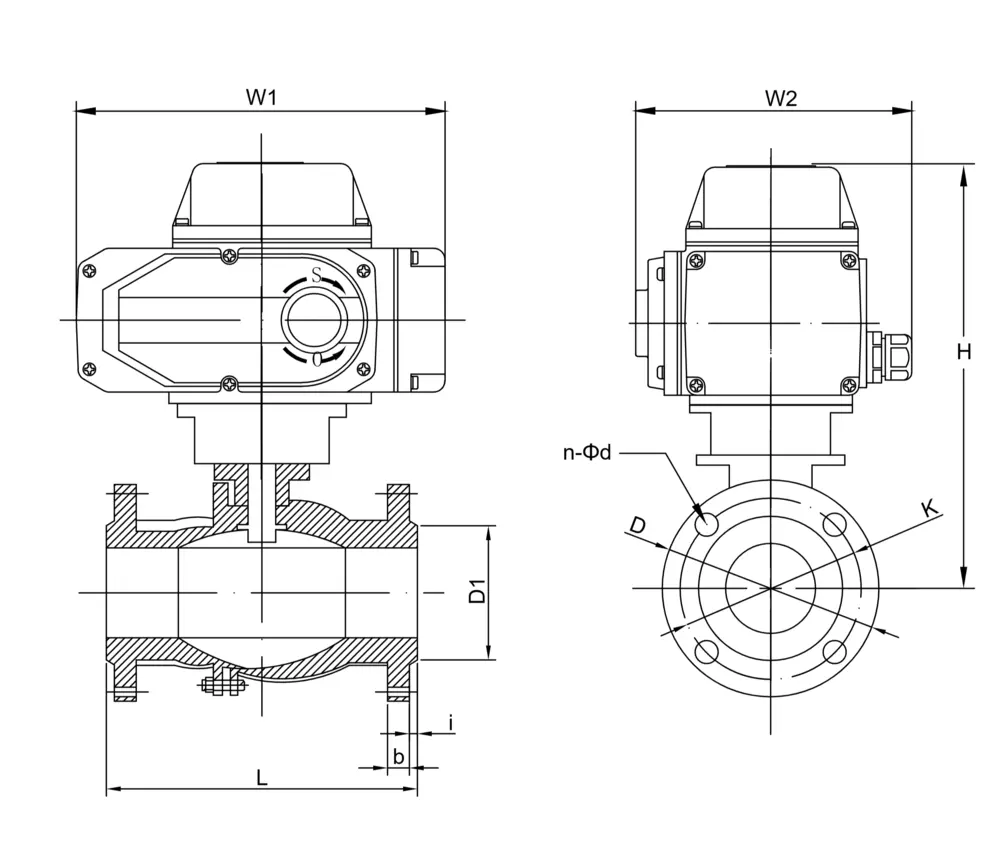

Dimension Drawing

1.Installation Dimensions of Electric Flange Ball Valve

Nominal Diameter (DN)		L	D	K	D1	n-Φd	b	i	H	W1	W2
mm	in	L	D	K	D1	n-Φd	b	i	H	W1	W2
15	1/2″	130	95	65	45	4-Φ14	14	2	209	196	145
20	3/4″	130	105	75	55	4-Φ14	16	2	211	196	145
25	1″	142	113	85	65	4-Φ14	18	2	218.5	196	145
32	1 1/4″	165	140	100	78	4-Φ18	18	2	233	196	145
40	1 1/2″	165	150	110	85	4-Φ18	18	2	234	196	145
50	2″	203	165	125	100	4-Φ18	20	2	248	196	145
65	2 1/2″	222	185	145	120	8-Φ18	20	2	294	255	182
80	3″	241	200	160	135	8-Φ18	21	2	320	255	182
100	4″	305	220	180	155	8-Φ18	22	2	339	255	182
125	5″	356	250	210	184	8-Φ18	22	3	392	255	182
150	6″	394	285	240	210	8-Φ23	24	3	402	255	182
200	8″	457	340	295	265	12-Φ23	26	3	467	255	182

Flanged Electric Ball Valve (Long Flange) National Standard Installation Dimensions
Design Standard: GB/T 12237-2007
Flange Standard: HG/T 20592 Unit: (mm)

2.Installation Dimensions of Electric Flanged Ball Valve (JIS Standard)

Nominal Diameter DN	L	D	K	D1	b	i	n-Φd	H	W1	W2
15	108	95	70	51	12	2	4-Φ15	209	196	145
20	117	100	75	56	14	2	4-Φ15	213	196	145
25	127	125	90	67	14	2	4-Φ19	221	196	145
32	140	135	100	76	16	2	4-Φ19	229	196	145
40	165	140	105	81	16	2	4-Φ19	239	196	145
50	178	155	120	96	16	2	4-Φ19	246	196	145
65	190	175	140	116	18	2	4-Φ19	306	255	182
80	203	185	150	126	18	2	8-Φ19	316	255	182
100	229	210	175	151	18	2	8-Φ19	339	255	182
125	356	250	210	182	20	2	8-Φ23	371	255	182
150	394	280	240	212	20	2	8-Φ23	399	255	182
200	457	330	290	262	20	2	12-Φ23	438	255	182

Design Standard: API B202
Flange Standard: JIS B2220-2004 Unit: (mm)

Circuit Diagram

S

Switching Action Mode：Switching operations (open/close) are achieved via AC switching signals, and a set of active position signals indicating fully open/fully closed status are output.

MS

Switching Action Mode: Outputs passive contact signals. Structure：Equipped with two intermediate position switches.

PIU

Switching Action Mode: Outputs 0~1000Ω feedback signal. Structure: Equipped with 500Ω or 1kΩ potentiometer.

CPT

Switching Action Mode:
Outputs 4~20mA valve position feedback signal. Structure: Equipped with 1kΩ potentiometer and R/I converter.

PCU

Regulating Action Mode:Accepts 4~20mA control signal input and outputs 4~20mA valve position feedback signal. Structure: Integrated with 1kΩ potentiometer and control module (servo amplifier).

G

DC switching signals are output from the circuit via an external DC power supply to control the opening/closing program, and a set of passive contact signals corresponding to fully open/fully closed positions are provided.

SP

Switching Action Mode:
Controls valve opening angle via switching circuit, corresponding to potentiometer resistance value, while enabling intermediate position control function. Structure: Integrated with potentiometer and intermediate position switch.

H

Three-phase AC switching signals are output through an external three-phase power phase-reversing circuit to control opening/closing operations, accompanied by a set of passive contact signals for fully open/fully closed position indication.

Circuit Diagram

S

Switching Action Mode：Switching operations (open/close) are achieved via AC switching signals, and a set of active position signals indicating fully open/fully closed status are output.

MS

Switching Action Mode: Outputs passive contact signals. Structure：Equipped with two intermediate position switches.

PIU

Switching Action Mode: Outputs 0~1000Ω feedback signal. Structure: Equipped with 500Ω or 1kΩ potentiometer.

CPT

Switching Action Mode:
Outputs 4~20mA valve position feedback signal. Structure: Equipped with 1kΩ potentiometer and R/I converter.

PCU

Regulating Action Mode:Accepts 4~20mA control signal input and outputs 4~20mA valve position feedback signal. Structure: Integrated with 1kΩ potentiometer and control module (servo amplifier).

G

SP

H
