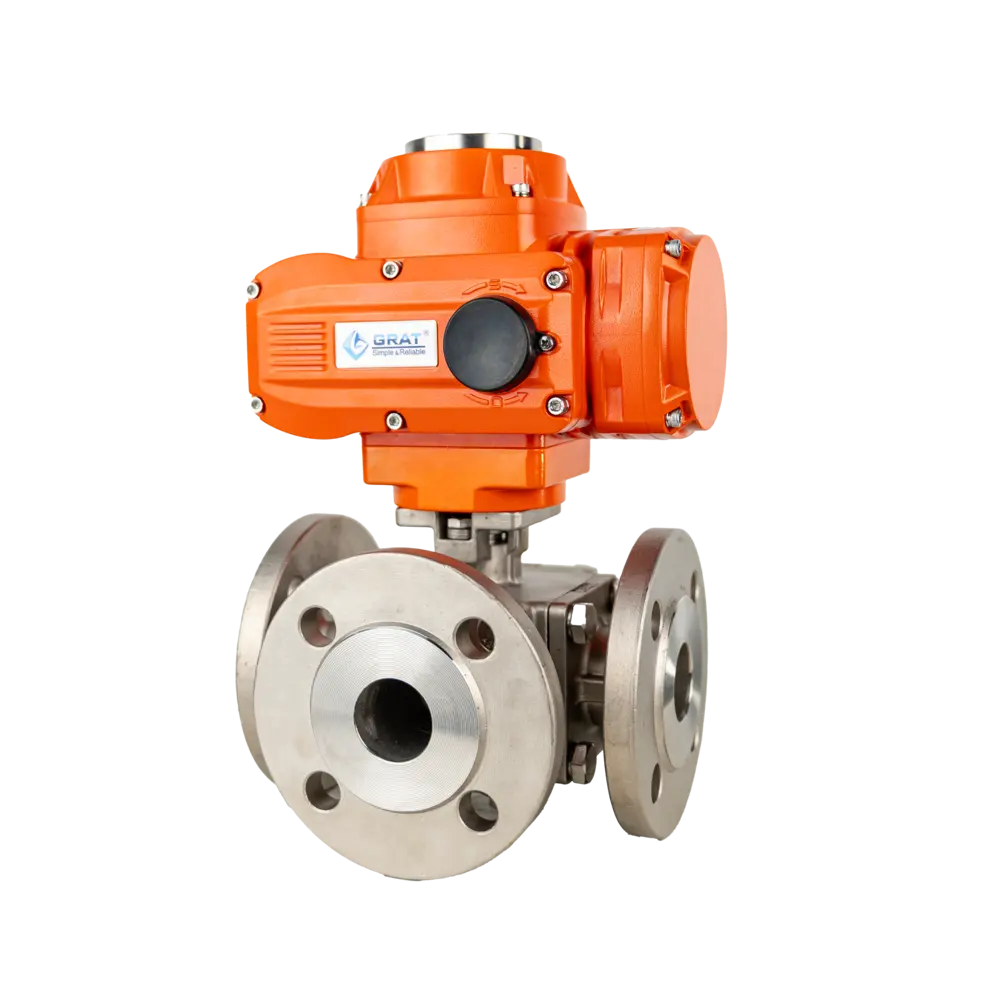

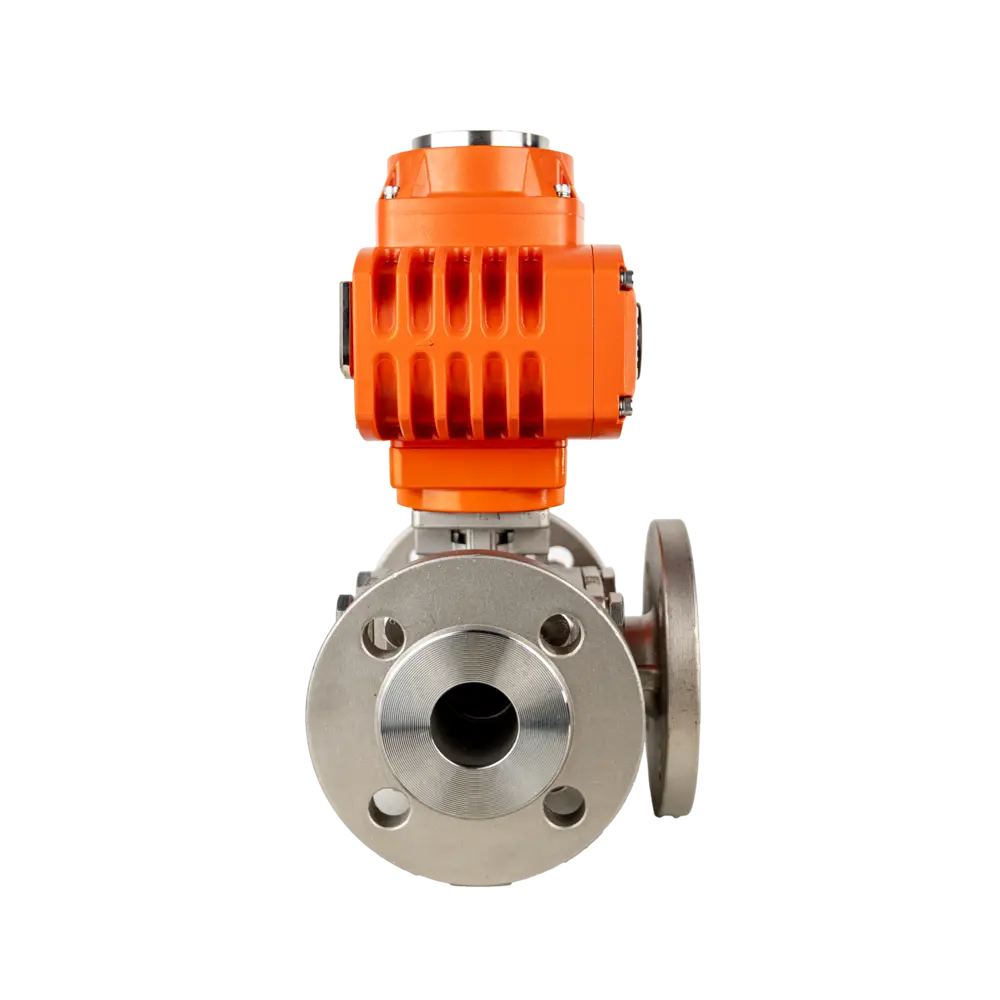

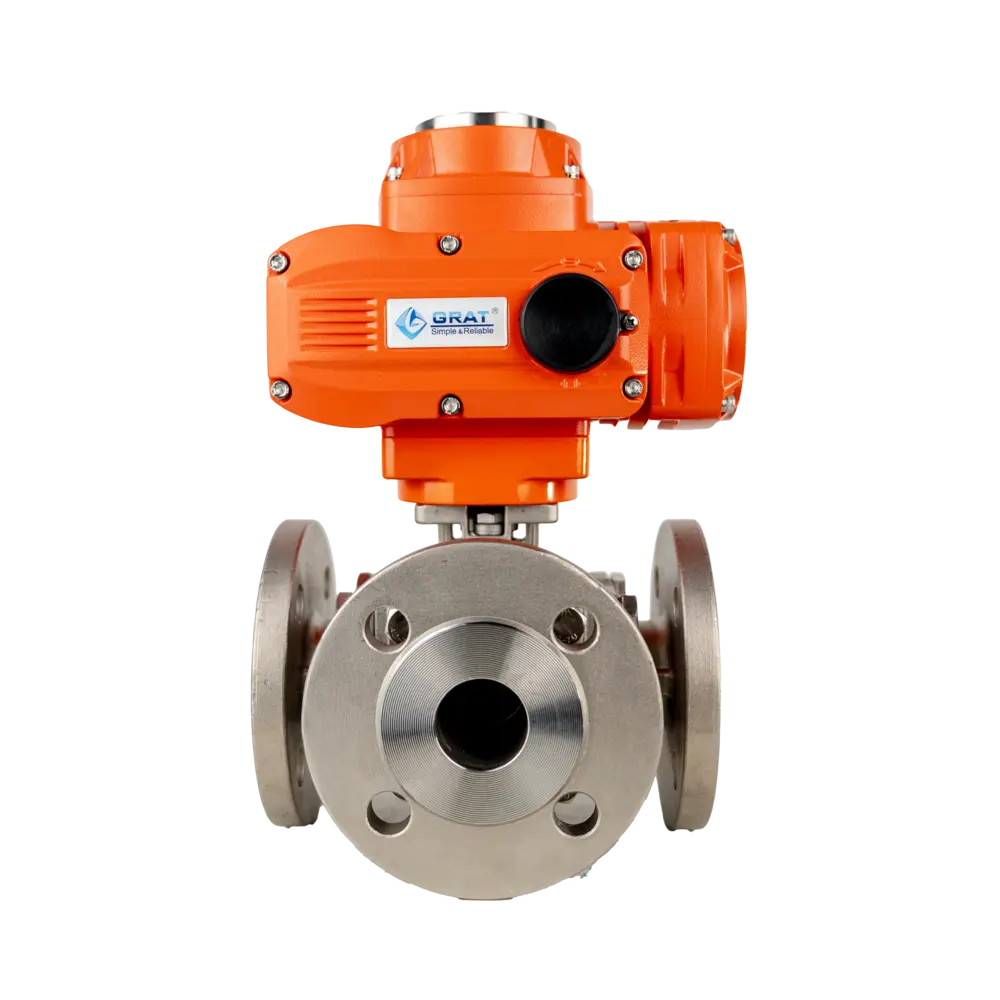

Explosion-proof Electric Three Way Ball Valve
Driven by an explosionproof electric actuator, this three-way ball valve provides reliable flow diversion, mixing, and reversal with bubble-tight sealing — built for flammable and explosive service such as petrochemical processing.
Three-way ball valves manage flow diversion and confluence. Available as multi-port valves with either two (L-port) or four (T-port) seats, any port can serve as the inlet with bubble-tight shutoff.
- T-port: four-seat design with balanced seating forces for dependable sealing; handles diversion, mixing, reversal, and full three-way flow.
- L-port: two-seat design for flow-path switching between two outlets.
Basic Parameters
Nominal Diameter (DN):
DN15～DN100
Operating Power:
AC110V, AC220V, AC380V, DC24V
Actuator Torque/Material:
Cast Aluminum Alloy
Media Temperature:
0℃ to +120℃
Ambient Temperature:
-30℃ to +60℃
Nominal Pressure (PN):
0.1～6.4MPa
Control Method:
On/Off Control
Pneumatic Action Mode:
- Single Acting (with spring return) or Double Acting
Action Time:
4-90 seconds
Connection Type:

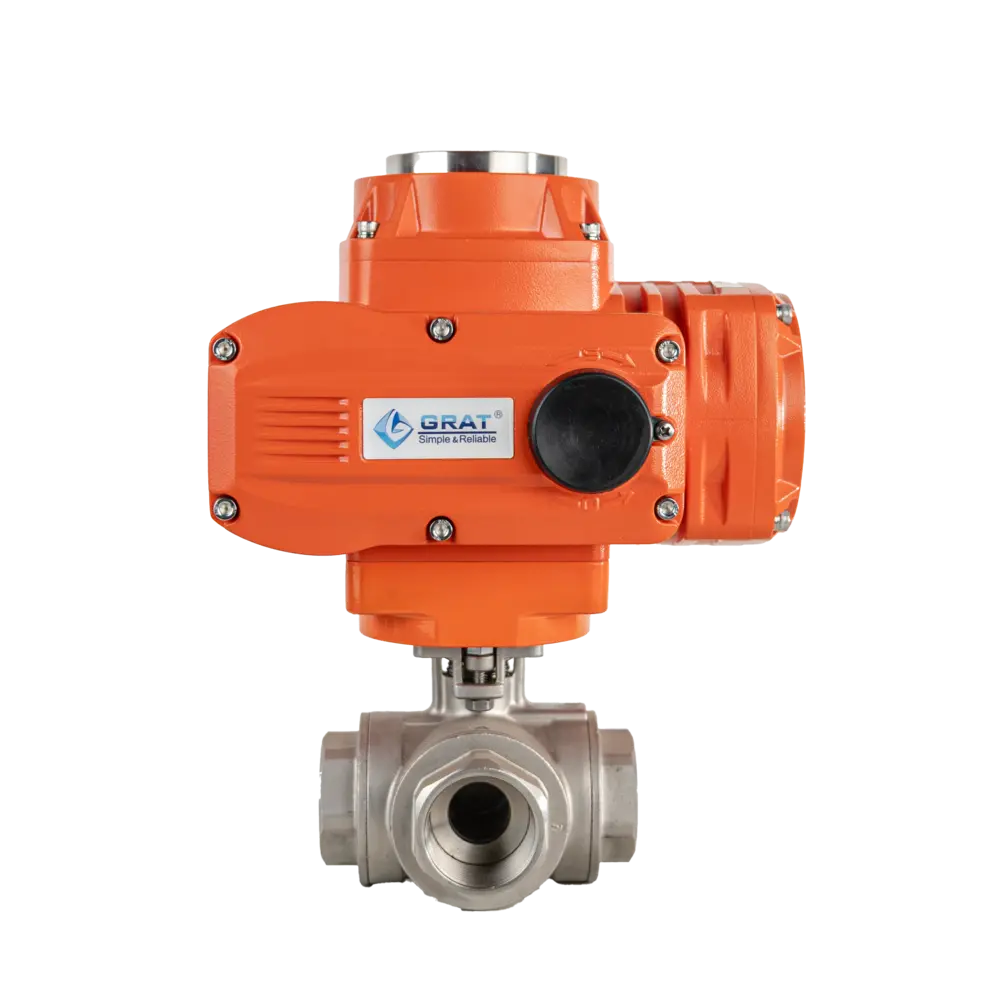

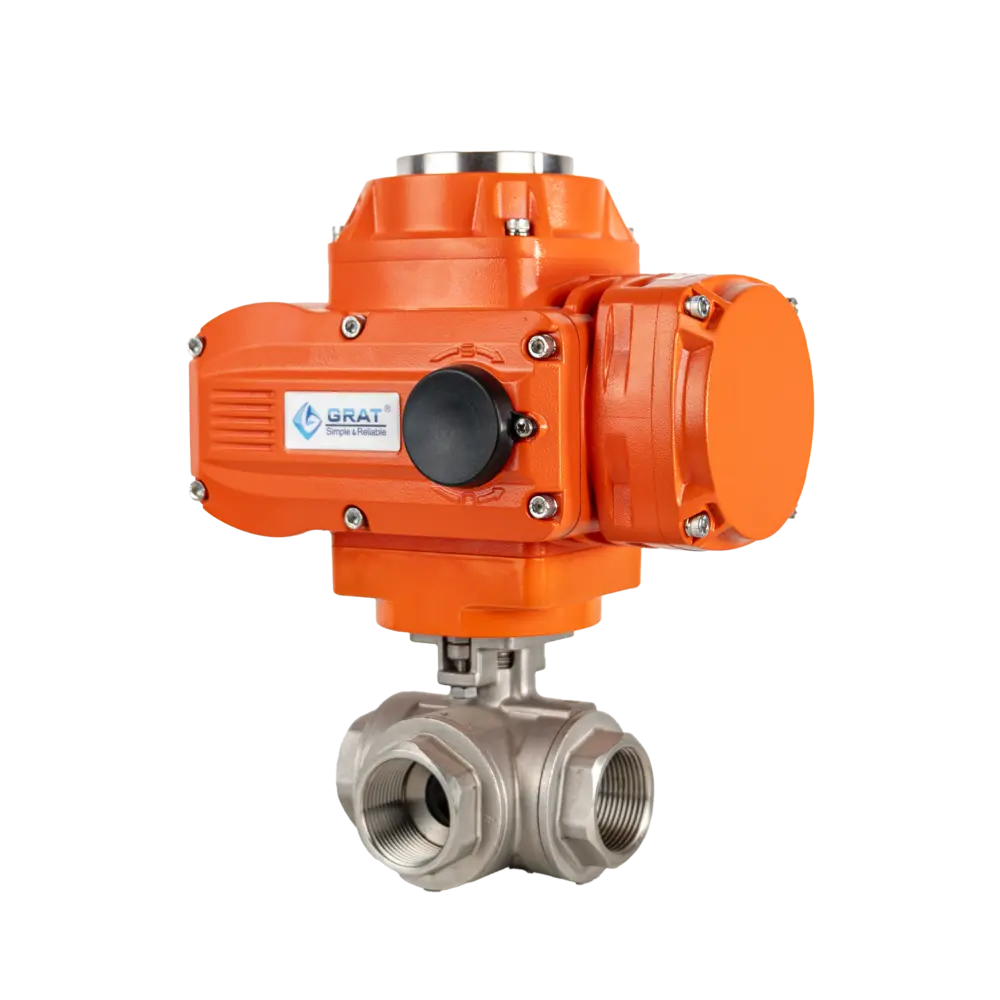

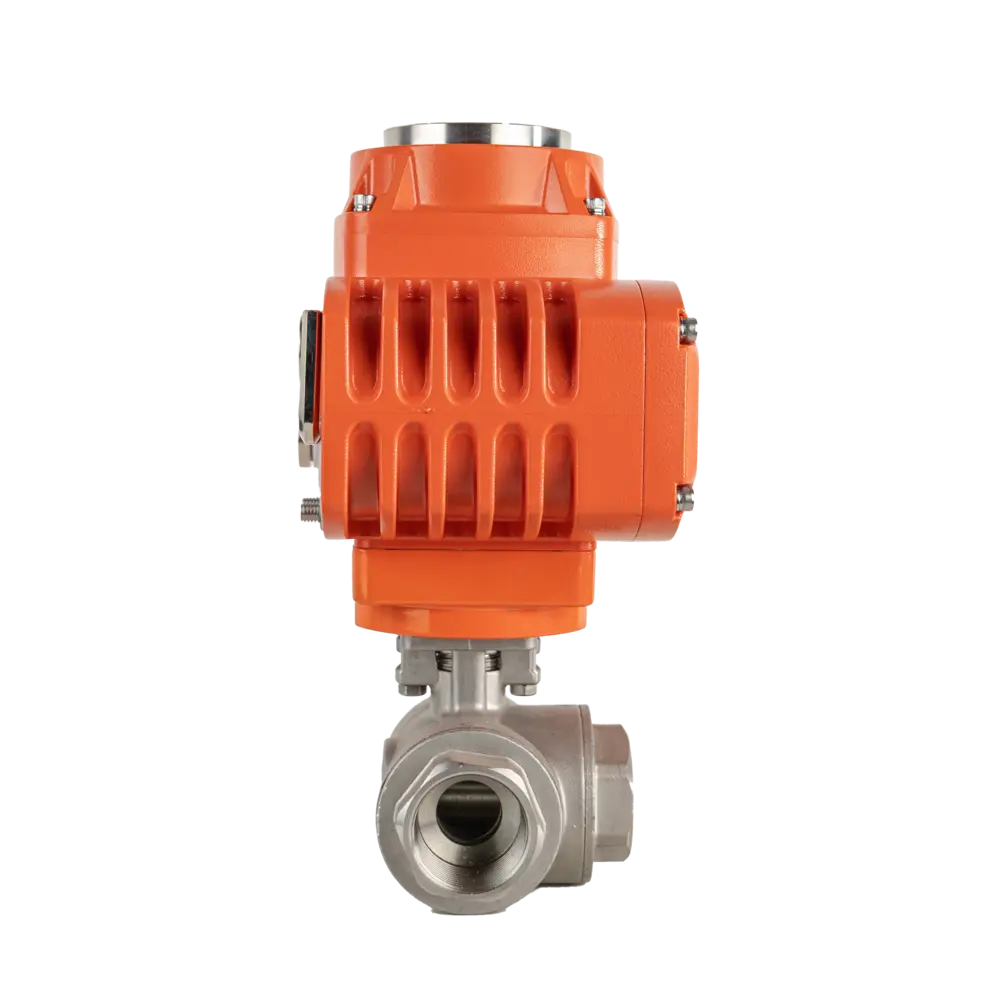

Internal Thread Connection, Flange
Protection Grade:
IP67
Material Specifications
Body & Internal Components
Valve Body Material:
SUS304, SUS316, WCB
Valve Core Material:
SUS304, SUS316
Sealing Ring Material:
EPDM, PTFE
Sealing Type:
Soft Seal
Standards & Specifications
Design & Manufacturing Standard:
GB12237-2021, API 6D
Face-to-Face Dimension:
GB12221-2005
Inspection Standard:
API 598
Suitable Working Conditions
- Air Conditioning Systems
- Fire Protection Systems
- Water Treatment
- Pipeline Purging
- Analytical Instruments
- Flue Gas Sampling
Explosion Protection
Ex db ⅡC T6 Gb
Flameproof enclosure with increased safety
Explosion Protection
Flameproof (d) + Increased Safety (b)
Gas Group
ⅡC (Hydrogen, Acetylene)
Temperature Class
T6 (≤85°C)
Equipment Protection Level
Gb (Zone 1 & 2)
Standards Compliance
Flange Standard:
- GB/T 9124.1-2019
- GB/T 9124.2-2019
- GB17241.6-2008
Main Parameters
1.Installation Dimensions of IoT Mini Electric Flange Three-Way Ball Valve
| Nominal Diameter | DN15～100 |
| Power Supply | AC110V, AC220V, AC380V, DC24V |
| Actuator Torque / Material | Cast Aluminum Alloy |
| Medium Temperature | 0~120℃ |
| Ambient Temperature | -30℃－60℃ |
| Nominal Pressure | 0.1～6.4MPa |
| Control Mode | On-off Control |
| Actuation Time | 4-90 Seconds |
| Applicable Conditions | Air Conditioning, Fire Protection Systems, Water Treatment, Pipeline Purging, Analytical Instruments, Flue Gas Sampling, etc. |
| Connection Type | Female Thread, Flange |
| Sealing Type | Soft Seal |
| Valve Body Material | SUS304, SUS316, WCB |
| Valve Core Material | SUS304, SUS316 |
| Seal Ring Material | EPDM, PTFE |
| Protection Grade | IP67 |
| Installation Method | Installable at Any Angle (Horizontal or Inclined Installation Recommended for Longer Service Life) |
| Design and Manufacturing Standard | GB12237-2021, API 6D |
| Flange Standard | GB/T 9124.1-2019, GB/T 9124.2-2019, GB17241.6-2008 |
| Face-to-Face Dimension Standard | GB12221-2005 |
| Inspection Standard | API 598 |
Dimension Drawing

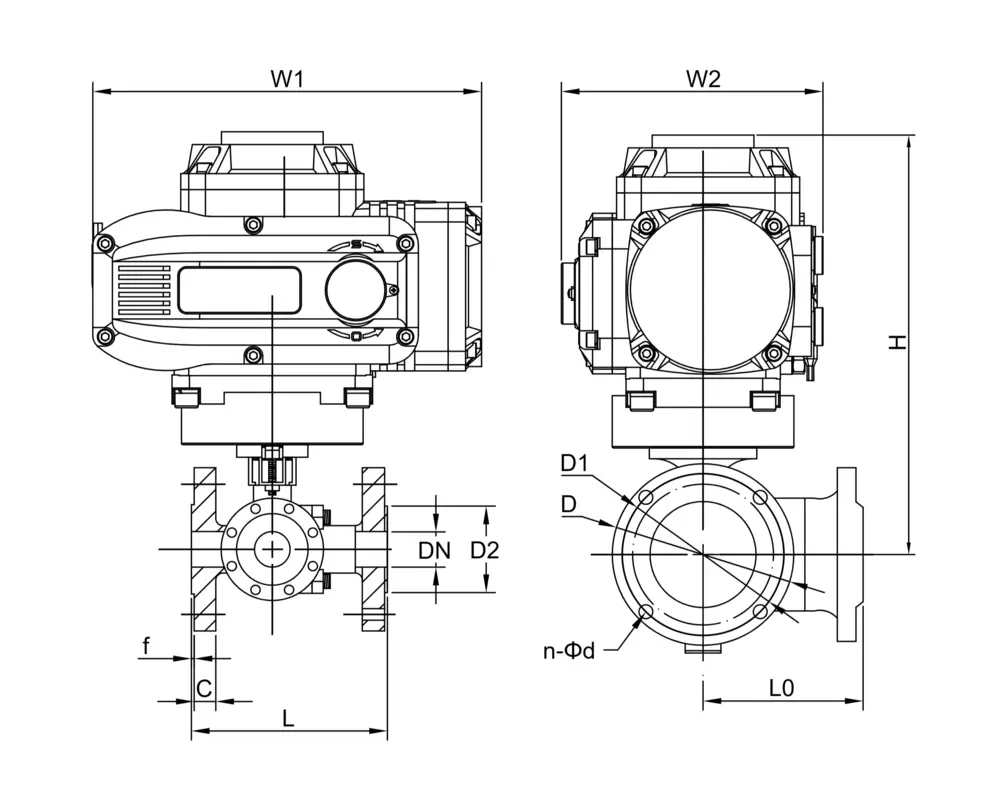

1.Connection and Installation Dimensions of Flanged Pneumatic Three-Way Ball Valve
| Nominal Diameter （DN） | L | L0 | D2 | C | f | D | D1 | H | n-Φd | W1 | W2 |
| 15 | 150 | 75 | 45 | 14 | 2 | 95 | 65 | 246 | 4-Φ14 | 217 | 150 |
| 20 | 160 | 80 | 55 | 14 | 2 | 105 | 75 | 260 | 4-Φ14 | 217 | 150 |
| 25 | 180 | 90 | 65 | 14 | 2 | 115 | 85 | 266 | 4-Φ14 | 217 | 150 |
| 32 | 200 | 100 | 78 | 16 | 2 | 135 | 100 | 275 | 4-Φ18 | 217 | 150 |
| 40 | 220 | 110 | 85 | 16 | 3 | 145 | 110 | 288 | 4-Φ18 | 217 | 150 |
| 50 | 240 | 120 | 100 | 16 | 3 | 160 | 125 | 293 | 4-Φ18 | 217 | 150 |
| 65 | 260 | 130 | 120 | 16 | 3 | 180 | 145 | 325 | 4-Φ18 | 268 | 180 |
| 80 | 280 | 140 | 135 | 18 | 3 | 195 | 160 | 350 | 8-Φ18 | 268 | 180 |
| 100 | 320 | 160 | 155 | 20 | 3 | 215 | 180 | 370 | 8-Φ18 | 268 | 180 |

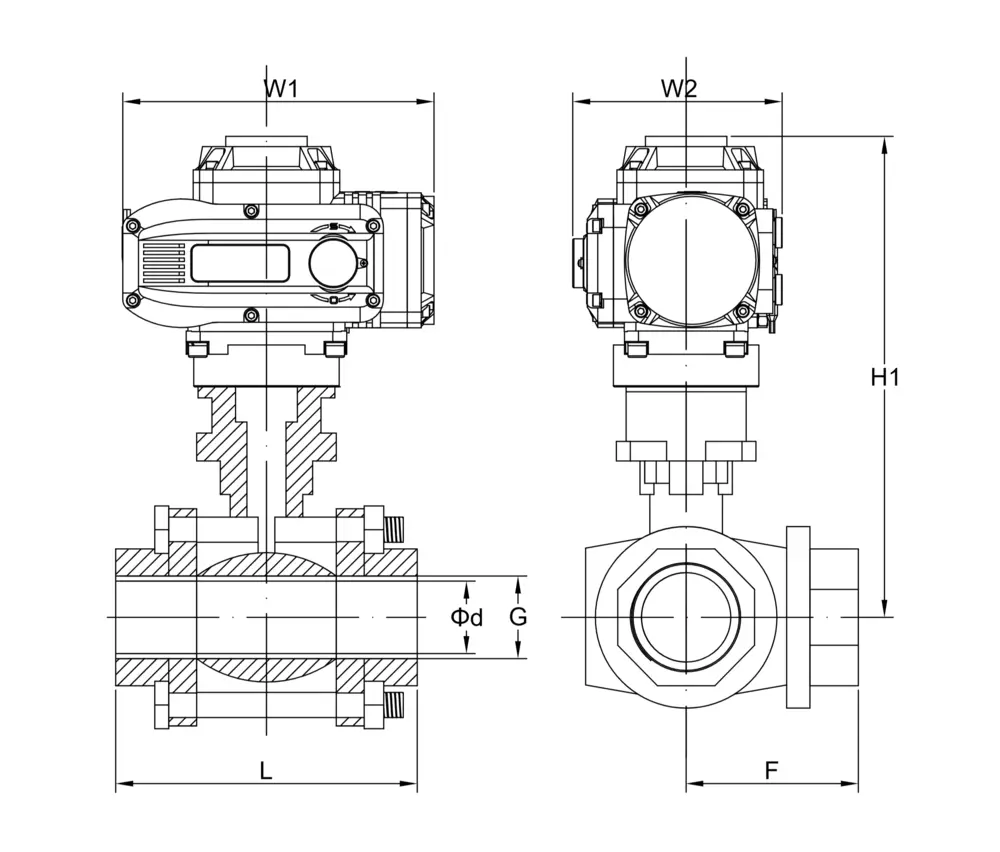

2.Connection and Installation Dimensions of Female Thread Pneumatic Three-Way Ball Valve
| Nominal Diameter （DN） | L | G | Φd | F | H1 | W1 | W2 |
| 12 | 70 | Thread Standard NPT BSP DIN etc | 12 | 40 | 226 | 217 | 150 |
| 15 | 83 | 15 | 42 | 228 | 217 | 150 | |
| 18 | 89 | 18 | 54 | 238 | 217 | 150 | |
| 25 | 116 | 25 | 60 | 247 | 217 | 150 | |
| 32 | 134 | 32 | 68 | 258 | 217 | 150 | |
| 38 | 152 | 38 | 84 | 262 | 217 | 150 | |
| 50 | 200 | 50 | 98 | 280 | 217 | 150 | |
| 65 | 240 | 65 | 106 | 325 | 268 | 180 | |
| 80 | 278 | 80 | 114 | 349 | 268 | 180 |
Circuit Diagram
S
MS
PIU
CPT
PCU
G
SP
