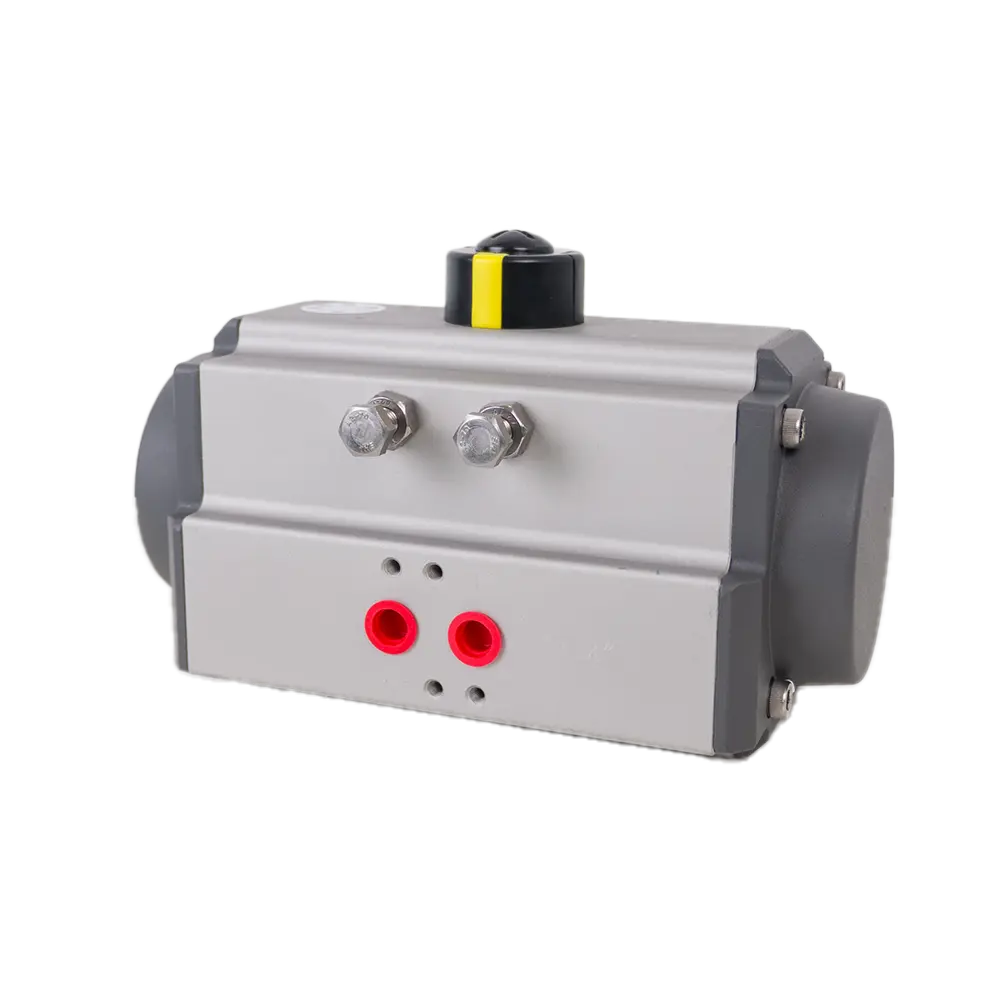

Quarter-Turn Pneumatic Actuator

The quarter-turn pneumatic actuator converts air pressure into angular displacement via rack & pinion, yoke or vane. It has double/single acting types, features wide torque range and easy connection, and is applied in power, metallurgy, etc.

Get Best Price

Tags

Pneumatic Actuator, Quarter-turn

Overview
Specifications

Pneumatic actuators are classified by control mode into: on-off type and control type.

On-Off Type
Control Type

On-off pneumatic actuators: The valve opens or closes when the solenoid valve is powered, and closes or opens when power is cut (explosion-proof types available).
Control pneumatic actuators: Equipped with an electropneumatic valve positioner, they regulate the medium flow of the valve based on the magnitude of the current signal (standard 4-20mA) (explosion-proof types available).

Pneumatic actuators are divided into single-acting and double-acting types.
- Double-acting pneumatic actuators: Normally closed (air-to-open, ATO), normally open (air-to-close, ATC).
- Single-acting pneumatic actuators: Normally closed (ATO), normally open (ATC).

Single-Acting Cylinder
Working principle: Single-acting cylinders feature spring return. The valve is initially closed (commonly called "air-to-open"). When air is supplied, the valve opens; if air supply is interrupted, the spring return function automatically resets and closes the valve. Typically used for corrosive liquid media or harmful gases, i.e., media that cannot leak.

Double-Acting Cylinder
Working principle: The valve requires air supply for both opening and closing. Commonly used in applications with low leakage requirements.

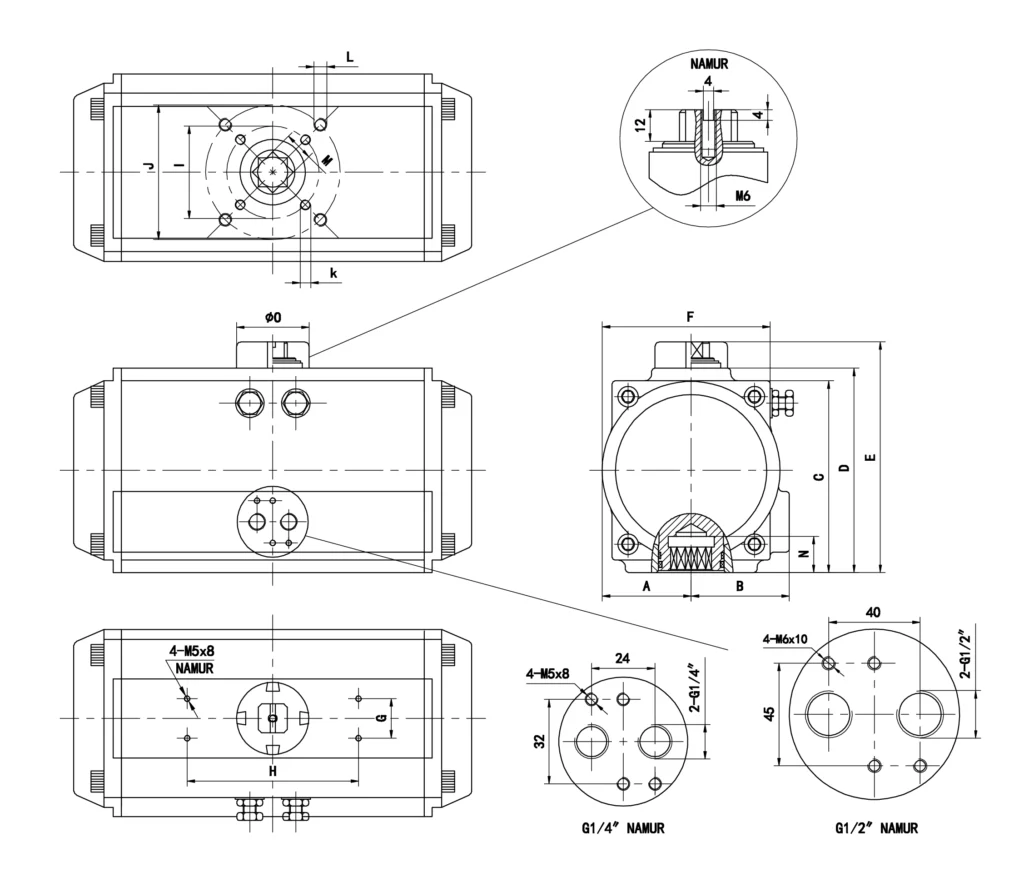

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	Z	0	Air Source Interface
AT52	30	41.5	65.5	72	92	65	30	80	036	∅50	4-M5x8	4-M6x10	11	14	147	40	NAMUR G1/4"
AT63	36	47	81	87.5	107.5	72	30	80	∅50	∅70	4-M6x10	4-M8x13	14	18	168	40	NAMUR G1/4"
AT75	42	53	94	99.5	119.5	81	30	80	∅50	∅70	4-M6x10	4-M8x13	14	18	184	40	NAMUR G1/4"
AT83	46	57	98.5	108.7	128.7	92	30	80	∅50	∅70	4-M6x10	4-M8x13	17	21	204	40	NAMUR G1/4"
AT92	50	58.5	111	116.5	136.5	98	30	80	∅50	∅70	4-M6x10	4-M8x13	17	21	262	40	NAMUR G1/4"
AT105	57.5	64	122.5	133	153	109.5	30	80	∅70	∅102	4-M8x13	4-M10x16	22	26	268	40	NAMUR G1/4"
AT125	67.5	74.5	145.5	155	185	127.5	30	130	∅70	∅102	4-M8x13	4-M10x16	22	26	301	55	NAMUR G1/4"
AT140	75	77	161	172	202	137.5	30	130	∅102	∅125	4-M10x16	4-M12x20	27	31	390	55	NAMUR G1/4"
AT160	87	87	184	197	227	158	30	130	∅102	∅125	4-M10x16	4-M12x20	27	31	458	55	NAMUR G1/4"
AT190	103	103	216	230	260	189	30	130		∅140		4-M16x25	36	50	525	80	NAMUR G1/4"
AT210	113	113	235.5	255	285	210	30	130		∅140		4-M16x25	36	50	532	80	NAMUR G1/4"
AT240	130	130	264.5	290	320	245	30	130		∅165		4-M20x25	46	60	602	80	NAMUR G1/4"
AT270	147	147	299	330	360	273	30	130		∅165		4-M20x25	46	60	722	80	NAMUR G1/2"
AT300	162	173	330	354	384	312	30	130		∅165		4-M20x25	46	60	820	80	NAMUR G1/2"
AT350	190	195	383	410	440	362	30	130		∅165		4-M20x25	46	60	900	80	NAMUR G1/2"
AT400	260	260	441	466	496	450	30	130	∅165	∅254	4-M20x25	8-M16x25	46	60	940	80	NAMUR G1/2"
