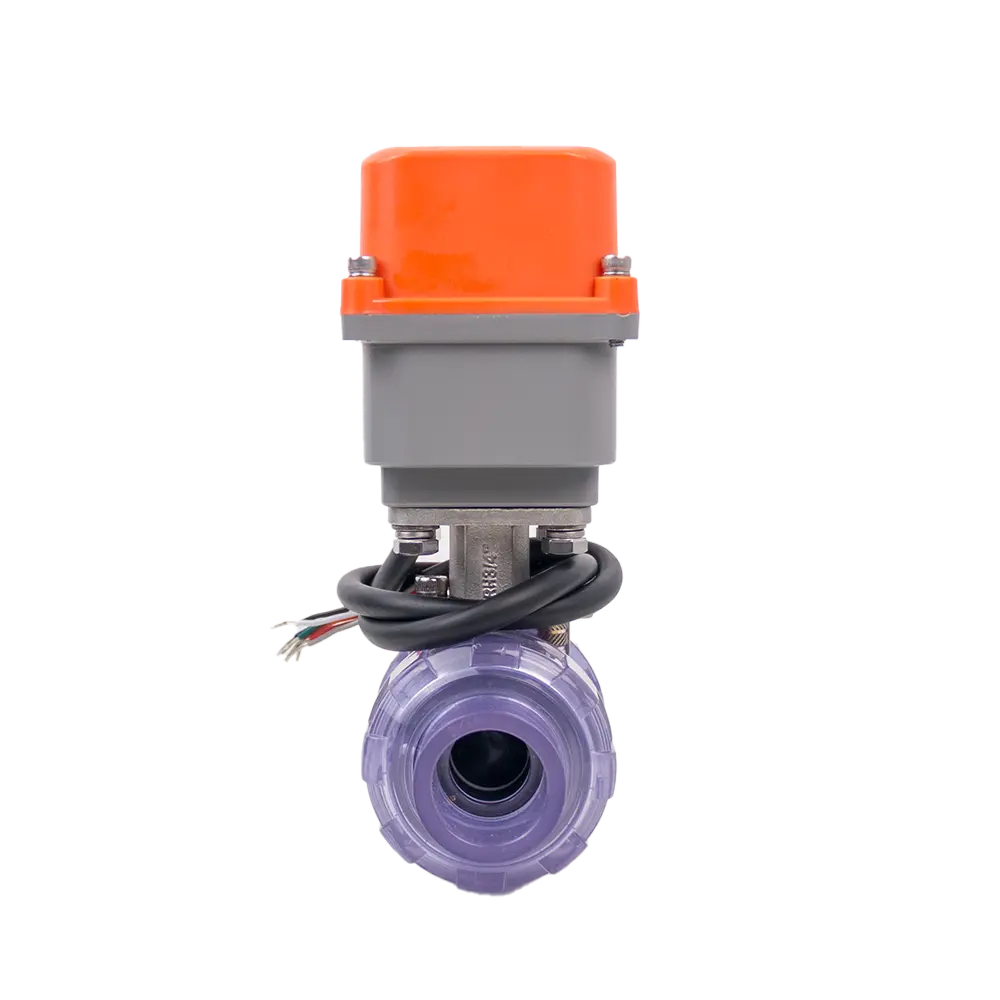

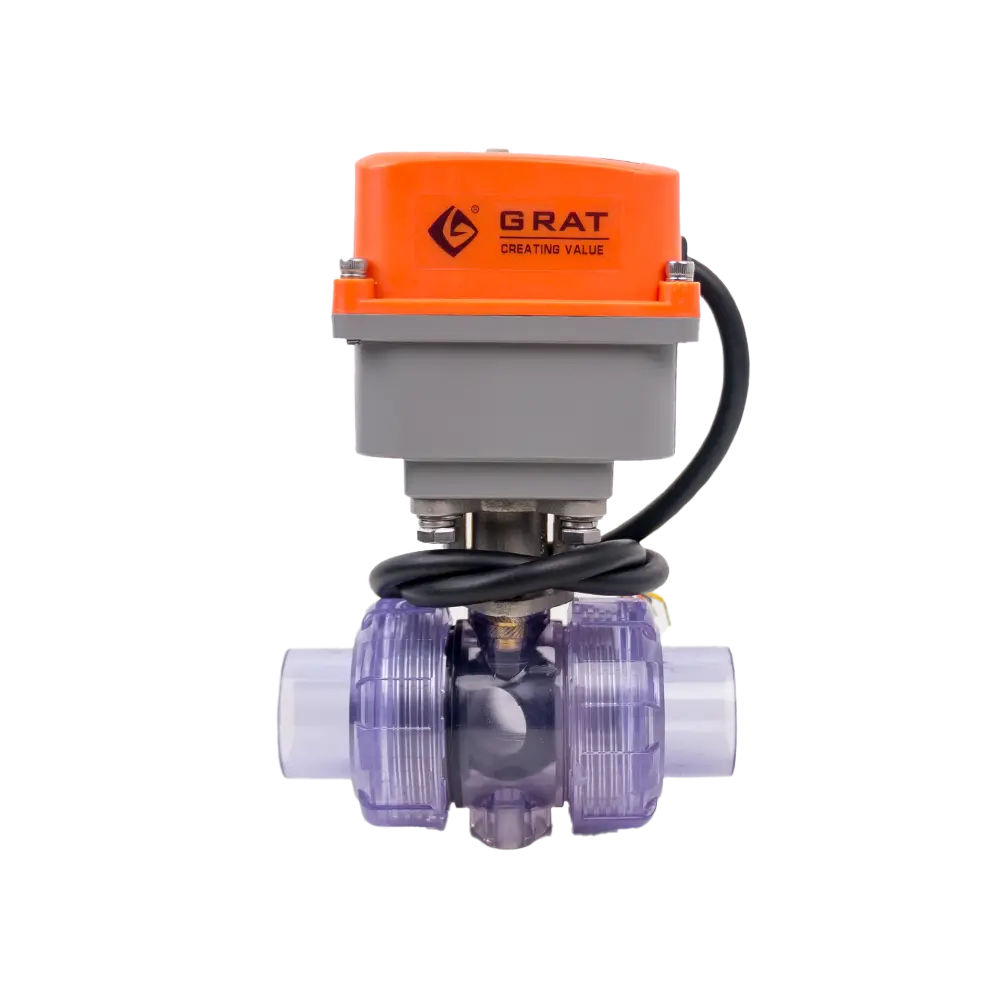

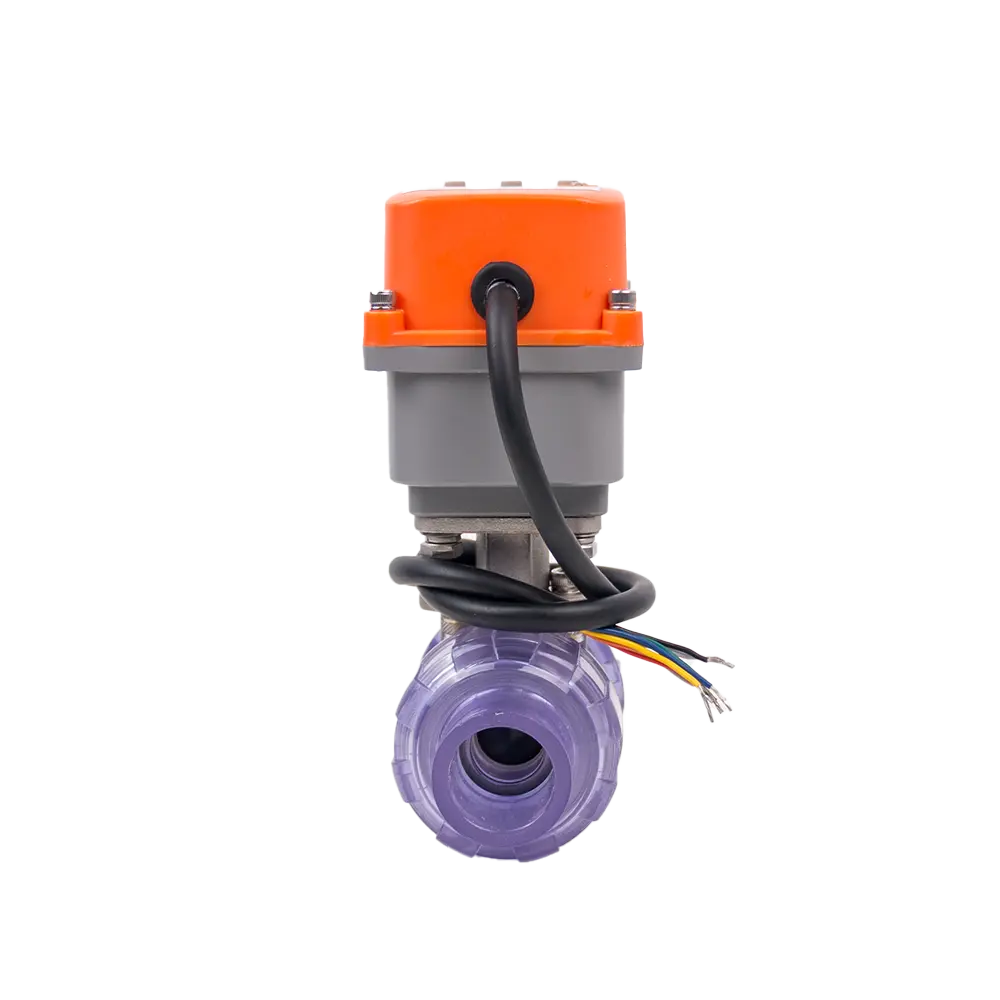

Transparent/Clear UPVC Electric Valve
This transparent UPVC electric valve enables direct visual flow observation for in‑line fault diagnosis, no disassembly required. Boasting outstanding acid and alkali corrosion resistance, it provides precise remote electrical actuation. Well‑suited for water treatment, food‑processing, pharmaceutical and laboratory applications.
Tags
Features
- Low Power Consumption & High Efficiency: Rated at 10W low power operation, the actuator cuts energy costs while delivering stable and efficient performance.
- Smooth Speed Regulation: PWM stepless speed control ensures consistent actuator travel and steady control output.
- High-Performance Brushless Motor: Integrated brushless motor with overload protection delivers reliable operation and prolonged service life.
- Real-Time OLED Display: Dual-language (CN/EN) OLED screen intuitively shows real-time operating status, parameters and fault prompts.
- High-Precision Adjustment: Provides a 30%–100% wide adjustment range with 0.5% high control accuracy to meet diverse industrial requirements.
- Multi-Channel Signal Feedback: Compatible with standard 4–20mA, 0–10V and 1–5V feedback signals for precise and stable control.
Nominal Bore (DN): DN15～DN40
Operating Voltage: AC220V, DC24V
Medium Temperature: -15℃～60℃
Nominal Pressure: PN1.0～1.6MPa
Flow Characteristic: Quick opening
Connection Type: Union, Flange
Valve Body Materials: UPVC, CPCV,PVC
Valve Core Materials: UPVC, CPCV,PVC
Ball Valve Seal: PTFE, PPL, etc.
Packing Material: Graphite, PTFE
Actuator Material: Cast aluminum alloy
Design & Manufacturing: GB12237-2007， API 6D
Product Inspection & Testing：API 598
| Parameter Name | Parameter Details |
|---|---|
| Nominal Diameter (DN) | DN15～DN40 |
| Operating Voltage | AC220V, DC24V |
| Medium Temperature | -15℃～60℃ |
| Nominal Pressure | PN1.0～1.6MPa |
| Connection Type | Union, Flange |
| Valve Body Material | UPVC, CPVC, PVC |
| Valve Core Material | UPVC, CPVC, PVC |
| Ball Valve Sealing Material | PTFE, PPL, etc. |
| Packing Material | Graphite, PTFE |
| Actuator Material | Cast Aluminum Alloy |
| Applicable Media | Water, acidic media, alkaline media, food-grade fluids, industrial waste liquid, pharmaceutical process fluids |
| Design & Manufacturing Standards | GB12237-2007, API 6D |
| Product Inspection & Test Standard | API 598 |
Circuit wiring diagram
