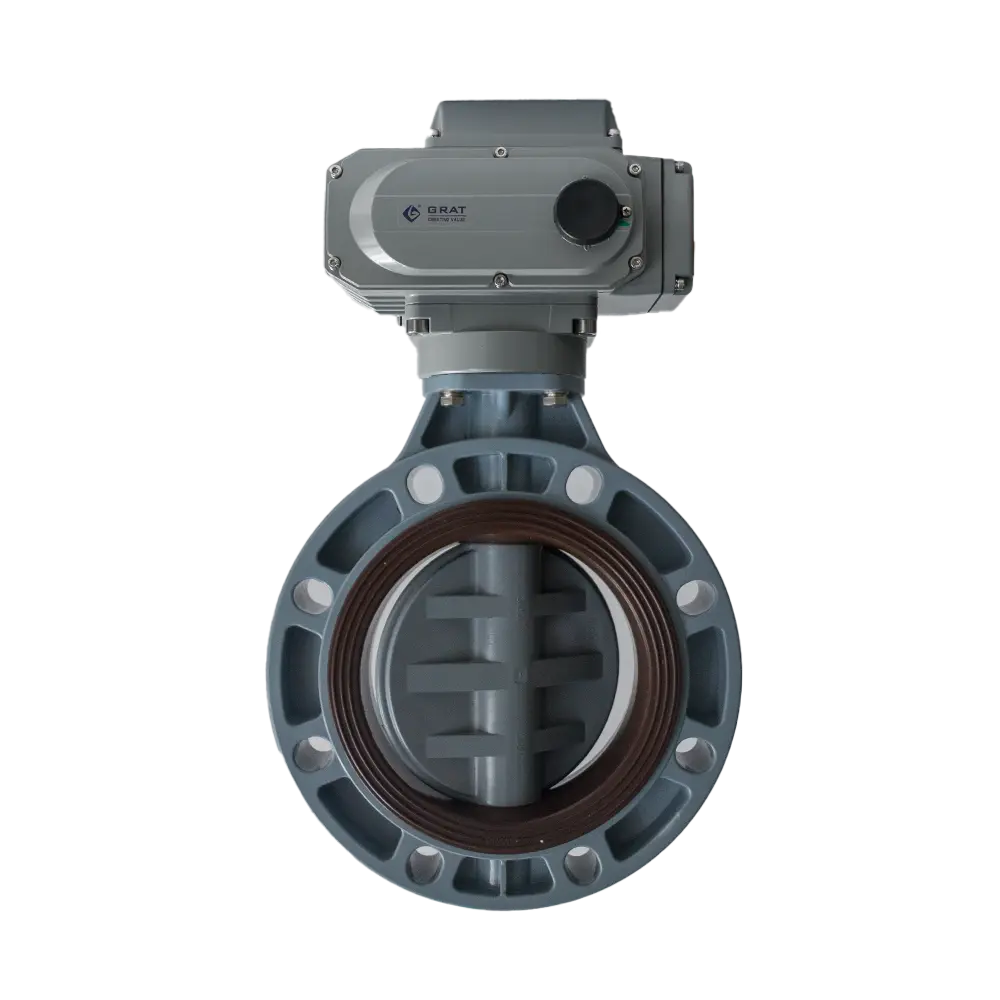

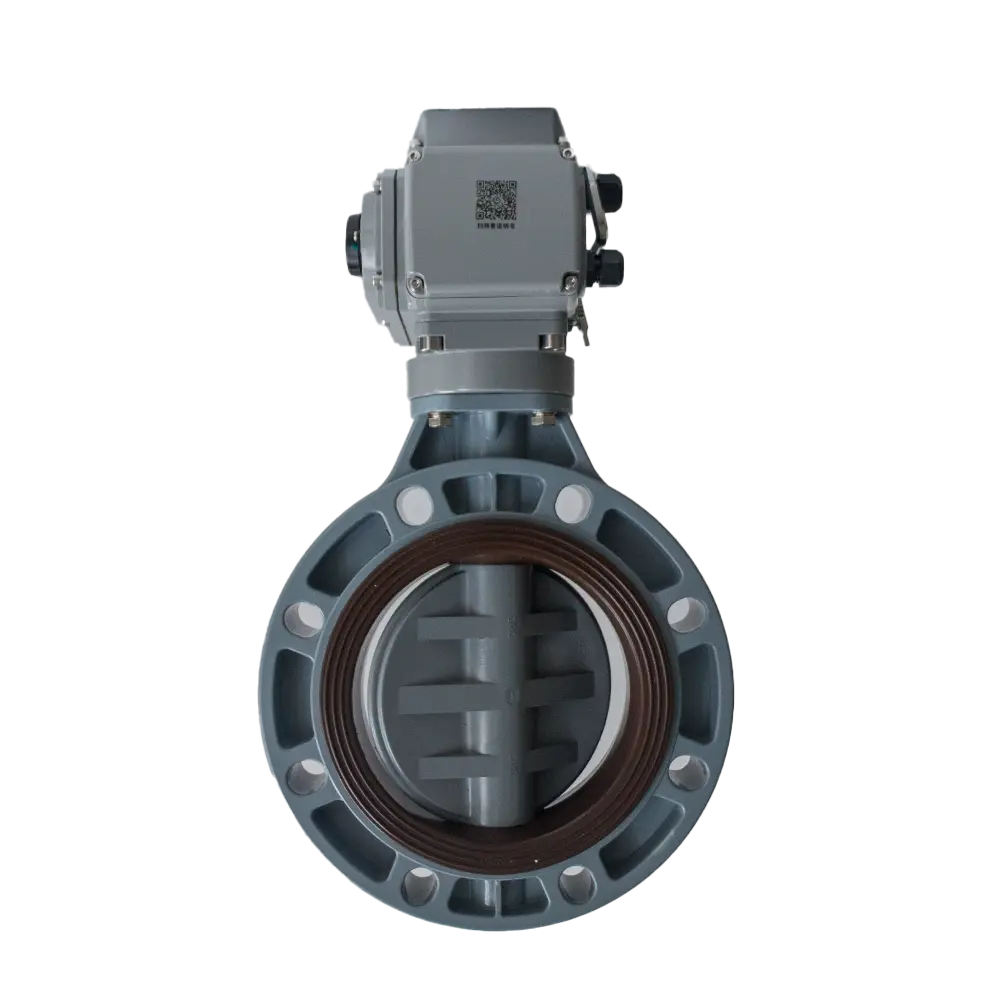

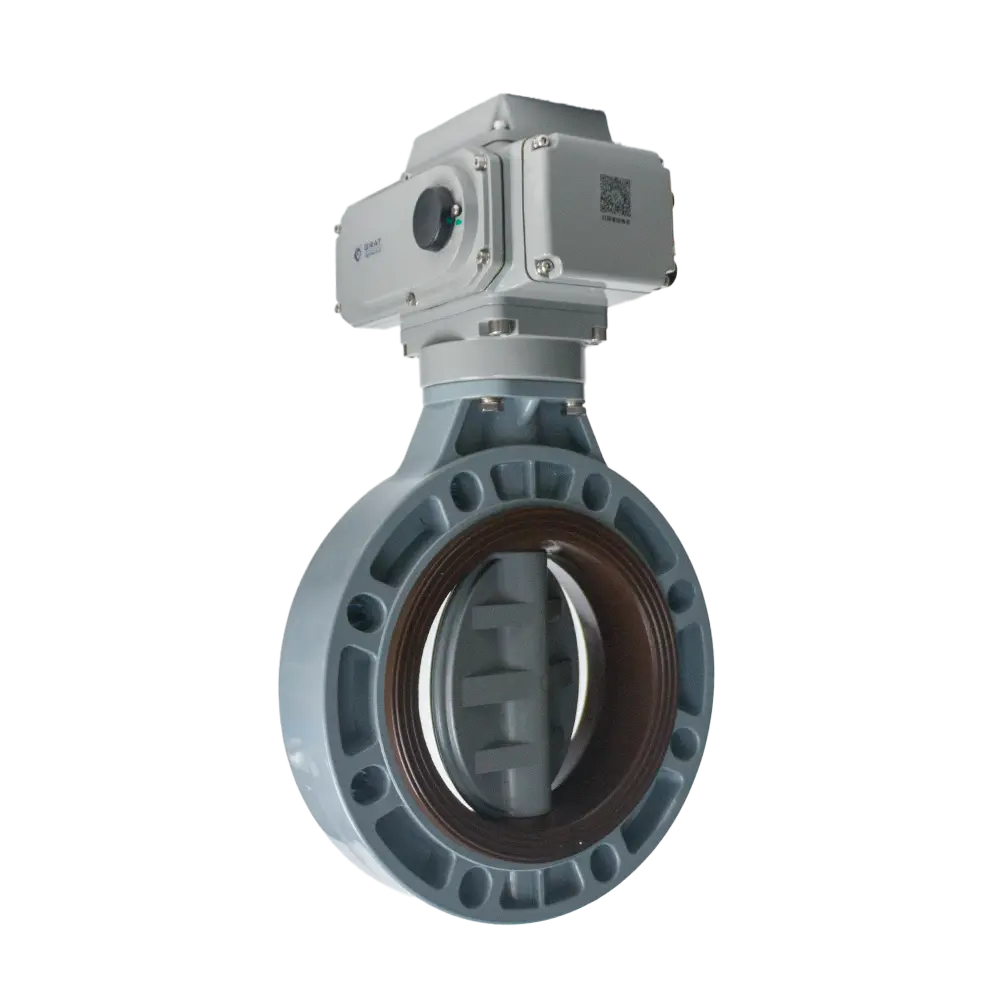

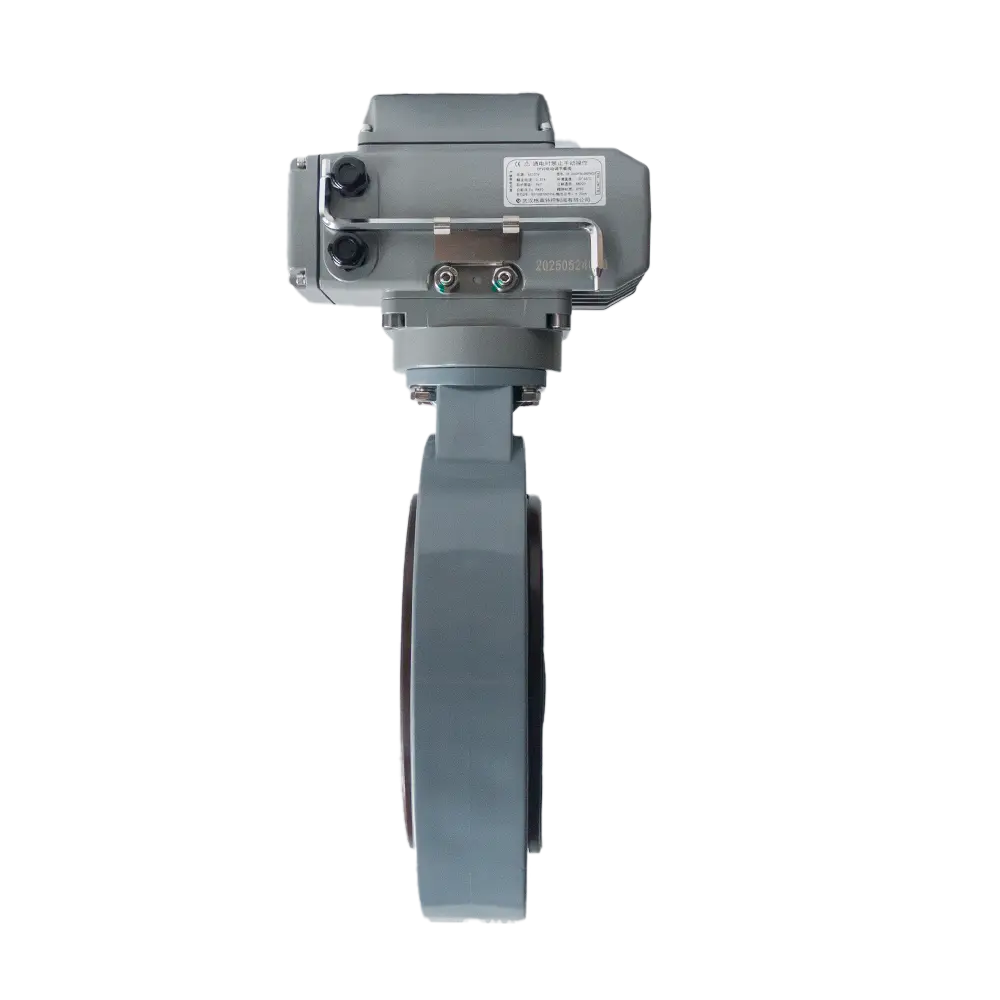

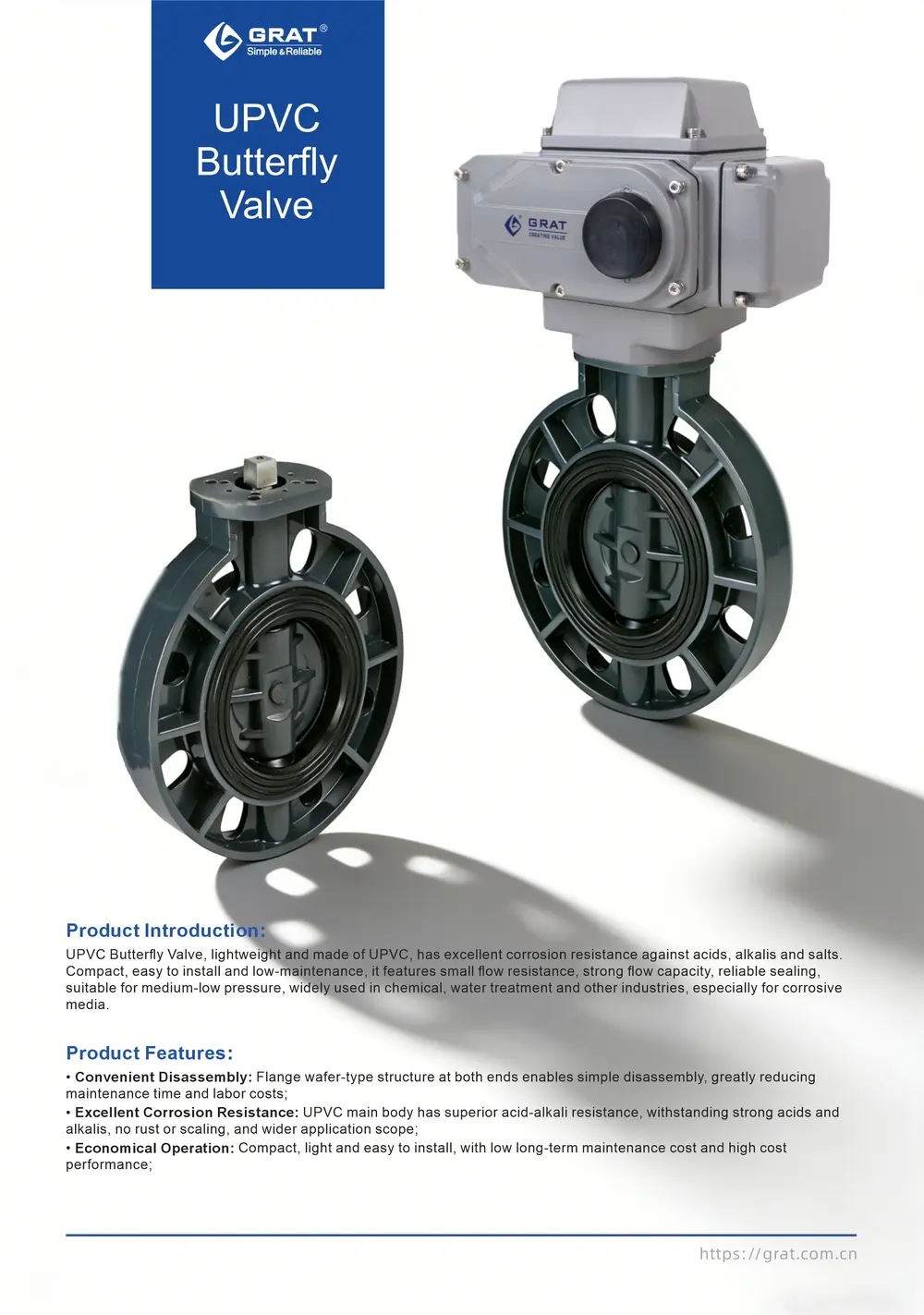

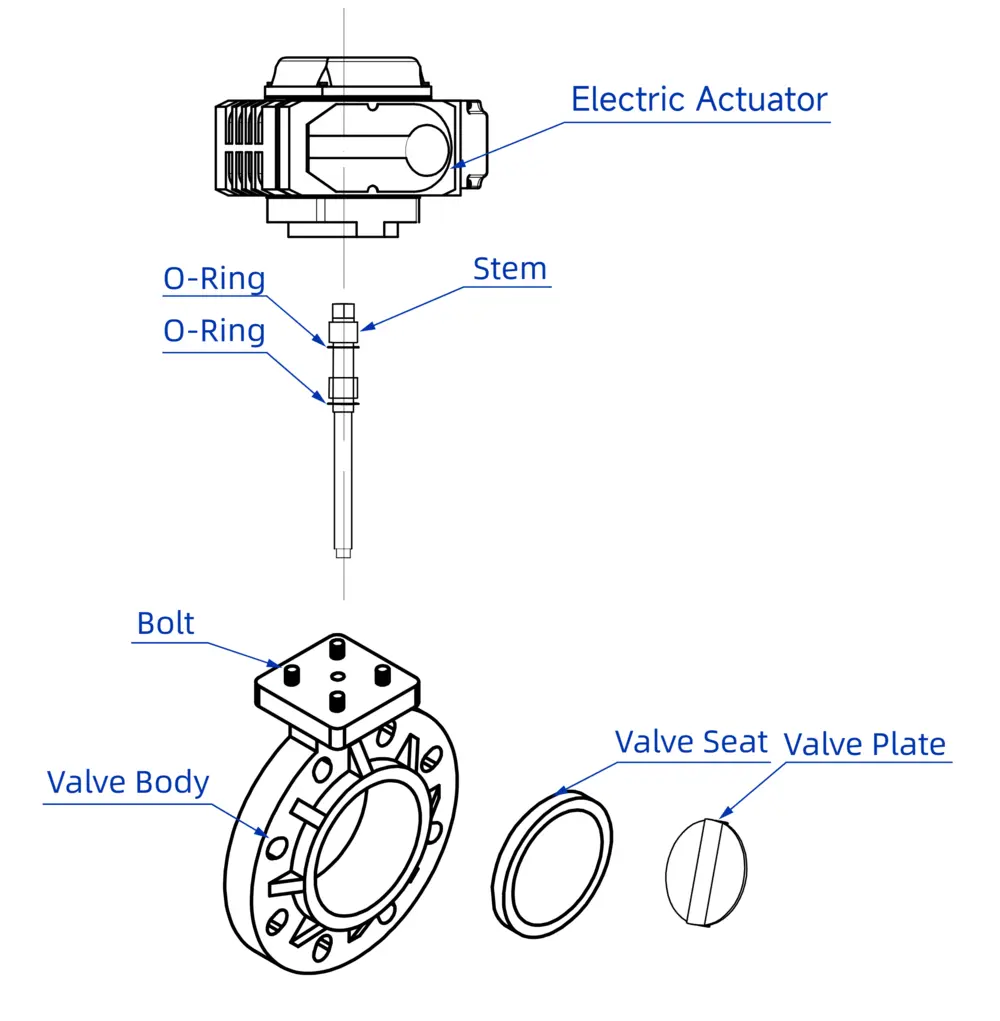

Electric Plastic Anti‑corrosion Butterfly Valve
The UPVC Electric Butterfly Valve delivers automated flow control for corrosive chemical and industrial service. Its corrosion-resistant, lightweight body resists alkalis and solvents, while the integrated electric actuator provides precise ON/OFF or modulating control. Ideal for water treatment, chemical plants, and effluent systems requiring dependable performance in aggressive environments.
特点
- Hygienic & certified — Non-toxic, food-safe material compliant with drinking-water hygiene standards.
- Low maintenance — Abrasion-resistant and easy to service; suited to a wide range of applications.
- Lightweight — UPVC weighs about one-tenth of cast iron, reducing handling, installation, and cost.
- Chemical resistance — Strong acid/alkali resistance extends service life beyond conventional piping.
- Fire-safe — Self-extinguishing and non-combustible; eliminates fire-risk concerns.
- Durable & efficient — High strength and toughness with a smooth bore that resists fouling and minimizes pressure loss.
Basic Parameters
Operating Power:
AC110V, AC220V, AC380V, DC24V
Nominal Diameter (DN):
DN80～DN400
Medium Temperature:
-15℃～60℃ (Non-freezing)
Nominal Pressure (PN):
1.0 MPa
Control Method:
Modulating or On/Off Control
Pneumatic Action Mode:
- Single Acting (with spring return) or Double Acting
Protection Device:
Overheat Protection
Connection Type:
Wafer Type
Protection Grade:
IP67
Installation Method:
Can be installed at any angle
(For extended service life, horizontal or vertical installation is recommended)
Material Specifications
Body & Internal Components
Valve Body Material:
UPVC
Seal Material:
PTFE, EPDM
Actuator Material:
Cast Aluminum Alloy
Suitable Media
- Water
- Air
- Oils
- Corrosive Chemical Liquids
Standards Compliance
Design & Manufacturing:
GB/T 12238-2008, API 6D
Structure Length:
GB/T 12221-2005
Inspection:
JB/T 9092-1999, API 598
Main Parameters
| Power Supply | AC110V, AC220V, AC380V, DC24V |
| Nominal Diameter | DN80–400 |
| Medium Temperature | -15℃ – 60℃ (non-freezing) |
| Nominal Pressure | 1.0 MPa |
| Control Mode | Modulating or On-Off Control |
| Protection Device | Overheat Protection |
| Connection Type | Wafer Type |
| Body Material | UPVC |
| Seal Material | PTFE, EPDM |
| Actuator Material | Cast Aluminum Alloy |
| Suitable Medium | Water, Air, Oils, Corrosive Chemical Liquids |
| Protection Grade | IP67 |
| Mounting Orientation | Mountable at Any Angle |
| Horizontal or vertical installation is recommended for longer service life | |
| Design and Manufacturing Standard | GB/T 12238-2008, API 6D |
| Face-to-Face Dimension | GB/T 12221-2005 |
| Inspection Standard | JB/T 9092-1999, API 598 |
Dimension Drawing

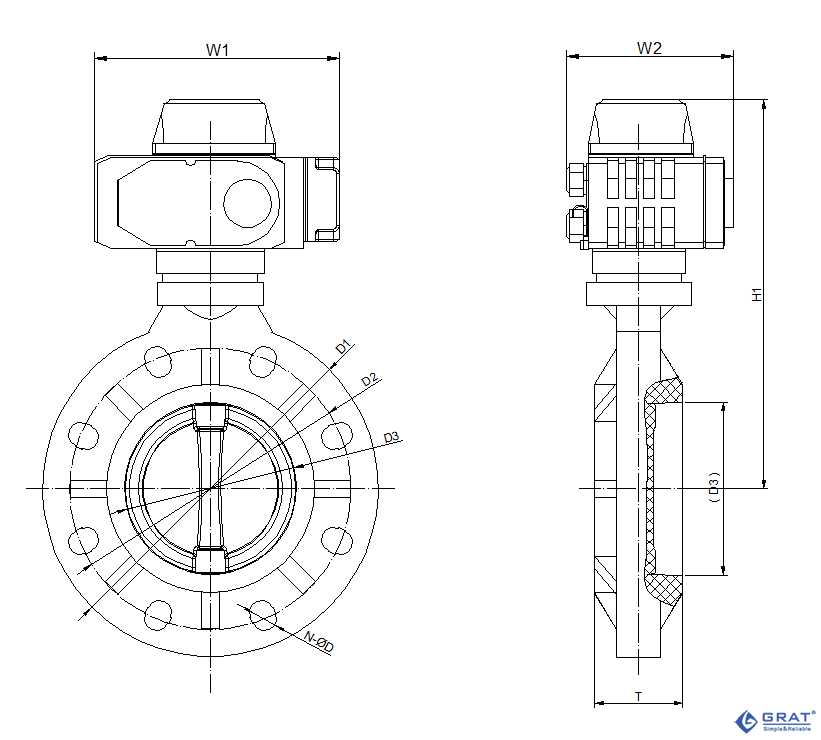

1.Installation Dimension Chart of UPVC Electric Butterfly Valve
| DN(mm) | D1 | D2 | D3 | T | N-ΦD | W1 | W2 | H1 |
| 50 | 160 | 125 | 51 | 42 | 4-Φ18 | 196 | 145 | 256 |
| 65 | 180 | 145 | 66 | 47 | 4-Φ18 | 196 | 145 | 270 |
| 80 | 200 | 160 | 79 | 45 | 8-Φ18 | 196 | 145 | 286 |
| 100 | 220 | 178 | 98.5 | 55 | 8-Φ18 | 196 | 145 | 306 |
| 125 | 254 | 210 | 125 | 65 | 8-Φ18 | 196 | 145 | 318 |
| 150 | 288 | 240 | 148 | 75 | 8-Φ22 | 196 | 145 | 334 |
| 200 | 340 | 295 | 201 | 85 | 8-Φ24 | 255 | 182 | 407 |
| 250 | 395 | 350 | 245.5 | 110 | 12-Φ24 | 255 | 182 | 442 |
| 300 | 440 | 400 | 291.5 | 115 | 12-Φ21 | 255 | 182 | 487 |
| 350 | 510 | 460 | 340 | 127 | 16-Φ21 | 255 | 182 | 509 |
| 400 | 570 | 515 | 399 | 140 | 16-Φ30 | 354 | 273 | 580 |

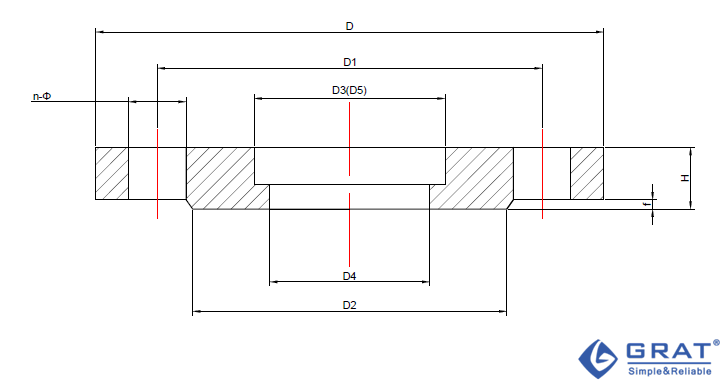

2.Suitable Flanges for Wafer Type Butterfly Valves
| DN (mm) | D | D1 | D2 | D3 | D4 | n-Φ | H | f | D5 | b |
| 50 | 165 | 125 | 59 | 52 | 52 | 4-Φ 18 | 20 | 3 | 62 | 8 |
| 65 | 185 | 145 | 122 | 75 | 67 | 4-Φ 18 | 20 | 3 | 78 | 8 |
| 80 | 200 | 160 | 133 | 91 | 82 | 8-Φ 18 | 20 | 3 | 91 | 8 |
| 100 | 220 | 180 | 158 | 110 | 102 | 8-Φ 18 | 22 | 3 | 116 | 8 |
| 125 | 250 | 210 | 184 | 135 | 127 | 8-Φ 18 | 22 | 3 | 142 | 8 |
| 150 | 285 | 240 | 212 | 161 | 152 | 8-Φ 22 | 24 | 3 | 170 | 10 |
| 200 | 340 | 295 | 268 | 221 | 208 | 12-Φ 22 | 26 | 3 | 221 | 10 |
| 250 | 405 | 355 | 320 | 275 | 255 | 12-Φ 26 | 29 | 3 | 275 | 10 |
| 300 | 460 | 410 | 370 | 327 | 308 | 12-Φ 26 | 32 | 4 | 326 | 14 |
| 350 | 520 | 470 | 430 | 379 | 355 | 16-Φ 26 | 34 | 4 | 358 | 14 |
| 400 | 580 | 525 | 482 | 429 | 405 | 16-Φ 30 | 36 | 4 | 409 | 14 |
Circuit Diagram
S
MS
PIU
CPT
PCU
G
SP
