Stable Draft Control - GRAT Guide Vane Motor for Burner Dampers

GRAT guide vane motor provides precise draft control for industrial burners, ensuring stable combustion efficiency. Featuring robust construction and maintenance-friendly design, they deliver reliable long-term performance in demanding environments. Their sealed protection and compatibility with standard control systems make them ideal for automation applications.

Application Background

In industrial combustion systems, the accuracy and stability of air volume control directly impact combustion efficiency, energy consumption, and operational safety. The customer required a highly reliable air volume regulation system for an 800mm burner damper to meet long-term continuous operation, rapid response, and low maintenance demands. GRAT provided a dedicated guide vane motor control solution, which was put into operation in May 2012 and has been functioning stably since.

GRAT guide vane mortor used in burner damper

Operating Conditions

Size: DN800
Power Supply: AC220V
Control Signal: On/Off
Feedback Signal: 0–1 kΩ Resistance
Design Life: 8 years (failure-free)
Commissioning Date: May 2012
Function: Airflow Regulation

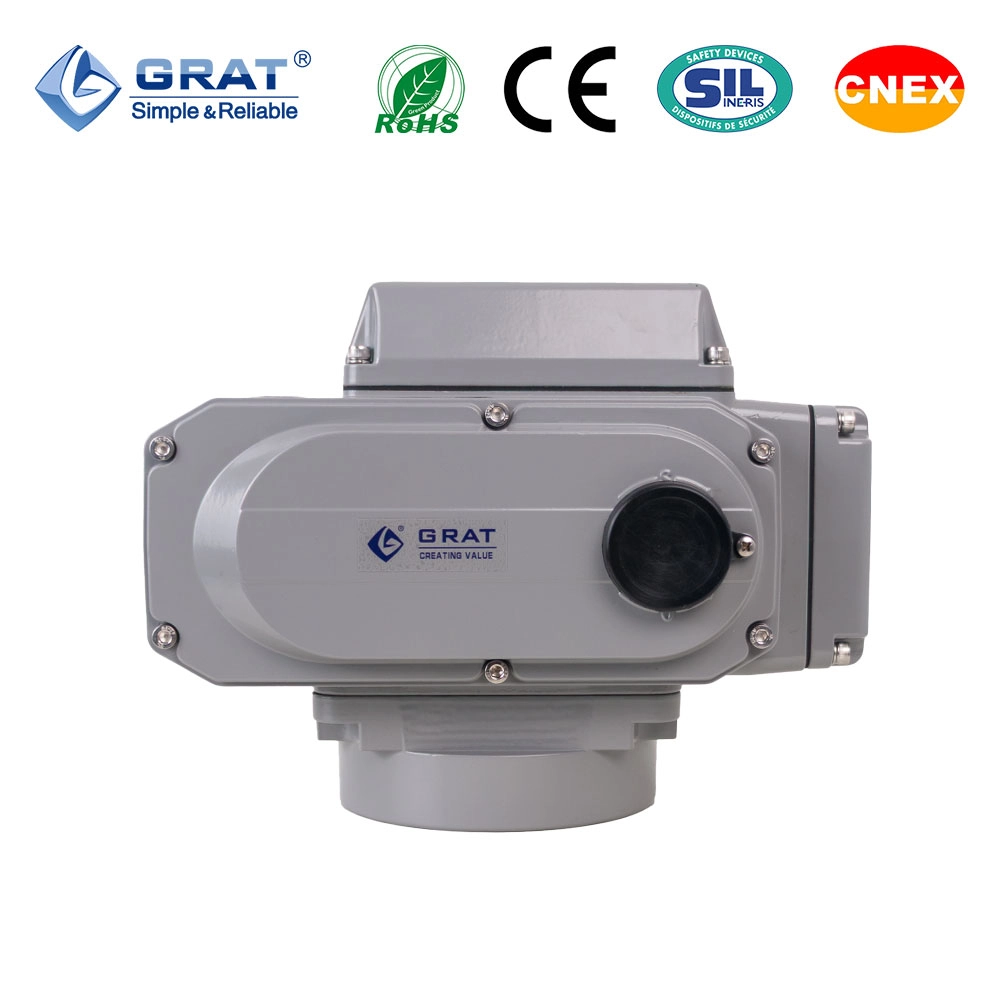

GRAT guide vane mortor

Product Advantages & Features

  1. High-Precision Control
    • Closed-loop feedback control technology ensures real-time damper position calibration, with air volume regulation accuracy error < ±2%.
    • 0-1kΩ analog signal feedback, compatible with mainstream PLC/DCS control systems for seamless integration.
  2. Durability and Reliability
    • Core components utilize metal gears and high-temperature-resistant insulating materials, ensuring long-term high-intensity operation.
    • Fully sealed structure design effectively prevents dust and moisture ingress, making the guide vane motor suitable for harsh industrial environments.
  3. Low Maintenance Requirements
    • Brushless motor design eliminates carbon dust accumulation, extending the service life of the guide vane motor.
    • Modular structure supports rapid replacement of components, minimizing downtime.
  4. Safety and Compatibility
    • Overload and overheating protection functions prevent equipment damage.
    • AC220V universal power input, compatible with most global industrial power standards.
GRAT guide vane motor

Performance Results

  • Stable Operation Record: The guide vane motor achieved failure-free operation for over 10 years since May 2012, fully meeting design life requirements.
  • Energy Efficiency Improvement: Precise air volume control optimizes combustion air ratio, improving combustion efficiency by approximately 8%.
  • Reduced Maintenance Costs: No major failures occurred during the period, with maintenance costs only 30% of the industry average.
  • Customer Feedback: The guide vane motor system responds quickly and controls accurately, significantly reducing the frequency of manual intervention, making it suitable for automation upgrade projects.
case ventilation

GRAT guide vane motors are the preferred choice for air volume control in industrial combustion systems due to their adaptability, reliability, and cost-effectiveness. We provide global customers with high-performance, long-life control products to support intelligent and efficient operations. Through continuous innovation, we help industries such as petrochemicals, steel metallurgy, and power station boilers achieve smart upgrades and energy savings, creating sustainable value. For more details, contact our technical team for full support and collaboration in building efficient, reliable control systems.
