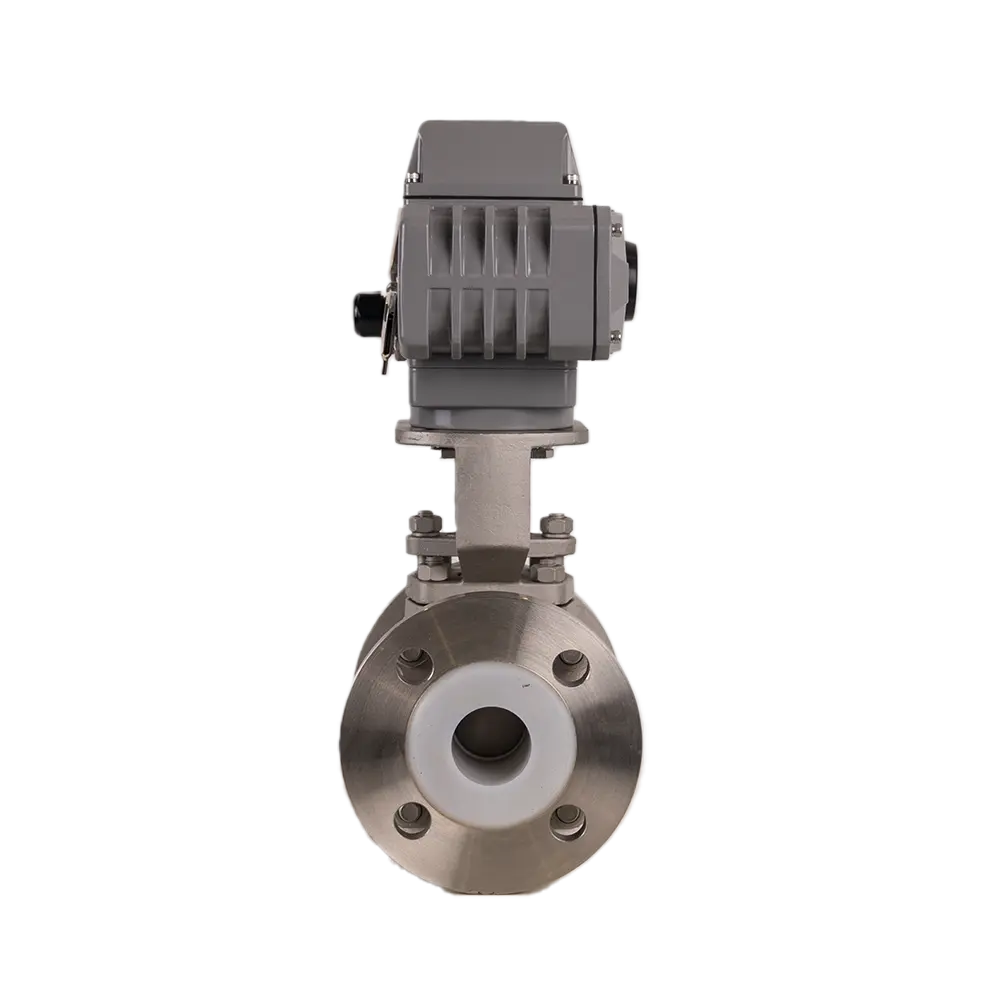

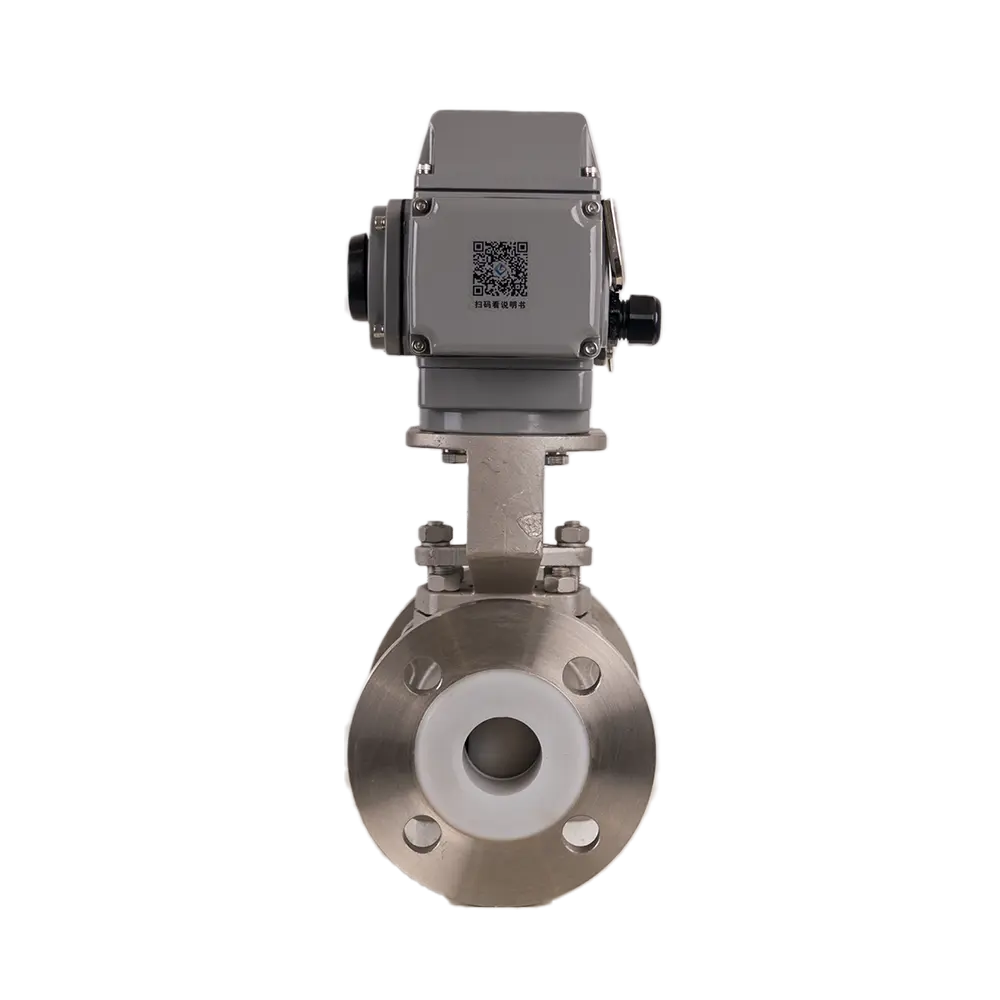

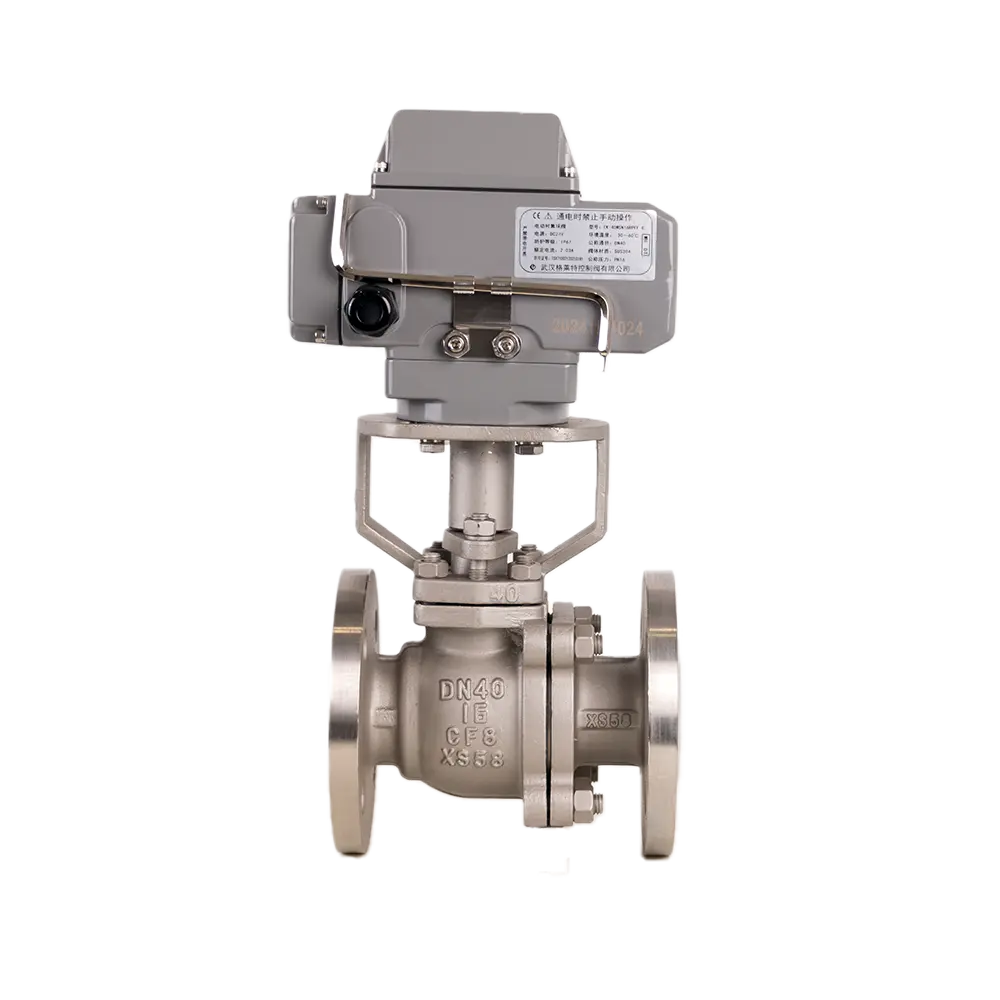

Electric PTFE-Lined Ball Valve
Fluorine-lined electric ball valves use PTFE (polytetrafluoroethylene) or PFA (perfluoroalkoxy) linings to provide precise on/off isolation and flow control via electric actuation. Engineered for strong acid, alkali, and high-temperature service, they handle corrosive process media and high-purity fluids in chemical, pharmaceutical, and semiconductor applications.
Features
- Body styles: two-piece (split-body) and three-piece designs — low pressure drop, fast actuation, compact.
- Inert liner: smooth bore minimizes friction and fouling; UV and weather resistance extend service life versus conventional piping.
- Ball options: V-port and full-bore (O-port) configurations for both tight shutoff and modulating control.
- Actuation: direct-mounted electric actuator with integral servo control — no external servo amplifier. Operates on 4–20 mA control signal and 220 VAC supply. Simple wiring, compact, reliable.
Basic Parameters
Nominal Bore (DN):
DN15～100
Contact us for larger diameters
Operating Power Supply:
AC110V, AC220V, AC380V, DC24V
Medium Temperature:
-15°C～+120°C
(non-freezing)
Working Pressure:
PN1.0～1.6MPa
Control Mode:
Regulating or On/Off Control
Pneumatic Actuation:
- Single-acting (spring return)
- Double-acting
Physical Specifications
Connection Type:
Flange Connection
Valve Body Materials:
WCB, ZG1CrM0, ZG, 1Cr18Ni9Ti, SS304, SS316
Bonnet Material:
WCB, ZG1CrM0, ZG, 1Cr18Ni9Ti
Stuffing Box Material:
WCB, 40Cr, ZG, 1Cr18Ni9Ti
Gland Material:
WCB, ZG1CrM0, ZG, 1Cr18Ni9Ti
Seat Material:
Perfluoroalkoxy (PFA/FEP)
Packing:
Perfluoroalkoxy (PFA/FEP)
Suitable Media
- Acids, alkalis, salts
- Chlorine gas, steam, raw water
- Mineral pulp, paper pulp
- Aqua regia, oxidizers, reducers
- Corrosive chemical liquids
Standards Compliance
Design & Manufacturing:
GB12237-2021
API 6D
Flange Standards:
JB 79—2015
GB/T 9124.1-2019
GB/T 9124.2-2019
ANSI B16.5
JIS B2212
Face-to-Face Dimensions:
GB12221-2005
Testing & Inspection:
API 598
Main Parameters
| Power Supply | AC110V, AC220V, AC380V, DC24V |
| Nominal Diameter | DN15-100 |
| Larger Diameter | Please contact us for larger diameters |
| Medium Temperature | -15℃~+120℃ (non-freezing) |
| Working Pressure | PN1.0～1.6MPa |
| Control Mode | Regulation or On-off Control |
| Connection Type | Flange Connection |
| Applicable Medium | Acids, alkalis, salts, chlorine gas, steam, raw water, ore pulp, paper pulp, aqua regia, oxidants, reductants, corrosive chemical liquids |
| Valve Body Material | WCB, ZG1CrMo, ZG, 1Cr18Ni9Ti, SS304, SS316 |
| Valve Bonnet Material | WCB, ZG1CrMo, ZG, 1Cr18Ni9Ti |
| Stuffing Box Material | WCB, 40Cr, ZG, 1Cr18Ni9Ti |
| Stuffing Gland Material | WCB, ZG1CrMo, ZG, 1Cr18Ni9Ti |
| Valve Seat Material | Perfluoro Copolymer FEP |
| Packing | Perfluoro Copolymer FEP |
| Design and Manufacturing Standards | GB12237-2021, API 6D |
| Flange Standards | JB 79—2015, GB/T 9124.1-2019, GB/T 9124.2-2019, ANSI B16.5, JIS B2212 |
| Face-to-Face Length | GB12221-2005 |
| Inspection Standard | API 598 |

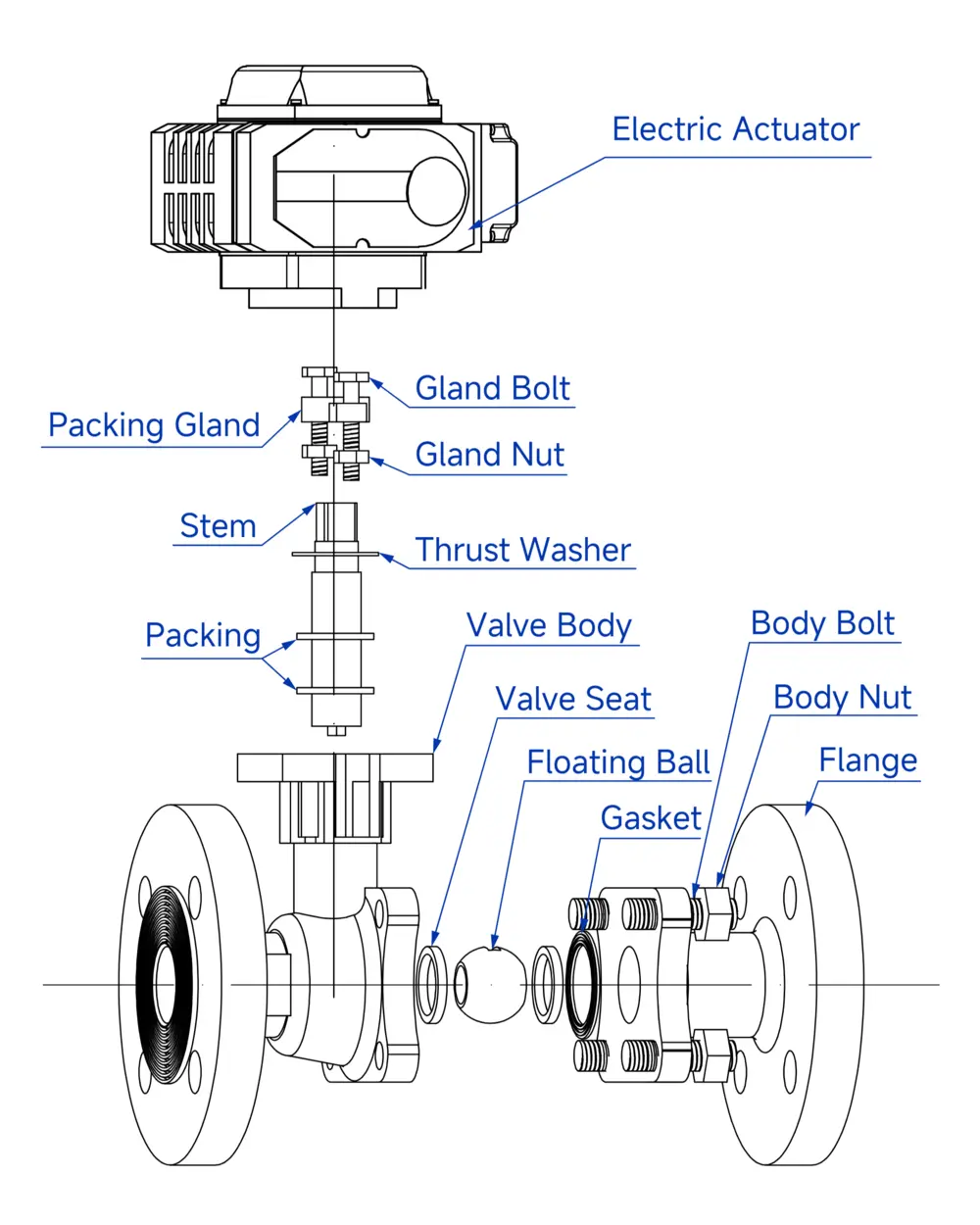

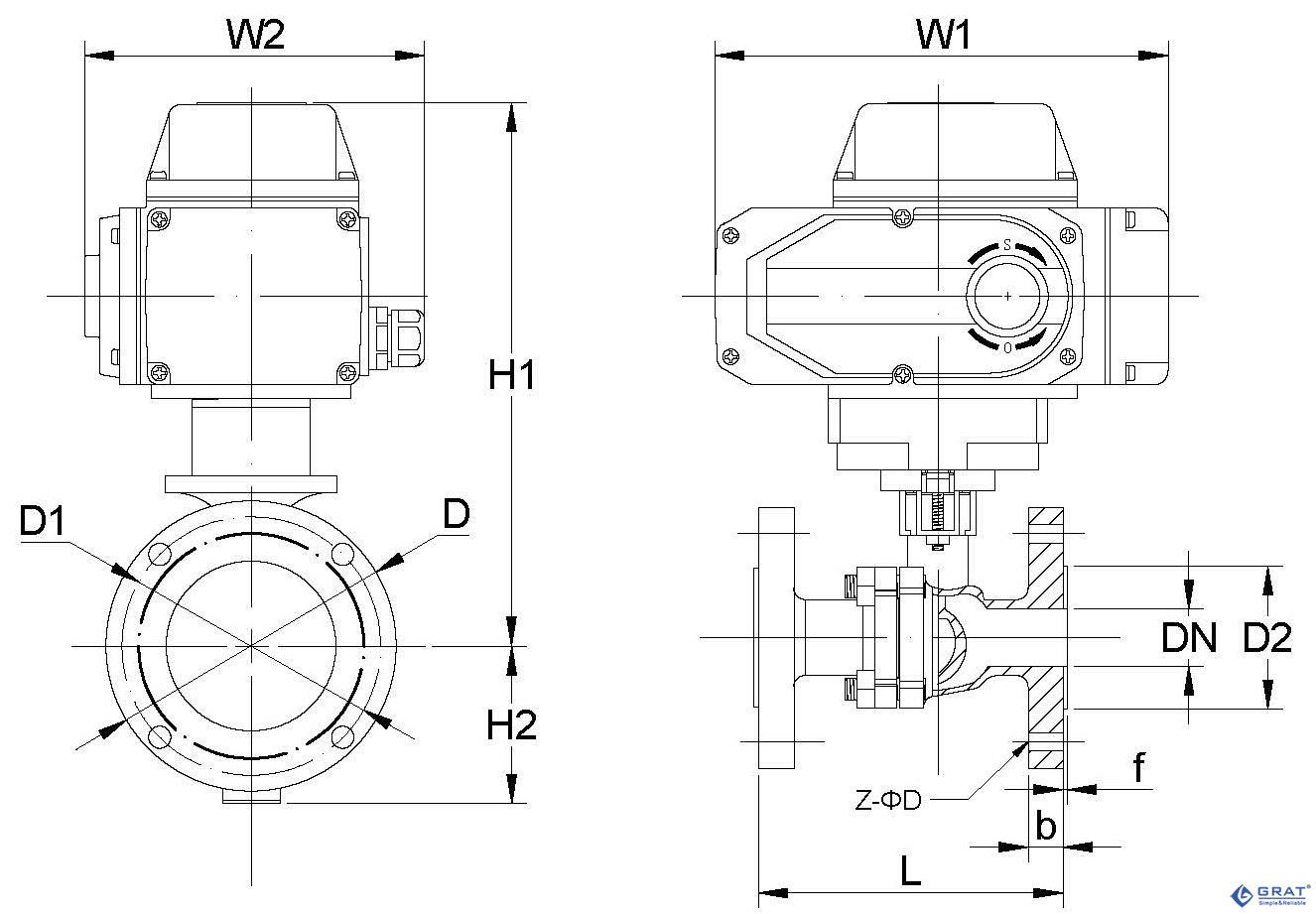

1.Installation Dimensions of PTFE-Lined Electric Ball Valve
Design Standard: HG/T 20592
Flange Standard: HG/T 20592 Unit: mm
| Nominal Diameter （DN） | L | D | D1 | D2 | b | f | Z-ΦD | H1 | H2 | W1 | W2 |
| 15 | 130 | 95 | 65 | 45 | 16 | 2.5 | 4-Φ14 | 216 | 47.5 | 196 | 145 |
| 20 | 140 | 105 | 75 | 55 | 18 | 2.5 | 4-Φ14 | 231 | 52.5 | 196 | 145 |
| 25 | 150 | 115 | 85 | 65 | 19 | 3 | 4-Φ14 | 236 | 57.5 | 196 | 145 |
| 32 | 165 | 140 | 100 | 78 | 19 | 3 | 4-Φ18 | 256 | 70 | 196 | 145 |
| 40 | 180 | 150 | 110 | 85 | 19 | 3.5 | 4-Φ18 | 261 | 75 | 196 | 145 |
| 50 | 200 | 165 | 125 | 100 | 19 | 3.5 | 4-Φ18 | 271 | 82.5 | 196 | 145 |
| 65 | 220 | 185 | 145 | 120 | 19 | 3.5 | 4-Φ18 | 303 | 92.5 | 255 | 182 |
| 80 | 260 | 200 | 160 | 135 | 20 | 3.5 | 8-Φ18 | 358 | 100 | 255 | 182 |
| 100 | 280 | 220 | 180 | 155 | 21 | 4 | 8-Φ18 | 383 | 110 | 255 | 182 |
Circuit Diagram
S
MS
PIU
CPT
PCU
G
SP
