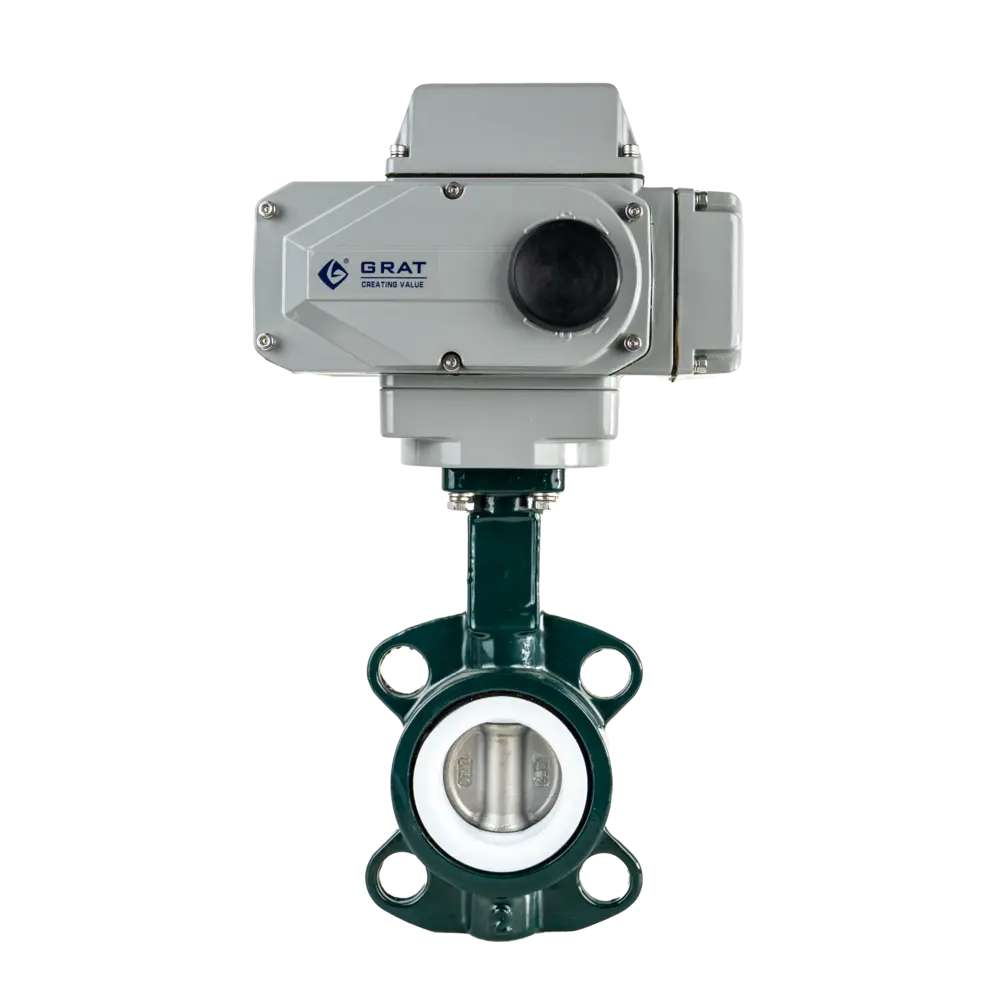

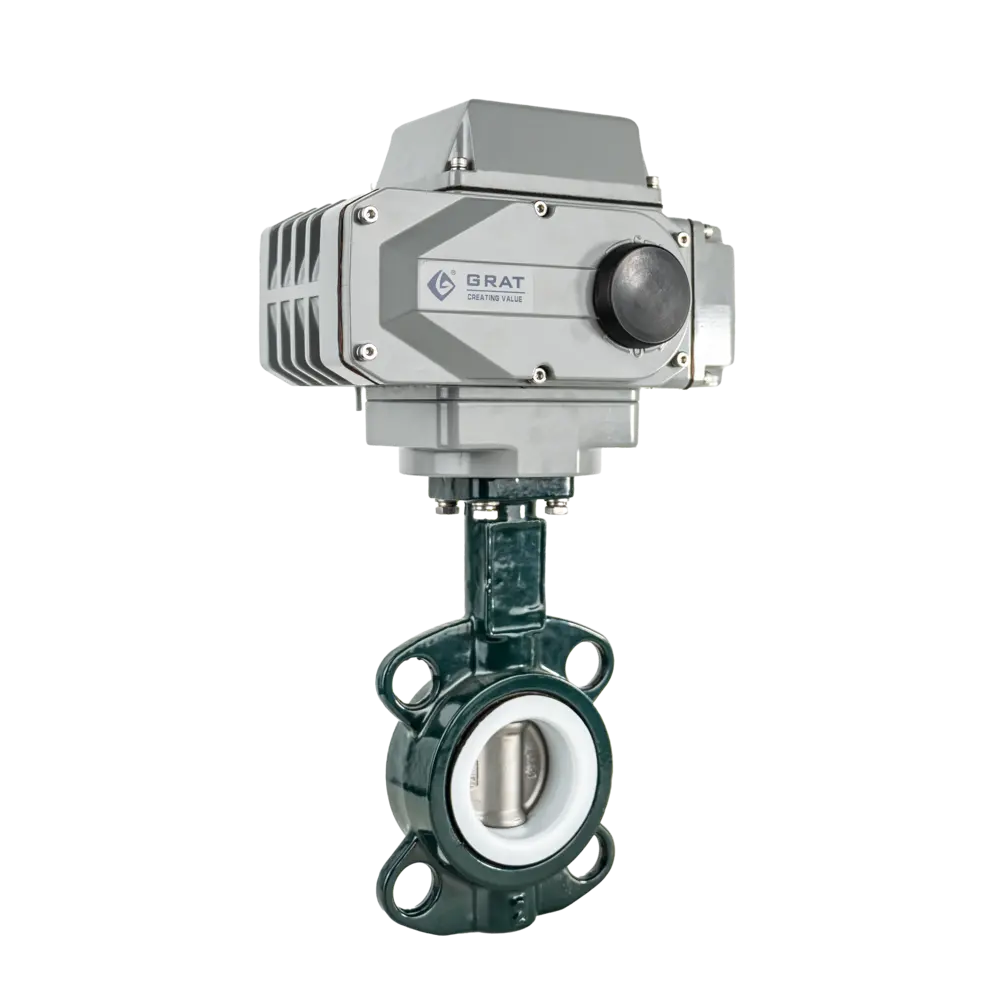

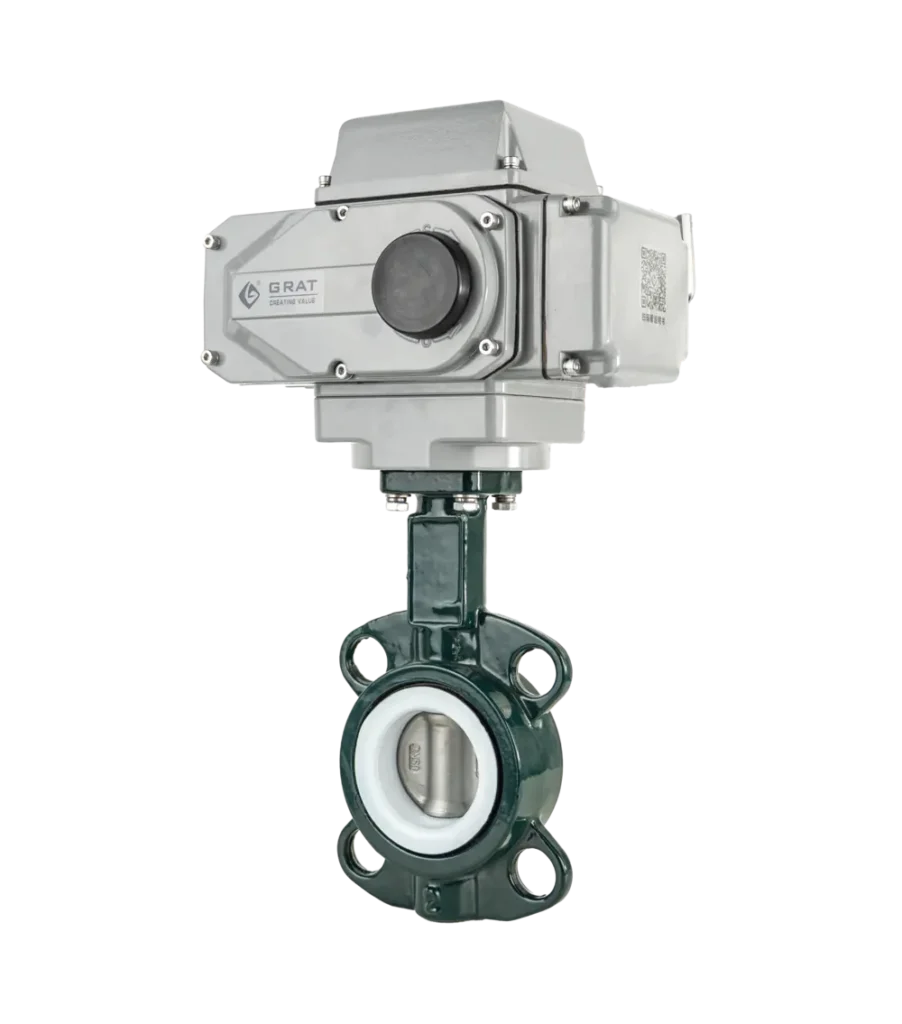

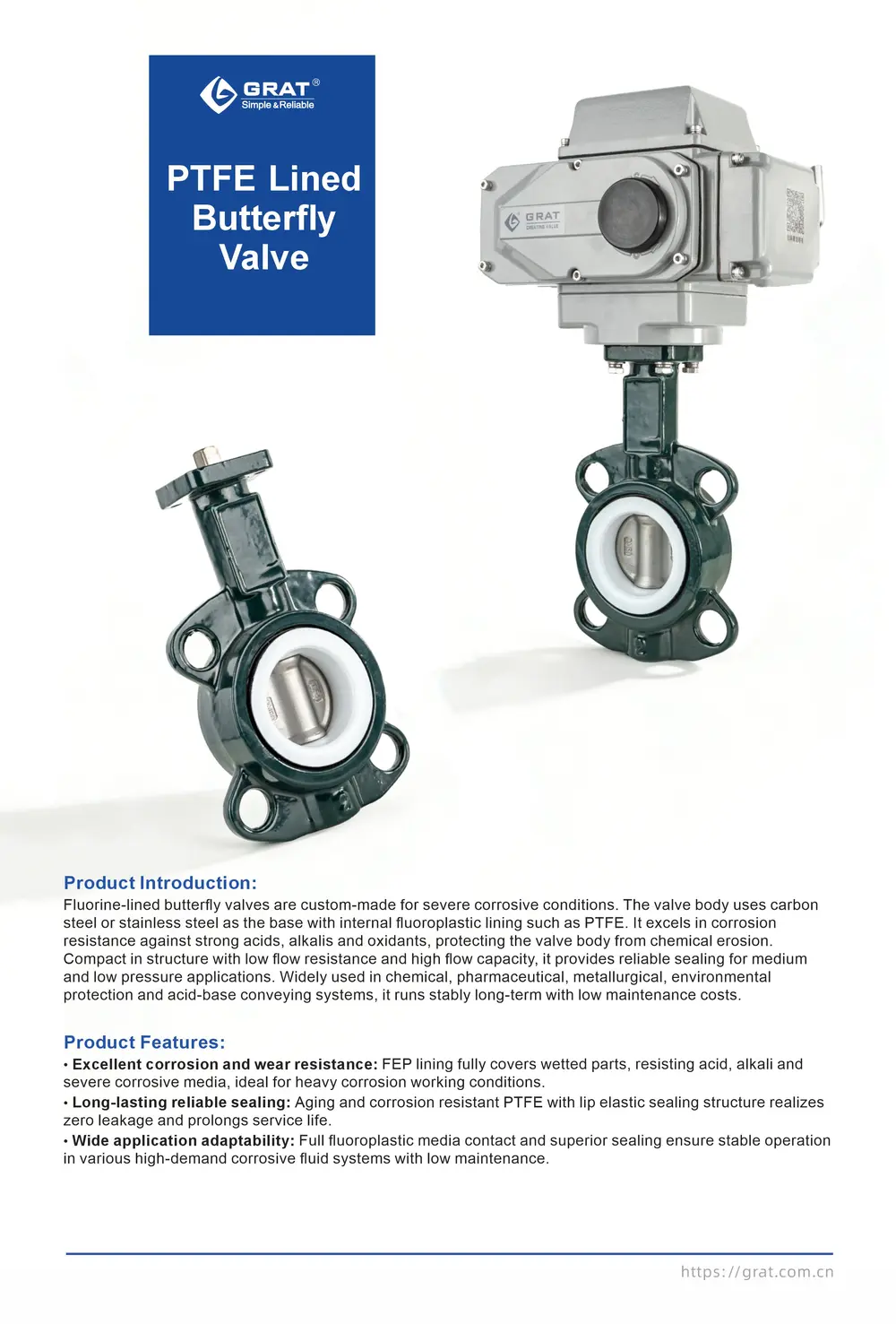

Electric PTFE-Lined Butterfly Valve
The electric PTFE-lined butterfly valve features a PTFE liner for excellent corrosion resistance across a wide range of corrosive media. Electric actuation delivers precise flow control and integrates with automated systems.

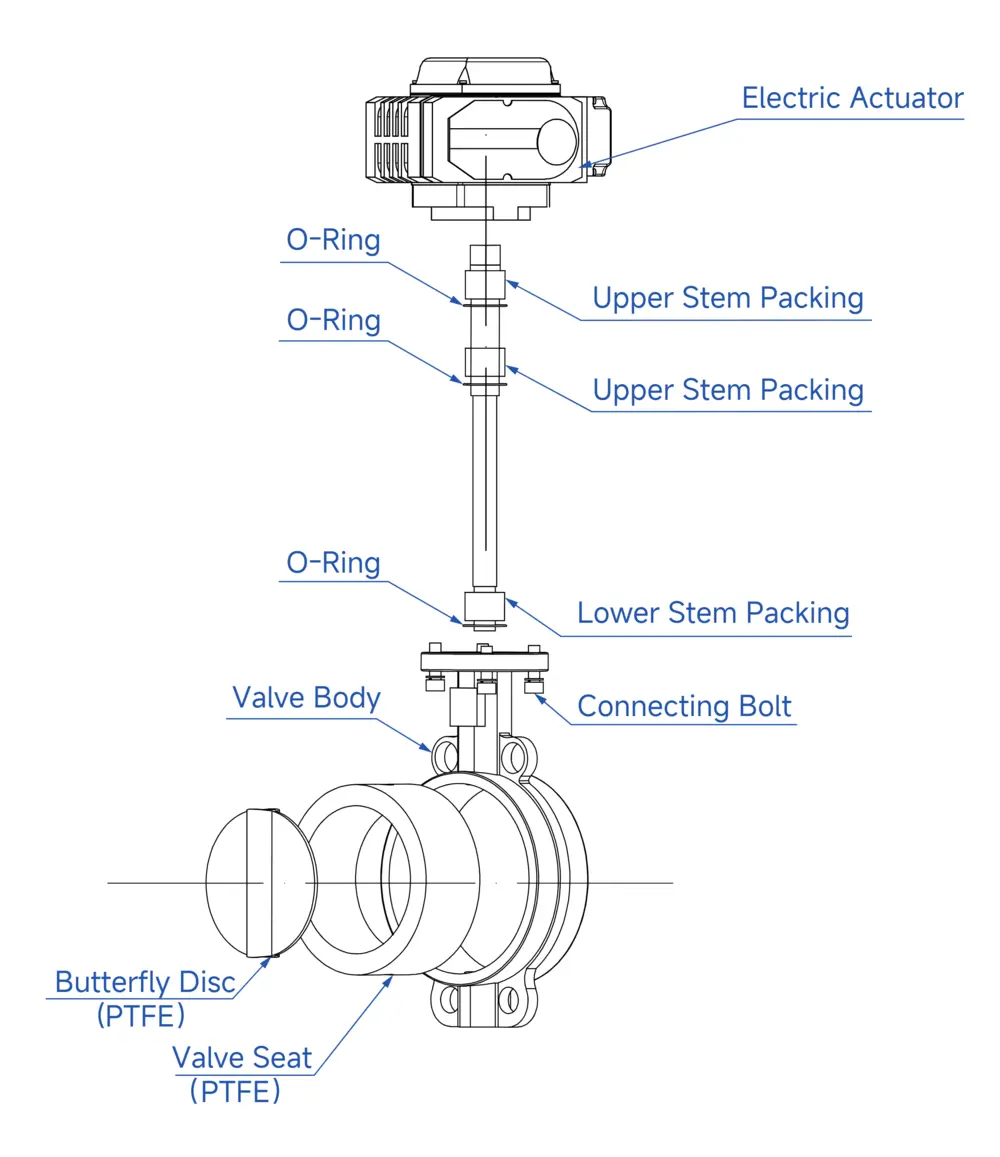

Features
- FEP-Lined / Fluoroplastic Wetted Parts — Excellent corrosion and wear resistance; handles acids, alkalis, and other media at any concentration.
- Lip-Type Resilient Seal Pair — Extended service life.
- PTFE Seal — Age-resistant, corrosion-resistant, and durable for zero leakage.
Basic Parameters
Material Specifications
Body & Internal Components
Suitable Media
- Sulfuric acid
- hydrofluoric acid
- phosphoric acid
- chlorine gas
- strong alkali
- aqua regia
- any other highly corrosive media
Standards Compliance
Main Parameters
| Power Supply | AC110V, AC220V, AC380V, DC24V |
| Nominal Diameter | DN40–DN500 |
| Medium Temperature | -50℃ – 160℃ (non-freezing) |
| Working Pressure | PN1.0~1.6 MPa |
| Control Mode | Modulating or On-Off control |
| Connection Type | Wafer Type |
| Body Material | WCB, QT450-10, HT200, HT250 |
| Disc Material | WCB + PTFE |
| Seal Ring | PTFE |
| Actuator Material | Cast Aluminum Alloy |
| Suitable Media | Sulfuric acid, hydrofluoric acid, phosphoric acid, chlorine gas, strong alkali, aqua regia, and any other highly corrosive media |
| Design & Manufacturing Standard | GB/T 12238-2008, API 6D |
| Flange Standard | JB/T 79-2015, GB/T 9124.1-2019, GB/T 9124.2-2019, ASME B16.5, JIS B2239 |
| Face-to-Face Dimension | GB/T 12221-2005 |
| Inspection Standard | API 598 |

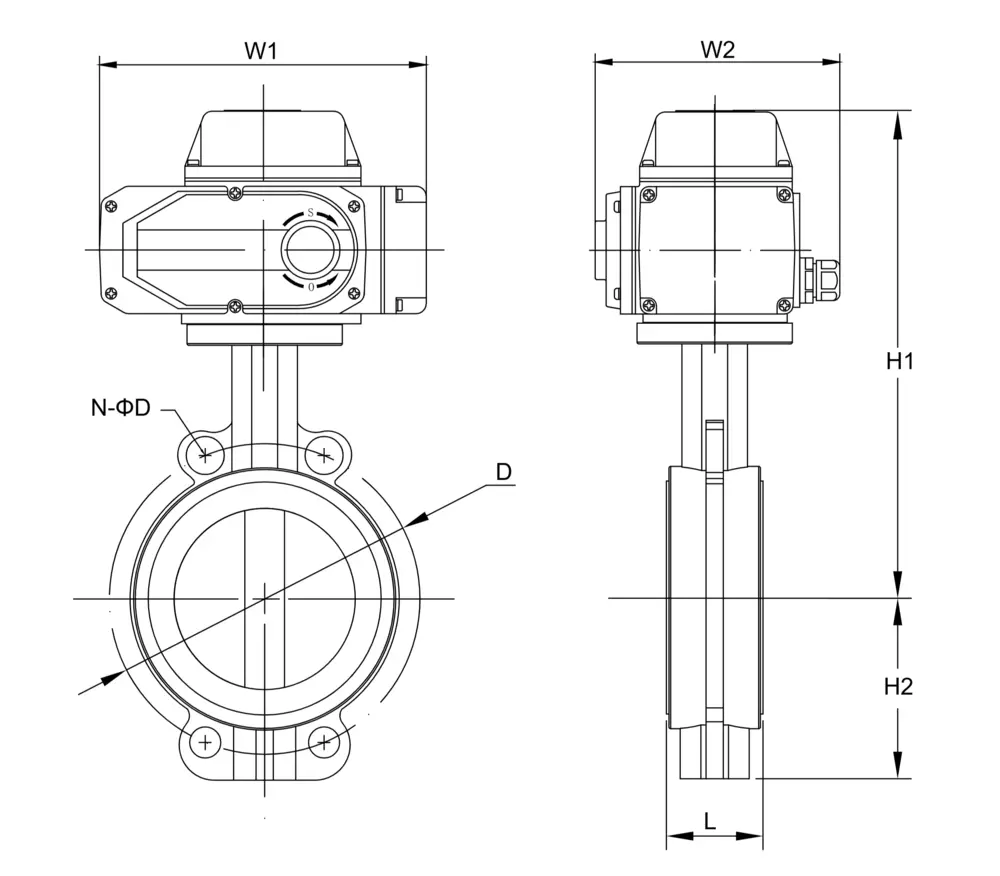

Dimension Drawing
1.Wafer Type Electric PTFE Lined Butterfly Valve

| Nominal Diameter (DN) | L | D | N-ΦD | H1 | H2 | W1 | W2 |
| 40 | 33 | 115 | 4-Φ16 | 260 | 60 | 196 | 145 |
| 50 | 43 | 125 | 4-Φ18 | 270 | 70 | 196 | 145 |
| 65 | 46 | 145 | 4-Φ18 | 283 | 80 | 196 | 145 |
| 80 | 46 | 160 | 8-Φ18 | 327 | 89 | 255 | 182 |
| 100 | 52 | 180 | 8-Φ18 | 334 | 105.5 | 255 | 182 |
| 125 | 56 | 210 | 8-Φ18 | 357 | 121 | 255 | 182 |
| 150 | 56 | 240 | 8-Φ22 | 372 | 145 | 255 | 182 |
| 200 | 60 | 295 | 12-Φ22 | 420 | 177 | 255 | 182 |
| 250 | 66 | 355 | 12-Φ26 | 518 | 205 | 354 | 273 |
| 300 | 78 | 410 | 12-Φ26 | 535 | 235 | 354 | 273 |
| 350 | 78 | 470 | 16-Φ26 | 581 | 260 | 354 | 273 |
| 400 | 102 | 525 | 16-Φ30 | 630 | 299 | 354 | 273 |
| 450 | 114 | 585 | 20-Φ30 | 682 | 320 | 354 | 273 |
| 500 | 127 | 650 | 20-Φ33 | 710 | 352.5 | 354 | 273 |
Circuit Diagram

S

MS

PIU

CPT

PCU

G

SP
