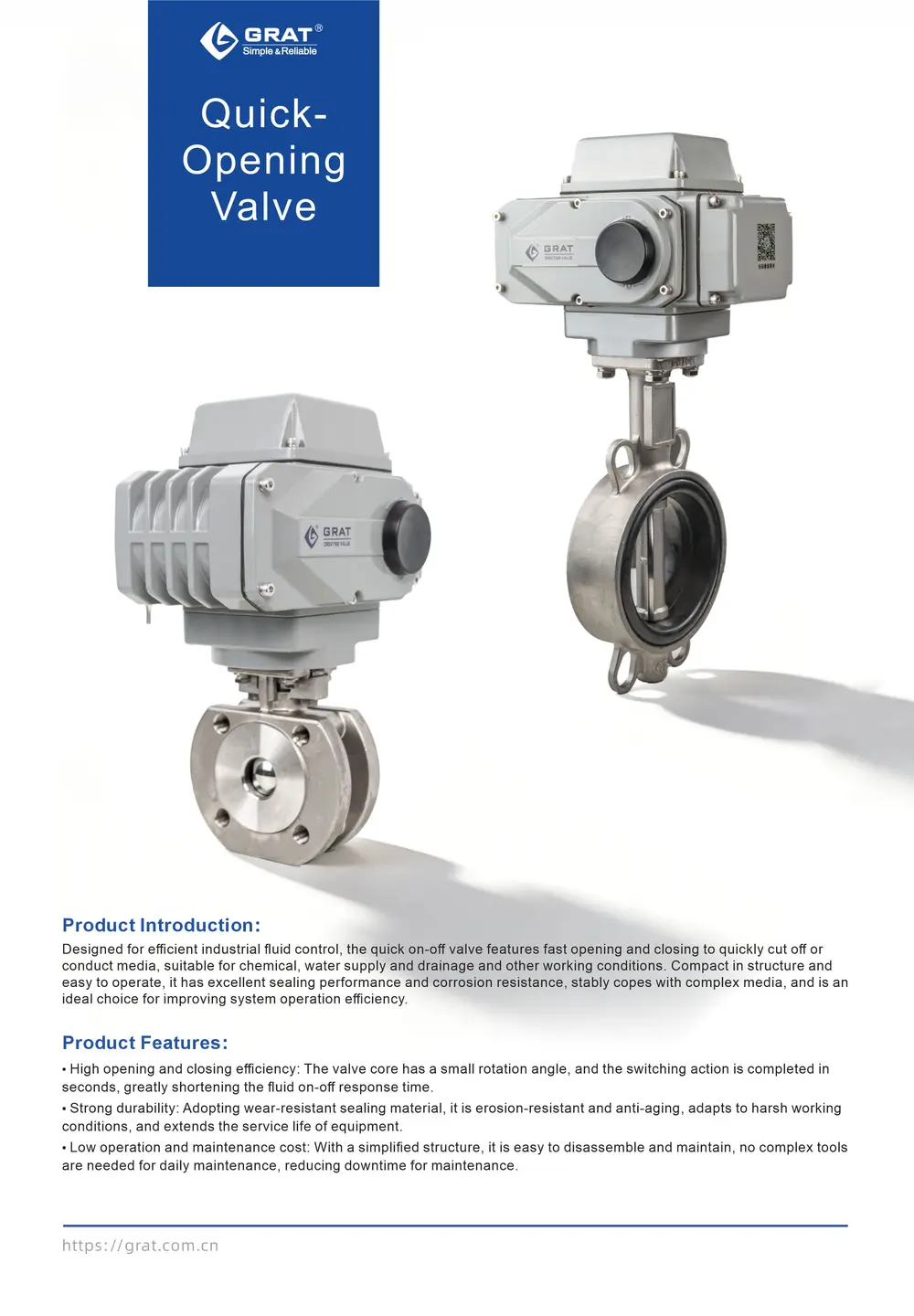

Quick-opening Electric Butterfly Valve
The Quick-opening Electric Butterfly Valve is an electrically actuated valve designed for rapid 90° rotation (3-8 seconds) to enable immediate flow control or emergency shut-off in critical systems like fire protection, chemical processing, and power plants, featuring durable construction with corrosion-resistant materials and compatibility with automated industrial networks.
Features
- Fast actuation meets the demand for rapid medium shut-off in pipelines.
- Power is supplied only during operation; power is cut off immediately once the valve reaches the open/closed position.
- The gear-reduced motor structure effectively eliminates the drawbacks of solenoid valves, such as coil aging and short service life caused by long-term energization.
- No installation orientation restrictions; can be installed at any 360° angle on the pipeline, including inverted installation.
- It easily achieves shut-off even under high differential pressure conditions, without the issue of solenoid armature structures failing to pull in.
★The valve completes the opening/closing actuation in just 4/6 seconds, driven by an electric quick-opening actuator.
Power is consumed only during operation, with zero power consumption in idle status, effectively reducing system operating costs.
★ Pressure differential resistance up to 1.0 MPa and above
★ Maintenance-free: No maintenance required throughout its service life.
Basic Parameters
Connection & Structure
Material Specifications

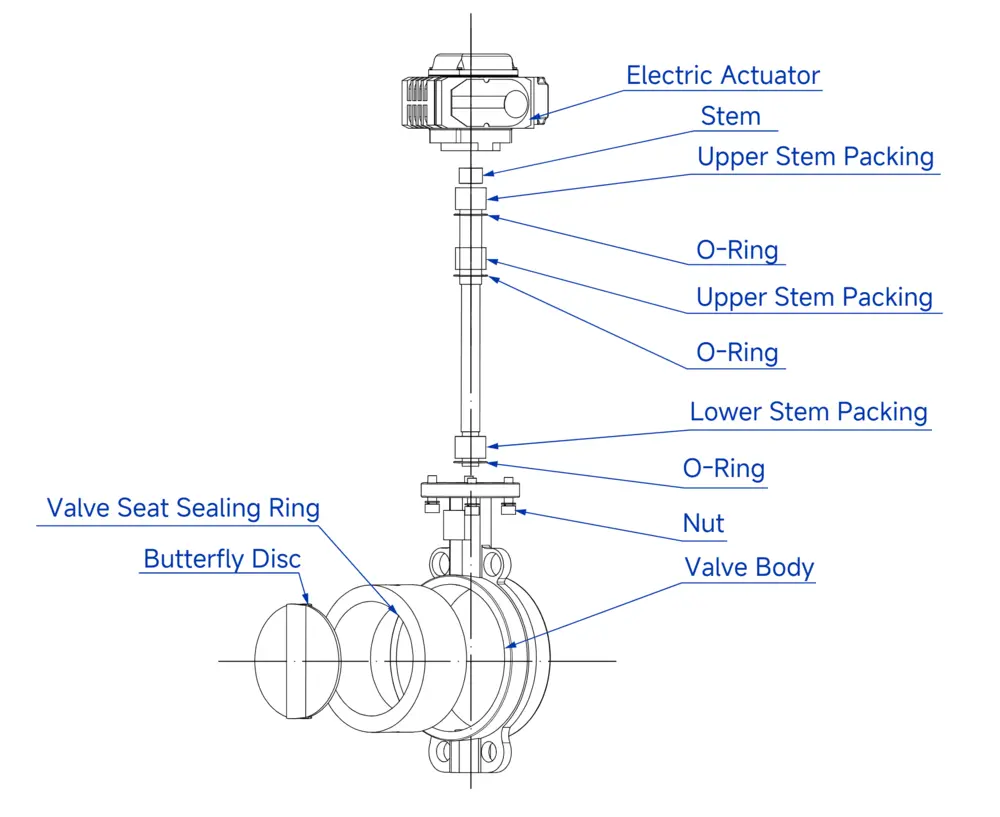

Body & Internal Components
Applicable Medium
- Water
- Oil Products
- Gas
Standards Compliance
Main Parameters
| Nominal Diameter | DN40-DN200 |
| Actuation Time | 3s, 4s, 6s optional (0-90°) |
| Nominal Pressure | 1.0MPa, 1.6MPa |
| Valve Body Structure | Center line soft-sealed structure, eccentric structure |
| Power Supply | AC110V, AC220V, AC380V, DC24V |
| Control Signal | On-off with feedback |
| Working Pressure | PN1.6MPa |
| Medium Temperature | ≤120℃ (higher temperature resistance grade optional) |
| Ambient Temperature | ≤60℃ |
| Flow Coefficient | Rated |
| Applicable Medium | Water, oil, gas |
| Valve Body Material | SUS304, SUS316, WCB, QT450-10, HT200, HT250 |
| Valve Disc Material | WCB, QT450-10, HT200, HT250, SUS304, SUS316 |
| Shaft Material | 2Cr13 |
| Seal Ring Material | Nitrile oil-resistant rubber, EPDM, PTFE, PPL, Stellite alloy overlay welding, etc. |
| Packing Material | Flexible graphite |
| Protection Grade | IP67 |
| Manufacturing Standard | GB/T 12238-2008, API 609 |
| Face-to-Face Standard | GB/T 12221-2005 |
| Inspection Standard | GB/T 13927-2008, API 598 |
| Test Pressure | Shell test: 1.76MPa; Seal test: 2.4MPa |
| Connection Type | Wafer type / Flange type (optional) |
| Sealing Type | Soft seal / Hard seal (optional) |
尺寸图

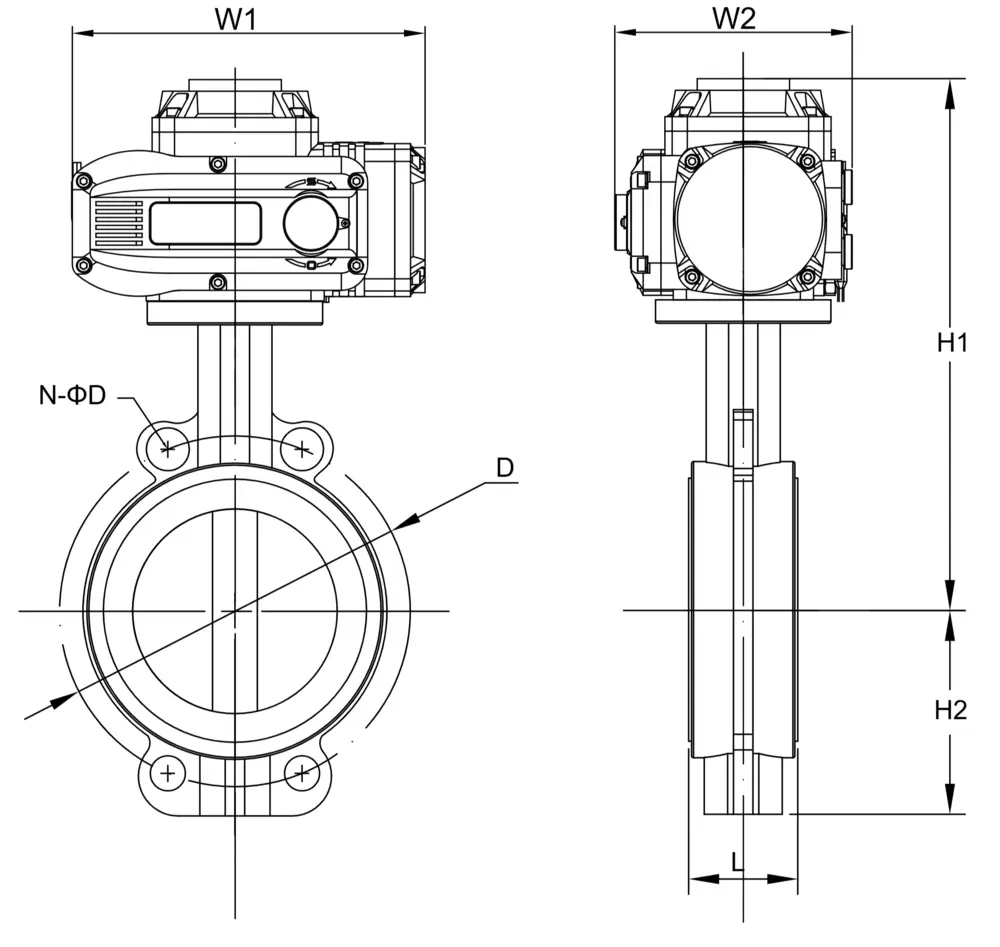

1.Connection Dimensions of Wafer Type Quick Opening & Closing Electric Butterfly Valve
| Nominal Diameter DN(mm) | L | D | N-ΦD | H2 | H1 | W1 | W2 |
| 40 | 33 | 125 | 4-Φ18 | 48 | 210 | 167 | 138 |
| 50 | 42.6 | 125 | 4-Φ18 | 70 | 314 | 196 | 145 |
| 65 | 45.6 | 145 | 4-Φ18 | 76 | 327 | 196 | 145 |
| 80 | 45.6 | 160 | 8-Φ18 | 89 | 333 | 255 | 182 |
| 100 | 51.6 | 180 | 4-Φ22 | 104 | 385 | 255 | 182 |
| 125 | 55.6 | 210 | 4-Φ22 | 120 | 400 | 255 | 182 |
| 150 | 55.6 | 240 | 4-Φ23 | 139 | 442 | 255 | 182 |
| 200 | 59.6 | 295 | 4-Φ23 | 175 | 480 | 354 | 251 |

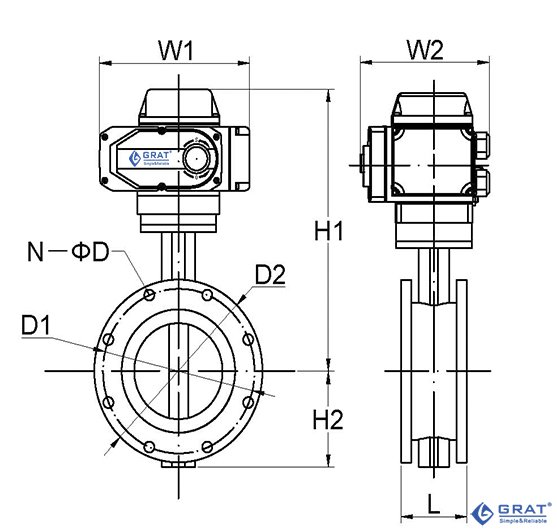

2.Installation Dimensions of Flange Type Quick Opening & Closing Electric Butterfly Valve
| Nominal Diameter (DN) | D1 | D2 | N-ΦD | L | H2 | H1 | W1 | W2 |
| 50 | 125 | 165 | 4-Φ18 | 108 | 70 | 288 | 196 | 145 |
| 65 | 145 | 185 | 4-Φ18 | 112 | 76 | 301 | 196 | 145 |
| 80 | 160 | 200 | 4-Φ18 | 114 | 89 | 313 | 255 | 182 |
| 100 | 180 | 220 | 8-Φ18 | 127 | 104 | 328 | 255 | 182 |
| 125 | 210 | 250 | 8-Φ18 | 140 | 120 | 348 | 255 | 182 |
| 150 | 240 | 285 | 8-Φ23 | 140 | 132 | 368 | 255 | 182 |
| 200 | 295 | 340 | 8-Φ23 | 152 | 167 | 435 | 354 | 251 |
3.Main Components Materials of Quick Opening & Closing Electric Butterfly Valve
| Valve Body | WCB, QT450-10, HT200, HT250 |
| Butterfly Plate | WCB, QT450-10, HT200, HT250 |
| Valve Shaft | 2Cr13 |
| Seal Ring | Nitrile Oil-Resistant Rubber |
| Packing | Flexible Graphite |
4.Applicable Standards of Quick Opening & Closing Electric Butterfly Valve
| Manufacturing Standard | GB/T 12238-1989 |
| Flange Standard | GB9113-2000, GB17241.6-1998 |
| Face-to-Face Standard | GB12221-1989 |
| Inspection Standard | GB/T 13927-1992 |
5.Performance Specifications of Quick Opening & Closing Electric Butterfly Valve
| Nominal Diameter | 40～200 | 40～200 | mm | |
| Nominal Pressure | 1.0 | 1.6 | MPa | |
| Test Pressure | Seal | 1.1 | 1.76 | — |
| Test Pressure | Shell | 1.5 | 2.4 | — |
| Suitable Temperature | -15～+150 | ℃ | ||
| Suitable Medium | Fresh water, seawater, sewage, air, steam,food, medicine, various oils, acids, alkalis, salts, etc. | |||

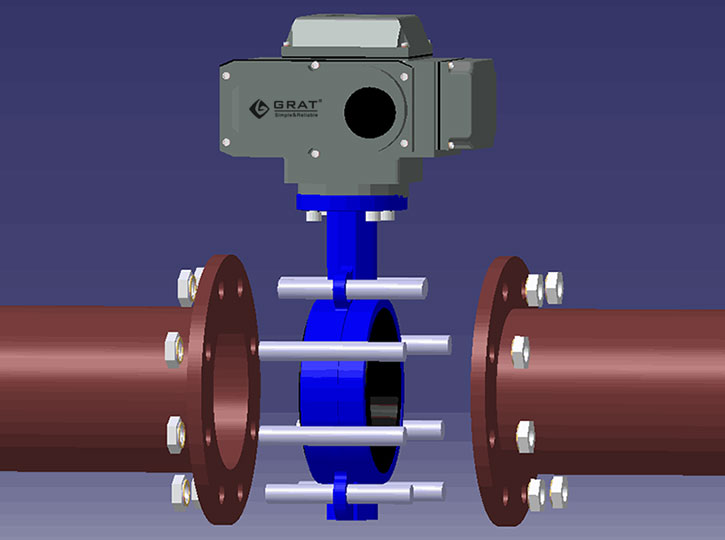

6.Connection Diagram of Quick Opening & Closing Electric Butterfly Valve to Pipeline

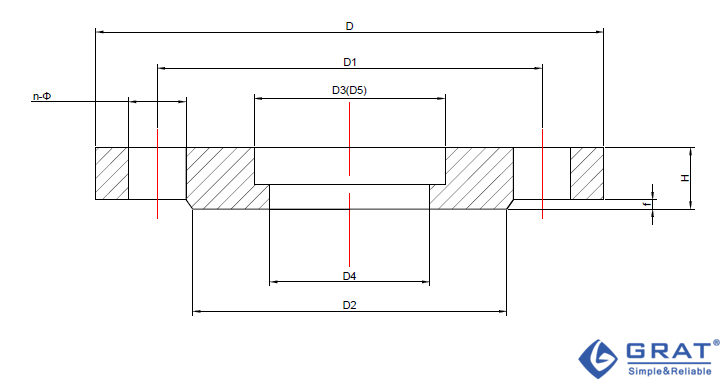

7.Applicable Flanges for Wafer Type Butterfly Valve
| Specification (mm) | D | D1 | D2 | D3 | D4 | n-Φ | H | f | D5 | b |
| 50 | 165 | 125 | 59 | 52 | 52 | 4-Φ 18 | 20 | 3 | 62 | 8 |
| 65 | 185 | 145 | 122 | 75 | 67 | 4-Φ 18 | 20 | 3 | 78 | 8 |
| 80 | 200 | 160 | 133 | 91 | 82 | 8-Φ 18 | 20 | 3 | 91 | 8 |
| 100 | 220 | 180 | 158 | 110 | 102 | 8-Φ 18 | 22 | 3 | 116 | 8 |
| 125 | 250 | 210 | 184 | 135 | 127 | 8-Φ 18 | 22 | 3 | 142 | 8 |
| 150 | 285 | 240 | 212 | 161 | 152 | 8-Φ 22 | 24 | 3 | 170 | 10 |
| 200 | 340 | 295 | 268 | 221 | 208 | 12-Φ 22 | 26 | 3 | 221 | 10 |
