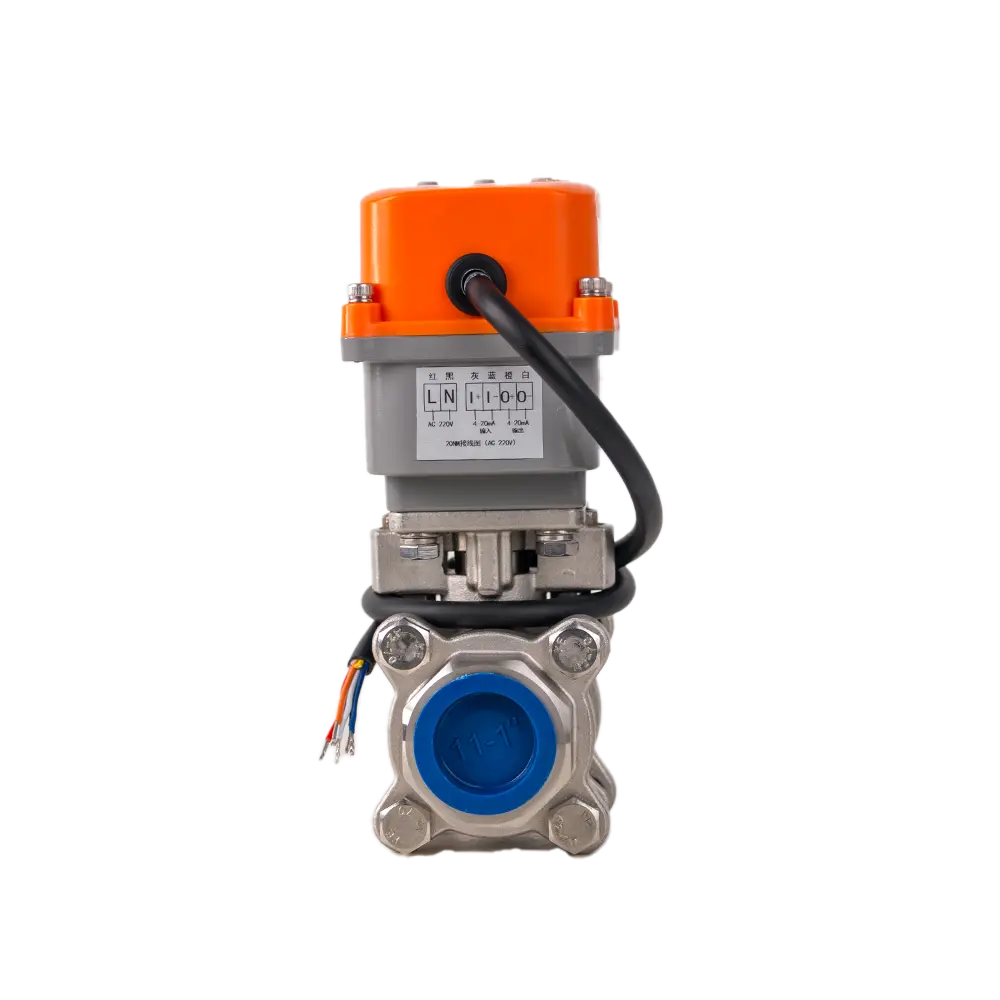

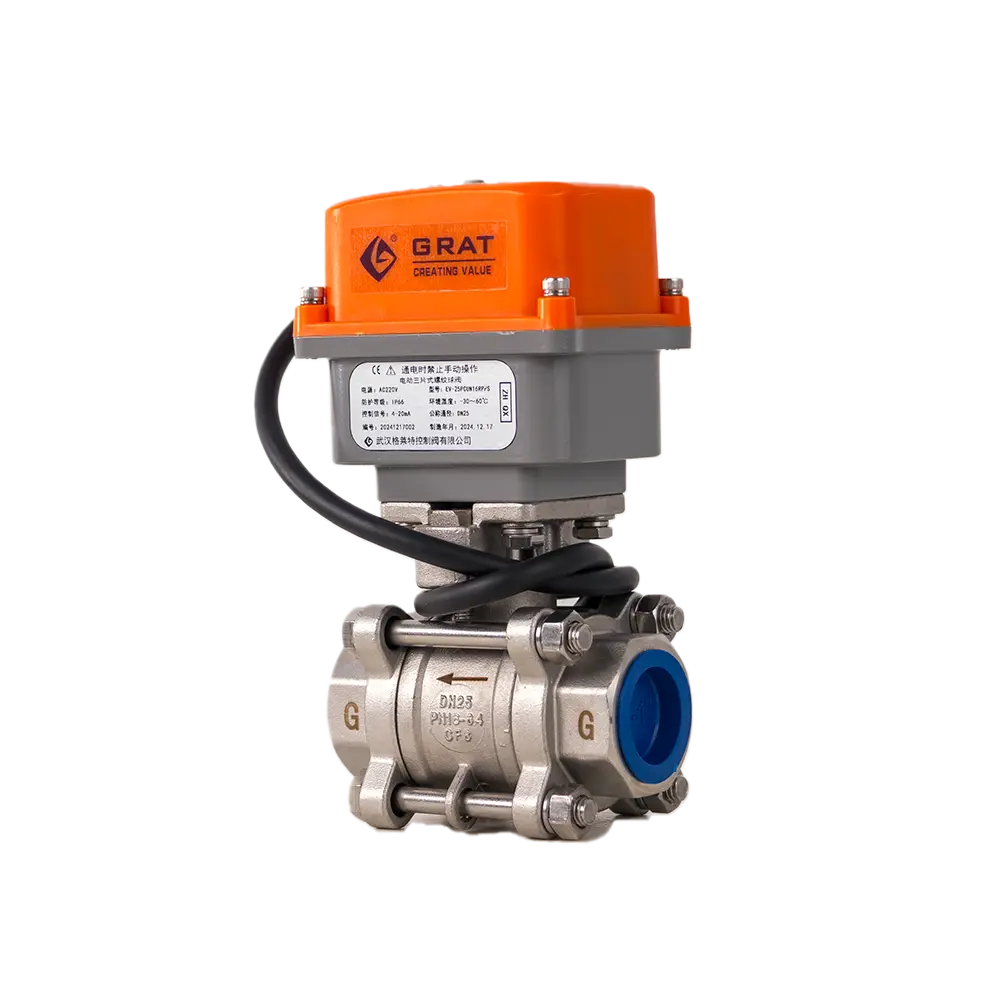

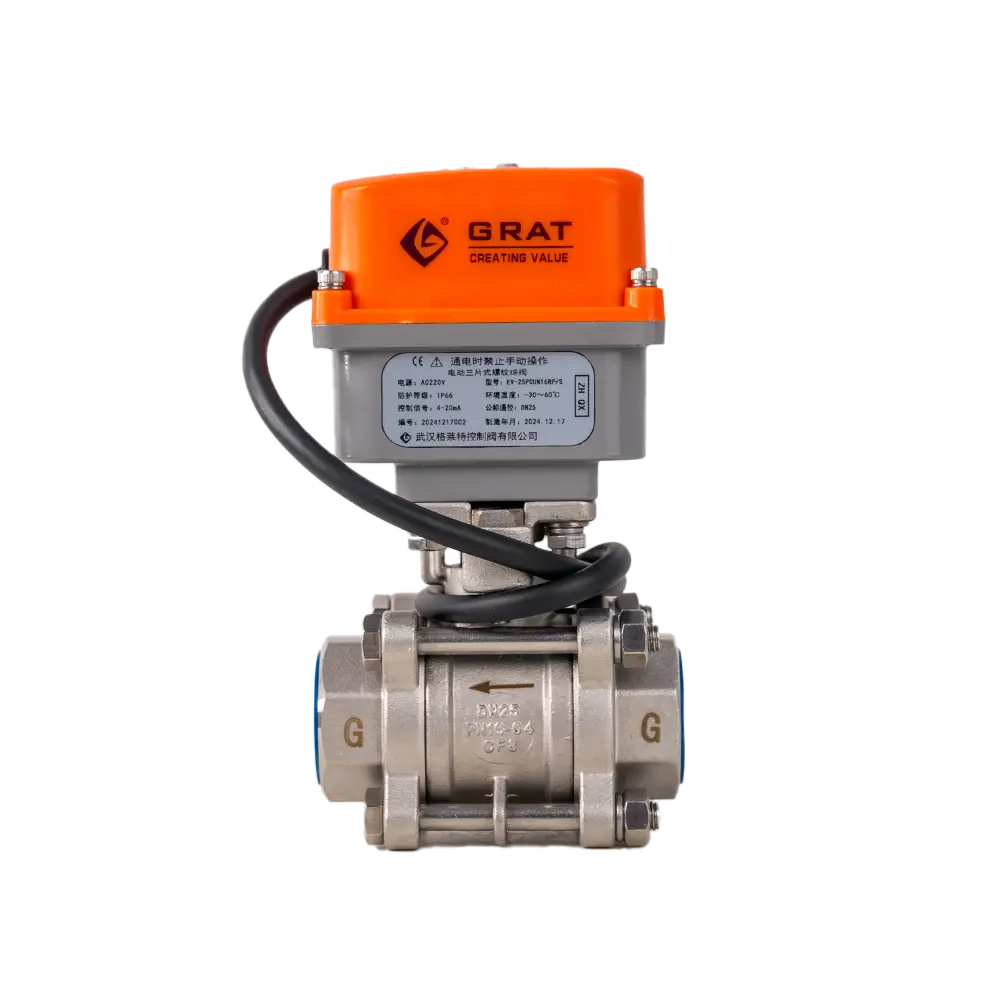

DN25 IoT Threaded Ball Valve

the electric threaded ball valve ensures rapid switching and reliable pipeline media shut-off. It is suitable for automation systems across various sectors including food, environmental, paper, chemical, and power industries.

Get Best Price
Get Best Price
Tags
,

Product Description

Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.

Features

  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
  • Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
  • Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN15～DN40
Operating Voltage: AC220V, DC24V
Operating Temperature: -30℃～220℃
Nominal Pressure: PN1.0～1.6MPa
Flow Characteristic: Quick opening

Physical Specifications

Connection Type: Internal thread connection
Valve Body Materials: WCB, SUS304 Stainless Steel, SUS316 Stainless Steel
Valve Core Materials: SUS304 Stainless Steel, SUS316 Stainless Steel
Ball Valve Seal: PTFE, PPL, etc.
Packing Material: Graphite, PTFE
Actuator Seal: Viton (FKM)
Actuator Material: Cast aluminum alloy

Suitable Media

  • Neutral gases
  • Neutral liquids

Standards Compliance

Design & Manufacturing:
GB12237-2007
API 6D
Product Inspection & Testing: API 598

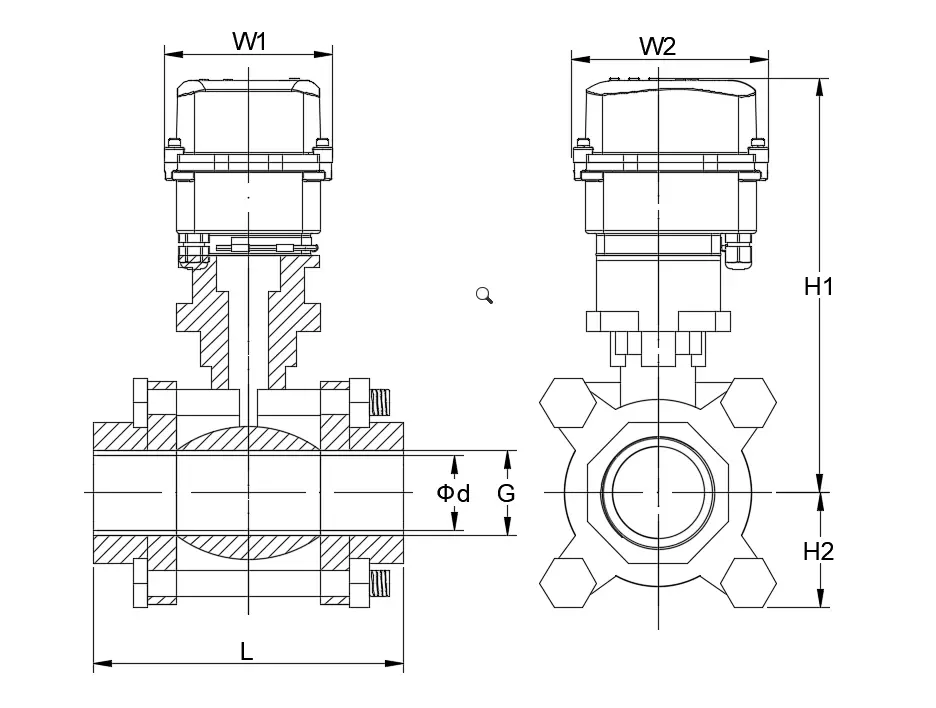

Installation Dimensions of IoT Threaded Ball Valve

Nominal
Diameter
(DN)		LGΦdH2H1W1W2
1573Thread Standard
NPT
BSP
DIN
etc		153813068.588.5
20802045131.568.588.5
2590255515693108
32110326017093108
40120387517993108

Circuit wiring diagram

DC 24V
AC 220V
