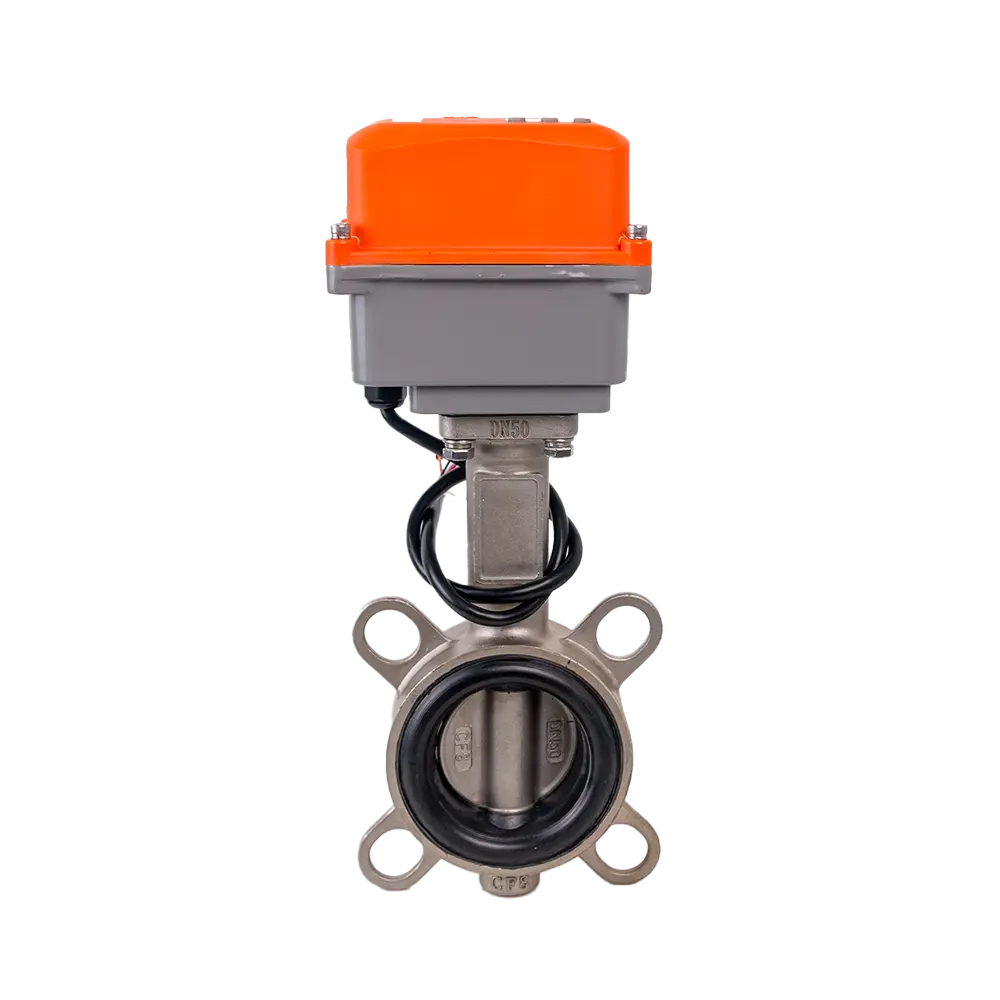

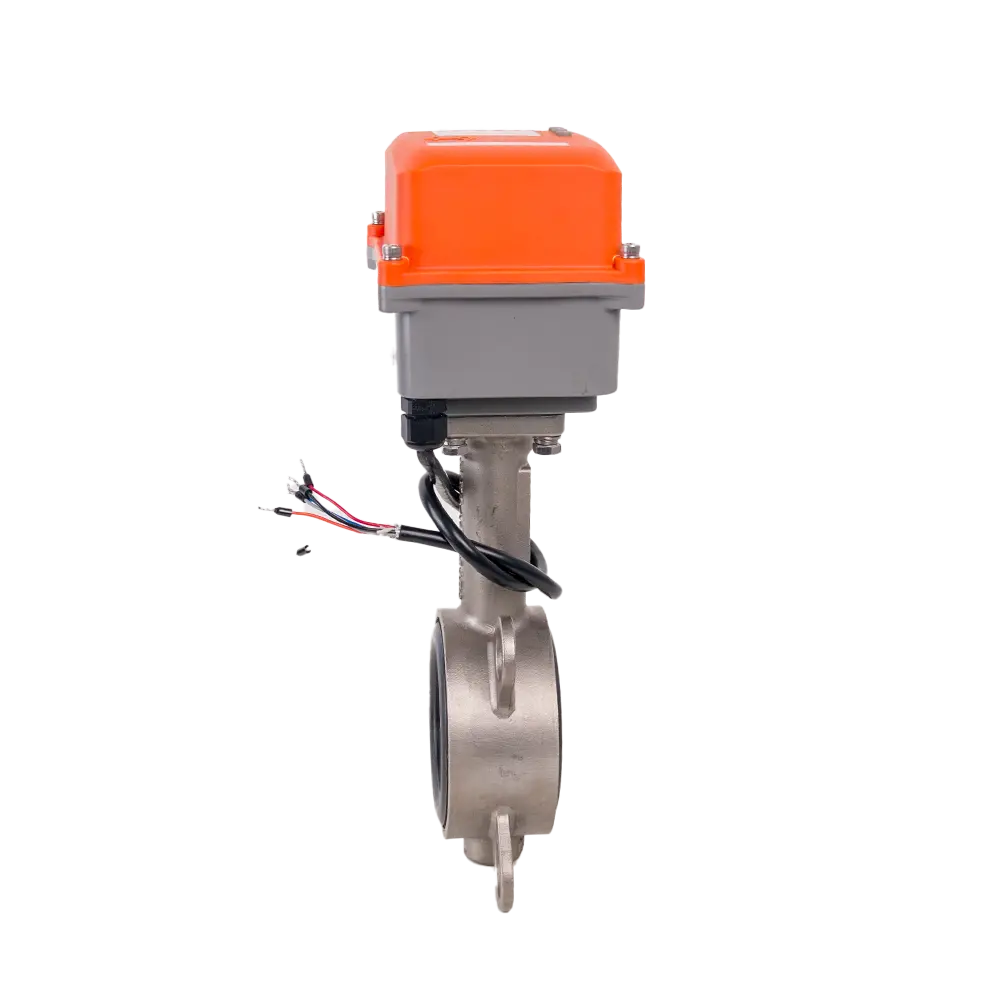

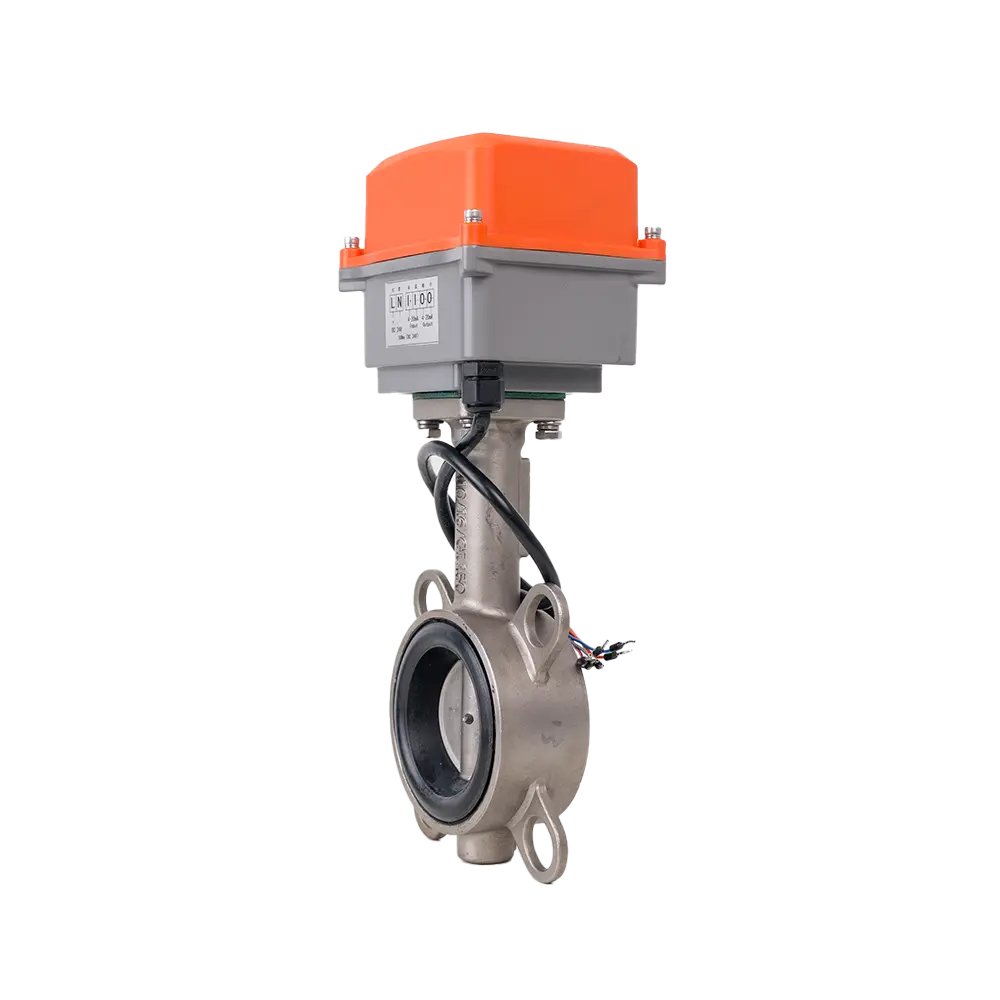

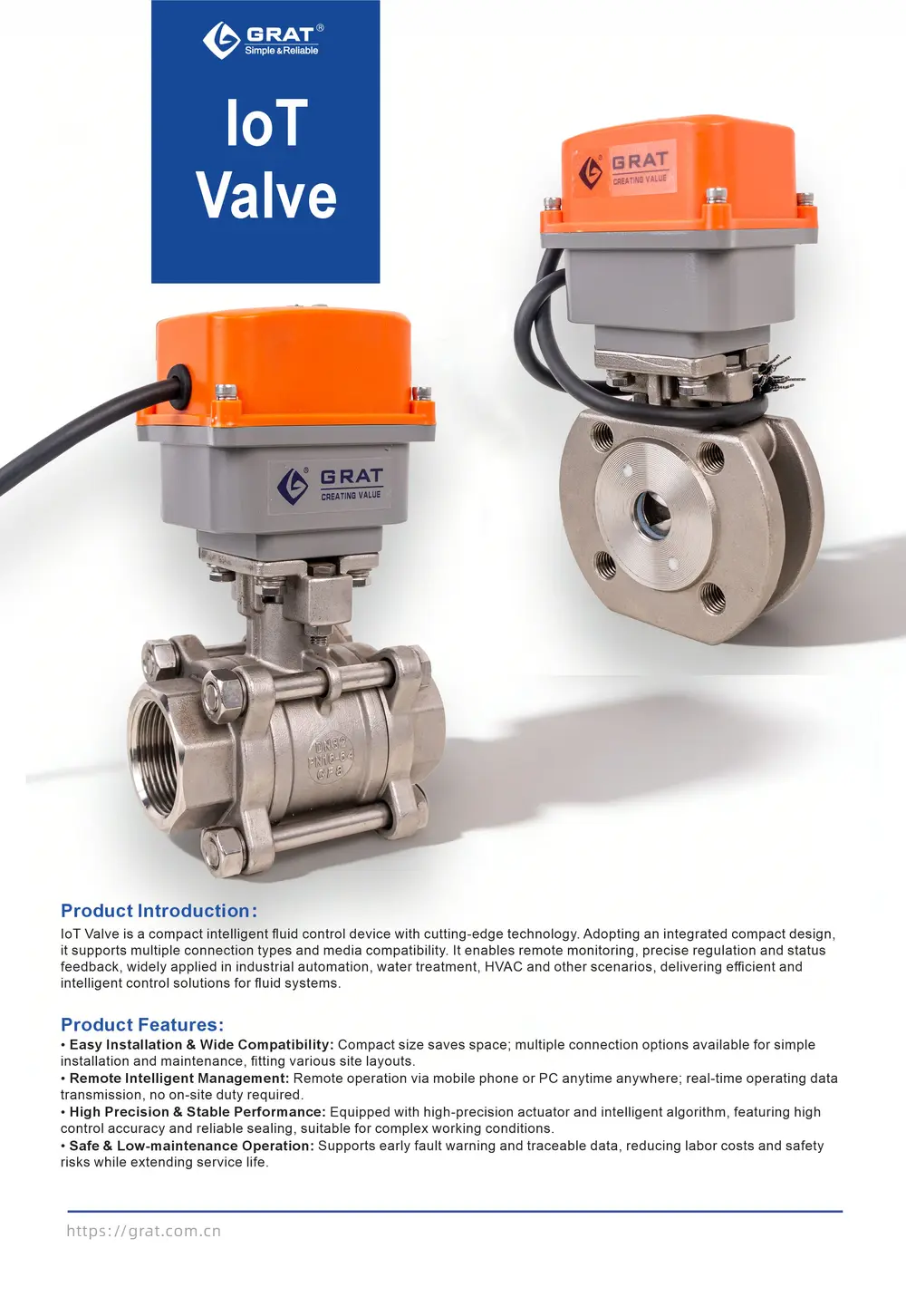

The IoT small stainless steel soft-sealed butterfly valve is a small-sized valve made of stainless steel with a soft-sealing structure, featuring IoT intelligent interconnection functions for remote monitoring and automated control.

Get Best Price
Get Best Price
Tags
IoT Butterfly Valve 4

Product Description

Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.

Features

  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
  • Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
  • Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN40～DN65
Operating Power: AC220V, DC24V
Medium Temperature: -20~120℃
Ambient Temperature: -30℃－60℃
Nominal Pressure: 0.1～2.5MPa
Control Method: Regulating or On-Off Control
Actuation Time: 15S～25S
Applicable Media: Water, Oil, Gas, Corrosive Media, etc.
Pneumatic Action Mode: Single Acting (with Spring Return) or Double Acting

Physical Specifications

Connection Types:
- Wafer Type
- Flange Type
Seal Type: Soft Seal
Valve Body Materials: WCB, QT450-10, HT200, HT250, SUS304, SUS316
Valve Disc Materials: WCB, QT450-10, HT200, HT250, SUS304, SUS316
Shaft Material: 2Cr13
Seal Ring Material: NBR (Nitrile Butadiene Rubber), EPDM, PTFE, PPL, etc.
Stem Seal: NBR, HNBR
Packing Material: Flexible Graphite
Protection Level: IP66

Standards Compliance

Manufacturing Standard: GB/T 12238-2008
Flange Standard:
GB/T 9124.1-2019
GB/T 9124.2-2019
GB/T 17241.6-2008
Face-to-Face Dimension Standard: GB/T 12221-2005
Testing & Inspection:
Shell Test: 1.76MPa
Sealing Test: 2.4MPa
GB/T 13927-2022

Applications

  • General industrial pipeline systems
  • Water supply and drainage systems
  • Petroleum and chemical industry
  • Food and beverage processing
  • Pharmaceutical industry
  • Environmental protection projects

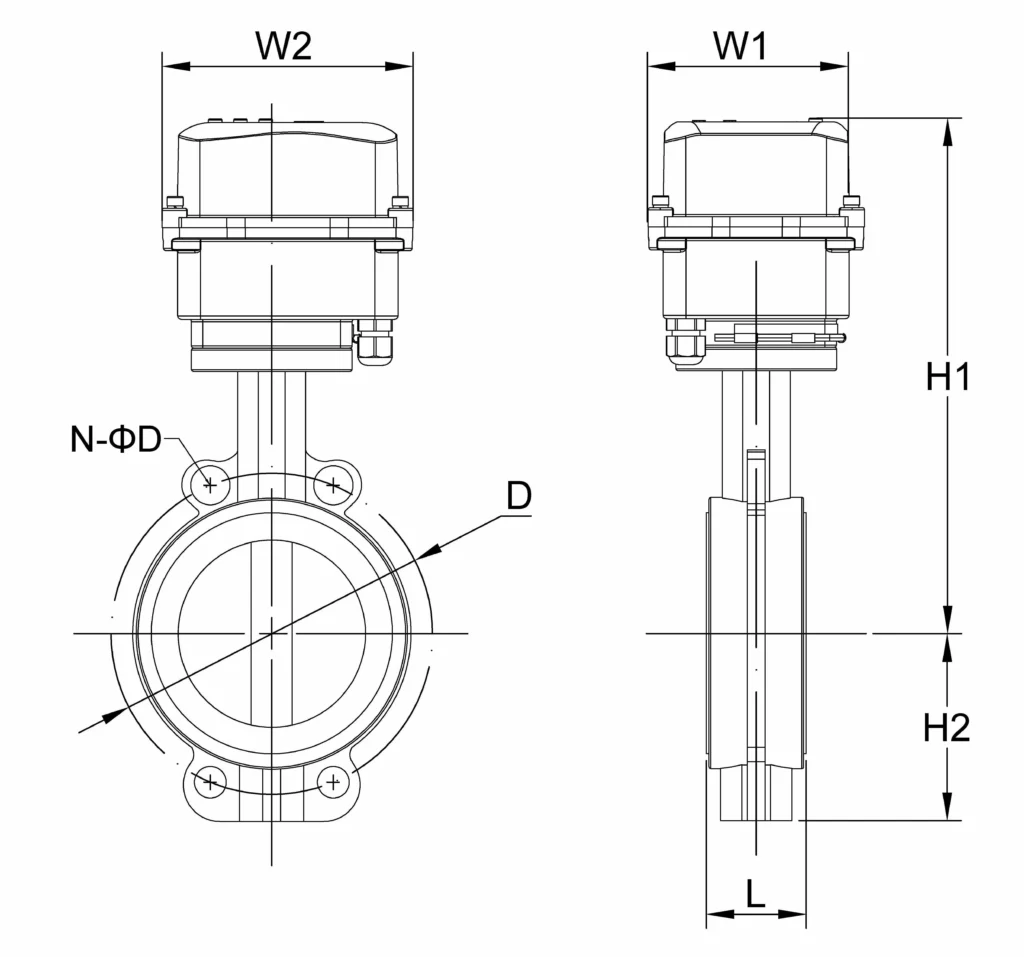

Installation Dimensions of IoT Butterfly Valve

Installation Dimensions of IoT Butterfly Valve
Nominal
Diameter
DN(mm)		LDN-φDH2H1W1W2
40331254-Φ184819794109
5042.61254-Φ187028594109
6545.61454-φ187629894109

Circuit wiring diagram

IoT Mini 24V Circuit wiring diagram
DC 24V
IoT Mini 220V Circuit wiring diagram
AC 220V
