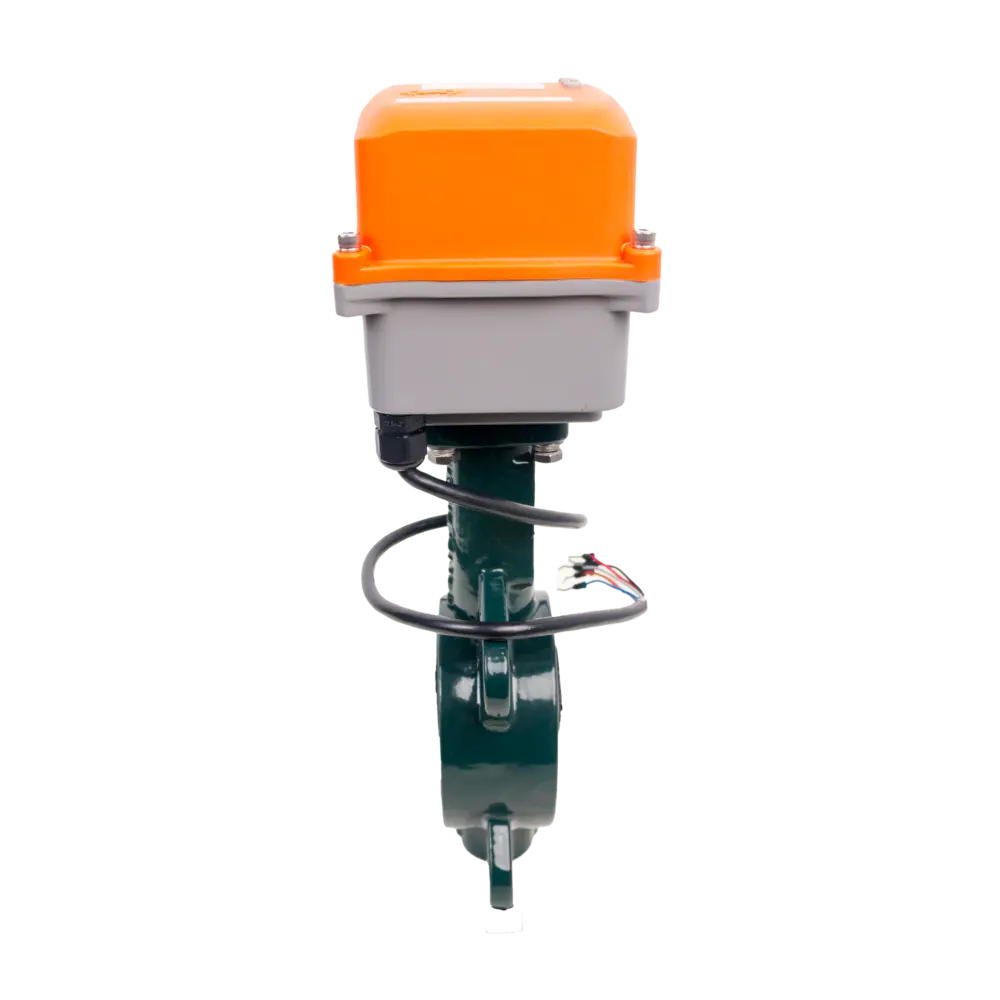

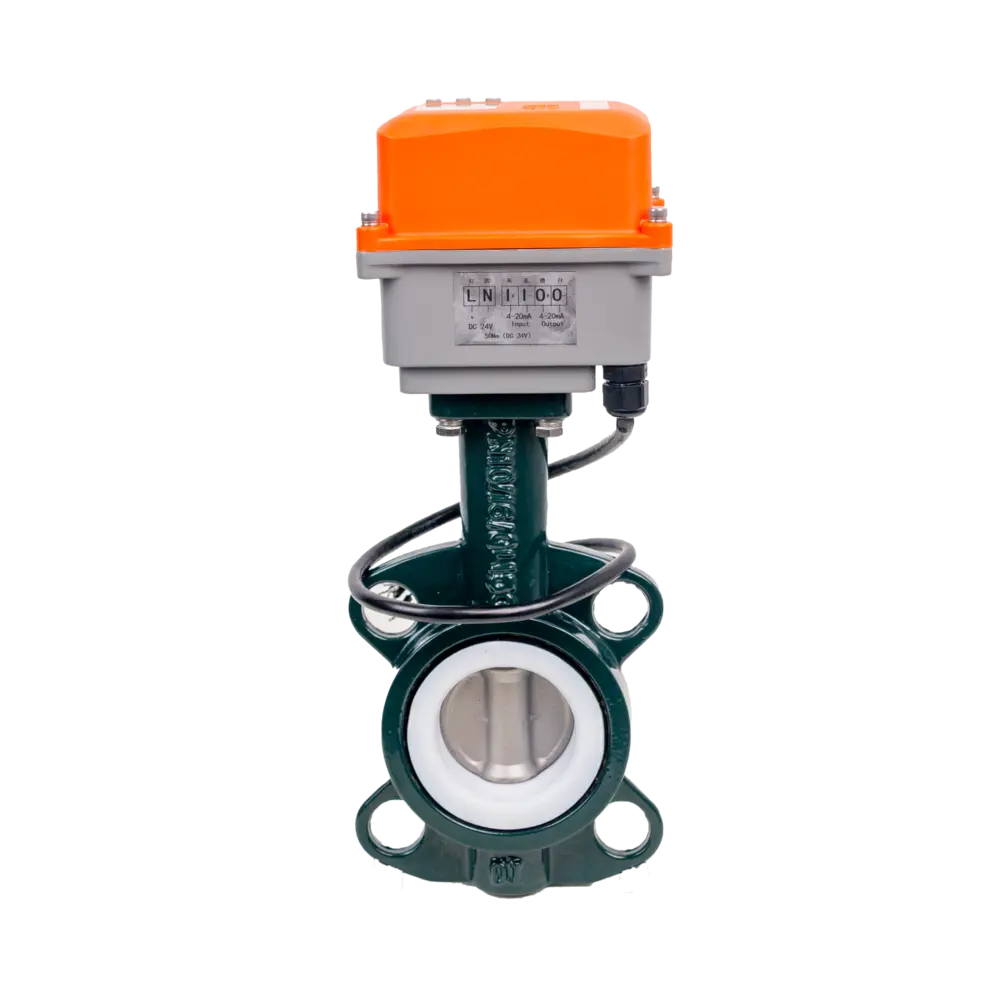

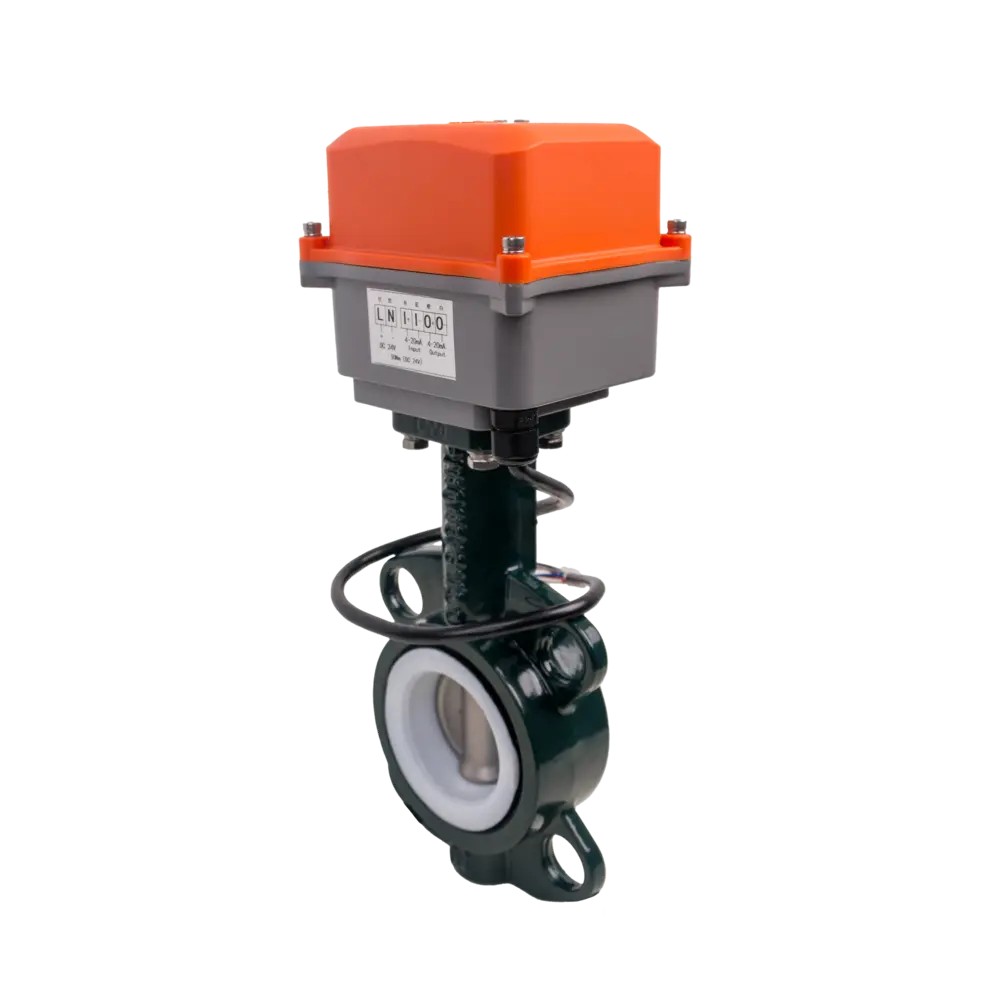

IoT Electric PTFE Butterfly Valve

PTFE butterfly valve adopts fluorine-lined plastic lined butterfly plate with spherical sealing surface, and the sealing performance of the valve is adjusted with silicone rubber gasket at the valve seat base; The valve is easy to operate, with tight sealing performance and long service life; It can be used for fast cut-off or flow regulation.…

Features

Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.

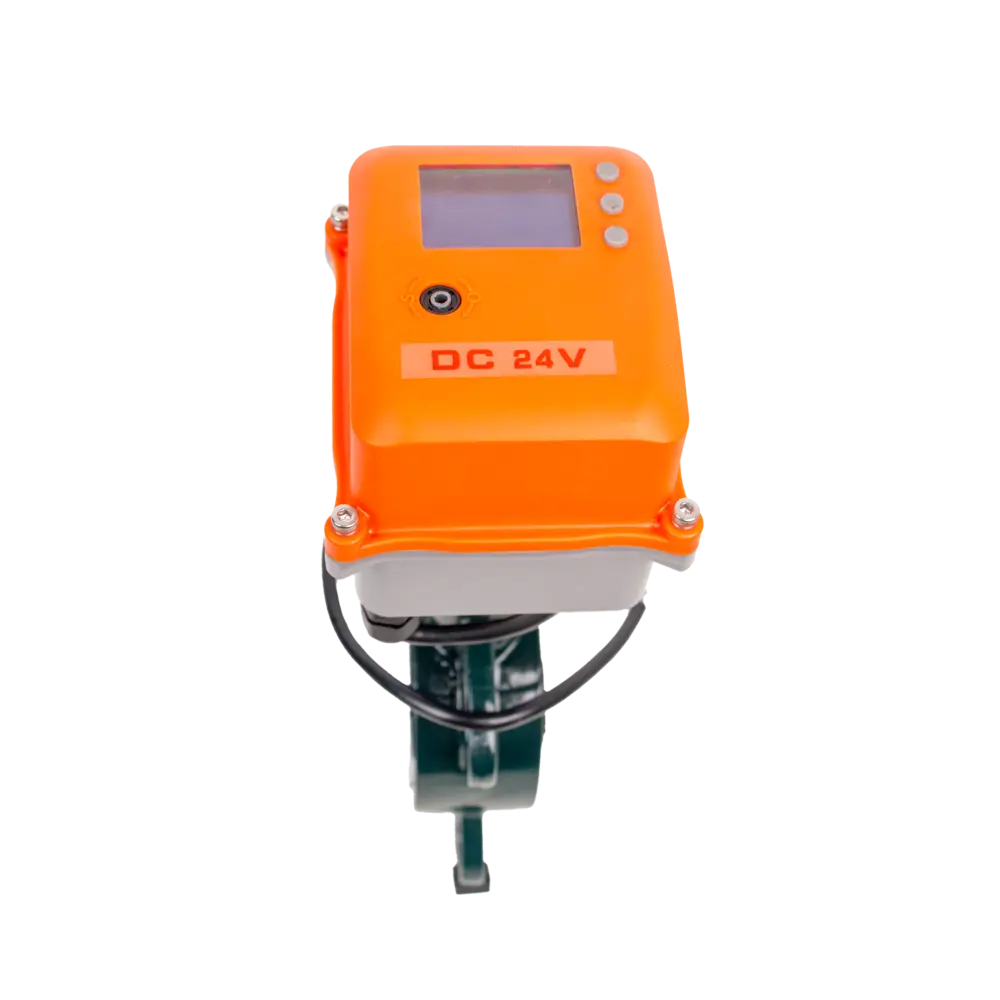

Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN40-DN65

Operating Power: AC220V, DC24V

Medium Temperature: -50℃-160℃ (No Freezing)

Ambient Temperature: -30℃～60℃

Nominal Pressure: PN1.0～1.6 (MPa)

Control Mode: Regulating or On-Off Control

Actuation Time: 15–25 seconds

Physical Specifications

Connection Type: Wafer Type

Seal Type: Soft Seal

Valve Body Material: WCB, QT450-10, HT200, HT250

Disc Material: WCB + PTFE

Sealing Ring: PTFE

Actuator Material:

ABS Housing + TPE Buttons + PC Lens Integrated Upper Box

Die-cast Aluminum Lower Box

IP Rating: IP66

Installation:

- Multi-angle installation

(Horizontal/inclined recommended)

Applicable Media

Sulfuric Acid
Hydrofluoric Acid
Phosphoric Acid
Chlorine Gas
Strong Alkalis
Aqua Regia
Other Strongly Corrosive Media

Standards Compliance

Design & Manufacturing:

GB/T 12238-2008

API 6D

Flange Standards:

JB/T 79-2015

GB/T 9124.1-2019

GB/T 9124.2-2019

ASME B16.5

JIS B2239

Face-to-Face Dimension: GB/T 12221-2005

Inspection Standard: API 598

Installation Dimensions of IoT Electric PTFE Butterfly Valve

Installation Dimensions of IoT Butterfly Valve

Nominal Diameter DN(mm)	L	D	N-φD	H2	H1	W1	W2
40	33	125	4-Φ18	48	197	94	109
50	42.6	125	4-Φ18	70	285	94	109
65	45.6	145	4-φ18	76	298	94	109

Circuit wiring diagram
