Electric Ball Valves

IoT Flange Ball Valve

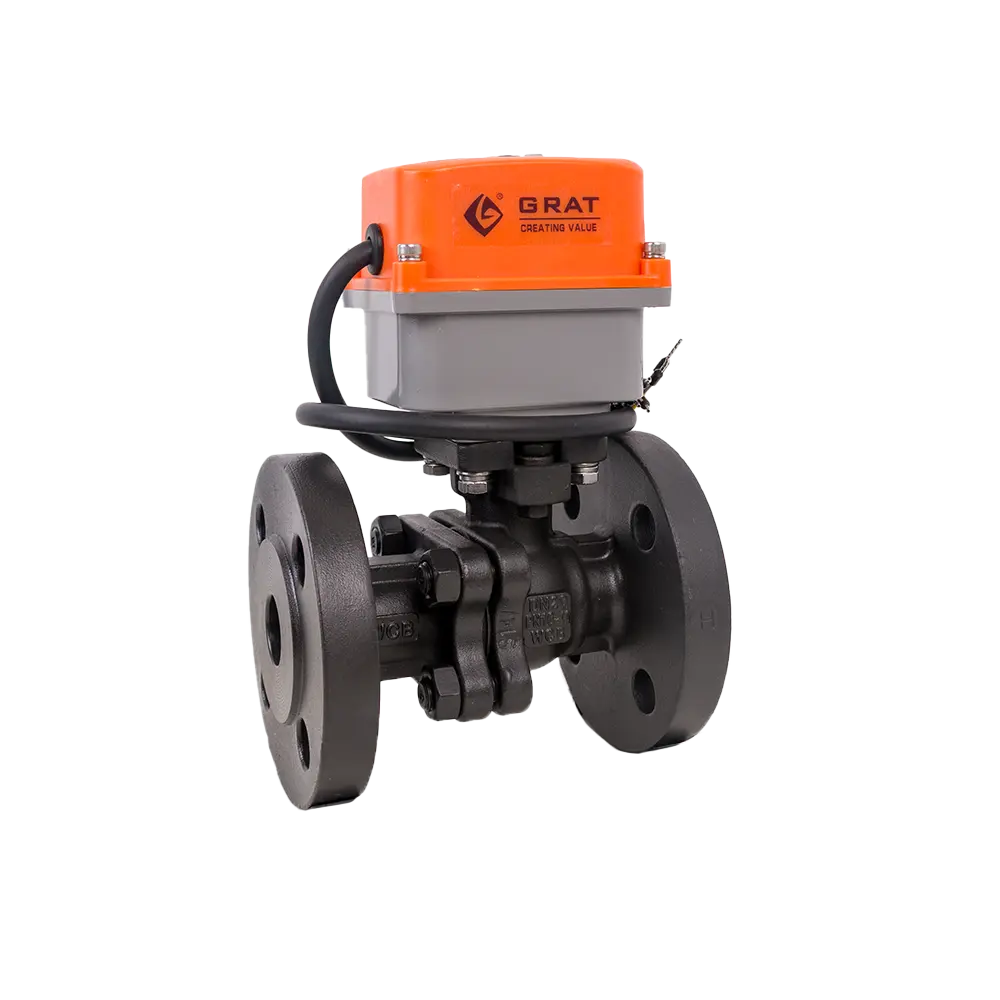

Flanged ball valves are 90° rotary valves with excellent sealing, large flow capacity, and simple maintenance. Their straight-through design matches pipeline diameter for unobstructed flow. Electric types include on-off and regulating models, ideal for tight-seal needs. They handle gases, liquids, steam, sewage, and fibrous media, widely used in petroleum, power, and other industries.

Get Best Price
Get Best Price
Tags
, ,

Product Description

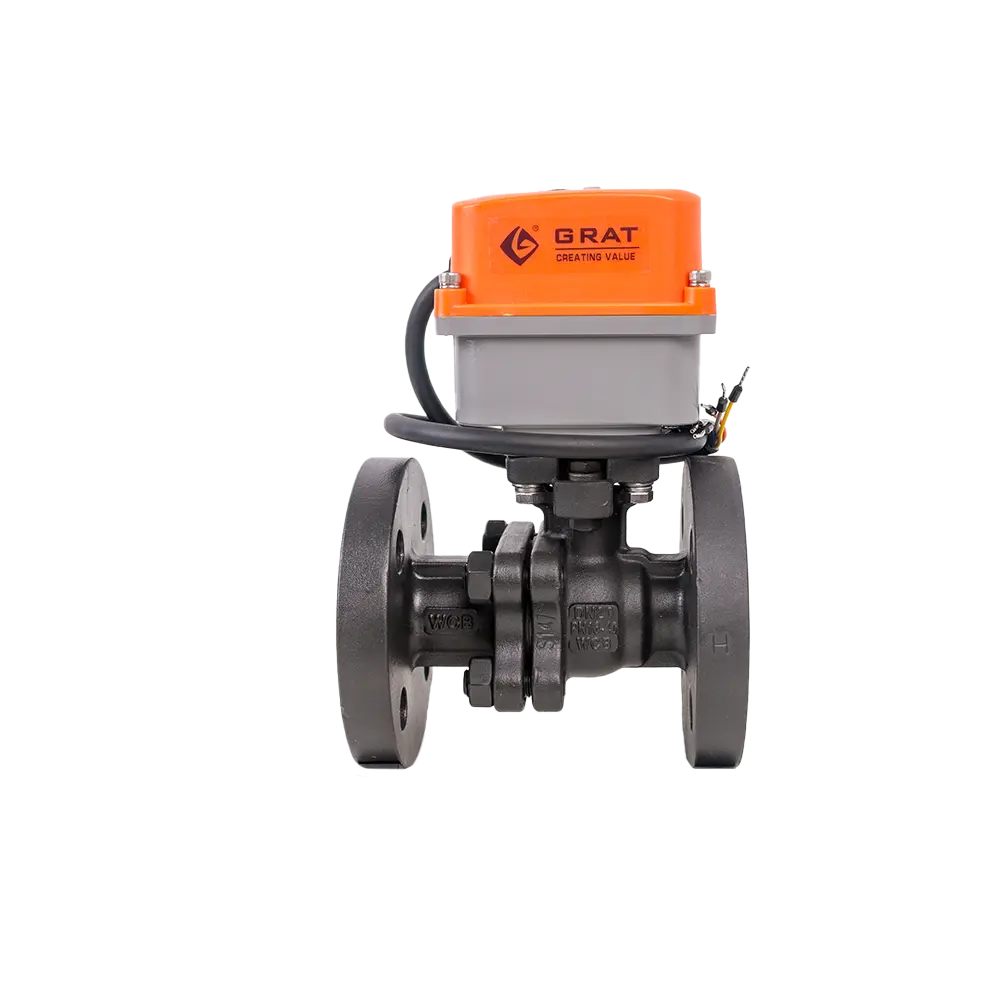

The working principle of the IoT micro electric flanged ball valve is as follows: the IoT micro electric actuator drives the valve stem to drive a perforated ball (or partial ball), and the ball rotates with the valve stem to realize the opening or closing of the valve; the electric ball valve can be fully closed or fully opened by rotating 0-90°. Compared with gate valves and globe valves of the same specification, the ball valve is small in size, light in weight, and convenient for pipeline installation.

Features

  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.

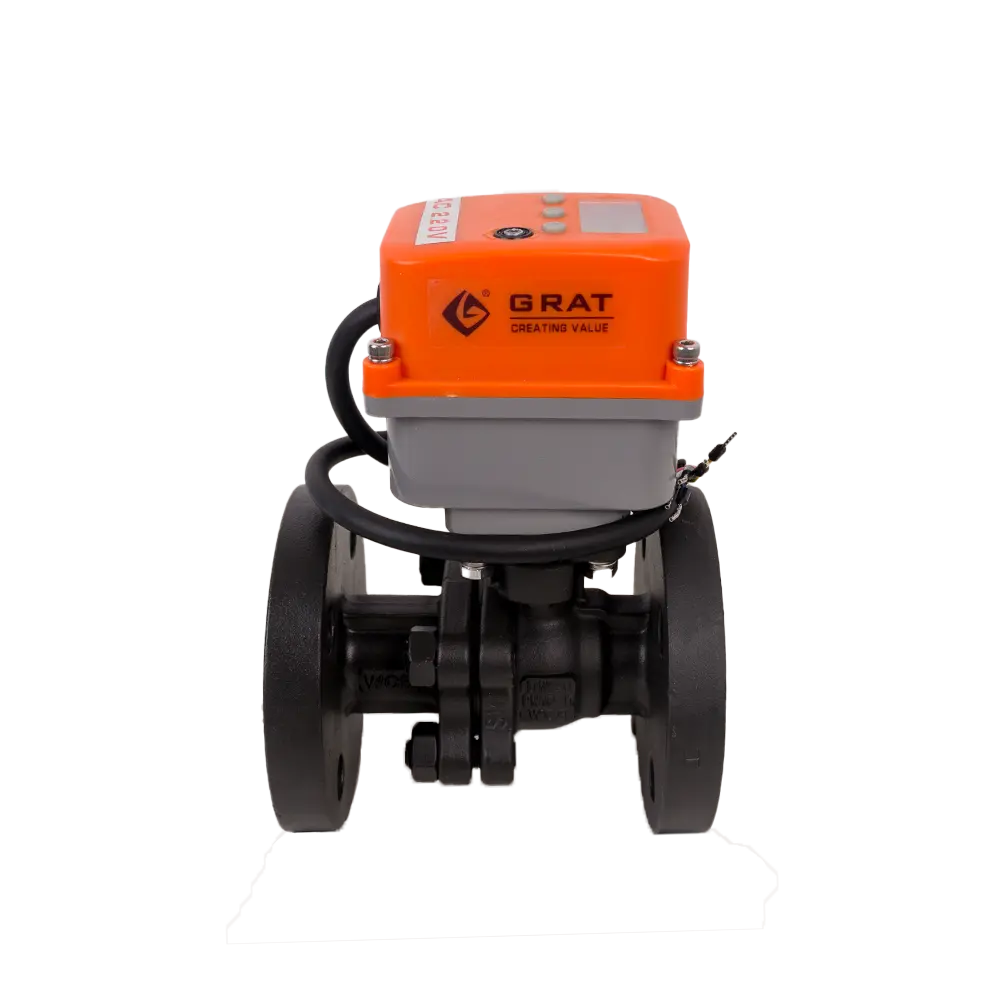

  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
  • Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
  • Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

Basic Parameters

Nominal Bore (DN): DN15～40
Operating Power: AC220V, DC24V
Medium Temperature: -20℃～+350℃
(+200℃ with special seal)
Nominal Pressure: PN1.0～1.6MPa
Control Method: Regulating or On-Off Control
Leakage Rate: Compliant with ANSI B16.104 Class 5 standard

Physical Specifications

Connection Types:
- Flanged Connection
Seal Types: Elastic seal, high-temperature resistant polyphenylene sulfide (PPS), hard alloy, and industrial ceramics
Valve Body Materials: A105, F304, F316, WCB, FZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo2Ti, CF8, CF8M, CF3M
Seat Materials:
- PTFE (normal temperature)
- special PPL (high temperature)
- metal seal (high temperature)
IP Rating: IP66

Suitable Media

  • Water
  • Petroleum
  • Nitric acid
  • Acetic acid
  • Viscous fluids
  • Slurries
  • Strong oxidizing media

Standards Compliance

Design & Manufacturing:
GB12237-2007
API 6D
Flange Standards:
JB/T 79-2015
GB/T 9124.1-2019
GB/T 9124.2-2019
ANSI B16.5
JIS B2239
Face-to-Face: GB12221-2005
Testing & Inspection: API 598

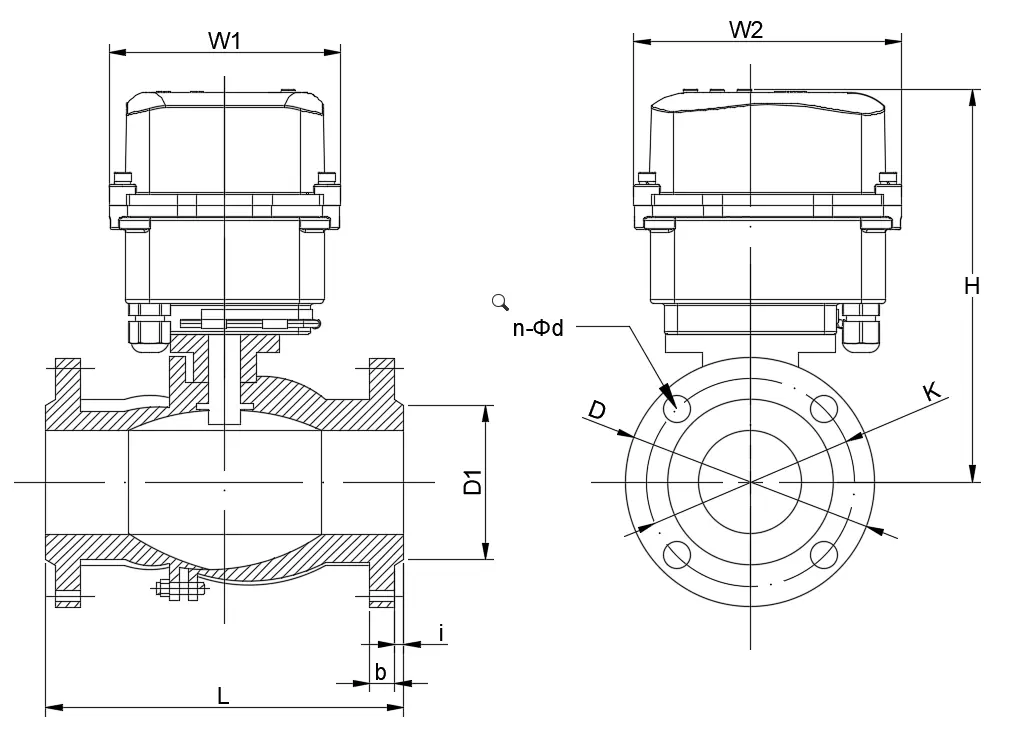

Installation Dimensions of IoT Mini Electric Flange Ball Valve

Nominal
Diameter
(DN）		 L D K D1 n-Φd b i H W1  W2
mmin
151/2″1309565454-Φ14142136.568.588.5
203/4″13010575554-Φ14162138.568.588.5
251″14211385654-Φ14182160.598108
321 1/4″165140100784-Φ1818217593108
401 1/2″165150110854-Φ1818217693108

Circuit wiring diagram

DC 24V
AC 220V
