Electric Ball Valves

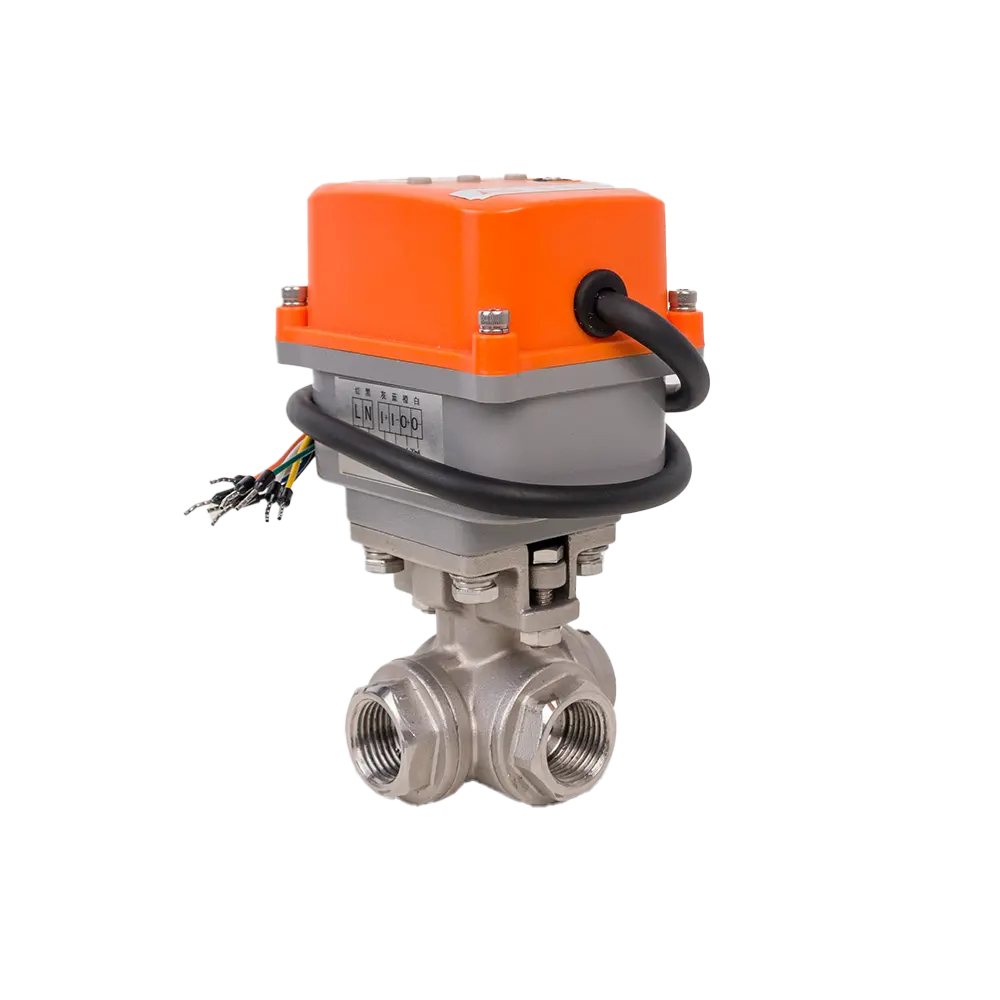

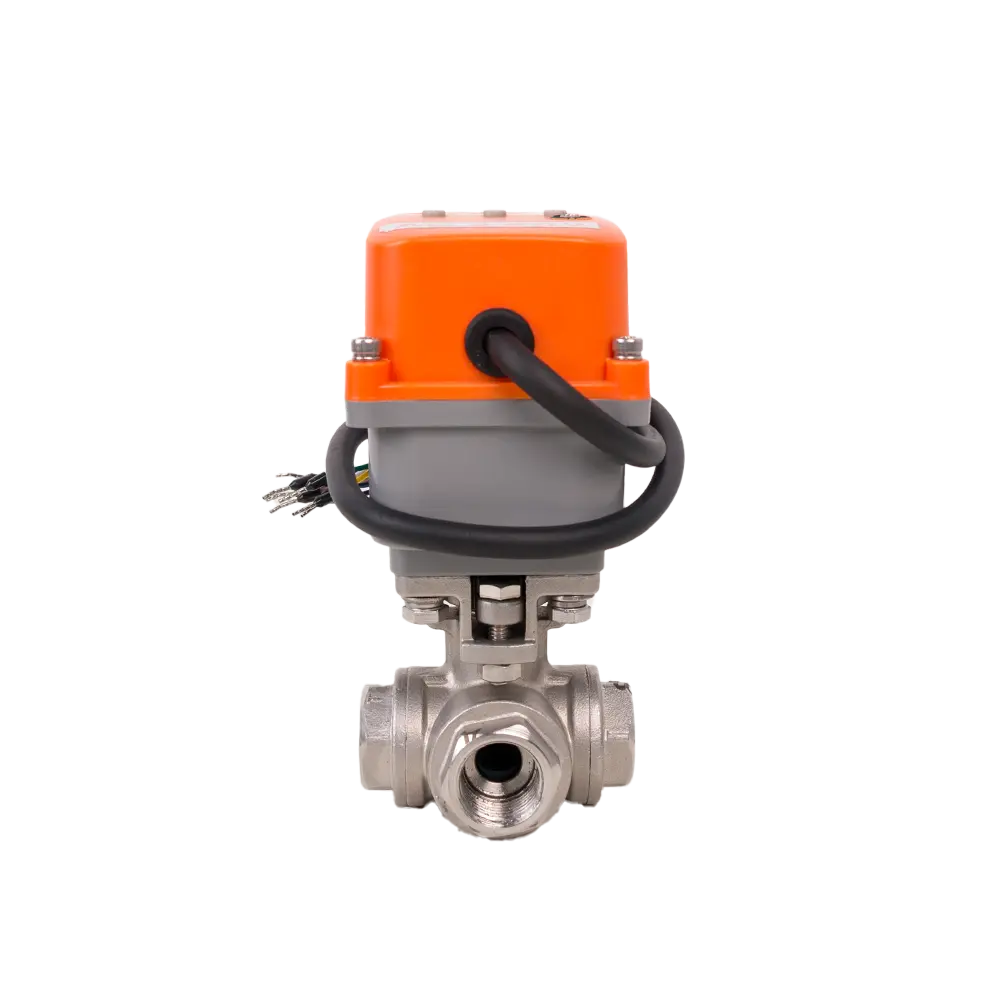

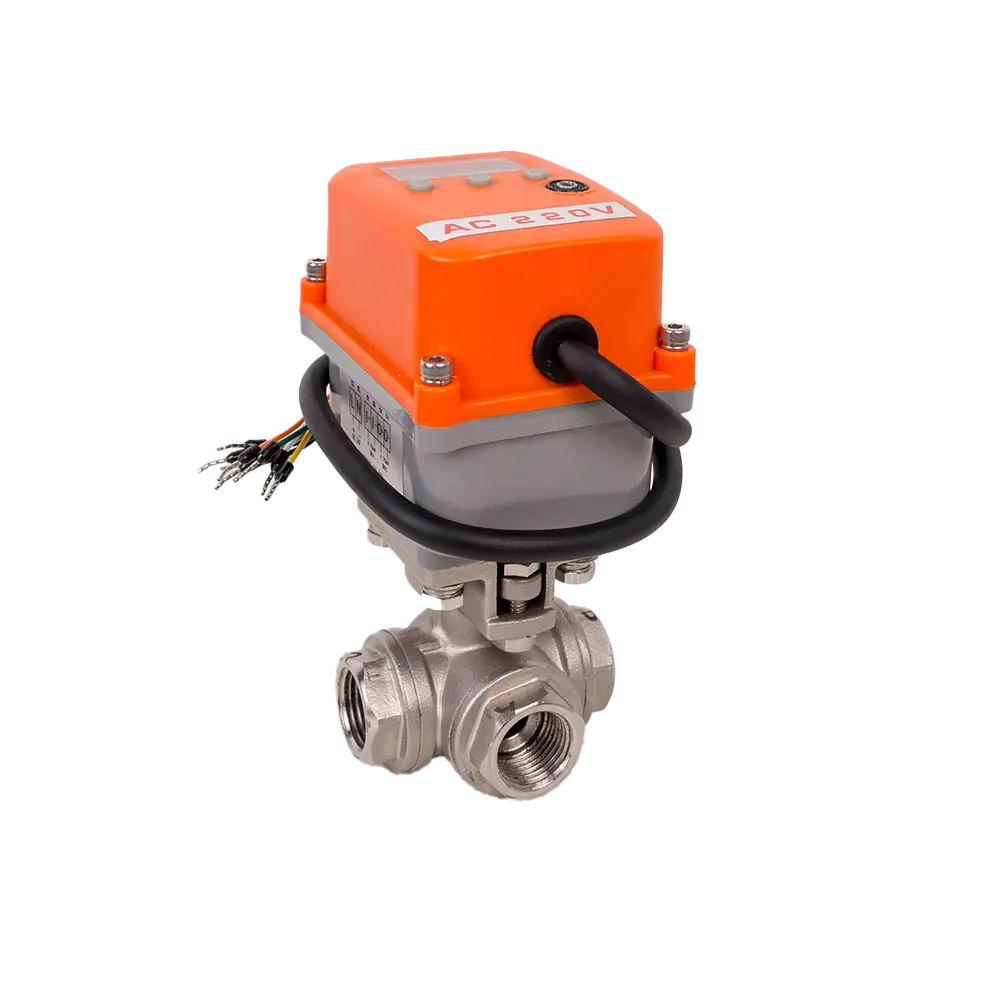

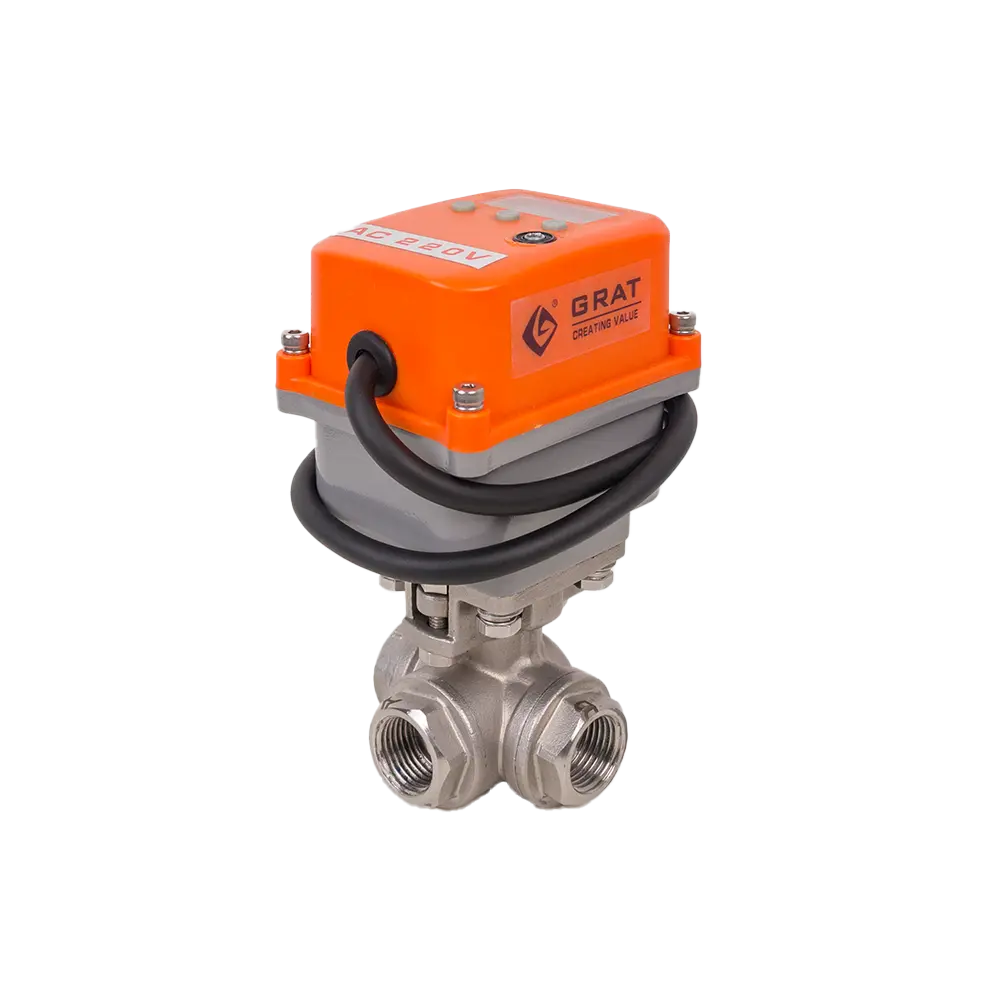

IoT Three-Way Ball Valve

Three-way ball valves are used to divert or converge flow. They are multi-port ball valves with two or four valve seats, where any port can be used as an inlet with no leakage. Three-way configurations can have both L-type ports and T-type ports.

Get Best Price
Get Best Price
Tags
, , ,

Product Description

Engineered for high-pressure differentials and clog-prone environments, the electric threaded ball valve lock ensures rapid switching and reliable pipeline media shut-off. With superior operational performance and exceptional cost-efficiency, it significantly outperforms solenoid valve counterparts in demanding industrial applications.

Features

  • Low power consumption and high efficiency: It only requires 10W of power, saving energy costs and being able to work efficiently and stably at the same time.
  • Smooth speed regulation: Adopting PWM stepless speed regulation ensures a stable operation process of the actuator and provides more stable control.
  • High-performance motor: The built-in brushless motor with overload protection is stable, reliable and has a long service life.
  • Real-time parameter display: The OLED real-time displays status and parameter information in Chinese or English,providing more real-time feedback and fault alarm information during the use process.
  • Precise control: The adjustable range is wide, from 30% to 100%, and it has a control accuracy of 0.5%, precisely meeting the control requirements of different occasions.
  • Multiple feedback methods: It supports feedback methods of 4-20mA/0-10V/1-5V, ensuring the accuracy of control.

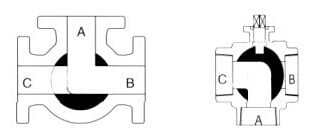

Electric three-way ball valve is divided into L-shaped flow passage and T-shaped flow passage

T-type flow passage adopts 4-side valve seat, with balanced stress and reliable sealing. Mainly used for shunting, mixing, commutation and complete opening of three channels.

Face Seat for L-Style Flow Path. Mainly used for commutation of flow path.

Basic Parameters

Nominal Bore (DN): DN15～40
Operating Power: AC220V, DC24V
Medium Temperature: 0~120℃
Ambient Temperature: -30℃～60℃
Nominal Pressure: 0.1～1.6MPa
Control Method: On-Off Control
Actuation Time: 15–25 seconds

Physical Specifications

Connection Types:
- Female Threaded Connection
- Flanged Connection
Seal Type: Soft Seal
Valve Body Materials: SUS304, SUS316, WCB (Carbon Steel)
Valve Disc Materials: SUS304, SUS316
Sealing Element: EPDM, PTFE
IP Rating: IP66
Installation:
- Multi-angle installation
(Horizontal/inclined recommended)

Applications

  • Air conditioning systems
  • Fire protection systems
  • Water treatment facilities
  • Pipeline purging systems
  • Analytical instruments
  • Flue gas sampling systems

Standards Compliance

Design & Manufacturing:
GB12237-2007 (ISO 12237)
API 6D
Flange Standards:
GB/T 9124.1-2019
GB/T 9124.2-2019
GB17241.6-2008
Face-to-Face: GB12221-2005 (ISO 5752)
Testing & Inspection: API 598

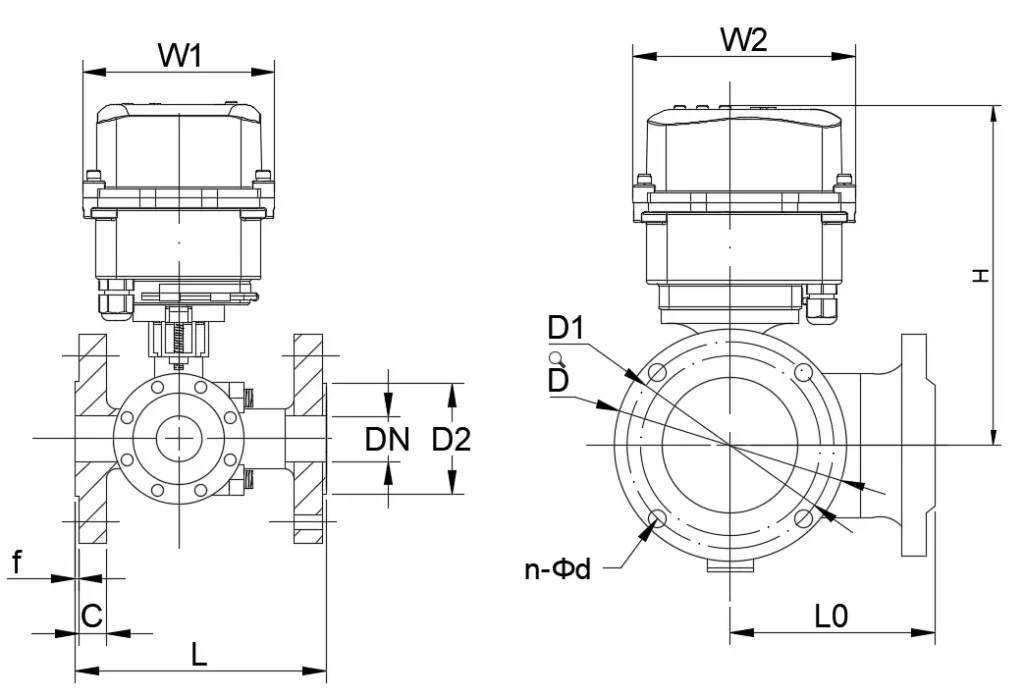

Installation Dimensions of IoT Mini Electric Flange Three-Way Ball Valve

Nominal
Diameter
(DN）		LL0D2CfDD1Hn-ΦdW1W2
1515075451429565143.54-Φ1468.588.5
201608055142105751624-Φ1493108
251809065142115851784-Φ1493108
32200100781621351001874-Φ1893108

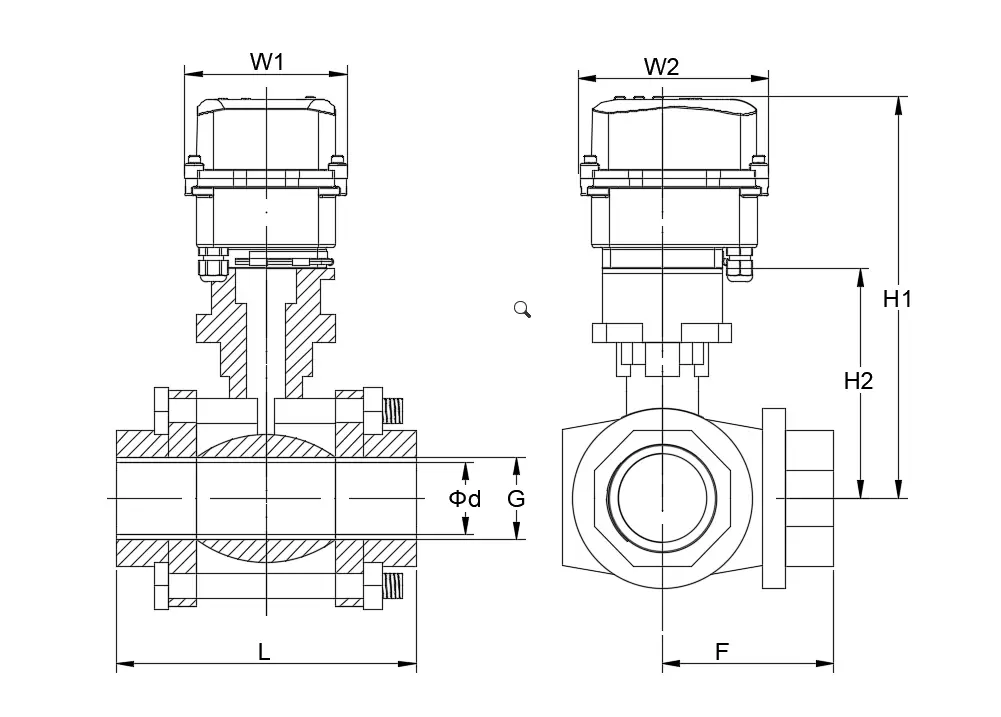

Installation Dimensions of IoT Mini Electric Internal Thread Three-Way Ball Valve

Nominal
Diameter
(DN）		LGΦdFH1H2W1W2
1270Thread Standard
NPT
BSP
DIN
etc		1240123.53868.588.5
15831542125.54068.588.5
188918541505093108
2511625601595993108
3213432681707093108

Circuit wiring diagram

DC 24V
AC 220V
