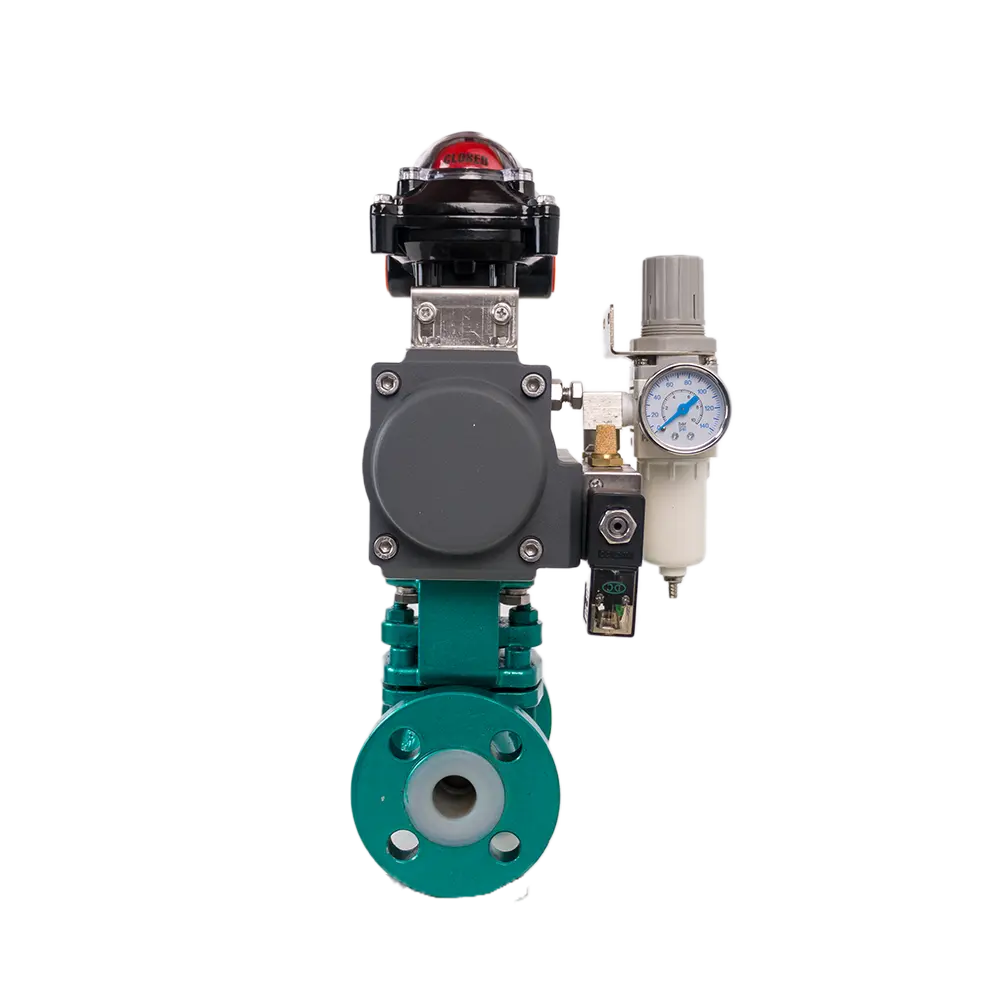

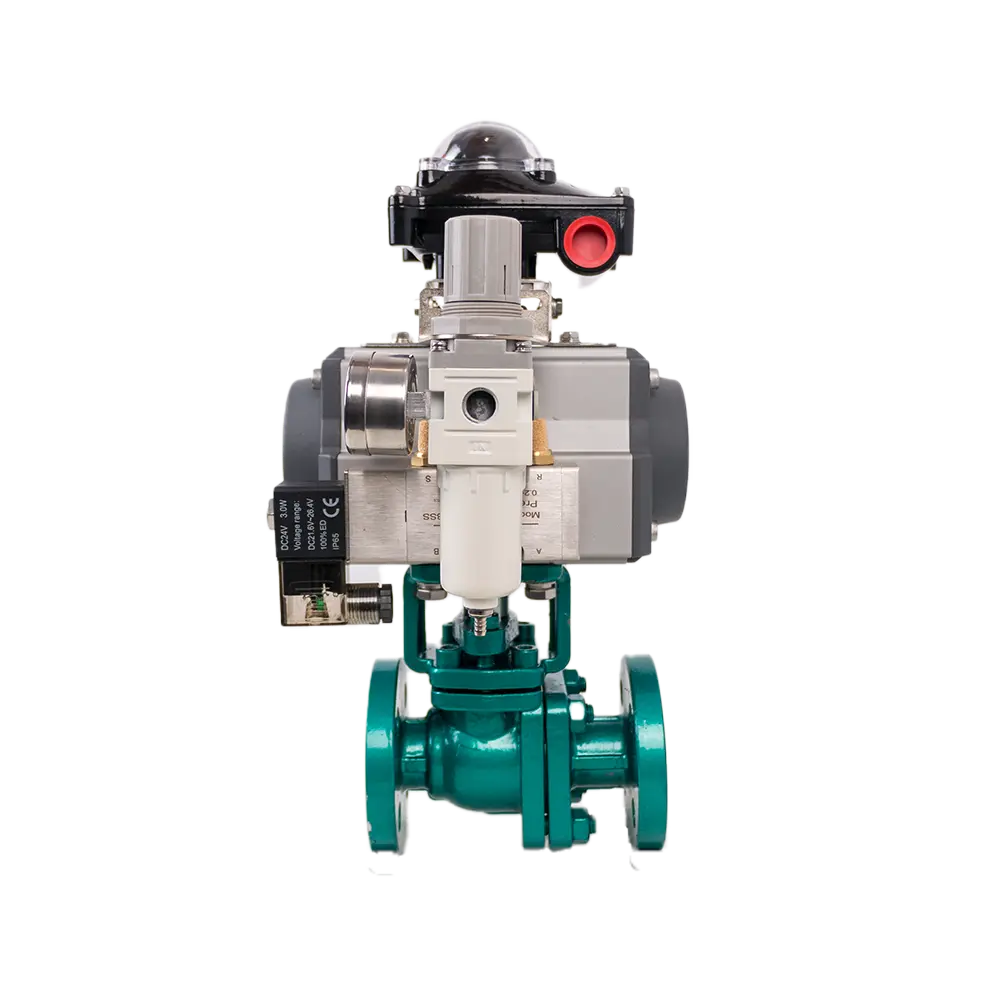

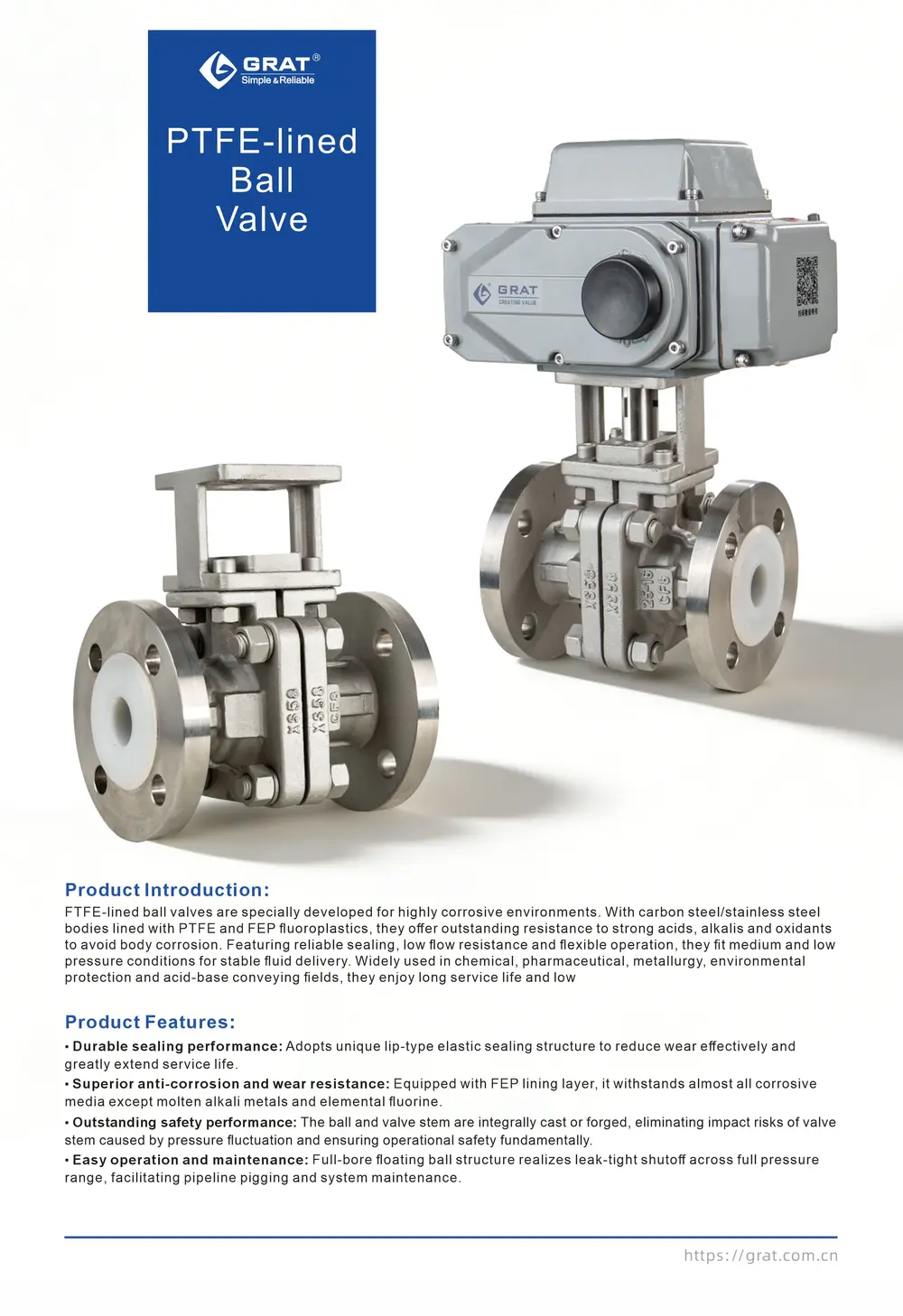

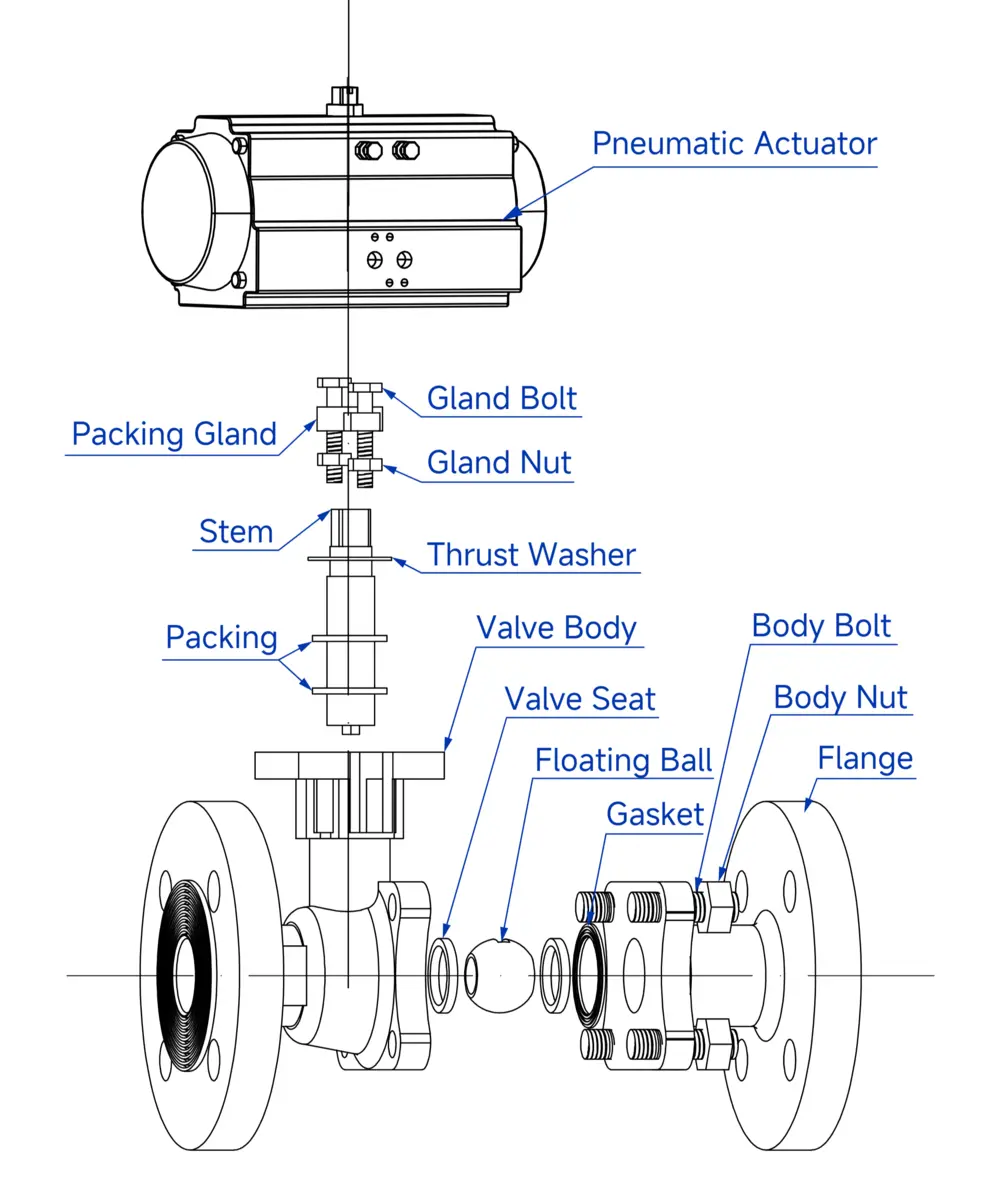

PTFE-Lined Pneumatic Ball Valve
The PTFE-Lined Pneumatic Ball Valve is a corrosion-resistant valve designed for automated flow control in aggressive chemical environments, featuring a PTFE (polytetrafluoroethylene) lining to withstand acids, alkalis, and solvents, combined with a pneumatic actuator for rapid switching or precise regulation. Ideal for industries like chemical processing, pharmaceuticals, and wastewater treatment.
Tags
Basic Parameters
Nominal Bore (DN):
DN15～100
Contact us for larger diameters
Operating Power Supply:
AC110V, AC220V, AC380V, DC24V
Medium Temperature:
-15°C～+120°C
(non-freezing)
Working Pressure:
PN1.0～1.6MPa
Control Mode:
Regulating or On/Off Control
Pneumatic Actuation:
- Single-acting (spring return)
- Double-acting
Physical Specifications
Connection Type:
Flange Connection
Valve Body Materials:
WCB, ZG1CrM0, ZG, 1Cr18Ni9Ti, SS304, SS316
Bonnet Material:
WCB, ZG1CrM0, ZG, 1Cr18Ni9Ti
Stuffing Box Material:
WCB, 40Cr, ZG, 1Cr18Ni9Ti
Gland Material:
WCB, ZG1CrM0, ZG, 1Cr18Ni9Ti
Seat Material:
Perfluoroalkoxy (PFA/FEP)
Packing:
Perfluoroalkoxy (PFA/FEP)
Suitable Media
- Acids, alkalis, salts
- Chlorine gas, steam, raw water
- Mineral pulp, paper pulp
- Aqua regia, oxidizers, reducers
- Corrosive chemical liquids
Standards Compliance
Design & Manufacturing:
GB12237-2021
API 6D
Flange Standards:
JB 79—2015
GB/T 9124.1-2019
GB/T 9124.2-2019
ANSI B16.5
JIS B2212
Face-to-Face Dimensions:
GB12221-2005
Testing & Inspection:
API 598

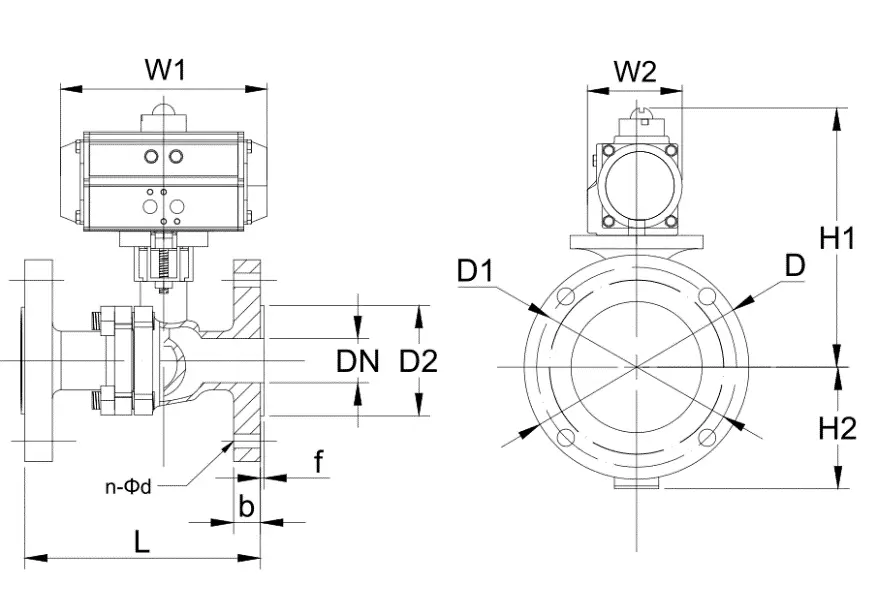

Installation Dimensions of PTFE-Lined Pneumatic Ball Valve
| Nominal Diameter（DN） | L | D | D1 | D2 | b | f | n-Φd | H2 | Double-acting | Single-acting | ||||
| H1 | W1 | W2 | H1 | W1 | W2 | |||||||||
| 15 | 130 | 95 | 65 | 45 | 16 | 2.5 | 4-Φ14 | 47.5 | 202 | 147 | 72 | 202 | 147 | 72 |
| 20 | 140 | 105 | 75 | 55 | 18 | 2.5 | 4-Φ14 | 52.5 | 217 | 147 | 72 | 233 | 168 | 83 |
| 25 | 150 | 115 | 85 | 65 | 19 | 3 | 4-Φ14 | 57.5 | 238 | 168 | 83 | 250 | 184 | 95 |
| 32 | 165 | 140 | 100 | 78 | 19 | 3 | 4-Φ18 | 70 | 258 | 168 | 83 | 279 | 204 | 103 |
| 40 | 180 | 150 | 110 | 85 | 19 | 3.5 | 4-Φ18 | 75 | 275 | 184 | 95 | 292 | 262 | 109 |
| 50 | 200 | 165 | 125 | 100 | 19 | 3.5 | 4-Φ18 | 82.5 | 294 | 204 | 103 | 318 | 268 | 122 |
| 65 | 220 | 185 | 145 | 120 | 19 | 3.5 | 4-Φ18 | 92.5 | 312 | 262 | 109 | 370 | 301 | 142 |
| 80 | 260 | 200 | 160 | 135 | 20 | 3.5 | 8-Φ18 | 100 | 383 | 268 | 122 | 442 | 390 | 152 |
| 100 | 280 | 220 | 180 | 155 | 21 | 4 | 8-Φ18 | 110 | 450 | 301 | 142 | 492 | 458 | 174 |
