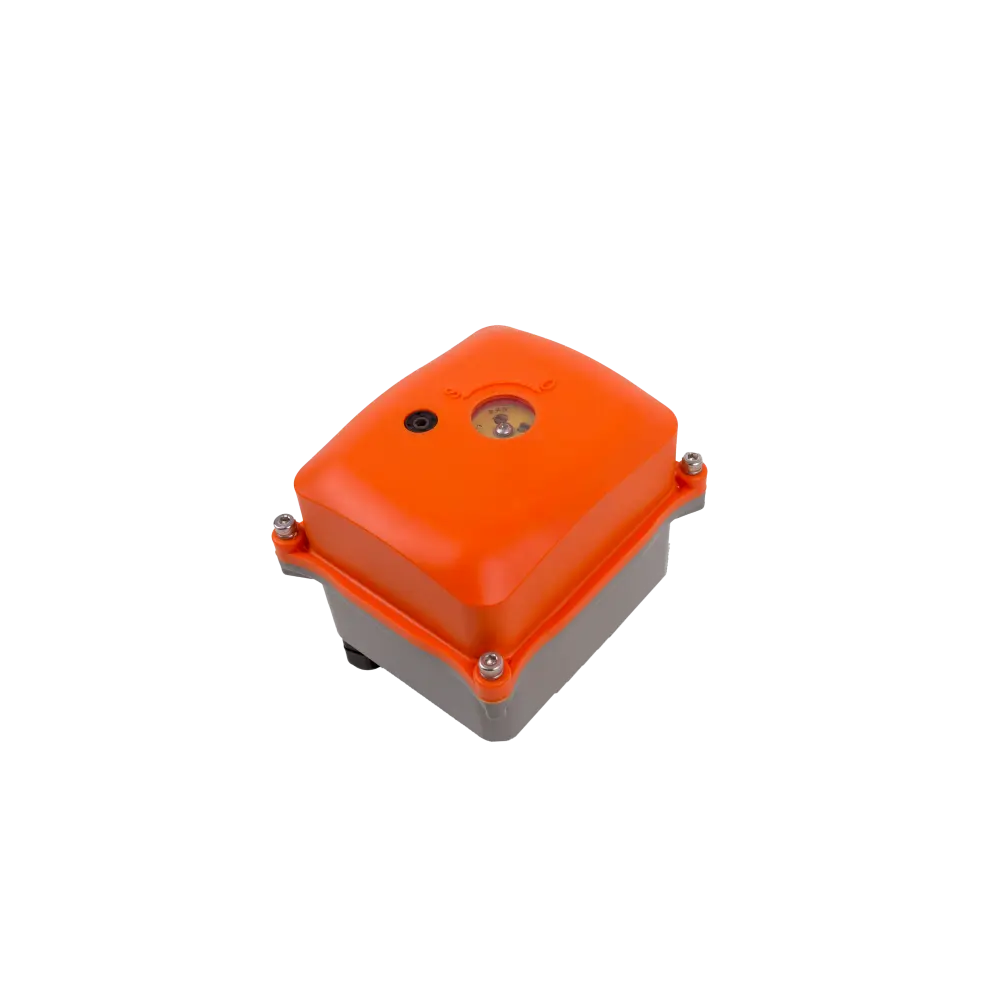

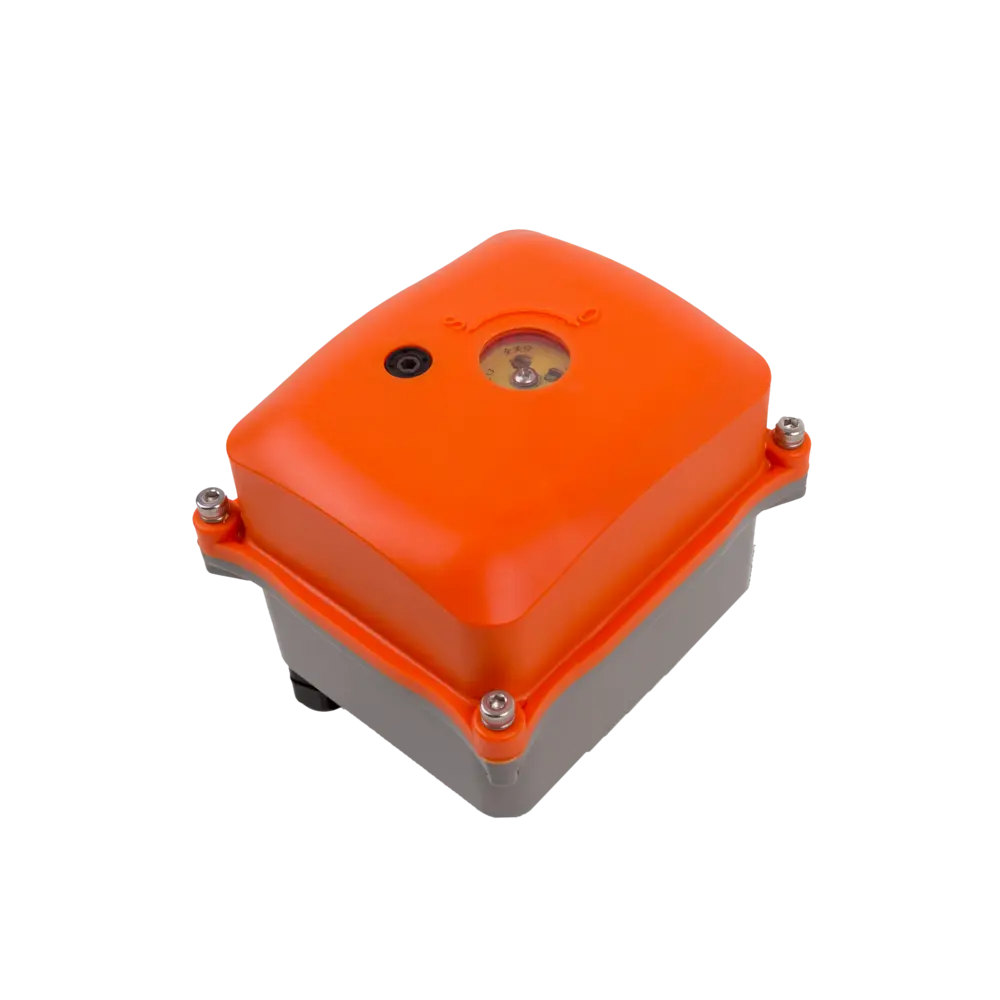

50Nm IoT Mini Electric Actuator (On-Off)

The WA-50 IoT Mini Actuator combines smart adaptability with cross-industry versatility, delivering user-friendly operation for both industrial automation and IoT-enabled systems.

Product Description

The WA-50 IoT Mini electric actuator is an on/off type actuator designed for reliable valve control. It features valve position feedback via multiple analog options ((Passive Contact/1kΩ/4-20mA)) and IoT connectivity for remote monitoring and control. With an IP67 protection rating and an operating temperature range of -30°C to 60°C, it is built to perform in harsh environments.

As Featured In

Compact and Light

Total weight: 1Kg

Size (mm): 109 × 94 × 100

High efficiency

low power consumption

high torque

Torque

Output torque 50N · m

Actuation time 15-25S

Ingress Protection

Dustproof and waterproof

IP67 rating

50Nm IoT mini Electric Actuator
Parameter	Specification
Rated Voltage	AC220V/DC24V
Rated Power	15W
Rated Torque	50N·m
Compatible Valves	50N·m (DN32-DN40 ball valves)
Control Method	On-Off
Communication Protocol	Modbus-compatible
Control Precision	0.5%, high-performance brushless motor with built-in overload protection
Travel Time	15s-25s (0-90°)
Position Display	Opening Indicator
Manual Operation	Hex key operation
Housing Material	ABS housing + TPE buttons + integrated PC lens upper case
Output Shaft	Recessed octagonal (14×14mm)

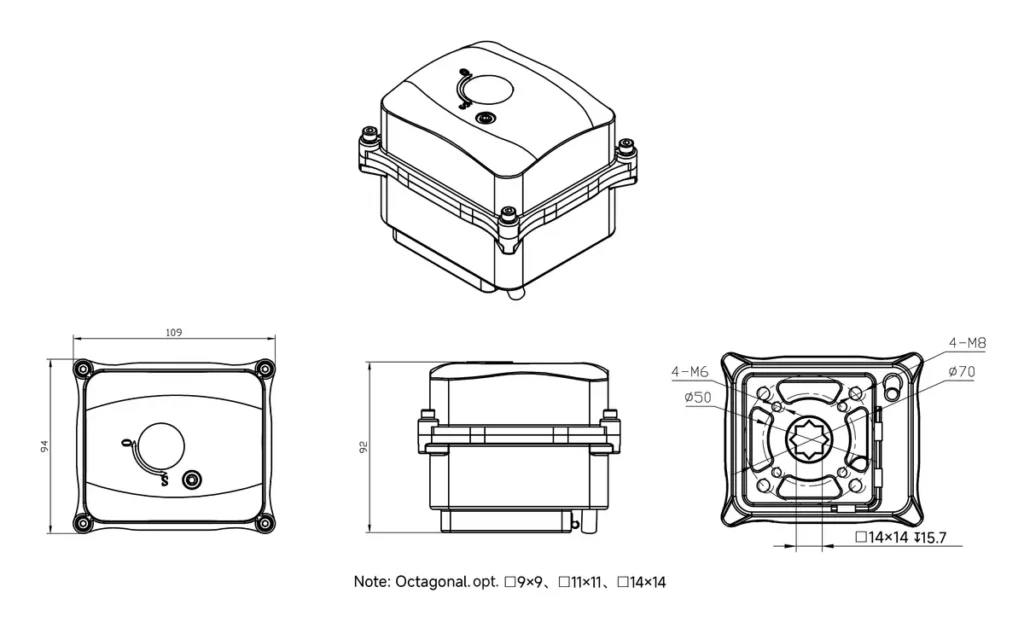

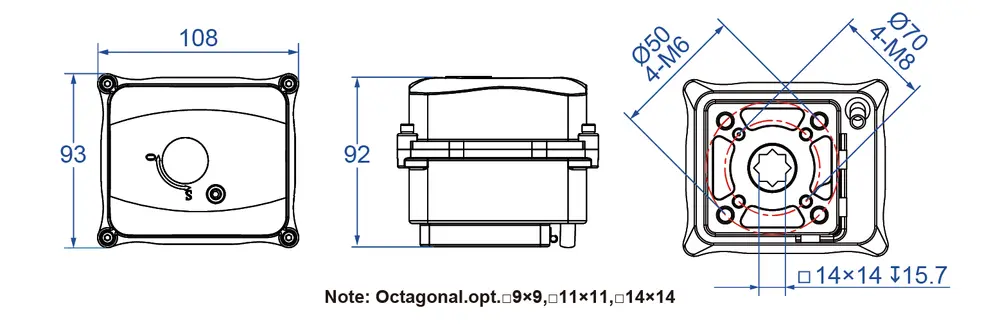

EA-50 Dimension Diagram

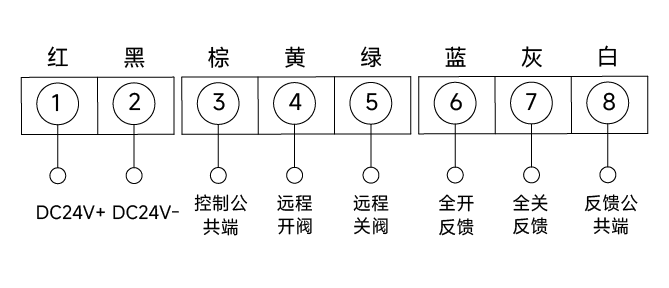

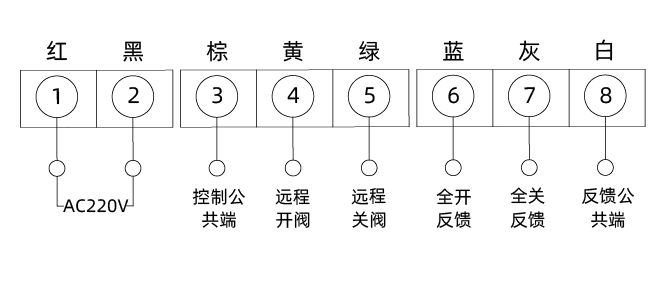

Circuit wiring diagram

Documents & Drawings:

WA-50-Actuator-Instruction-Manual

Download
