Electric Actuators

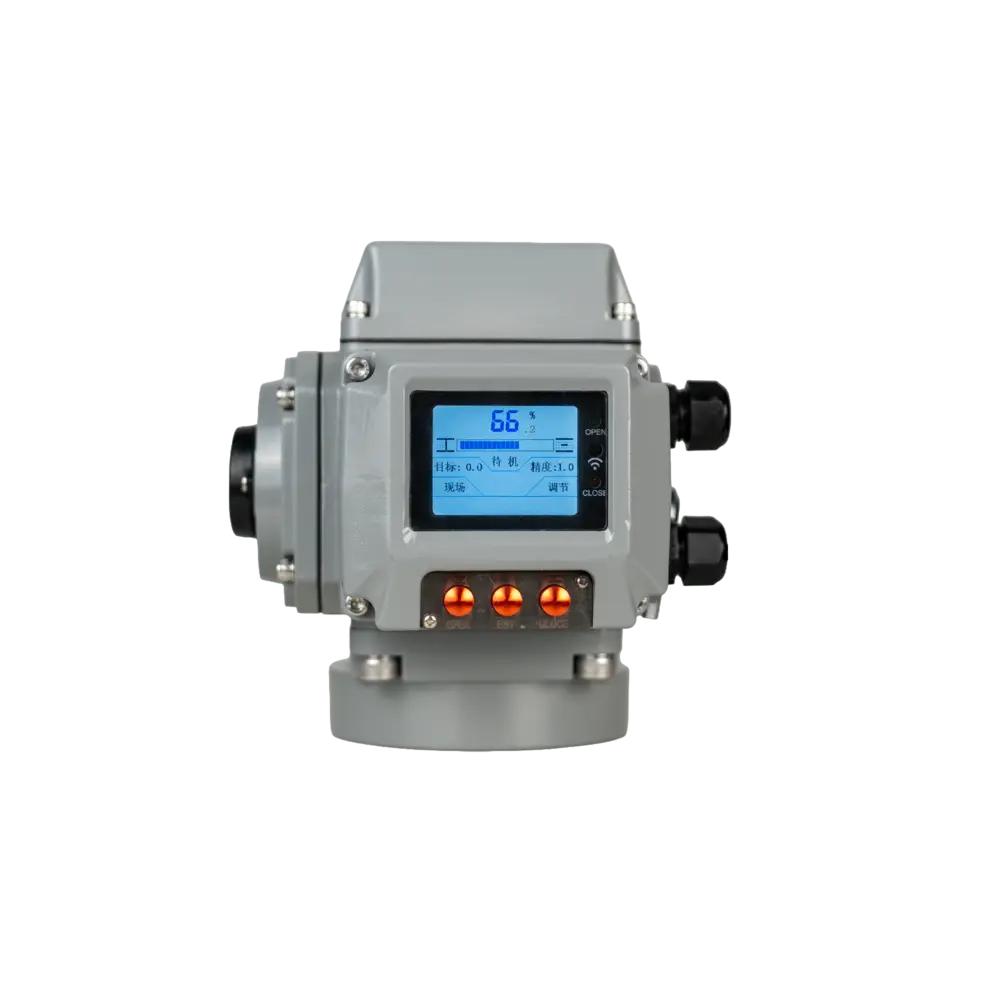

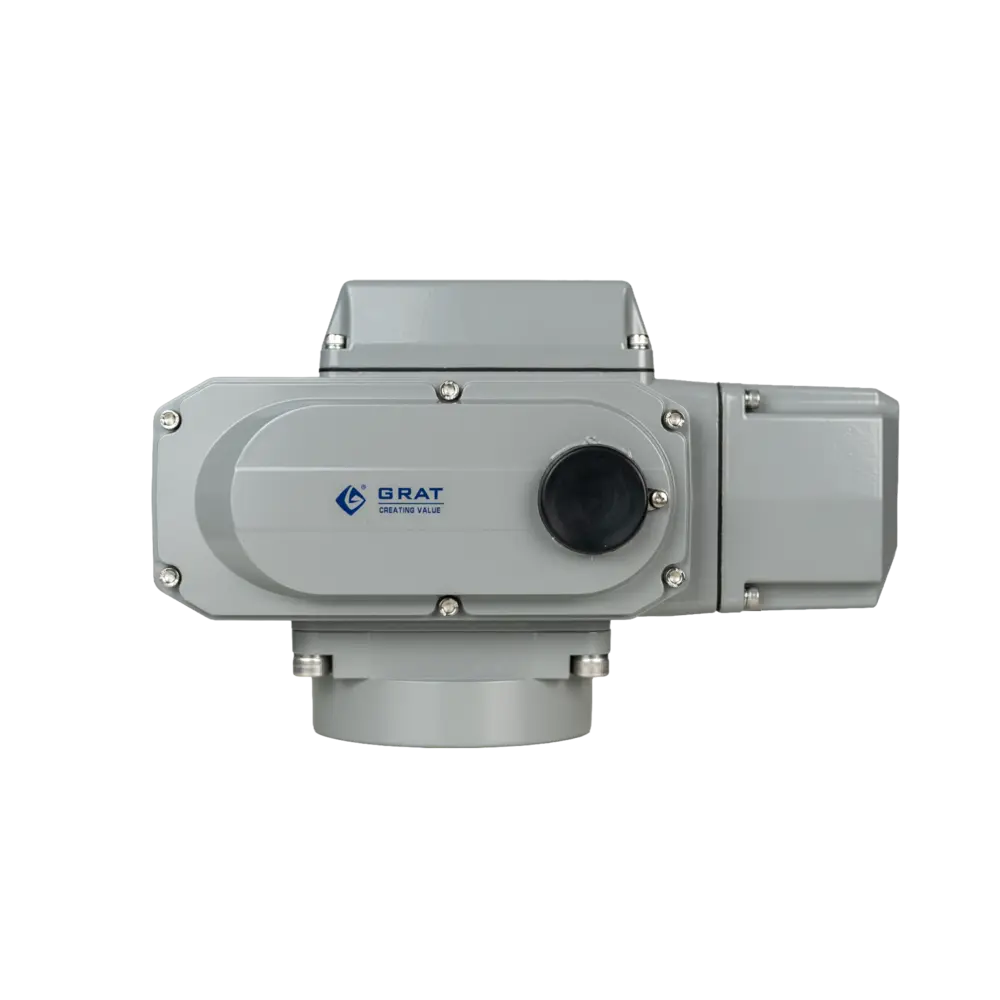

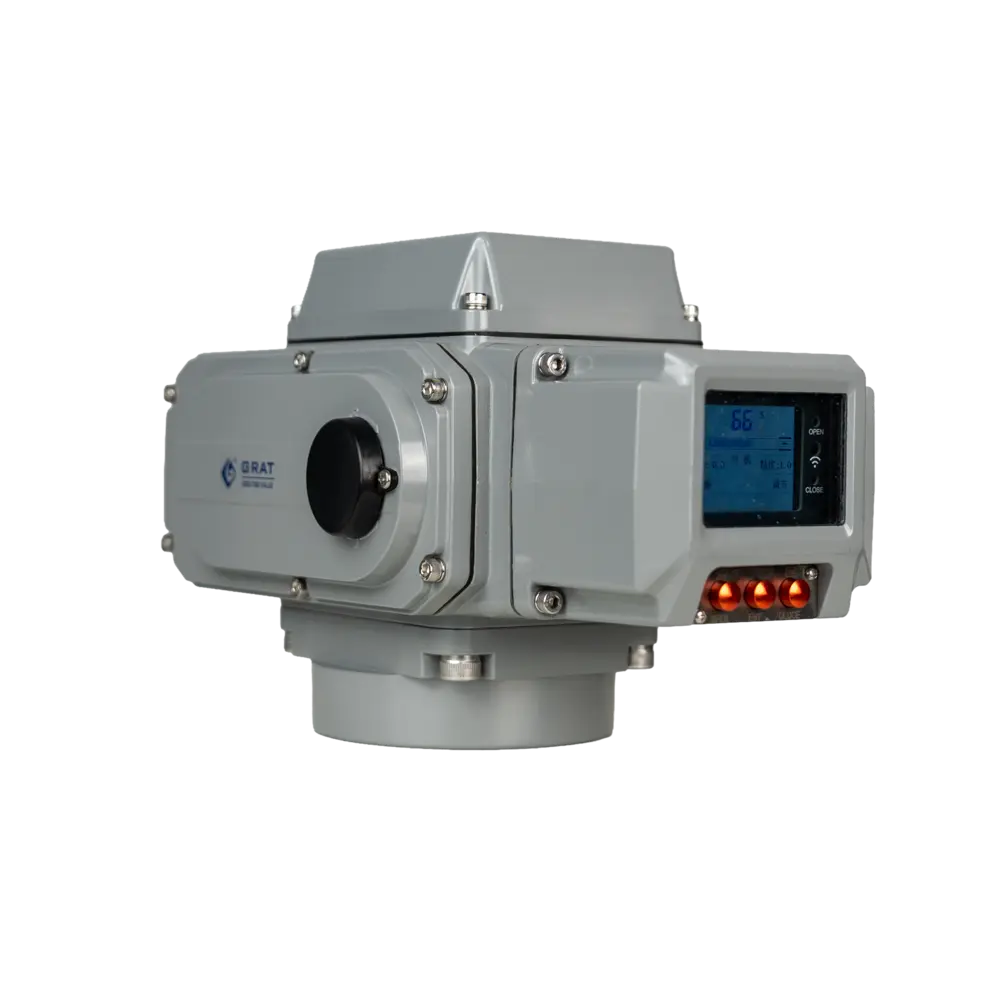

Smart Electric Actuator

The intelligent electric actuator is a key industrial device that integrates advanced sensing, precise control, and intelligent communication. It can accurately drive devices such as valves according to complex instructions, enabling automated and intelligent operation.

Get Best Price
Get Best Price
Tags
,

Product Description

The intelligent electric actuator, with features such as intelligent control, high - precision driving, and reliable durability, offers a variety of options for power supply voltage, control signals, torque specifications, and running speeds. It has diverse protection and explosion - proof ratings, is widely applied in multiple industries, is easy to install and maintain, and has advantages such as enhancing production efficiency, reducing costs, improving safety, and strengthening system compatibility. It is a cutting - edge product in the field of industrial automation.

Product Structure

The Explosion Proof Electric Actuator comes with various control modes, including on-off type, modulating type, switch-type, and regulation type, providing flexibility and versatility in its application. It is also designed with a power supply of AC 220V/380V and DC 24V/110V, making it suitable for various power sources.
One of the key features of this actuator is its explosion-proof level of Ex db ⅡC T6, which guarantees maximum safety and protection against potential hazards. This means that it is capable of withstanding high temperatures, pressure, and flammable substances, making it a reliable choice for hazardous environments.

As Featured In
Power Supply

AC 24V/110V/220V/380V

DC 24V

High efficiency

low power consumption, high torque

Torque

Output torque 50-600N · m

Actuation time 20-45S

Ingress Protection

Dustproof and waterproof with an IP67 rating

Accuracy

Hysteresis<0.5%

Dead Zone<0.5%

Feedback Error<0.5%

Valve Adaptable

0~90°

ball valve

butterfly valve

I/O

4-20mA

0-10V

Modbus

Optional Function

Dehumidification and heating

Passive contact switch

Over-torque protection

Quick & Convenient

Direct Debugging Switch(DDS) in electric actuators

Power Type:Electric
Material:Aluminum Alloy, Stainless Steel
Certification:CCC、ISO、CE
Torque Range:50Nm, 100Nm, 200Nm, 400Nm, 600Nm
Power Supply:AC 24V/110V/220V/380V, DC 24V
Ingress Protection:IP67
Control Mode:On-ofOn/off, Positioning, Throttling, Modulating
Input/Output:4-20mA, 0-10V, Modbus
Valve Connection:ISO5211, DIN3337, VDI/VDE 3845,Flanged, Wafer

Explosion-Proof Electric Actuator
ModelEA-50-ExEA-100-ExEA-200-ExEA-400-ExEA-600-Ex
Output Torque50N·m100N·m200N·m400N·m600N·m
Recommended
Valve
Adaptation		Ball ValveDN15-40DN50-65DN65-80DN80-100DN150-200
Butterfly ValveDN32-50DN50-125DN150-200DN200-250DN300
Action Time20S30S30S30S45S
Rotation Angle0~90°0~90°0~90°0~90°0~90°
Motor PowerAC24V10W25W000
AC110V10W25W40W90W90W
AC220V10W25W40W90W90W
AC380V6W15W30W40W40W
DC24V13W25W40W70W70W
Rated CurrentAC24V1.5A2.12A000
AC110V0.24A0.57A0.63A1.12A1.18A
AC220V0.15A0.30A0.35A0.64A0.67A
AC380V0.07A0.10A0.19A0.29A0.29A
DC24V1.28A2.03A3.12A7.8A8.0A
Weight4.5Kg5.0Kg9.0Kg9.5Kg10.0Kg
Insulation Resistance100 MΩ at 500 V DC
Withstand Voltage1,500 V AC for 1 minute
Protection RatingIP67
Explosion-proof RatingEx db ⅡC T6 Gb
Installation Orientation360° adjustable
Electrical Interface2-M20x1.5 explosion-proof plugs; Users to install corresponding explosion-proof cable glands based on selected cables
Control CircuitType S/MS/PIU/SP/PCU/CPT/G/H
Optional Features◆ Dehumidification heater ◆ Passive contact switch ◆ Over-torque protection ◆ Field protection unit
Testing StandardJB/T8219-2016, GB/T 3836.1-2021, GB/T 3836.2-2021

Documents & Drawings:
