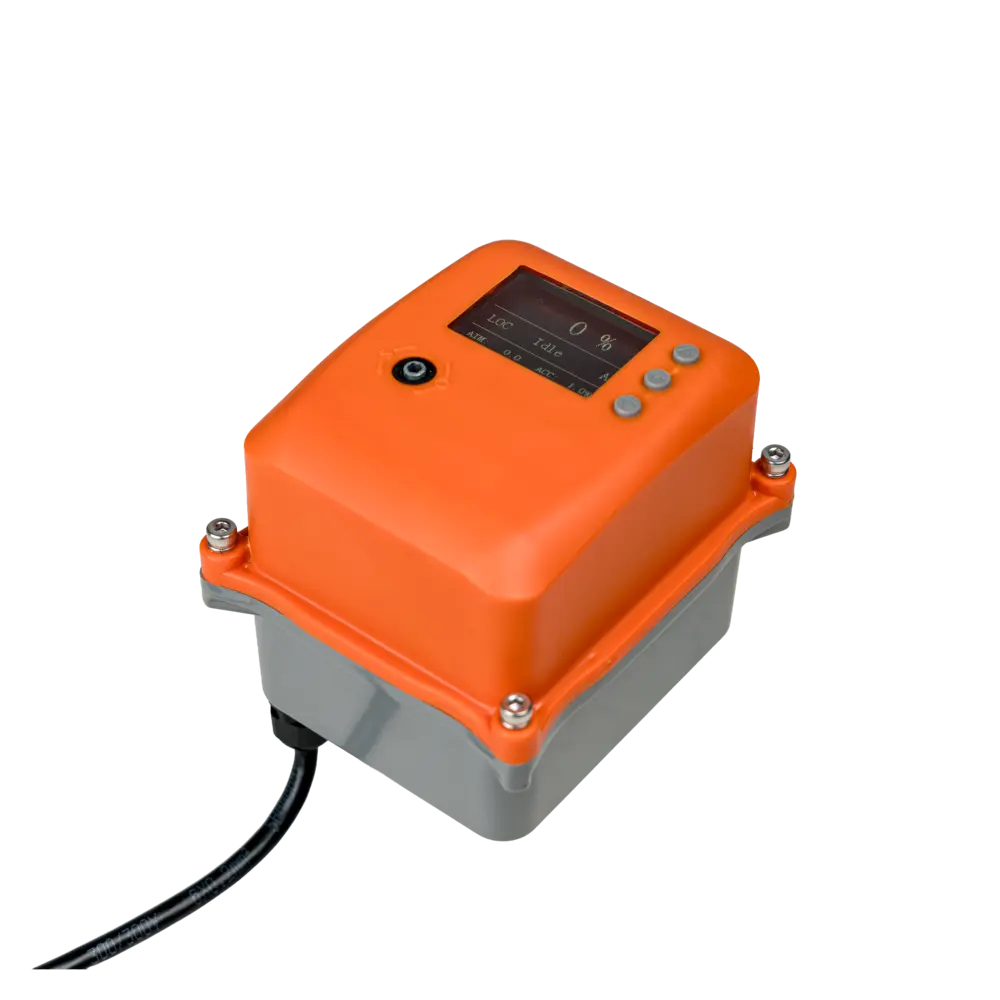

50Nm IoT Mini Electric Actuator

The EA-50 IoT Mini Actuator combines smart adaptability with cross-industry versatility, delivering user-friendly operation for both industrial automation and IoT-enabled systems.

Tags

Compact Actuator, Electric Actuator, IoT, Mini Actuator

Product Description

The EA-50 IoT Mini electric actuator supports multiple feedback methods (4-20mA/0-10V/1-5V), offers 0.5% precision modulation, IP67 protection, and operates in a wide temperature range of -30°C to 60°C, making it suitable for intelligent control of ball valves in industries like food, environmental protection, etc.

Product Structure

The device adopts integrated circuit control and a high-performance motor, featuring an ABS upper case and aluminum alloy body. It supports functions such as real-time display and manual operation, offers various optional special functions, and is equipped with a manual crank.

EA 50 Structure

As Featured In

Compact and Light

Total weight: 1Kg

Size (mm): 109 × 94 × 100

High efficiency

low power consumption, high torque

Torque

Output torque 50N · m

Actuation time 15-25S

Ingress Protection

Dustproof and waterproof with an IP67 rating

OLED Display

Parameter Visualization

Real-time Feedback

Fault Alerts

Smooth Speed Control

The adoption of PWM-based stepless speed regulation

I/O

4-20mA

0-10V

Modbus

Valve Adaptable

0~90°

ball valve

50Nm IoT mini Electric Actuator
Parameter	Specification
Rated Voltage	AC220V/DC24V
Rated Power	15W
Rated Torque	50N·m
Compatible Valves	50N·m (DN32-DN40 ball valves)
Speed Control	PWM stepless speed regulation, smooth operation
Adjustable Range	30%-100%
Control Method	Regulation (Encoder)
Communication Protocol	Modbus-compatible
Control Precision	0.5%, high-performance brushless motor with built-in overload protection
Travel Time	15s-25s (0-90°)
Position Display	OLED real-time display showing current status and parameter info
Manual Operation	Hex key operation
Housing Material	ABS housing + TPE buttons + integrated PC lens upper case
Output Shaft	Recessed octagonal (14×14mm)

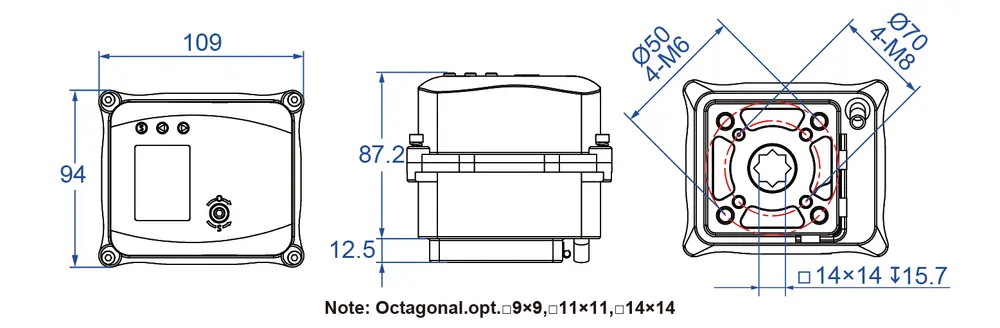

EA-50 Dimension Diagram

EA 50 Dimension Diagram

Circuit wiring diagram

IoT Mini 24V Circuit wiring diagram — DC 24V

IoT Mini 220V Circuit wiring diagram — AC 220V

Documents & Drawings:

WA-50-Actuator-Instruction-Manual
